030663-01 Briggs and Stratton Generator 7,000 Watt

Model: 030663-01

Back To Assemblies

Save Part Not Listed?
product name

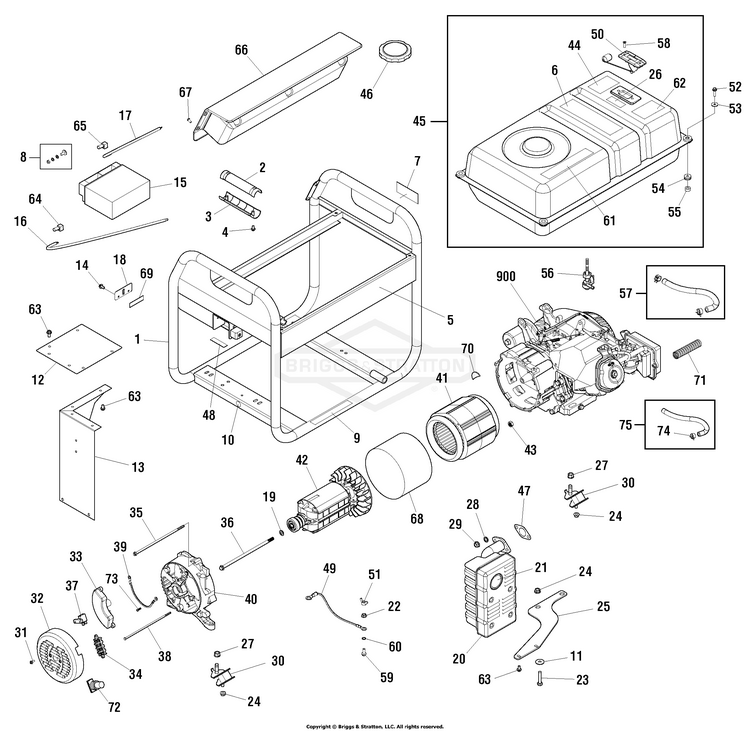

Main Unit (80017651)

...
...
1
CRADLE (Includes Ref. Nos. 5, 7, 9 & 10) BS-706551
...
2
GRIP-HANDLE BS-312009GS
...
3
GRIP-HANDLE BS-312008GS
...
4
SCREW BS-75477GS
...
5
DECAL BS-706552
...
6
DECAL BS-704186
...
7
DECAL BS-704189
...
8
KIT-HRDWR, BATTERY TERMINAL BS-315546GS
...
9
DECAL BS-704187
...
10
DECAL BS-704331
...
11
WASHER BS-B2495GS
...
12
HEATSHIELD BS-312020GS
...
13
HEATSHIELD BS-312019GS
...
14
BOLT BS-209775GS
...
15
BATTERY BS-316345GS
...
16
CABLE-BTTRY, RED BS-312014GS
...
17
CABLE-BTTRY, BLACK BS-312026GS
...
18
PLATE-BATTERY BS-311983GS
...
19
WASHER BS-207826GS
...
20
MUFFLER BS-192569GS
...
21
SCREEN BS-83083GS
...
22
NUT-M6 FLANGE BS-52857GS
...
23
SCREW BS-57821GS
...
24
NUT BS-67989GS
...
25
SUPPORT-MUFFLER BS-319457GS
...
26
DECAL BS-703264
...
27
NUT BS-52859GS
...
28
LOCKWASHER, SPLIT 3/8 BS-703454
...
29
NUT BS-45771GS
...
30
MOUNT-VIBRATION BS-319451GS
...
31
SCREW BS-207824GS
...
32
END COVER BS-209428GS
...
33
VOLTAGE REGULATOR BS-312038GS
...
34
TERMINAL BLOCK BS-316945GS
...
35
BOLT BS-312042GS
...
36
BOLT BS-312044GS
...
37
BRUSH ASSY BS-207827GS
...
38
BOLT BS-312046GS
...
39
WIRE BS-706150
...
40
CARRIER-BEARING BS-708704
...
41
STATOR BS-706556
...
42
ROTOR BS-708718
...
43
NUT BS-207878GS
...
44
DECAL BS-704192
...
45
TANK-FUEL BS-706554
...
46
CAP-FUEL BS-319587GS
...
47
GASKET, Exhaust BS-797770
...
48
PAD-RUBBER BS-706535
...
49
WIRE BS-706165
...
50
GAUGE-FUEL BS-704183
...
51
NUT BS-87680GS
...
52
BOLT BS-703805
...
53
WASHER BS-312005GS
...
54
GROMMET BS-189134GS
...
55
SPACER BS-189137GS
...
56
VALVE-FUEL BS-209417GS
...
57
LINE, Fuel (Cut to Fit) BS-791745
...
58
SCREW BS-314440GS
...
59
SCREW BS-590703
...
60
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
61
DECAL BS-704193
...
62
DECAL BS-202997GS
...
63
SCREW BS-590850
...
64
CAP-WIRE, RED BS-319405GS
...
65
CAP-WIRE, BLACK BS-319821GS
...
66
ASSY-CONTROL PANEL BS-709528
...
67
BOLT BS-703804
...
68
BOND BS-706164
...
69
PAD-RUBBER BS-706377
...
70
COVER-RUBBER BS-706376
...
71
BELLOWS BS-706534
...
72
BOOT BS-207879GS
...
73
SCREW BS-207824GS
...
74
CLAMP BS-314955GS
...
75
HOSE-VAPOR (Cut to Fit) BS-315017GS
...
--
FUSE BS-316742GS
...
--
OIL BS-100028WEB
...
--
CHARGER, Battery BS-84002790
