030662-00 Briggs and Stratton Generator 8,000 Watt

Model: 030662-00

Save Part Not Listed?
product name

Popular Parts

Popular Parts

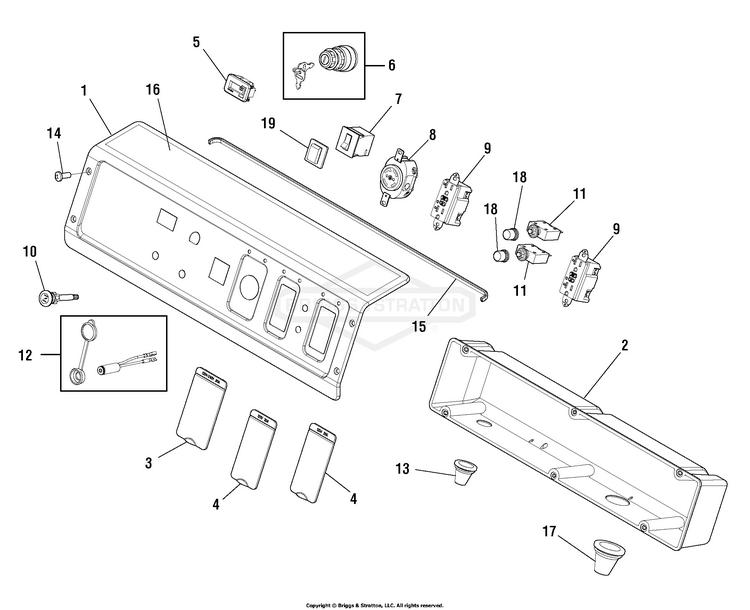

Control Panel (80013551)

...
...
1
PANEL-CONTROL BS-706956
...
2
BOX-CONTROL PANEL BS-319458GS
...
3
COVER-OUTLET BS-319477GS
...
4
COVER-OUTLET BS-319476GS
...
5
METER-HOUR BS-202602GS
...
6
KEY-SWITCH IGNITION BS-318307GS
...
--
KEY BS-705436
...
7
BREAKER-CIRCUIT 30A BS-202033GS
...
8
OUTLET-120/240V TL30A BS-43437GS
...
9
OUTLET-125V 20A BS-80409GS
...
10
CABLE-CHOKE BS-312034GS
...
11
BREAKER-CIRCUIT 20A BS-209872GS
...
12
SOCKET-CHARGER BS-704656
...
--
RUBBER COVER BS-312687GS
...
13
GROMMET BS-319530GS
...
14
SCREW BS-703804
...
15
TRIM-EDGE BS-319459GS
...
16
DECAL BS-705791
...
17
GROMMET BS-319529GS
...
18
BOOT-CIRCUIT BREAKER BS-312636GS
...
19
BOOT, Breaker Circuit BS-191481GS

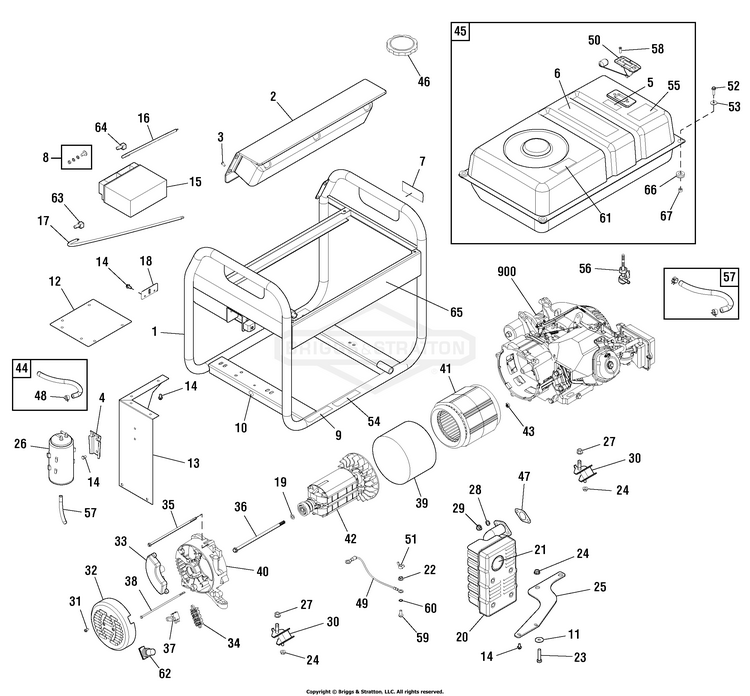

Main Unit (80013184)

...
...
1
CRADLE BS-705784
...
2
PANEL-CONTROL BS-706955
...
3
SCREW BS-703804
...
4
BRACKET BS-318884GS
...
5
DECAL BS-703264
...
6
DECAL BS-319064GS
...
7
DECAL BS-704142
...
8
KIT-HRDWR, BATTERY TERMINAL BS-315546GS
...
9
DECAL BS-705545
...
10
DECAL BS-704331
...
11
WASHER BS-B2495GS
...
12
HEATSHIELD BS-705489
...
13
HEATSHIELD BS-705503
...
15
BATTERY BS-316345GS
...
16
CABLE-BTTRY, RED BS-312014GS
...
17
CABLE-BTTRY, BLACK BS-312026GS
...
18
PLATE-BATTERY BS-311983GS
...
19
WASHER BS-207826GS
...
20
MUFFLER BS-192569GS
...
21
SCREEN BS-83083GS
...
22
NUT-M6 FLANGE BS-52857GS
...
24
NUT BS-67989GS
...
25
SUPPORT-MUFFLER BS-319457GS
...
26
CARB CANISTER BS-209044GS
...
27
NUT BS-52859GS
...
30
MOUNT-VIBRATION BS-319451GS
...
31
SCREW BS-207824GS
...
32
END COVER BS-209428GS
...
33
VOLTAGE REGULATOR BS-207840GS
...
34
TERMINAL BLOCK BS-316945GS
...
35
BOLT BS-704237
...
36
BOLT BS-705786
...
37
BRUSH ASSY BS-207827GS
...
38
BOLT BS-705787
...
39
BAND-STATOR BS-705788
...
40
CARRIER-BEARING BS-708704
...
41
STATOR BS-705789
...
42
ROTOR BS-705790
...
43
NUT BS-207878GS
...
44
HOSE-VAPOR BS-315017GS
...
45
TANK-FUEL BS-704184
...
46
CAP-FUEL BS-319587GS
...
47
GASKET, Exhaust BS-797770
...
48
CLAMP BS-314955GS
...
49
WIRE BS-312040GS
...
50
GAUGE-FUEL BS-704183
...
51
NUT BS-87680GS
...
52
BOLT BS-703805
...
53
WASHER BS-312005GS
...
54
DECAL BS-319066GS
...
55
DECAL BS-202997GS
...
56
VALVE-FUEL BS-209417GS
...
57
LINE, Fuel BS-791745
...
58
SCREW BS-314440GS
...
61
DECAL BS-319065GS
...
62
BOOT BS-207879GS
...
63
CAP-WIRE, BLACK BS-319821GS
...
64
CAP-WIRE, RED BS-319405GS
...
65
DECAL BS-705500
...
66
GROMMET BS-189134GS
...
67
SPACER BS-189137GS
...
--
CHARGER, Battery (Not Illustrated) BS-84002790

Wheel Kit (80006254)

...
...
1
HANDLE BS-319396GS
...
2
GRIP-HANDLE BS-319360GS
...
3
GRIP-HANDLE BS-319361GS
...
4
SCREW BS-75477GS
...
5
BOLT BS-318677GS
...
6
WASHER BS-84002245
...
7
NUT BS-49820GS
...
8
BOLT BS-84001685
...
9
KNOB BS-319453GS
...
10
SPRING BS-319452GS
...
11
PIN BS-319454GS
...
12
MOUNT-VIBRATION BS-319285GS
...
13
BOLT BS-771804
...
14
NUT BS-67989GS
...
15
SUPPORT-LEG BS-704198
...
16
AXLE BS-703813
...
17
WHEEL BS-704145
...
18
WASHER, 5/8" SAE BS-5025281SM
...
19
PIN-HAIR BS-316510GS

Wiring Diagram (80010737WD)

...

No Parts Available for this Schematic

Wiring Schematic (80010737WS)

...

No Parts Available for this Schematic
