030661-00 Briggs and Stratton Generator 3,500 Watt

Model: 030661-00

Save Part Not Listed?
product name

Popular Parts

Popular Parts

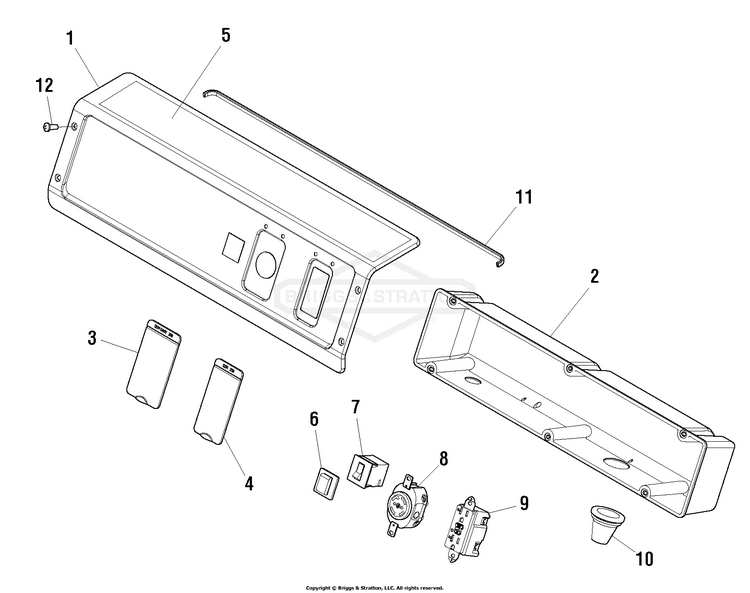

Control Panel (80013293)

...
...
1
PANEL-CONTROL (Includes Ref. No. 5) BS-707618
...
2
BOX-CONTROL PANEL BS-312978GS
...
3
COVER-OUTLET BS-319477GS
...
4
COVER-OUTLET BS-319476GS
...
5
DECAL BS-707617
...
6
BOOT, Breaker Circuit BS-191481GS
...
7
BREAKER-CIRCUIT 15A BS-202027GS
...
8
OUTLET-120/240V 20A BS-68867GS
...
9
OUTLET-120V GFCI 20A BS-80409GS
...
10
GROMMET BS-319529GS
...
11
TRIM-EDGE BS-319459GS
...
12
SCREW BS-703804
...
--
ASSY-CNTRL PNL (Not Illustrated) BS-707620

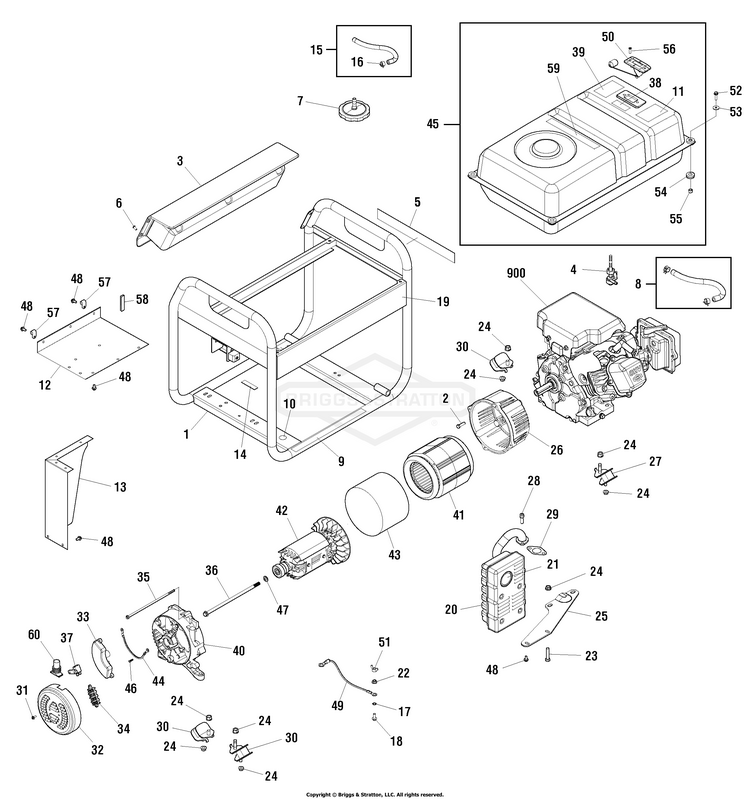

Main Unit (80013294)

...
...
1
CRADLE (Includes Ref. Nos. 7, 9, 10 & 19) BS-707619
...
2
BOLT BS-313368GS
...
3
ASSY-CONTROL PANEL BS-707620
...
4
VALVE-FUEL BS-209417GS
...
5
DECAL BS-707623
...
6
SCREW BS-703804
...
7
CAP-FUEL BS-314950GS
...
8
LINE, Fuel (Cut to fit.) BS-791745
...
9
DECAL BS-704187
...
10
DECAL BS-704331
...
11
DECAL BS-202997GS
...
12
HEATSHIELD BS-313522GS
...
13
HEATSHIELD BS-313523GS
...
14
PAD-RUBBER BS-706535
...
15
HOSE BS-315017GS
...
16
CLAMP BS-314955GS
...
17
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
18
SCREW BS-590703
...
19
DECAL BS-707621
...
20
MUFFLER BS-188301GS
...
21
SCREEN BS-83083GS
...
22
NUT-M6 FLANGE BS-52857GS
...
23
SCREW BS-590714
...
24
NUT BS-67989GS
...
25
SUPPORT-MUFFLER BS-191785GS
...
26
ADAPTER-ENGINE BS-704266
...
27
MOUNT-VIBRATION BS-706149
...
28
KIT-HARDWARE MUFFLER BS-706921
...
29
GASKET BS-798516
...
30
MOUNT-VIBRATION BS-706149
...
31
SCREW BS-207824GS
...
32
END COVER BS-313364GS
...
33
VOLTAGE REGULATOR BS-209420GS
...
34
TERMINAL BLOCK BS-316945GS
...
35
BOLT BS-209427GS
...
36
BOLT BS-313525GS
...
37
BRUSH ASSY BS-207827GS
...
38
DECAL BS-703264
...
39
DECAL BS-704192
...
40
CARRIER-BEARING BS-209423GS
...
41
STATOR BS-313527GS
...
42
ROTOR BS-313529GS
...
43
BOND BS-706154
...
44
WIRE BS-706150
...
45
TANK-FUEL (Includes Ref. Nos. 11, 38, 39 & 59) BS-707622
...
46
SCREW BS-207824GS
...
47
WASHER BS-207826GS
...
48
SCREW BS-590850
...
49
WIRE BS-706153
...
50
GAUGE-FUEL BS-311992GS
...
51
NUT BS-87680GS
...
52
BOLT BS-703805
...
53
WASHER BS-312005GS
...
54
GROMMET BS-189134GS
...
55
SPACER BS-189137GS
...
56
SCREW BS-314440GS
...
57
CLAMP BS-315042GS
...
58
EDGING-RUBBER BS-707616
...
59
DECAL BS-704193
...
60
BOOT BS-207879GS
...
--
OIL BOTTLE BS-100005

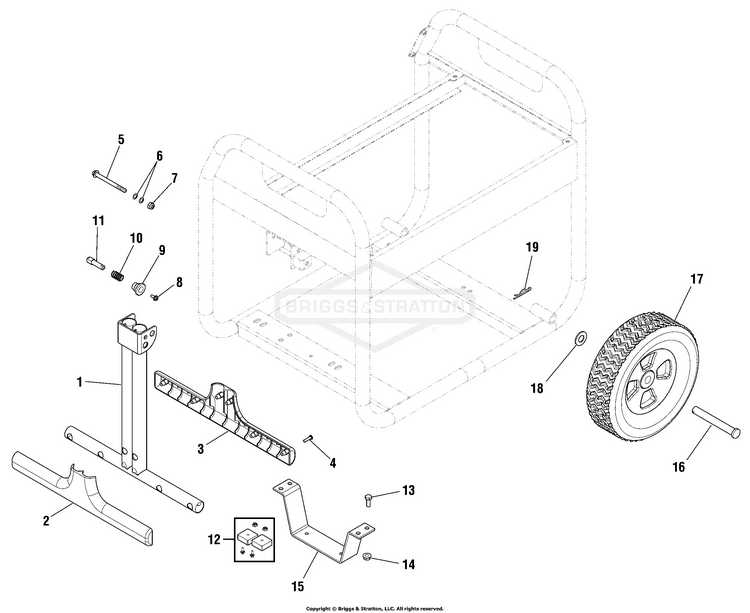

Wheel Group (80011029)

...
...
1
HANDLE BS-312973GS
...
2
GRIP-HANDLE BS-313284GS
...
3
GRIP-HANDLE BS-313283GS
...
4
SCREW BS-75477GS
...
5
BOLT BS-312974GS
...
6
WASHER BS-187104GS
...
7
NUT BS-49820GS
...
8
BOLT BS-207825GS
...
9
KNOB BS-319453GS
...
10
SPRING BS-319452GS
...
11
PIN BS-319454GS
...
12
MOUNT-VIBRATION BS-319285GS
...
13
BOLT BS-706348
...
14
NUT BS-67989GS
...
15
SUPPORT-LEG BS-704198
...
16
AXLE BS-703813
...
17
WHEEL BS-704145
...
18
WASHER, 5/8" SAE BS-5025281SM
...
19
PIN-HAIR BS-316510GS

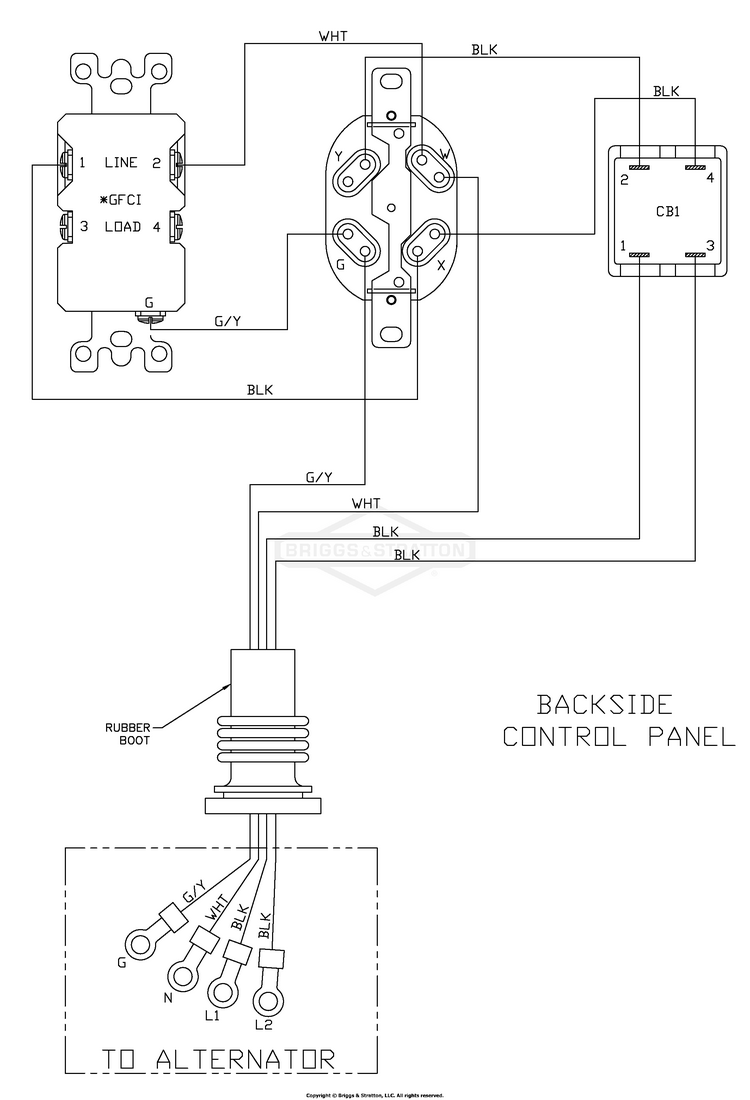

Wiring Diagram (80012540WD)

...

No Parts Available for this Schematic

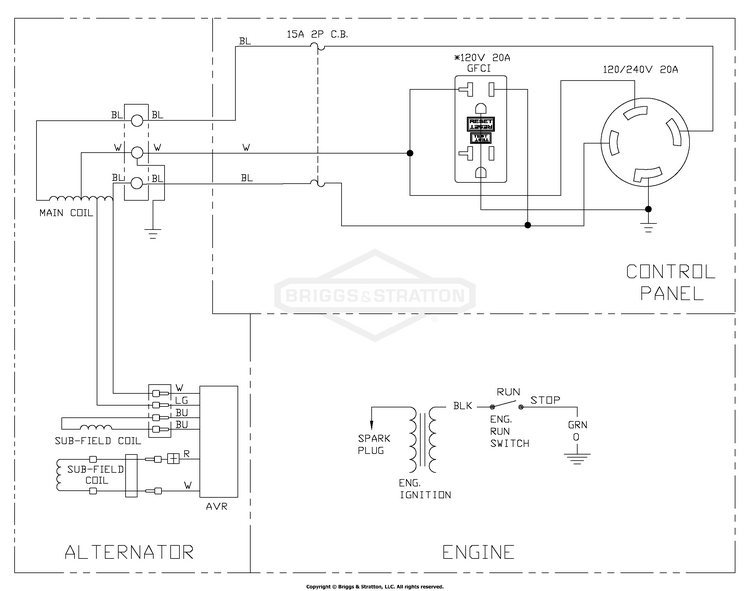

Wiring Schematic (80012540WS)

...

No Parts Available for this Schematic
