030657-00 Briggs and Stratton Generator 5,000 Watt

Model: 030657-00

Back To Assemblies

Save Part Not Listed?
product name

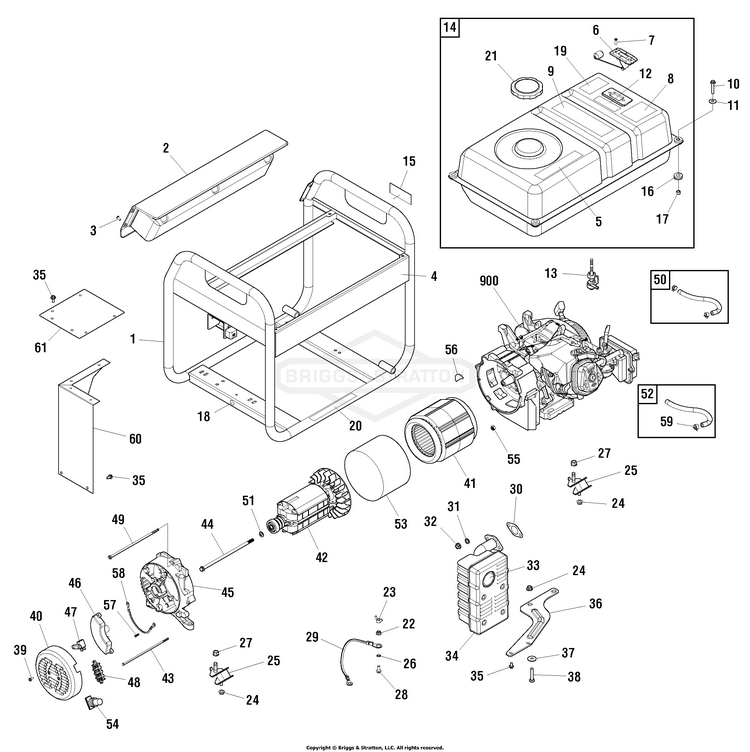

Main Unit (80013209)

...
...
1
CRADLE BS-705740
...
2
PANEL-CONTROL BS-707000
...
3
SCREW BS-703804
...
4
DECAL BS-704191
...
5
DECAL BS-704193
...
6
GAUGE-FUEL BS-704183
...
7
SCREW BS-314440GS
...
8
DECAL BS-202997GS
...
9
DECAL BS-704186
...
10
SCREW BS-703805
...
11
WASHER BS-312005GS
...
12
DECAL BS-703264
...
13
VALVE-FUEL BS-209417GS
...
14
TANK-FUEL BS-704188
...
15
DECAL BS-704189
...
16
GROMMET BS-189134GS
...
17
SPACER BS-189137GS
...
18
DECAL BS-704331
...
19
DECAL BS-704192
...
20
DECAL BS-704187
...
21
CAP-FUEL BS-319587GS
...
23
NUT BS-87680GS
...
25
MOUNT-VIBRATION BS-319451GS
...
29
WIRE BS-706165
...
30
GASKET, Exhaust BS-797770
...
33
SCREEN BS-83083GS
...
34
MUFFLER BS-192569GS
...
36
BRACKET-MUFFLER BS-705501
...
38
HHCS-M8-1.25 x 40 BS-57821GS
...
39
SCREW BS-207824GS
...
40
END COVER BS-313364GS
...
41
STATOR BS-704140
...
42
ROTOR BS-704202
...
43
BOLT BS-317340GS
...
44
BOLT BS-708710
...
45
CARRIER-BEARING BS-708704
...
46
VOLTAGE REGULATOR BS-207840GS
...
47
BRUSH ASSY BS-207827GS
...
48
TERMINAL BLOCK BS-316945GS
...
49
BOLT BS-317338GS
...
50
LINE, Fuel BS-791745
...
51
WASHER BS-207826GS
...
52
HOSE-VAPOR (cut to fit) BS-315017GS
...
53
BAND-STATOR BS-317342GS
...
54
BOOT BS-207879GS
...
55
NUT BS-207878GS
...
56
COVER-RUBBER BS-706376
...
57
SCREW BS-312911GS
...
58
WIRE BS-706150
...
59
CLAMP BS-314955GS
...
60
HEATSHIELD BS-705503
...
61
HEATSHIELD BS-705489
