030639-00 Briggs and Stratton Generator 3,500 Watt

Model: 030639-00

Save Part Not Listed?
product name

Popular Parts

Popular Parts

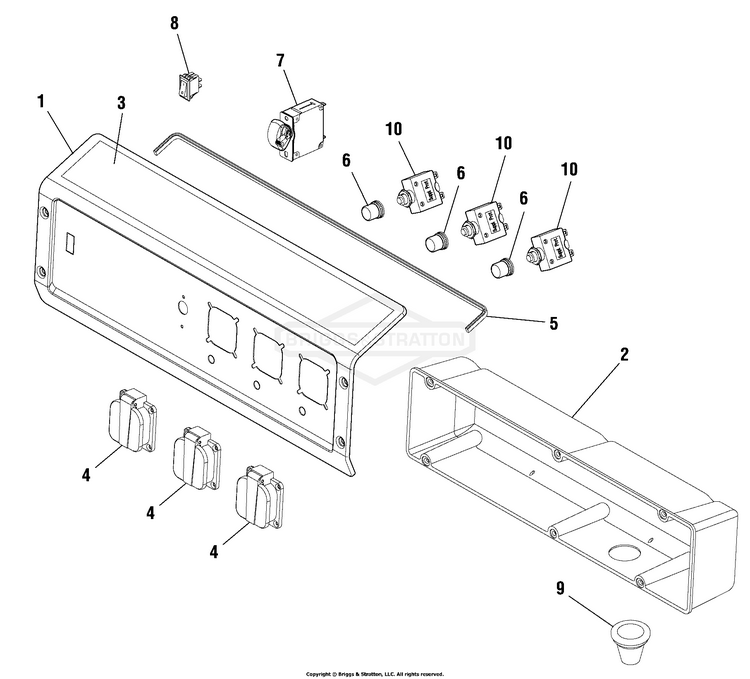

Control Panel (80010960)

...
...
1
PANEL-CONTROL BS-706407
...
2
BOX-CONTROL PANEL BS-312978GS
...
3
DECAL BS-706492
...
4
SOCKET BS-706409
...
5
TRIM-EDGE BS-319459GS
...
6
BOOT-CIRCUIT BREAKER BS-312636GS
...
7
BREAKER-CIRCUIT BS-706405
...
8
SWITCH-ON/OFF BS-319525GS
...
9
GROMMET BS-319529GS
...
10
BREAKER-CIRCUIT BS-706404

Main Unit (80010957)

...
...
1
CRADLE BS-706389
...
2
ASSY- PANEL CONTROL BS-706403
...
3
SCREW BS-703804
...
4
DECAL BS-315635GS
...
5
DECAL BS-704331
...
6
DECAL BS-315634GS
...
7
DECAL BS-704330
...
8
SCREW BS-314440GS
...
9
DECAL BS-315637GS
...
10
DECAL BS-315636GS
...
11
TANK-FUEL BS-706402
...
12
DECAL BS-703264
...
13
MOUNT-VIBRATION BS-706149
...
14
GAUGE-FUEL BS-311992GS
...
15
SHIELD BS-706397
...
16
GUARD-SCREEN BS-706398
...
17
BOOT BS-207879GS
...
18
LOCKWASHER, SPLIT 3/8 BS-703454
...
19
VALVE-FUEL BS-209417GS
...
20
HEATSHIELD BS-313522GS
...
21
HEATSHIELD BS-313523GS
...
22
MUFFLER BS-188301GS
...
23
SCREW BS-590850
...
26
ADAPTER-ENGINE BS-706406
...
27
BOLT BS-313368GS
...
28
SCREW BS-204885GS
...
29
GASKET-EXHAUST BS-692237
...
30
MOUNT-VIBRATION BS-706149
...
31
SCREW BS-207824GS
...
32
END COVER BS-313364GS
...
33
VOLTAGE REGULATOR BS-706394
...
34
TERMINAL BLOCK BS-316945GS
...
35
BOLT BS-706393
...
36
BOLT BS-706395
...
37
BRUSH ASSY BS-207827GS
...
40
CARRIER-BEARING BS-209423GS
...
41
STATOR BS-706390
...
42
ROTOR BS-706391
...
43
SCREEN BS-83083GS
...
44
WASHER BS-207826
...
45
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
47
NUT BS-87680GS
...
48
BRACKET-MUFFLER BS-191785GS
...
49
WIRE BS-706165
...
50
SHIELD BS-706396
...
51
BOND BS-706392
...
52
CAP-FUEL BS-704655
...
53
WASHER BS-312005GS
...
54
BOLT BS-703805
...
55
LINE, Fuel BS-791745
...
--
OIL BOTTLE (Not Illustrated) BS-316768GS

Wheel Group (80011029)

...
...
1
HANDLE BS-312973GS
...
2
GRIP-HANDLE BS-313284GS
...
3
GRIP-HANDLE BS-313283GS
...
4
SCREW BS-75477GS
...
5
BOLT BS-312974GS
...
6
WASHER BS-187104GS
...
7
NUT BS-49820GS
...
8
BOLT BS-207825GS
...
9
KNOB BS-319453GS
...
10
SPRING BS-319452GS
...
11
PIN BS-319454GS
...
12
MOUNT-VIBRATION BS-319285GS
...
13
BOLT BS-706348
...
14
NUT BS-67989GS
...
15
SUPPORT-LEG BS-704198
...
16
AXLE BS-703813
...
17
WHEEL BS-704145
...
18
WASHER, 5/8" SAE BS-5025281SM
...
19
PIN-HAIR BS-316510GS

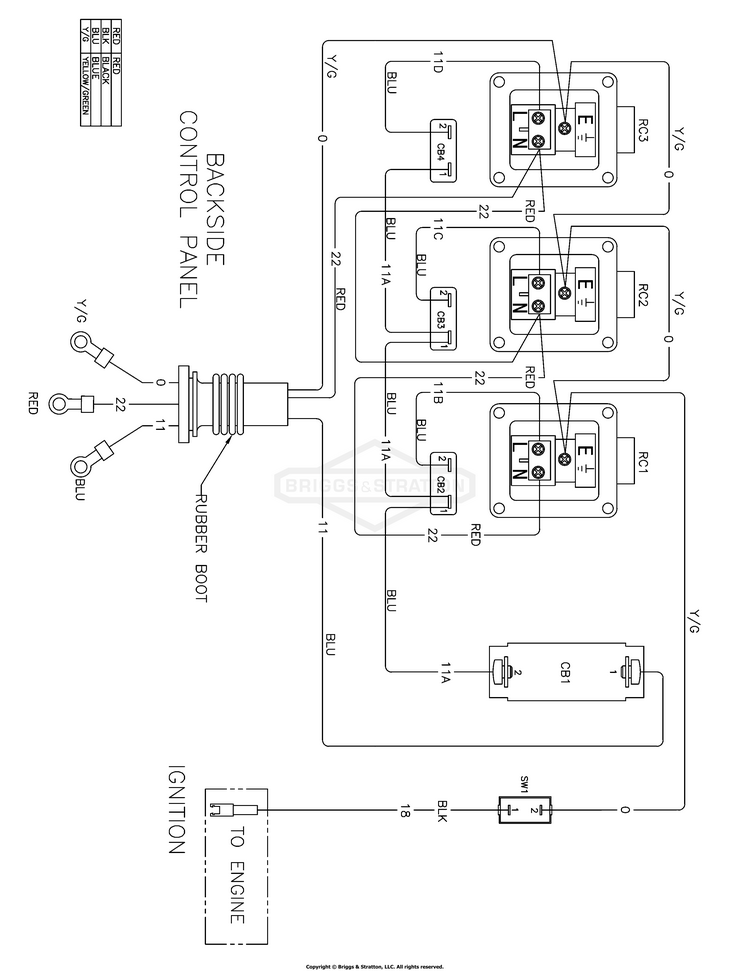

Wiring Diagram (80011028)

...

No Parts Available for this Schematic

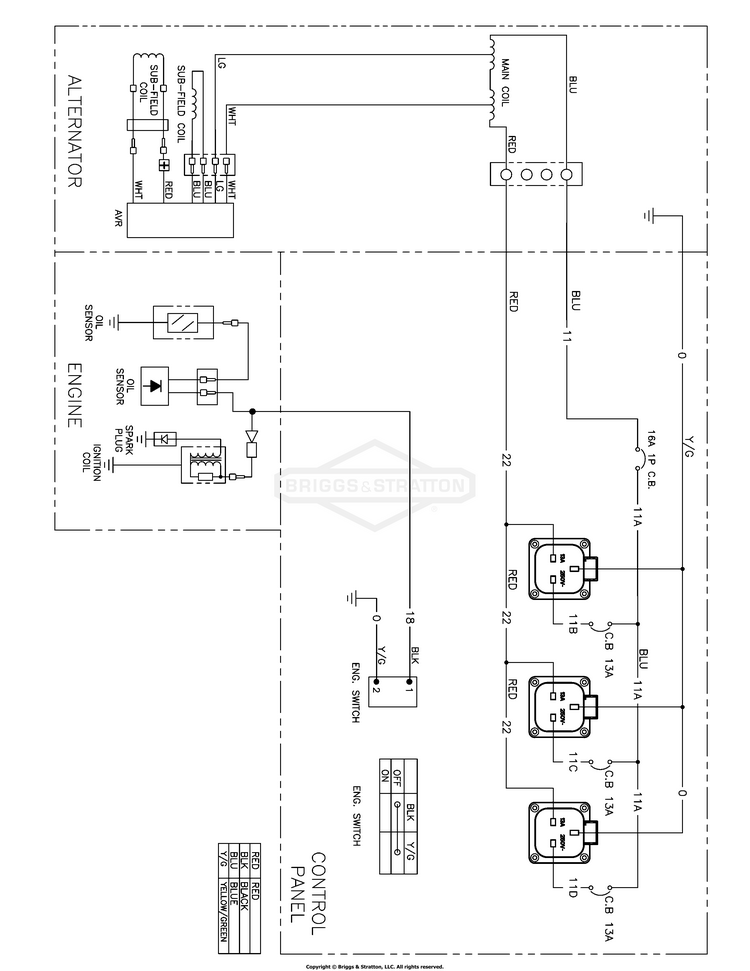

Wiring Schematic (80011028)

...

No Parts Available for this Schematic
