030621A-01 Briggs and Stratton Generator 5,000 Watt

Model: 030621A-01

Save Part Not Listed?
product name

Control Panel (80017648)

...
...
1
PANEL-CONTROL BS-705522
...
2
BOX-CONTROL PANEL BS-319458GS
...
3
COVER-OUTLET BS-319477GS
...
4
COVER-OUTLET BS-319476GS
...
5
TRIM-EDGE BS-319459GS
...
6
BOOT, Breaker Circuit BS-191481GS
...
7
BREAKER-CIRCUIT BS-704197
...
8
OUTLET BS-43437GS
...
9
OUTLET BS-709526
...
10
BOOT-CIRCUIT BREAKER BS-312636GS
...
11
BREAKER-CIRCUIT 20A BS-209872GS
...
12
SWITCH-ON/OFF BS-319525GS
...
13
DECAL BS-705519
...
14
GROMMET BS-319529GS
...
15
GROMMET BS-319530GS

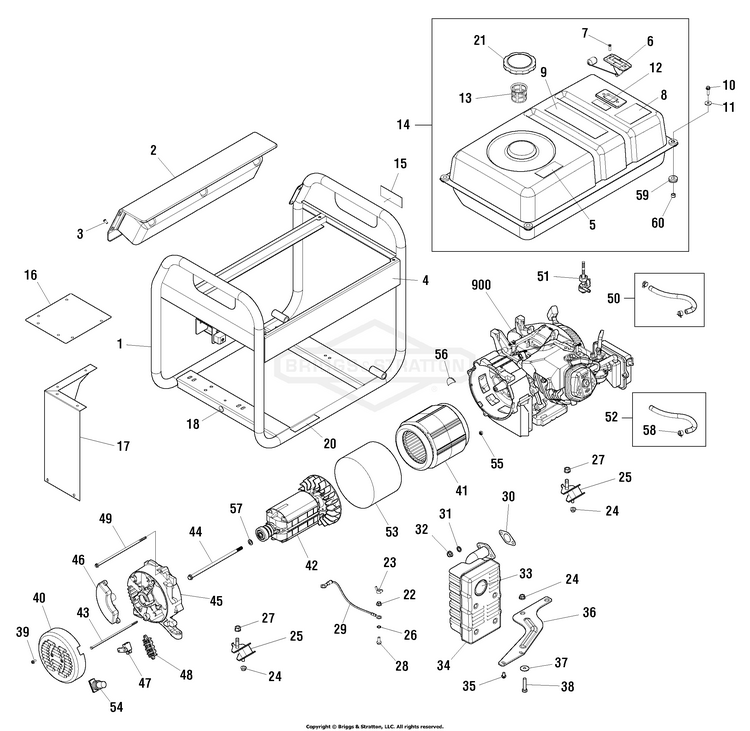

Main Unit (80017647)

...
...
1
CRADLE (Includes Ref No. 4, 15, 18 & 20) BS-705502
...
2
PANEL-CONTROL BS-709527
...
3
SCREW BS-703804
...
4
DECAL BS-705500
...
5
DECAL BS-319065GS
...
6
GAUGE-FUEL BS-704183
...
7
SCREW BS-314440GS
...
8
DECAL BS-202997GS
...
9
DECAL BS-319064GS
...
10
SCREW BS-703805
...
11
WASHER BS-312005GS
...
12
DECAL BS-703264
...
13
FILTER-FUEL BS-705504
...
14
TANK-FUEL BS-705520
...
15
DECAL BS-704142
...
16
HEATSHIELD BS-705489
...
17
HEATSHIELD BS-705503
...
18
DECAL BS-704331
...
20
DECAL BS-319066GS
...
21
CAP-FUEL BS-319587GS
...
23
NUT BS-87680GS
...
25
MOUNT-VIBRATION BS-319451GS
...
28
SCREW BS-590703
...
29
WIRE BS-706165
...
30
GASKET, Exhaust BS-797770
...
33
SCREEN BS-83083GS
...
34
MUFFLER BS-192569GS
...
35
SCREW BS-590850
...
36
BRACKET-MUFFLER BS-705501
...
38
HHCS-M8-1.25 x 40 BS-57821GS
...
39
SCREW BS-207824GS
...
40
END COVER BS-313364GS
...
41
STATOR BS-704140
...
42
ROTOR BS-704202
...
43
BOLT BS-317340GS
...
44
BOLT BS-708710
...
45
CARRIER-BEARING BS-708704
...
46
VOLTAGE REGULATOR BS-207840GS
...
47
BRUSH ASSY BS-207827GS
...
48
TERMINAL BLOCK BS-316945GS
...
49
BOLT BS-317338GS
...
50
LINE, Fuel (Cut to Fit) BS-791745
...
51
VALVE-FUEL BS-209417GS
...
52
HOSE-VAPOR (Cut to Fit) BS-315017GS
...
53
BAND-STATOR BS-317342GS
...
54
BOOT BS-207879GS
...
55
NUT BS-207878GS
...
56
COVER-RUBBER BS-706376
...
57
WASHER BS-207826GS
...
58
CLAMP BS-314955GS
...
59
GROMMET BS-189134GS
...
60
SPACER BS-189137GS

Wheel Kit (80006254)

...
...
1
HANDLE BS-319396GS
...
2
GRIP-HANDLE BS-319360GS
...
3
GRIP-HANDLE BS-319361GS
...
4
SCREW BS-75477GS
...
5
BOLT BS-318677GS
...
6
WASHER BS-84002245
...
7
NUT BS-49820GS
...
8
BOLT BS-84001685
...
9
KNOB BS-319453GS
...
10
SPRING BS-319452GS
...
11
PIN BS-319454GS
...
12
MOUNT-VIBRATION BS-319285GS
...
13
BOLT BS-771804
...
14
NUT BS-67989GS
...
15
SUPPORT-LEG BS-704198
...
16
AXLE BS-703813
...
17
WHEEL BS-704145
...
18
WASHER, 5/8" SAE BS-5025281SM
...
19
PIN-HAIR BS-316510GS

Wiring Diagram (8007537WD)

...

No Parts Available for this Schematic

Wiring Schematic (8007537WS)

...

No Parts Available for this Schematic
