030618-00 Briggs and Stratton Generator 5,300 Elite (Aus)

Model: 030618-00

Save Part Not Listed?
product name

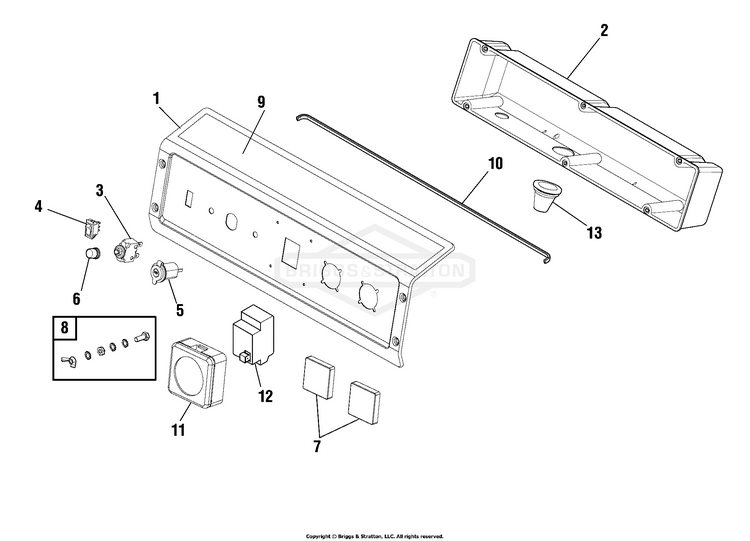

Control Panel (80008833)

...
...
1
ASSY-CNTRL PNL BS-704443
...
2
BOX-CONTROL PANEL BS-316420GS
...
3
BREAKER-CIRCUIT BS-704453
...
4
ON-OFF SWITCH BS-319525GS
...
5
SOCKET-DC BS-704451
...
6
BOOT-CIRCUIT BREAKER BS-312636GS
...
7
OUTLET BS-704447
...
8
ASSY-GROUNDING BS-704450
...
9
DECAL BS-704670
...
10
TRIM-EDGE BS-319459GS
...
11
ENCLOSURE BS-704459
...
12
RCBO-16A BS-704444
...
13
GROMMET BS-319529GS

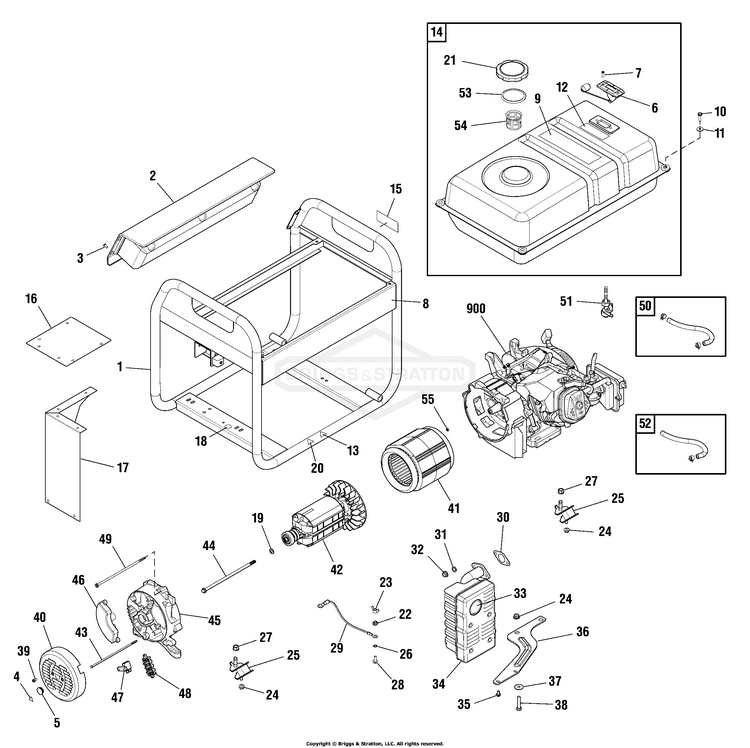

Main Unit (80008189)

...
...
1
CRADLE BS-704439
...
2
ASSEMBLY, Control Panel BS-704445
...
3
SCREW BS-703804
...
4
DECAL BS-315636GS
...
5
CAP BS-315802GS
...
6
GAUGE-FUEL BS-314430GS
...
7
SCREW BS-314440GS
...
8
DECAL BS-704440
...
9
DECAL BS-315637GS
...
10
SCREW BS-703805
...
11
WASHER BS-312005GS
...
12
DECAL BS-703264
...
13
DECAL BS-315634GS
...
14
TANK-FUEL BS-704328
...
15
DECAL BS-315731GS
...
16
HEATSHIELD BS-319456GS
...
17
HEATSHIELD BS-319455GS
...
18
DECAL BS-315132GS
...
19
WASHER BS-207826GS
...
20
DECAL BS-315635GS
...
21
CAP-FUEL BS-311990GS
...
23
NUT BS-87680GS
...
25
MOUNT-VIBRATION BS-319451GS
...
29
WIRE BS-312040GS
...
30
GASKET, Exhaust BS-797770
...
33
SCREEN BS-83083GS
...
34
MUFFLER BS-192569GS
...
36
BRACKET-MUFFLER BS-312941GS
...
38
CAPSCREW-HEX HEAD, M8-1.25 x 40 BS-57821GS
...
39
SCREW BS-207824GS
...
40
END COVER BS-208429GS
...
41
STATOR BS-704343
...
42
ROTOR BS-704344
...
43
BOLT BS-704239
...
44
BOLT BS-312639GS
...
45
CARRIER-BEARING BS-708704
...
46
VOLTAGE REGULATOR BS-207840GS
...
47
BRUSH ASSY BS-207827GS
...
48
TERMINAL BLOCK BS-316945GS
...
49
BOLT BS-704237
...
50
LINE, Fuel (Cut to Fit) BS-791745
...
51
VALVE-FUEL BS-209417GS
...
52
HOSE-VAPOR (Cut to Fit) BS-315017GS
...
53
SEAL BS-209939GS
...
54
FILTER BS-311991GS
...
55
NUT BS-207878GS

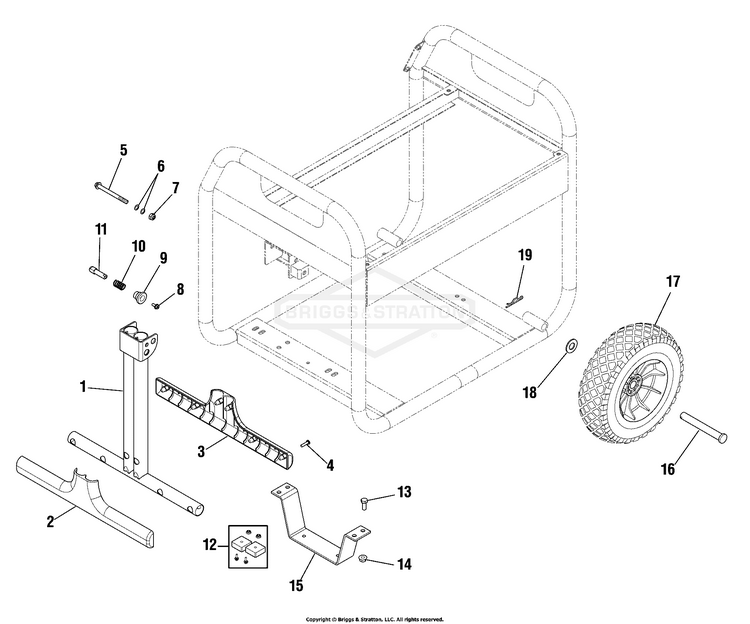

Wheel Kit (80008645)

...
...
1
HANDLE BS-316572GS
...
2
GRIP-HANDLE BS-319360GS
...
3
GRIP-HANDLE BS-319361GS
...
4
SCREW BS-75477GS
...
5
BOLT BS-318677GS
...
6
WASHER BS-96716GS
...
7
NUT BS-49820GS
...
8
BOLT BS-207825GS
...
9
KNOB BS-319453GS
...
10
SPRING BS-319452GS
...
11
PIN BS-319454GS
...
12
MOUNT-VIBRATION BS-319285GS
...
13
CAPSCREW M8-1.25X16 BS-703988
...
14
NUT BS-67989GS
...
15
SUPPORT-LEG BS-319642GS
...
16
AXLE BS-319286GS
...
17
WHEEL BS-209322GS
...
18
WASHER, 5/8" SAE BS-5025281SM
...
19
PIN-HAIR BS-316510GS

Wiring Diagram (80009347WD)

...

No Parts Available for this Schematic
