030617-00 Briggs and Stratton Generator 3,500 Watt (Aus)

Model: 030617-00

Save Part Not Listed?
product name

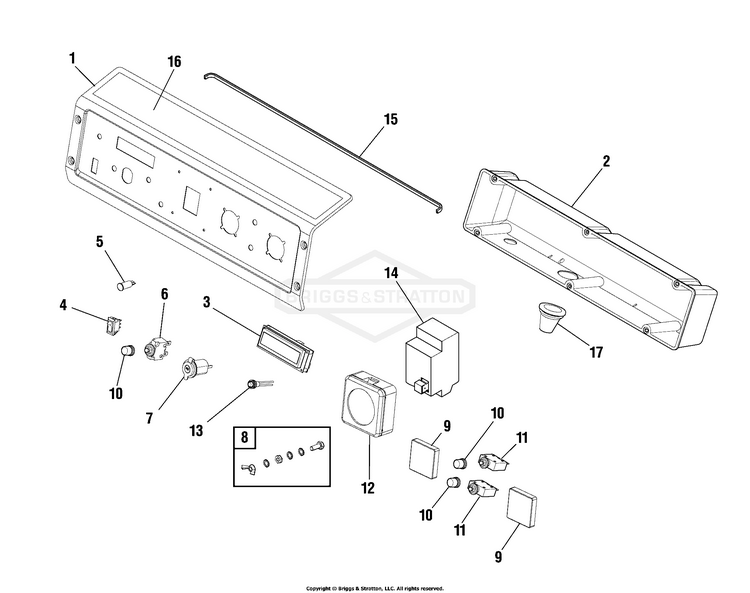

Control Panel (80008190)

...
...
1
ASSEMBLY, Control Panel BS-704445
...
2
BOX-CONTROL PANEL BS-319458GS
...
3
POWER MONITOR BS-704448
...
4
SWITCH-ON/OFF BS-319525GS
...
5
OIL LAMP BS-704452
...
6
BREAKER-CIRCUIT BS-704453
...
7
SOCKET-DC BS-704451
...
8
ASSY-GROUND BS-704450
...
9
OUTLET BS-704447
...
10
BOOT-CIRCUIT BREAKER BS-312636GS
...
11
BREAKER-CIRCUIT BS-704454
...
12
ENCLOSURE BS-704459
...
13
BUTTON-SELECT BS-319463GS
...
14
RCBO-25A BS-704449
...
15
TRIM-EDGE BS-319459GS
...
16
DECAL BS-704441
...
17
GROMMET BS-319529GS

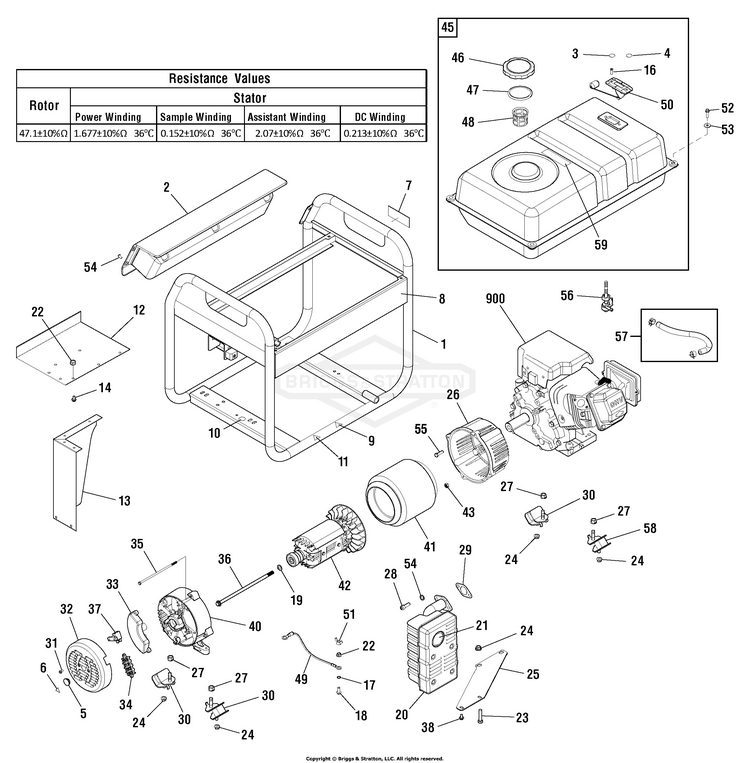

Main Unit (80008644)

...
...
1
CRADLE BS-704471
...
2
ASSY-CNTRL PNL BS-704443
...
3
DECAL BS-313461GS
...
4
DECAL BS-313462GS
...
5
CAP BS-315802GS
...
6
DECAL BS-315636GS
...
7
DECAL BS-315731GS
...
8
DECAL BS-704472
...
9
DECAL BS-315634GS
...
10
DECAL BS-315132GS
...
11
DECAL BS-315635GS
...
12
HEATSHIELD BS-313522GS
...
13
HEATSHIELD BS-313523GS
...
14
BOLT BS-209775GS
...
15
DECAL BS-315637GS
...
16
SCREW BS-197896GS
...
17
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
18
HANDLE BS-84010594
...
19
WASHER BS-207826GS
...
20
MUFFLER BS-189008GS
...
21
SCREEN BS-83083GS
...
22
NUT-M6 FLANGE BS-52857GS
...
23
SCREW BS-590714
...
24
NUT BS-67989GS
...
25
SUPPORT-MUFFLER BS-312941GS
...
26
ADAPTER-ENGINE BS-704266
...
27
NUT BS-193747GS
...
28
SCREW BS-204885GS
...
29
GASKET, Exhaust BS-695398
...
30
MOUNT-VIBRATION BS-706149
...
31
SCREW BS-207824GS
...
32
END COVER BS-208429GS
...
33
VOLTAGE REGULATOR BS-209420GS
...
34
TERMINAL BLOCK BS-316945GS
...
35
BOLT BS-209427GS
...
36
BOLT BS-313525GS
...
37
BRUSH ASSY BS-207827GS
...
38
SCREW BS-66476GS
...
40
CARRIER-BEARING BS-209423GS
...
41
STATOR BS-704339
...
42
ROTOR BS-704340
...
43
NUT BS-207878GS
...
45
TANK-FUEL BS-704328
...
46
CAP-FUEL BS-311990GS
...
47
SEAL BS-209939GS
...
48
FILTER-SCREEN BS-311991GS
...
49
WIRE BS-312040GS
...
50
GAUGE-FUEL BS-314430GS
...
51
NUT BS-87680GS
...
52
BOLT BS-703805
...
53
SPACER BS-312005GS
...
54
SCREW BS-703804
...
55
BOLT BS-209412GS
...
56
VALVE-FUEL BS-209417GS
...
57
LINE, Fuel BS-791745
...
58
MOUNT-VIBRATION BS-319451GS

Wheel Kit (319355A)

...
...
1
HANDLE BS-319396GS
...
2
GRIP-HANDLE BS-319360GS
...
3
GRIP-HANDLE BS-319361GS
...
4
SCREW BS-75477GS
...
5
BOLT BS-318677GS
...
6
WASHER BS-96716GS
...
7
NUT BS-49820GS
...
8
BOLT BS-207825GS
...
9
KNOB BS-319453GS
...
10
SPRING BS-319452GS
...
11
PIN BS-319454GS
...
12
MOUNT-VIBRATION BS-319285GS
...
13
CAPSCREW M8-1.25X16 BS-703988
...
14
NUT BS-67989GS
...
15
SUPPORT-LEG BS-319642GS
...
16
AXLE BS-319286GS
...
17
WHEEL BS-209322GS
...
18
WASHER, 5/8" SAE BS-5025281SM
...
19
PIN-HAIR BS-316510GS

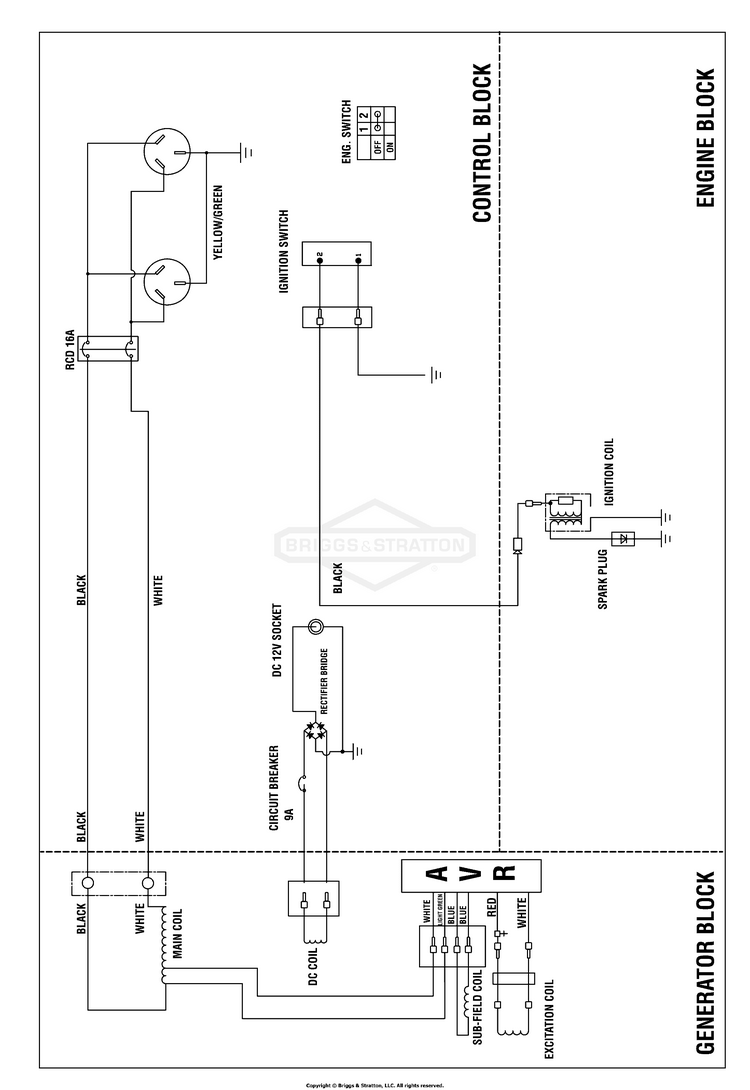

Wiring Diagram (80009345WD)

...

No Parts Available for this Schematic
