030612-00 Briggs and Stratton Generator 1,600 Watt Inverter Generator

Model: 030612-00

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Alternator & Control Panel (319830)

...
...
1
BOLT BS-311375GS
...
2
PANEL, Control BS-311376GS
...
3
COVER, Knob BS-311377GS
...
5
KNOB BS-311378GS
...
6
SCREW BS-311379GS
...
7
PLATE, Trim BS-311380GS
...
9
COVER, Side BS-311382GS
...
10
PUMP-FUEL BS-706057
...
12
VALVE, Fuel BS-311384GS
...
13
SWITCH, ON/OFF BS-311385GS
...
18
SCREW BS-311386GS
...
19
COVER, Air Cleaner BS-311387GS
...
20
FILTER, A/C Foam BS-311388GS
...
21
FILTER, A/C Foam BS-311389GS
...
23
BASE, Air Cleaner BS-311390GS
...
24
GASKET, Air Cleaner BS-311391GS
...
25
CARBURETOR BS-311392GS
...
26
ROD, Throttle BS-311393GS
...
28
BRACKET BS-311394GS
...
29
MOTOR, Stepper BS-311395GS
...
32
COVER BS-311396GS
...
33
GASKET BS-311397GS
...
34
STUD BS-311398GS
...
39
SCREW BS-311400GS
...
132
COVER, Side BS-311429GS
...
133
COVER, Spark Plug BS-311430GS
...
152
OIL SEAL BS-705492
...
153
DIPSTICK BS-311434GS
...
160
HOSE-FUEL BS-704623
...
161
HOSE, Fuel BS-317444GS
...
162
HOSE, Fuel BS-317752GS
...
163
HOSE, Vaccuum BS-311440GS
...
179
TUBE, Breather BS-311446GS
...
181
COVER, Air Cleaner BS-312861GS
...
191
WIRE BS-314479GS
...
203
* BRACKET BS-707319
...
207
DECAL BS-311023GS
...
209
* BRACKET BS-707319
...
210
DECAL BS-315638GS
...
212
DECAL-WARNING BS-315637GS
...
213
DECAL BS-315634GS
...
214
DECAL BS-311025GS
...
215
DECAL BS-315639GS
...
216
DECAL BS-771752
...
217
DECAL BS-771751

Enclosure (319830enc)

...
...
6
SCREW BS-311379GS
...
38
TRIGGER, Ingition BS-311399GS
...
39
SCREW BS-311400GS
...
40
STATOR BS-314525GS
...
41
SCREW BS-311402GS
...
42
ROTOR BS-707591
...
43
NUT BS-311404GS
...
44
FAN BS-314701GS
...
46
CUP, Flywheel BS-311406GS
...
50
WIRE BS-314527GS
...
54
INVERTER BS-704135
...
57
COVER, Panel BS-311409GS
...
58
PANEL-CONTROL BS-771866
...
62
CAP, Fuel BS-311411GS
...
63
FILTER, Filler Neck BS-311412GS
...
65
TANK-FUEL BS-707166
...
66
INSERT, Grip BS-311414GS
...
68
ASSEMBLY, Starter Recoil, 2 KW Inverter BS-706058
...
70
COIL, Ignition BS-317436GS
...
160
HOSE-FUEL BS-704623
...
164
OUTLET, 12VDC BS-314531GS
...
165
SWITCH BS-311442GS
...
166
OUTLET BS-703197
...
167
LIGHT, Indicator BS-311443GS
...
168
BREAKER, Circuit BS-311444GS
...
170
NUT BS-207743GS
...
171
WASHER BS-91719GS
...
172
WASHER BS-207806GS
...
173
WASHER BS-207805GS
...
174
NUT, WING, M5 X 0.8 BS-187424GS
...
175
FILTER-FUEL TANK BS-707168
...
178
HARNESS, Wiring BS-314533GS
...
189
WIRE BS-315824GS
...
190
HARNESS, Wiring BS-315829GS
...
203
* BRACKET BS-707319
...
211
DECAL BS-315636GS
...
220
COVER, Socket, 30A BS-703259
...
--
CABLE, BATTERY CHARGE (Part Not Illustrated) BS-187876GS
...
--
OIL-4 CYCLE 30W 18OZ. (Part Not Illustrated) BS-100005
...
--
KIT, Tool (Part Not Illustrated) BS-703574
...
--
JET, Main, High Altitude, 5000 ft. (Optional Accessory) BS-311559GS

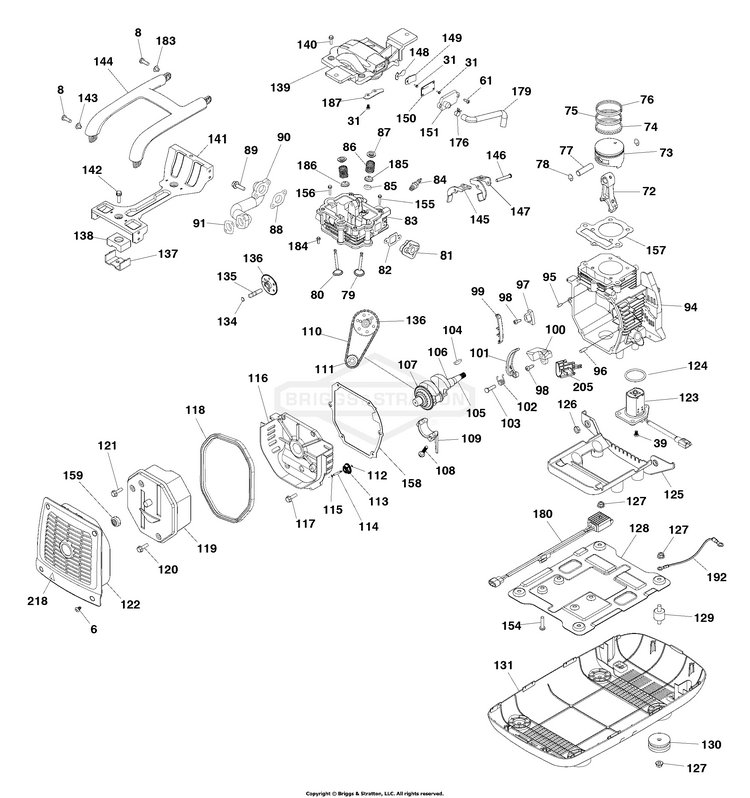

Engine (319830eng)

...
...
6
SCREW BS-311379GS
...
8
BOLT BS-311381GS
...
39
SCREW BS-311400GS
...
81
INSULATOR BS-311417GS
...
82
GASKET, Exhaust BS-311421GS
...
84
SPARK PLUG BS-311419GS
...
88
GASKET BS-311420GS
...
91
GASKET, Exhaust BS-311421GS
...
122
GUARD-MUFFLER BS-704069
...
123
SENSOR, Oil BS-311423GS
...
124
O-RING, 33.5 x 2.65 BS-314482GS
...
127
NUT BS-707919
...
128
BASE BS-311425GS
...
129
MOUNT, Vibration BS-311426GS
...
130
MOUNT, Vibration BS-311427GS
...
131
COVER BS-311428GS
...
139
COVER, Cylinder BS-314786GS
...
143
BUSHING BS-311431GS
...
144
HANDLE BS-311432GS
...
148
VALVE BS-314747GS
...
149
BOARD, Valve BS-314748GS
...
158
GASKET, Crankcase BS-311435GS
...
159
ARRESTOR, Spark BS-315584GS
...
179
TUBE, Breather BS-311446GS
...
180
REGULATOR, Voltage BS-311407GS
...
183
BUSHING BS-311431GS
...
192
WIRE, Ground BS-314483GS
...
218
DECAL BS-315635GS
