030596-00 Briggs and Stratton Generator GS2500, 60Hz 2,000 Watt

Model: 030596-00

Save Part Not Listed?
product name

Popular Parts

Popular Parts

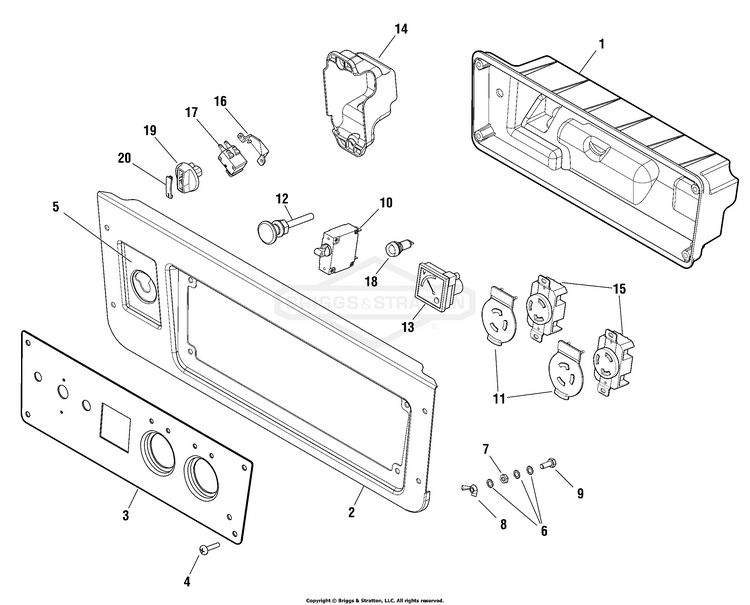

Control Panel (319807)

...
...
1
BOX-CONTROL PANEL BS-703082
...
2
FRONT PANEL BS-703079
...
3
PLATE BS-703391
...
5
DECAL BS-703261
...
6
WASHER-SHAKEPROOF BS-23364GS
...
8
NUT-WING BS-87680GS
...
10
BREAKER BS-703392
...
11
COVER-OUTLET BS-703259
...
12
CHOKE CABLE BS-703256
...
13
VOLTMETER BS-703021
...
14
COVER-VALVE BS-703025
...
15
OUTLET BS-703197
...
16
BRACKET-BACK BS-703029
...
17
MICROSWITCH BS-703028
...
18
SWITCH-OIL BS-703019
...
19
KNOB BS-703026
...
20
COVER-KNOB BS-703027

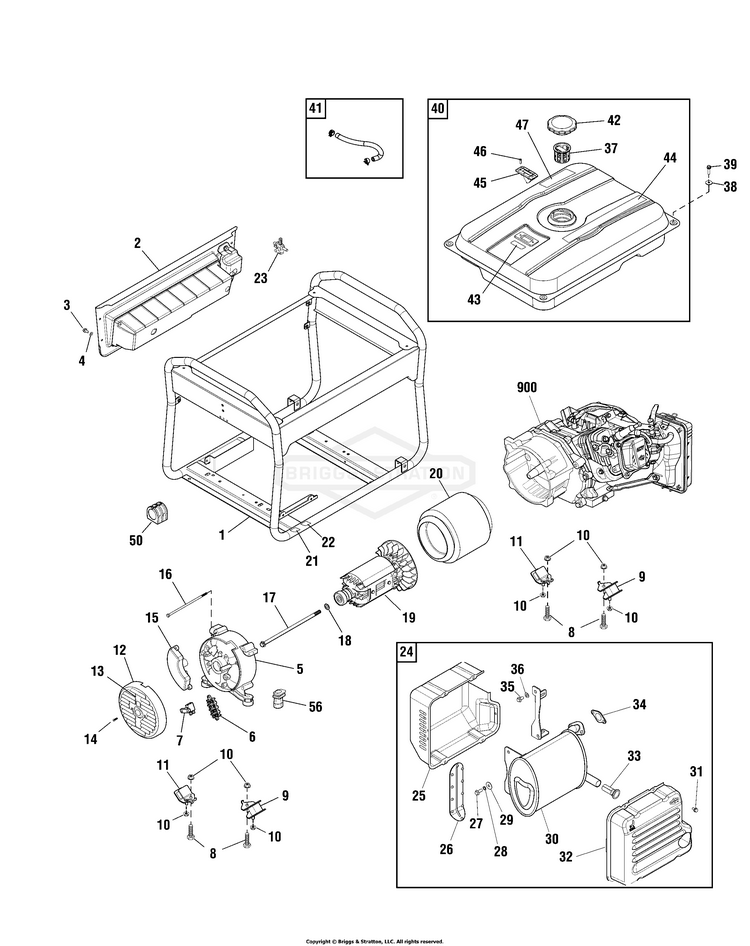

Main Unit (319806)

...
...
1
CRADLE (Includes Ref. Nos. 38 & 39) BS-703085
...
2
PANEL-CONTROL BS-703389
...
3
BOLT BS-90388GS
...
4
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
5
CARRIER-BEARING BS-703190
...
6
TERMINAL BLOCK BS-703075
...
7
BRUSH BS-703113
...
9
MOUNT-VIBRATION BS-703187
...
10
NUT BS-67989GS
...
11
MOUNT-VIBRATION BS-703188
...
12
COVER-REAR BEARING BS-703191
...
13
DECAL BS-315636GS
...
14
SCREW BS-312909GS
...
15
VOLTAGE REGULATOR BS-703192
...
16
BOLT BS-703077
...
17
BOLT BS-703076
...
19
ROTOR BS-703293
...
20
STATOR BS-703388
...
21
DECAL BS-315634GS
...
22
DECAL BS-315635GS
...
23
FUEL VALVE BS-703024
...
24
MUFFLER ASSEMBLY BS-703067
...
25
COVER-MUFFLER, BACK BS-703069
...
26
GASKET BS-703071
...
30
MUFFLER BS-703068
...
32
COVER-MUFFLER, FRONT BS-703070
...
33
ARRESTOR-SPARK BS-703189
...
34
GASKET BS-703208
...
36
WASHER BS-201363GS
...
37
FILTER BS-703033
...
40
TANK-FUEL BS-703083
...
41
LINE, Fuel (Cut to Fit) BS-791745
...
42
CAP-FUEL BS-703032
...
43
DECAL BS-703264
...
44
DECAL BS-703263
...
45
GAUGE-FUEL BS-703086
...
47
DECAL BS-315637GS
...
50
FOOT-RUBBER BS-703266
...
56
COVER-RUBBER ALT BS-703203
...
900
Engine *(Refer to Note) BS-106232-0168-B8
...
--
MANUAL-OPERATOR'S (Not Illustrated) BS-381491GS
...
--
PLUG-TWIST LCK, 30A, 250V (Not Illustrated) BS-704368

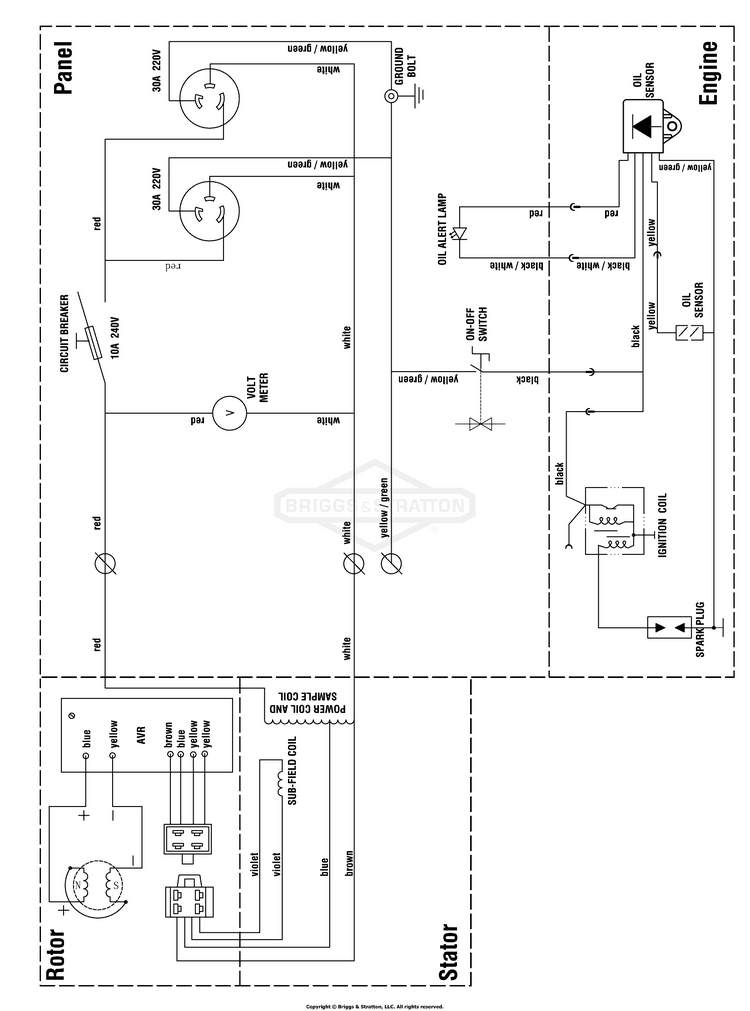

Wiring Diagram (80003135_030596)

...

No Parts Available for this Schematic

Schematic Image Zoomed
