030555-00 Briggs and Stratton Generator 7,500 Watt

Model: 030555-00

Save Part Not Listed?
product name

Popular Parts

Popular Parts

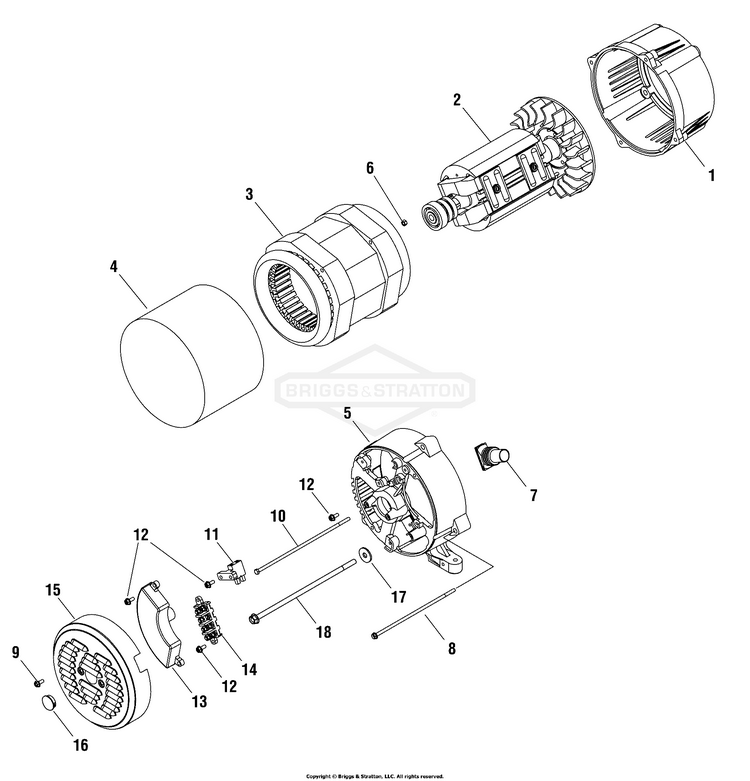

Alternator (318571)

...
...
1
ADAPTER-ENGINE BS-208537GS
...
2
ROTOR BS-319368GS
...
3
STATOR BS-319367GS
...
4
BAND-STATOR BS-207836GS
...
5
SUPPORT-BEARING BS-208485GS
...
6
NUT BS-207878GS
...
7
BOOT BS-207879GS
...
8
BOLT BS-207828GS
...
9
BOLT BS-207824GS
...
10
BOLT BS-207877GS
...
11
BRUSH BS-207827GS
...
12
BOLT BS-207825GS
...
13
REGULATOR-VOLTAGE BS-207840GS
...
14
BLOCK-JUNCTION BS-316945GS
...
15
COVER BS-208429GS
...
16
CAP BS-315802GS
...
17
WASHER BS-207826GS
...
18
BOLT BS-207831GS

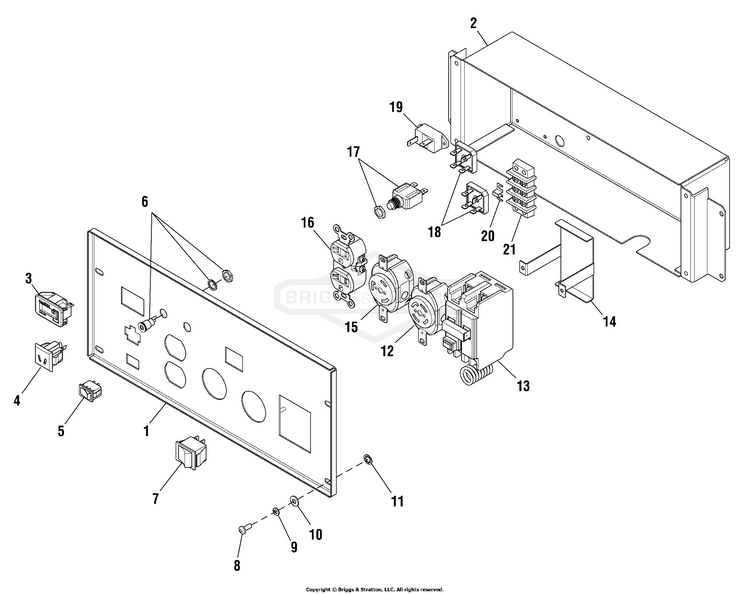

Control Panel (318750)

...
...
1
PANEL-CONTROL BS-318377GS
...
2
BOX-CONTROL BS-318378GS
...
3
METER-HOUR BS-202602GS
...
4
OUTLET BS-90418GS
...
5
SWITCH BS-87799GS
...
6
ASSY., Jack Coaxial BS-208511GS
...
7
SWITCH, ON/OFF BS-312684GS
...
12
OUTLET BS-43437GS
...
13
CIRCUIT BREAKER BS-192828DGS
...
14
BRACKET BS-192931GS
...
15
OUTLET-120V TL30A BS-705932
...
16
OUTLET BS-68759GS
...
17
CIRCUIT BREAKER BS-202394GS
...
18
RECTIFIER BS-B4894GS
...
19
CIRCUIT BREAKER BS-87962GS
...
20
JUMPER BS-193095GS
...
21
TERMINAL STRIP BS-193077GS
...
--
HARNESS-WIRE POWER BS-318941GS
...
--
HARNESS-WIRE IGNITION BS-318943GS

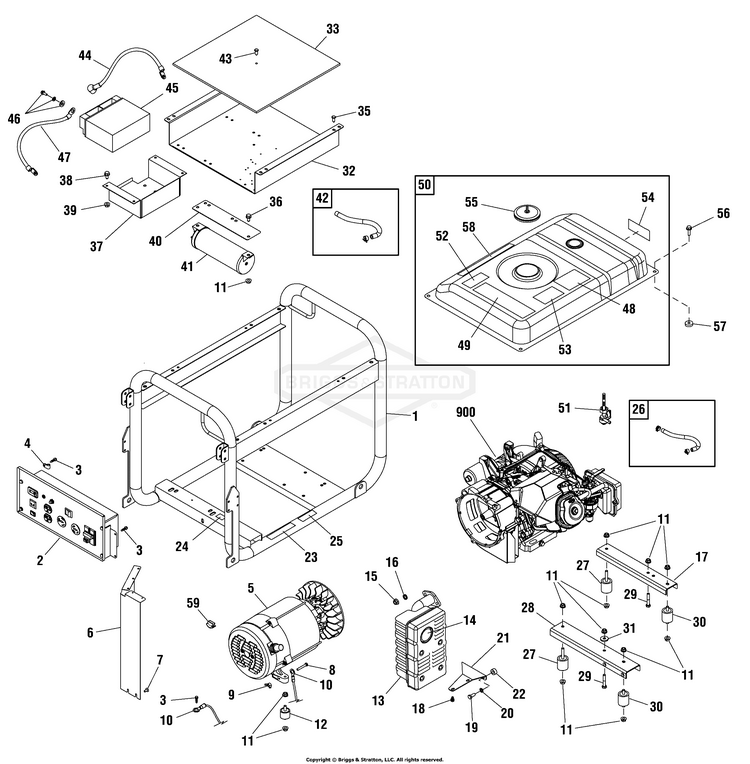

Main Unit (318572)

...
...
1
CRADLE (Includes Ref. Nos. 23, 24 & 25) BS-317777BXGS
...
2
PANEL-CONTROL BS-318291GS
...
3
SCREW BS-B2153GS
...
4
CLAMP BS-315831GS
...
6
HEATSHIELD BS-194390GS
...
7
SCREW BS-192376GS
...
9
NUT-WING BS-87680GS
...
10
WIRE, Ground BS-195373GS
...
11
NUT BS-67989GS
...
12
MOUNT-VIBRATION BS-194153GS
...
13
MUFFLER BS-192569GS
...
14
SCREEN BS-83083GS
...
17
BRACKET-SUPPORT BS-92531BXGS
...
18
SCREW BS-66476GS
...
21
BRACKET-MUFFLER BS-193048GS
...
22
SPACER BS-31579GS
...
23
DECAL BS-196830GS
...
24
DECAL BS-B4986GS
...
25
DECAL SHEET, WARNINGS BS-705920
...
26
LINE, Fuel (Cut to Fit) BS-791745
...
27
MOUNT-VIBRATION BS-B5073GS
...
28
BRACEKT-SUPPORT BS-92731BXGS
...
30
MOUNT-VIBRATION BS-B5072GS
...
31
WASHER BS-50190GS
...
32
HEATSHIELD BS-318746GS
...
33
INSULATION BS-92665GS
...
35
CLIP-TREE BS-B1797GS
...
36
SCREW BS-794821
...
37
TRAY, Battery BS-192985GS
...
40
BRACKET BS-319144GS
...
41
CANISTER-CARBON BS-318304GS
...
42
HOSE-VAPOR BS-315017GS
...
43
CLIP-INSULATION BS-85000GS
...
44
CABLE-BTTRY, RED BS-189302RGS
...
45
BATTERY BS-316345GS
...
46
KIT-HRDWR, BATTERY BS-315546GS
...
47
CABLE-BTTRY, BLK BS-185939ZGS
...
48
DECAL BS-318517GS
...
49
DECAL BS-194799GS
...
50
TANK, Fuel BS-703803
...
51
FUEL VALVE BS-310574GS
...
52
DECAL BS-312728GS
...
53
DECAL BS-202997GS
...
54
DECAL BS-197797GS
...
55
CAP, Fuel BS-314951GS
...
56
SCREW BS-24490GS
...
57
SPACER BS-193588GS
...
58
DECAL BS-703926
...
59
PLUG-ALT BS-703924
...
--
BOTTLE, Oil (Not Illustrated) BS-100005
...
--
PLUG (Not Illustrated) BS-43438GS
...
--
CABLE, Battery Charge (Not Illustrated) BS-65787GS
...
--
PLUG, 125V 30A 3-Prong (Not Illustrated) BS-100523GS
...
--
CHARGER, Battery (Not Illustrated) BS-84002790

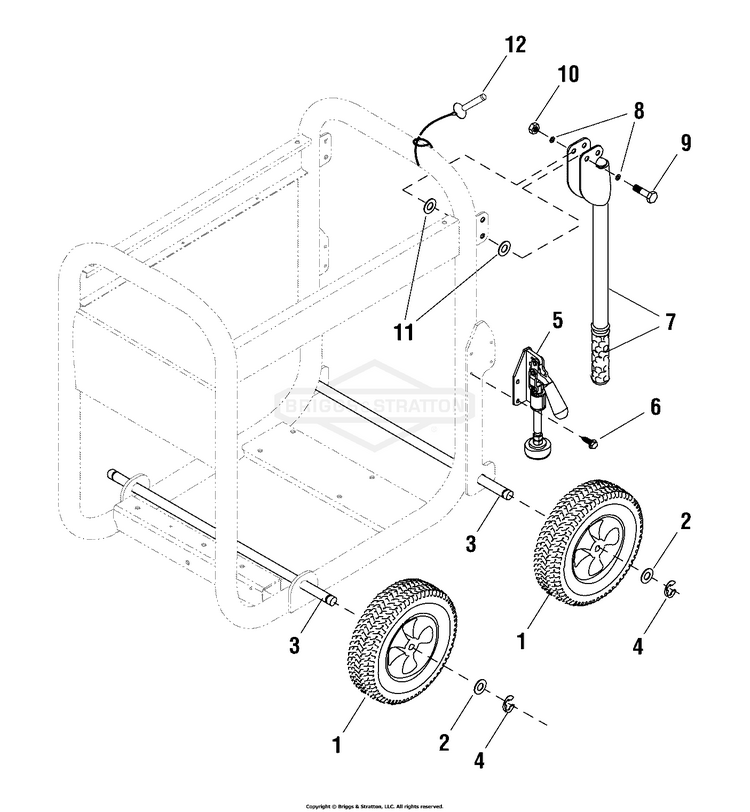

Wheel Kit (80004678)

...
...
1
WHEEL BS-316406GS
...
3
AXLE BS-191267KGS
...
4
E-RING BS-703977
...
5
BRAKE BS-205135GS
...
7
HANDLE BS-B193200GS
...
12
PIN BS-B4135GS
...
--
KIT-HARDWARE, WHEEL (Includes Ref. Nos. 2, 4, 8, 10, 11 & 12) BS-205183GS

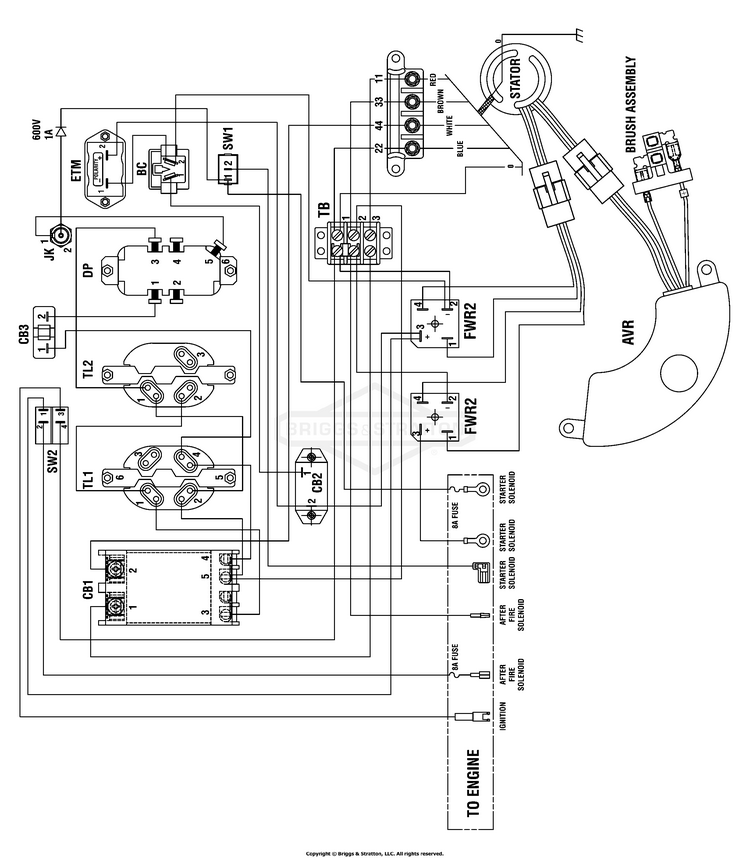

Wiring Diagram (318353WD)

...

No Parts Available for this Schematic

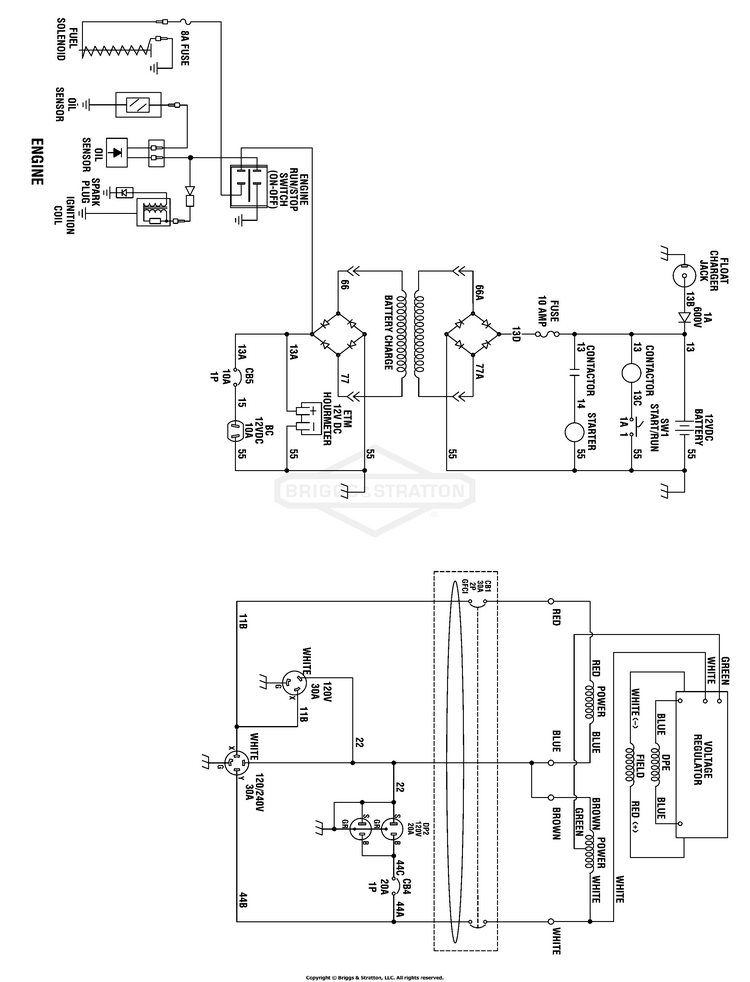

Wiring Schematic (318353WS)

...

No Parts Available for this Schematic
