030552-01 Briggs and Stratton Generator 7,500 Watt Portable Generator

Model: 030552-01

Save Part Not Listed?
product name

Popular Parts

Popular Parts

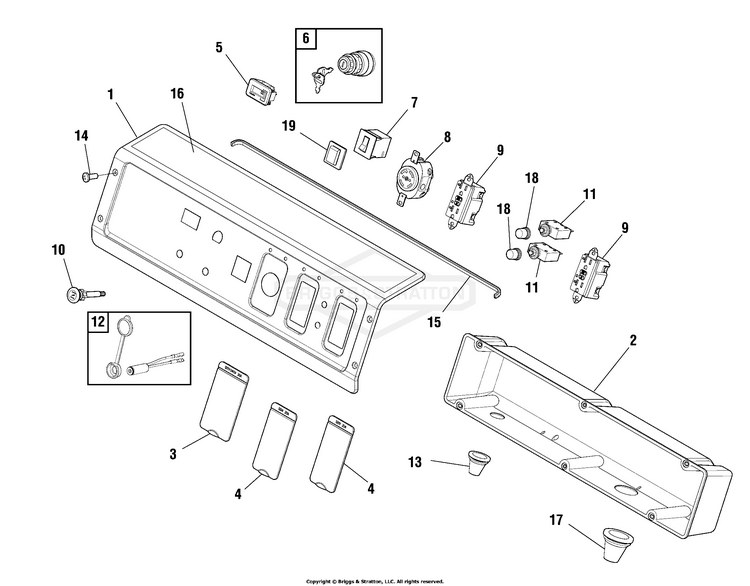

Control Panel (80010751)

...
...
1
PANEL-CONTROL BS-706537
...
2
BOX-CONTROL PANEL BS-319458GS
...
3
COVER-OUTLET BS-319477GS
...
4
COVER-OUTLET BS-319476GS
...
5
METER-HOUR BS-202602GS
...
6
KEY-SWITCH IGNITION BS-318307GS
...
--
KEY BS-705436
...
7
BREAKER-CIRCUIT 30A BS-202033GS
...
8
OUTLET-120/240V TL30A BS-43437GS
...
9
OUTLET-125V 20A BS-80409GS
...
10
CABLE-CHOKE BS-312034GS
...
11
BREAKER-CIRCUIT 20A BS-209872GS
...
12
SOCKET-CHARGER BS-704656
...
--
RUBBER COVER BS-312687GS
...
13
GROMMET BS-319530GS
...
14
SCREW BS-703804
...
15
TRIM-EDGE BS-319459GS
...
16
DECAL BS-705791
...
17
GROMMET BS-319529GS
...
18
BOOT-CIRCUIT BREAKER BS-312636GS
...
19
BOOT, Breaker Circuit BS-191481GS

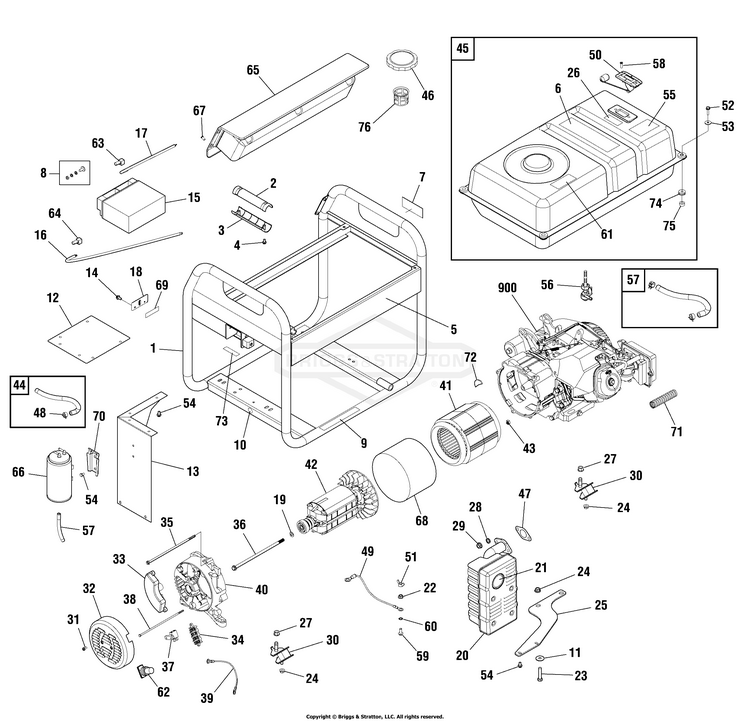

Main Unit (80010755)

...
...
1
CRADLE BS-706536
...
2
GRIP, Handle BS-312008GS
...
3
GRIP, Handle BS-312009GS
...
4
PPHMS, M5 - 0.8 x 20 BS-75477GS
...
5
DECAL BS-705500
...
6
DECAL BS-319064GS
...
7
DECAL BS-704142
...
8
KIT, Hardware, Battery Terminal BS-315546GS
...
9
DECAL BS-319066GS
...
10
DECAL BS-704331
...
11
WSHR, 25.4 X 8.45 X 1.4 BS-B2495GS
...
12
HEATSHIELD BS-312020GS
...
13
HEATSHIELD BS-705503
...
14
BOLT BS-209775GS
...
15
BATTERY BS-316345GS
...
16
CABLE-BATTRY, RED BS-312014GS
...
17
CABLE-BTTRY, BLACK BS-312026GS
...
18
PLATE-BATTERY BS-311983GS
...
19
WASHER, Senci BS-207826GS
...
20
MUFFLER BS-192569GS
...
21
SCREEN, Spark Arrest BS-83083GS
...
22
NUT-M6 FLANGE BS-52857GS
...
23
CAPSCREW, Hex Head, M8-1.25 x 40 BS-57821GS
...
24
NUT, M8 Flange Serrated BS-67989GS
...
25
BRACKET, Muffler BS-319457GS
...
26
DECAL BS-703264
...
27
NUT, Lock BS-52859GS
...
28
LOCKWASHER, SPLIT 3/8 BS-703454
...
29
NUT, M8 - 1.25 BS-45771GS
...
30
MOUNT-VIBRATION BS-319451GS
...
31
BOLT, M5 - 6 x 12 BS-207824GS
...
32
END COVER BS-209428GS
...
33
VOLTAGE REGULATOR BS-312038GS
...
34
BLOCK-JUNCTION BS-316945GS
...
35
BOLT BS-312638GS
...
36
BOLT BS-704235
...
37
BRUSH ASSEMBLY BS-207827GS
...
38
BOLT BS-312640GS
...
39
WIRE BS-706150
...
40
CARRIER-BEARING BS-708704
...
41
STATOR BS-706533
...
42
ROTOR BS-317336GS
...
43
NUT, M5 BS-207878GS
...
44
HOSE, Vapor (cut to fit) BS-315017GS
...
45
TANK-FUEL BS-706538
...
46
CAP-FUEL BS-319587GS
...
47
GASKET, Exhaust BS-797770
...
48
CLAMP BS-314955GS
...
49
WIRE BS-706165
...
50
GAUGE-FUEL BS-704183
...
51
NUT, M6 - 1.0 Wing BS-87680GS
...
52
SCREW BS-703805
...
53
WASHER BS-312005GS
...
54
SCREW BS-590850
...
55
DECAL, Warning, CO BS-202997GS
...
56
VALVE, Fuel BS-209417GS
...
57
LINE, Fuel BS-791745
...
58
Screw, M5 x 10 BS-197896GS
...
59
SCREW BS-590703
...
60
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
61
DECAL BS-319065GS
...
62
BOOT, Rubber BS-207879GS
...
63
CAP-WIRE, BLACK BS-319821GS
...
64
CAP-WIRE, RED BS-319405GS
...
65
ASSY-CONTROL PANEL BS-706532
...
66
CANISTER, Carbon BS-209044GS
...
67
SCREW BS-703804
...
68
BOND BS-706168
...
69
PAD-RUBBER BS-706377
...
70
BRACKET BS-318884GS
...
71
BELLOWS BS-706534
...
72
COVER-RUBBER BS-706376
...
73
PAD-RUBBER BS-706535
...
74
GROMMET, Rubber BS-189134GS
...
75
SPACER BS-189137GS
...
76
FILTER-FUEL BS-706545
...
--
FUSE (Part Not Illustrated) BS-316742GS
...
--
CHARGER, Battery (Part Not Illustrated) BS-84002790

Wheel Kit (312167)

...
...
1
HANDLE BS-311999GS
...
2
GRIP-HANDLE BS-311998GS
...
3
GRIP-HANDLE BS-312000GS
...
4
SCREW-M5-0.8 x 20 BS-75477GS
...
5
BOLT BS-318677GS
...
6
WASHER-NYLON M8 BS-187104GS
...
7
NUT-M8-1.25 NYLOK BS-49820GS
...
8
BOLT-M5-6 x 16 BS-207825GS
...
9
KNOB BS-312016GS
...
10
SPRING BS-312015GS
...
11
PIN BS-312017GS
...
12
MOUNT-VIBRATION BS-319285GS
...
13
NUT-M6 FLANGE BS-52857GS
...
14
SCREW-M8 x 16 BS-42568GS
...
15
SUPPORT-LEG BS-311994GS
...
16
WASHER-M10 LOCK BS-46526GS
...
17
NUT-M10 LOCK BS-45772GS
...
18
WASHER BS-691113
...
19
HUBCAP BS-312022GS
...
20
WHEEL BS-312021GS
...
21
PIN, HAIR, .0915 X 1-7/8 BS-5025210YP
...
22
AXLE BS-312023GS

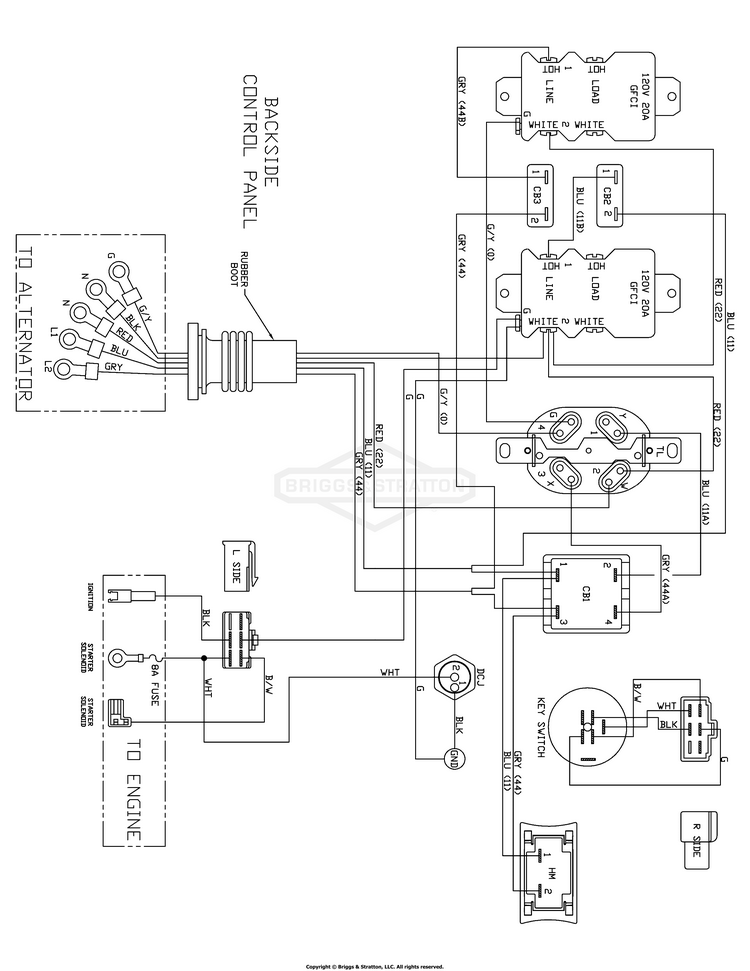

Wiring Diagram (80010737WD)

...

No Parts Available for this Schematic

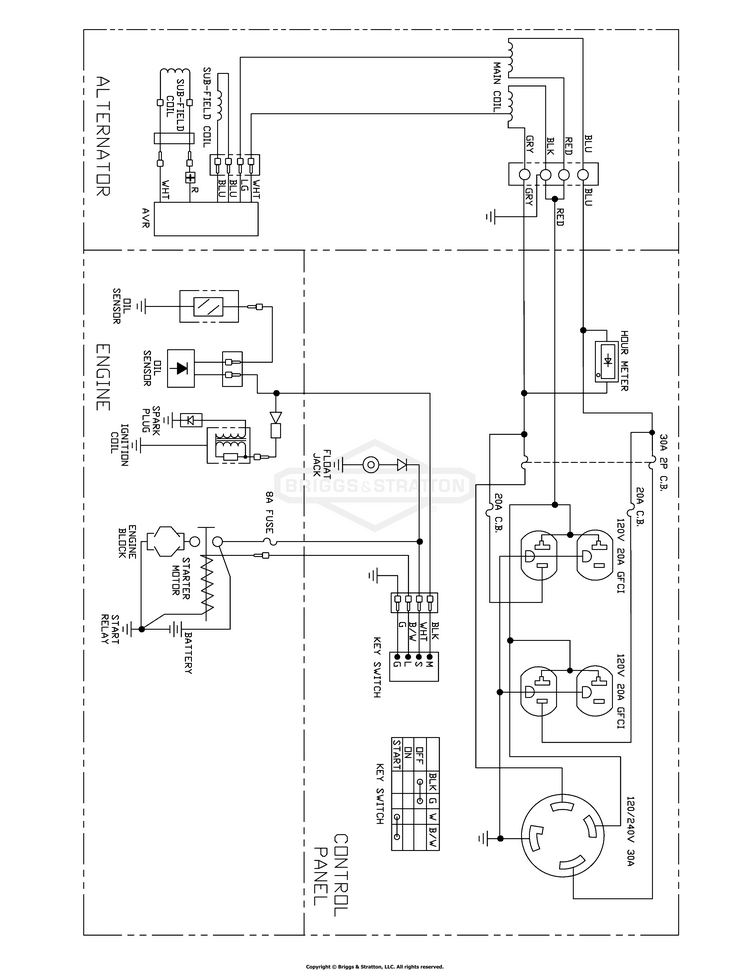

Wiring Schematic (80010737WS)

...

No Parts Available for this Schematic
