030552-00 Briggs and Stratton Generator 7,500 Watt Portable Generator

Model: 030552-00

Save Part Not Listed?
product name

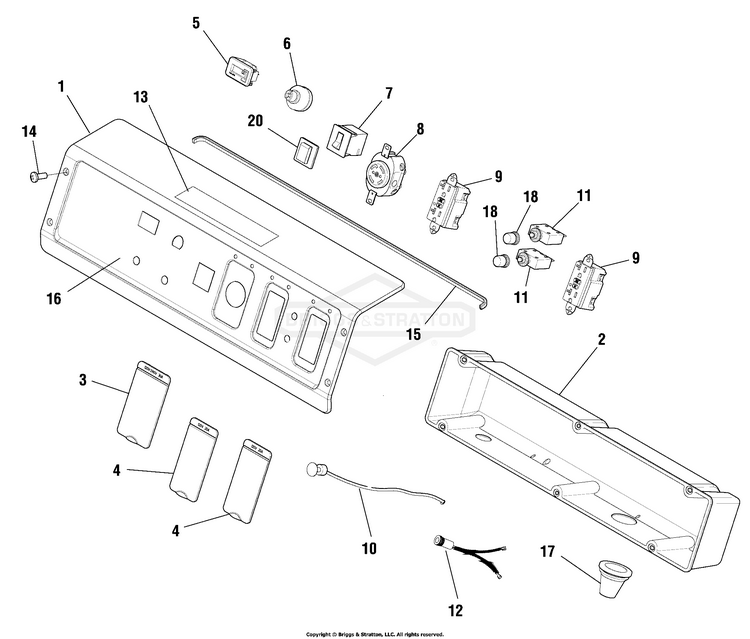

Control Panel (316665)

...
...
1
PANEL-CONTROL BS-704250
...
2
BOX-CONTROL PANEL BS-319458GS
...
3
COVER-OUTLET BS-319477GS
...
4
COVER-OUTLET BS-319476GS
...
5
METER-HOUR BS-202602GS
...
6
SWITCH, Key BS-692318
...
7
BREAKER-CIRCUIT 30A BS-202033GS
...
8
OUTLET-120/240V TL30A BS-43437GS
...
9
OUTLET-125V 20A BS-80409GS
...
10
CABLE-CHOKE BS-312034GS
...
11
BREAKER-CIRCUIT 20A BS-209872GS
...
12
JACK-COAXIAL BS-312004GS
...
13
DECAL BS-311565GS
...
14
SCREW BS-703804
...
15
TRIM-EDGE BS-319459GS
...
16
DECAL BS-313233GS
...
17
GROMMET BS-319529GS
...
18
BOOT-CIRCUIT BREAKER BS-312636GS
...
20
BOOT, Breaker Circuit BS-191481GS
...
--
SET, Key BS-691959

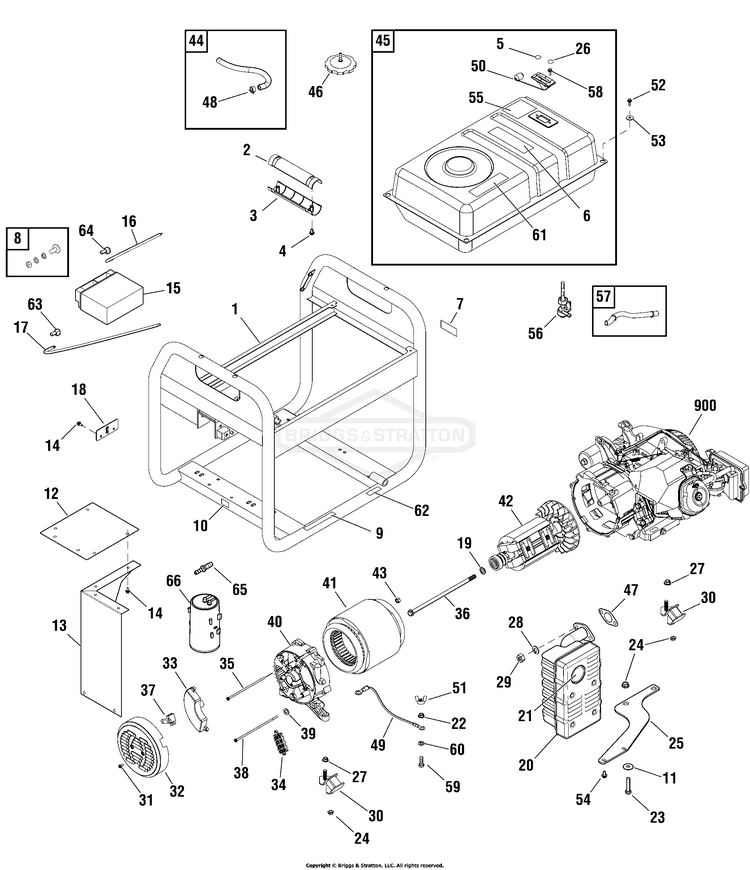

Main Unit (316662)

...
...
1
CRADLE BS-312007GS
...
2
GRIP-HANDLE BS-312008GS
...
3
GRIP-HANDLE BS-312009GS
...
4
SCREW BS-75477GS
...
5
DECAL BS-313461GS
...
6
DECAL BS-194984GS
...
7
DECAL BS-197798GS
...
8
KIT-HRDWR, BATTERY TERMINAL BS-315546GS
...
9
DECAL BS-200310GS
...
10
DECAL BS-B4986GS
...
11
WASHER BS-B2495GS
...
12
HEATSHIELD BS-312020GS
...
13
HEATSHIELD BS-312019GS
...
14
BOLT BS-209775GS
...
15
BATTERY BS-316345GS
...
16
CABLE-BTTRY, RED BS-312014GS
...
17
CABLE-BTTRY, BLACK BS-312026GS
...
18
PLATE-BATTERY BS-311983GS
...
19
WASHER BS-312045GS
...
20
MUFFLER BS-192569GS
...
21
SCREEN BS-83083GS
...
22
NUT BS-197861GS
...
23
SCREW BS-311987GS
...
24
NUT BS-67989GS
...
25
SUPPORT-MUFFLER BS-311985GS
...
26
DECAL BS-313462GS
...
27
NUT BS-193747GS
...
28
WASHER BS-22129GS
...
29
NUT BS-45771GS
...
30
MOUNT-VIBRATION BS-319451GS
...
31
SCREW BS-207824GS
...
32
END COVER BS-209428GS
...
33
VOLTAGE REGULATOR BS-312038GS
...
34
TERMINAL BLOCK BS-316945GS
...
35
BOLT BS-312638GS
...
36
BOLT BS-704235
...
37
BRUSH ASSY BS-207827GS
...
38
BOLT BS-312640GS
...
39
WASHER BS-49226GS
...
40
CARRIER-BEARING BS-708704
...
41
STATOR BS-706533
...
42
ROTOR BS-317336GS
...
43
NUT BS-207878GS
...
44
HOSE-VAPOR BS-315017GS
...
45
TANK-FUEL BS-316602GS
...
46
CAP-FUEL BS-318167GS
...
47
GASKET BS-312039GS
...
48
CLAMP BS-314955GS
...
49
WIRE BS-312040GS
...
50
GAUGE-FUEL BS-311992GS
...
51
NUT BS-87680GS
...
52
BOLT BS-82981GS
...
53
WASHER BS-312005GS
...
54
SCREW BS-66476GS
...
55
DECAL BS-202997GS
...
56
VALVE-FUEL BS-209417GS
...
57
LINE, Fuel BS-791745
...
58
SCREW BS-197896GS
...
59
HANDLE BS-84010594
...
60
WASHER BS-22097GS
...
61
DECAL BS-312728GS
...
62
DECAL SHEET, WARNINGS BS-705920
...
63
CAP-WIRE, BLACK BS-319821GS
...
64
CAP-WIRE, RED BS-319405GS
...
65
BARB BS-317025GS
...
66
CARB CANISTER BS-209044GS
...
--
FUSE (Not Illustrated) BS-316742GS
...
--
CHARGER, Battery (Not Illustrated) BS-84002790

Wheel Kit (312167)

...
...
1
HANDLE BS-311999GS
...
2
GRIP-HANDLE BS-311998GS
...
3
GRIP-HANDLE BS-312000GS
...
4
SCREW-M5-0.8 x 20 BS-75477GS
...
5
BOLT BS-318677GS
...
6
WASHER-NYLON M8 BS-187104GS
...
7
NUT-M8-1.25 NYLOK BS-49820GS
...
8
BOLT-M5-6 x 16 BS-207825GS
...
9
KNOB BS-312016GS
...
10
SPRING BS-312015GS
...
11
PIN BS-312017GS
...
12
MOUNT-VIBRATION BS-319285GS
...
13
NUT-M6 FLANGE BS-52857GS
...
14
SCREW-M8 x 16 BS-42568GS
...
15
SUPPORT-LEG BS-311994GS
...
16
WASHER-M10 LOCK BS-46526GS
...
17
NUT-M10 LOCK BS-45772GS
...
18
WASHER BS-691113
...
19
HUBCAP BS-312022GS
...
20
WHEEL BS-312021GS
...
21
PIN, HAIR, .0915 X 1-7/8 BS-5025210YP
...
22
AXLE BS-312023GS

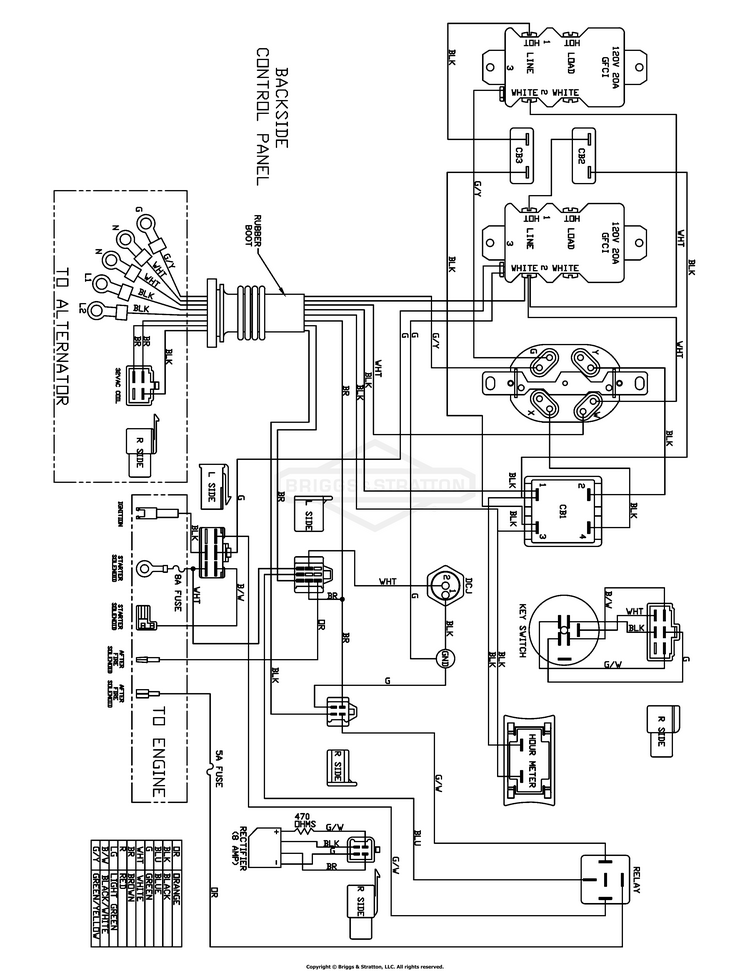

Wiring Diagram (316658WD)

...

No Parts Available for this Schematic

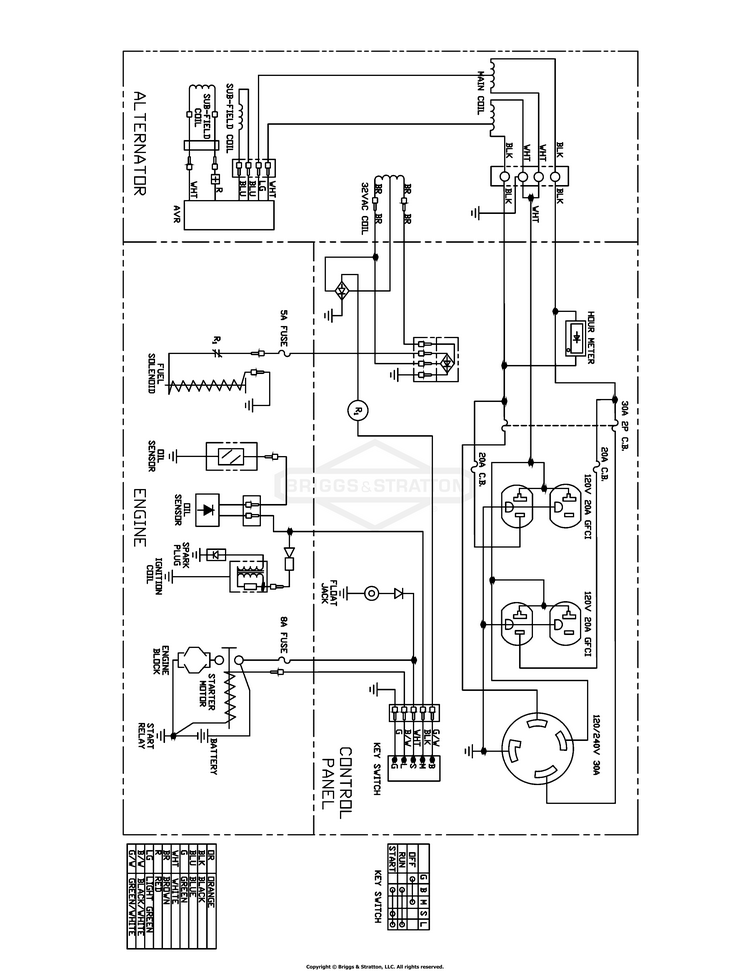

Wiring Schematic (316658WS)

...

No Parts Available for this Schematic
