030548-00 Briggs and Stratton Generator 5,000 Watt

Model: 030548-00

Save Part Not Listed?
product name

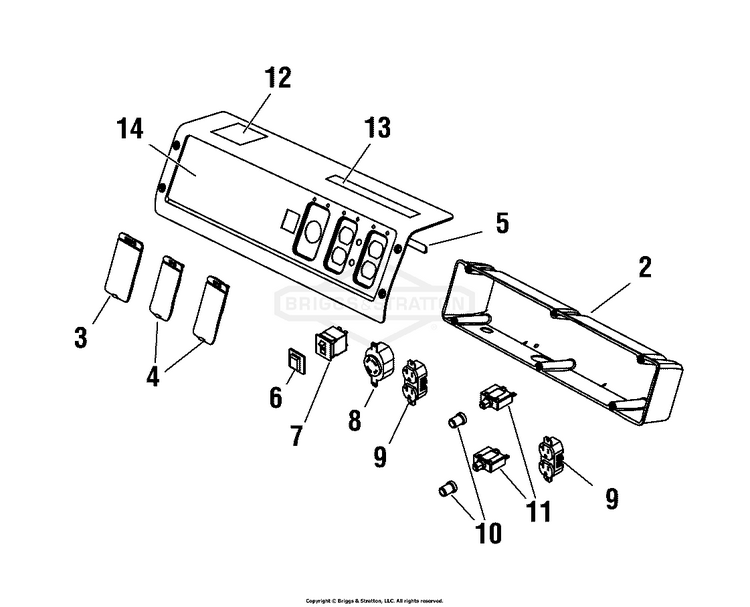

Control Panel (316663)

...
...
2
BOX-CONTROL PANEL BS-312978GS
...
3
COVER-OUTLET BS-312030GS
...
4
COVER-OUTLET BS-312031GS
...
5
TRIM-EDGE BS-312969GS
...
6
BOOT, Breaker Circuit BS-191481GS
...
7
BREAKER, Circuit 25A BS-202031GS
...
8
OUTLET, 120/240V, TL30A BS-43437GS
...
9
OUTLET, 120V, 20A BS-68759GS
...
10
BOOT-CIRCUIT BREAKER BS-84198GS
...
11
BREAKER-CIRCUIT, 20A BS-317605GS
...
12
DECAL BS-202997GS
...
13
DECAL BS-312572GS
...
14
DECAL BS-316638GS

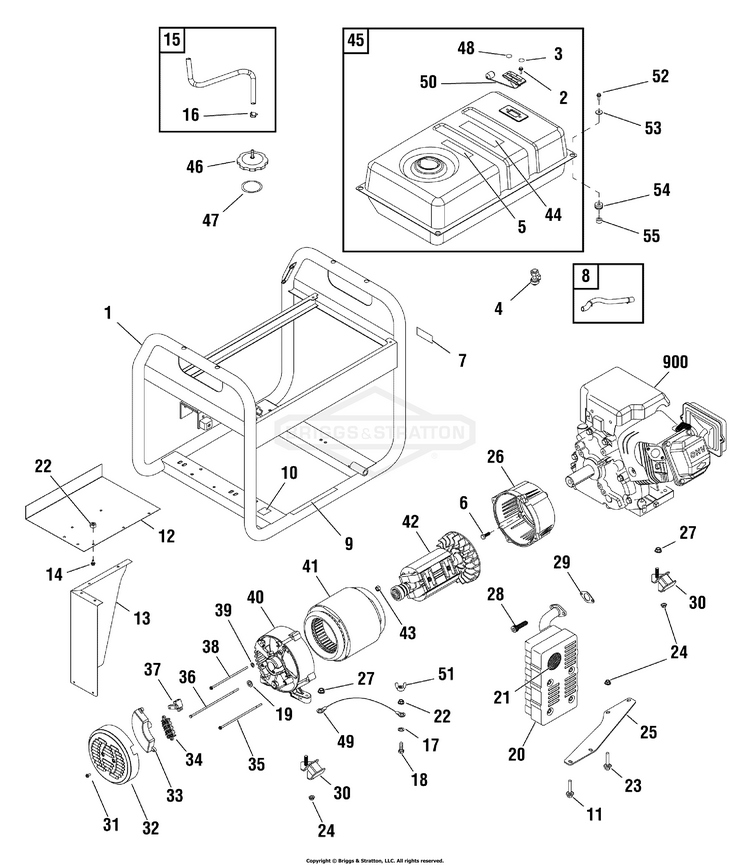

Main Unit (316659)

...
...
1
CRADLE BS-313312GS
...
2
SCREW BS-197896GS
...
3
DECAL BS-313462GS
...
4
VALVE-FUEL BS-209417GS
...
5
DECAL BS-312728GS
...
6
BOLT BS-313368GS
...
7
DECAL BS-197798GS
...
8
LINE, Fuel (Cut to Fit) BS-791745
...
9
DECAL BS-200310GS
...
10
DECAL BS-B4986GS
...
11
SCREW BS-66476GS
...
12
HEATSHIELD BS-313043GS
...
13
HEATSHIELD BS-310718GS
...
14
BOLT BS-209775GS
...
15
HOSE BS-315017GS
...
16
CLAMP BS-314955GS
...
17
WASHER BS-22097GS
...
18
HANDLE BS-84010594
...
19
WASHER BS-312045GS
...
20
MUFFLER BS-189008GS
...
21
SCREEN BS-83083GS
...
22
NUT BS-197861GS
...
23
SCREW BS-311987GS
...
24
NUT BS-67989GS
...
25
SUPPORT-MUFFLER BS-189009GS
...
26
ADAPTER-ENGINE BS-208537GS
...
27
NUT BS-193747GS
...
28
SCREW BS-204885GS
...
29
GASKET, Exhaust BS-695398
...
30
MOUNT-VIBRATION BS-319451GS
...
31
SCREW BS-207824GS
...
32
END COVER BS-313364GS
...
33
VOLTAGE REGULATOR BS-313320GS
...
34
TERMINAL BLOCK BS-312041GS
...
35
BOLT BS-317338GS
...
36
BOLT BS-317341GS
...
37
BRUSH ASSY BS-209441GS
...
38
BOLT BS-317340GS
...
39
WASHER BS-49226GS
...
40
CARRIER-BEARING BS-209423GS
...
41
STATOR BS-316516GS
...
42
ROTOR BS-316515GS
...
43
NUT BS-207878GS
...
44
DECAL BS-194984GS
...
45
TANK-FUEL BS-316604GS
...
46
CAP-FUEL BS-314950GS
...
47
SEAL BS-209939GS
...
48
DECAL BS-313461GS
...
49
WIRE BS-312040GS
...
50
GAUGE-FUEL BS-311992GS
...
51
NUT BS-87680GS
...
52
SCREW BS-590644
...
53
WASHER BS-312005GS
...
54
GROMMET BS-312006GS
...
55
SPACER BS-312010GS
...
--
MANUAL-OPERATOR (Not Illustrated) BS-316646GS

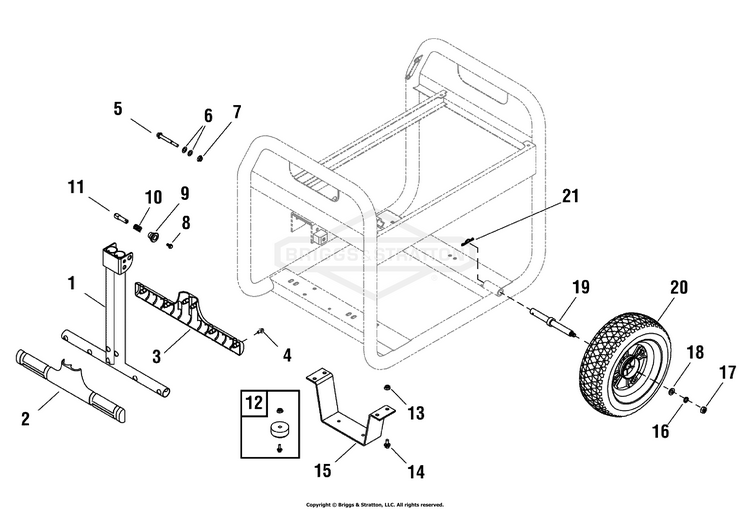

Wheel Kit (316666)

...
...
1
HANDLE BS-312973GS
...
2
GRIP-HANDLE BS-313284GS
...
3
GRIP-HANDLE BS-313283GS
...
4
SCREW BS-75477GS
...
5
BOLT BS-312974GS
...
6
WASHER BS-187104GS
...
7
NUT BS-49820GS
...
8
BOLT BS-207825GS
...
9
KNOB BS-312016GS
...
10
SPRING BS-312015GS
...
11
PIN BS-312017GS
...
12
MOUNT-VIBRATION BS-319285GS
...
13
NUT-M6 FLANGE BS-52857GS
...
14
BOLT BS-42568GS
...
15
SUPPORT-LEG BS-319642GS
...
16
WASHER BS-46526GS
...
17
NUT BS-209413GS
...
18
WASHER BS-209419GS
...
19
AXLE BS-312972GS
...
20
WHEEL BS-316597GS
...
21
PIN, HAIR, .0915 X 1-7/8 BS-5025210YP

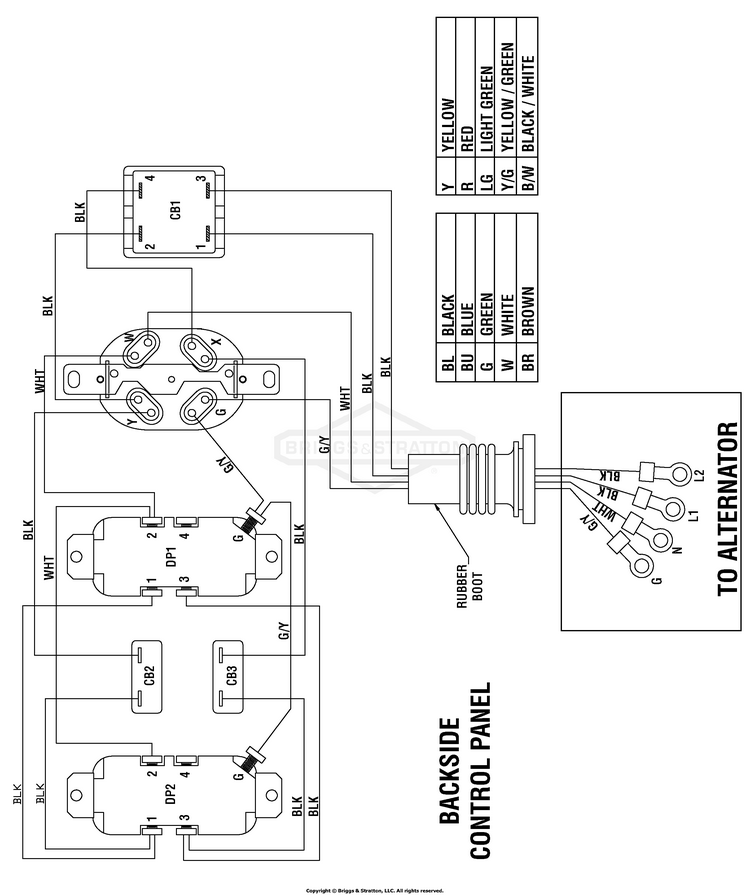

Wiring Diagram (316656WD)

...

No Parts Available for this Schematic

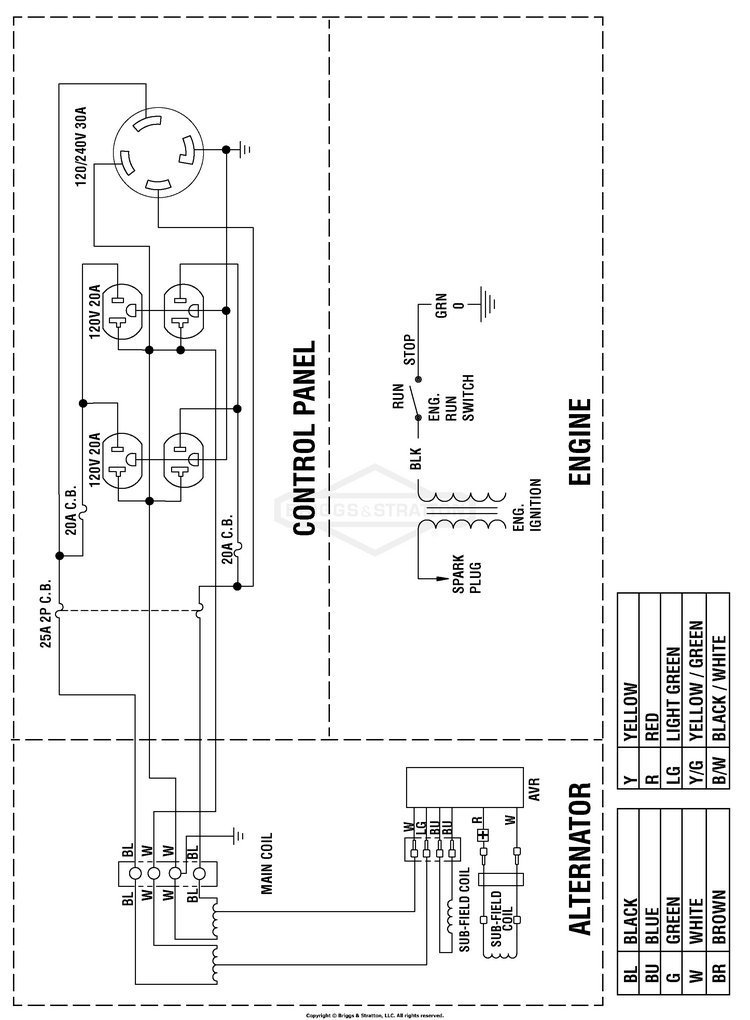

Wiring Schematic (316656WS)

...

No Parts Available for this Schematic
