030547-01 Briggs and Stratton Generator 3,500 Watt

Model: 030547-01

Save Part Not Listed?
product name

Popular Parts

Popular Parts

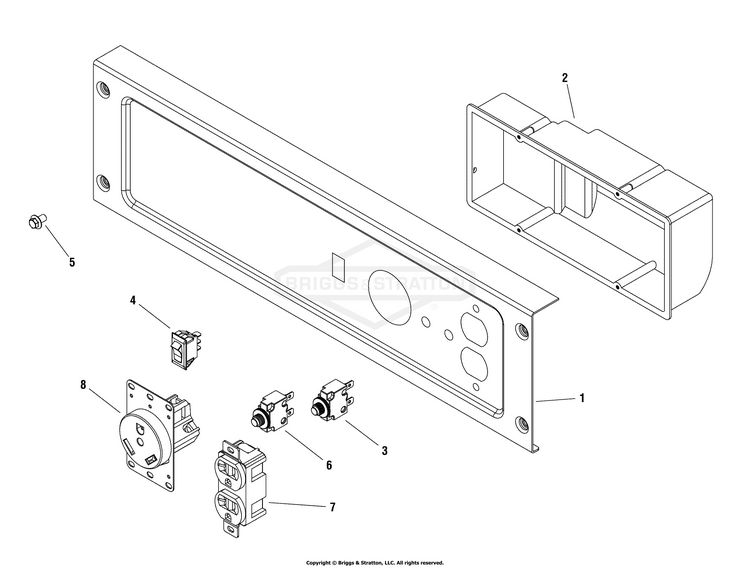

Control Panel (317995)

...
...
1
PANEL-CONTROL BS-318064GS
...
2
BOX-CONTROL PANEL BS-318060GS
...
3
BREAKER-CIRCUIT, 20A BS-318061GS
...
4
SWITCH-ON/OFF BS-318062GS
...
6
BREAKER-CIRCUIT, 30A BS-318063GS
...
7
OUTLET BS-68759GS
...
8
OUTLET BS-318065GS

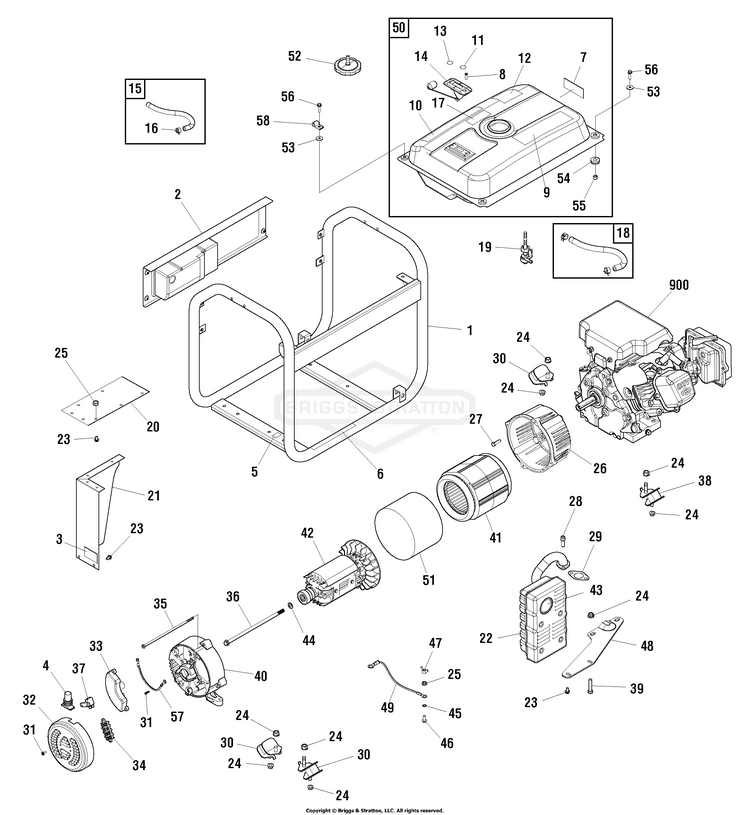

Main Unit (317994)

...
...
1
CRADLE BS-318163GS
...
2
CONTROL PANEL ASSEMBLY BS-318037GS
...
3
DECAL BS-200311GS
...
4
BOOT BS-207879GS
...
5
DECAL BS-B4986GS
...
6
DECAL BS-200310GS
...
7
DECAL BS-197798GS
...
8
SCREW BS-314440GS
...
9
DECAL BS-194984GS
...
10
DECAL BS-312572GS
...
11
DECAL BS-313462GS
...
12
DECAL BS-202997GS
...
13
DECAL BS-313461GS
...
14
GAUGE-FUEL BS-208124GS
...
15
HOSE BS-315017GS
...
16
CLAMP BS-314955GS
...
17
DECAL BS-312728GS
...
18
LINE, Fuel (Cut to fit) BS-791745
...
19
VALVE-FUEL BS-209417GS
...
20
HEATSHIELD BS-318166GS
...
21
HEATSHIELD BS-313523GS
...
22
MUFFLER BS-188301GS
...
23
SCREW BS-590850
...
25
NUT-M6 FLANGE BS-52857GS
...
26
ADAPTER-ENGINE BS-704266
...
27
BOLT BS-313368GS
...
28
KIT-HARDWARE MUFFLER BS-706921
...
29
GASKET BS-798516
...
30
MOUNT-VIBRATION BS-706149
...
31
SCREW BS-207824GS
...
32
END COVER BS-313364GS
...
33
VOLTAGE REGULATOR BS-209420GS
...
34
TERMINAL BLOCK BS-316945GS
...
35
BOLT BS-209427GS
...
36
BOLT BS-313525GS
...
37
BRUSH ASSEMBLY BS-207827GS
...
38
MOUNT-VIBRATION BS-706149
...
40
CARRIER-BEARING BS-209423GS
...
41
STATOR BS-318162GS
...
42
ROTOR BS-318164GS
...
43
SCREEN BS-83083GS
...
44
WASHER BS-207826GS
...
45
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
46
SCREW BS-590703
...
47
NUT BS-87680GS
...
48
BRACKET-MUFFLER BS-191785GS
...
49
WIRE BS-706153
...
50
TANK-FUEL BS-318168GS
...
51
BOND BS-706154
...
52
CAP-FUEL BS-314950GS
...
53
WASHER BS-312005GS
...
54
GROMMET BS-189134GS
...
55
SPACER BS-189137GS
...
56
SCREW BS-703805
...
57
WIRE BS-318309GS
...
58
CLAMP BS-315042GS

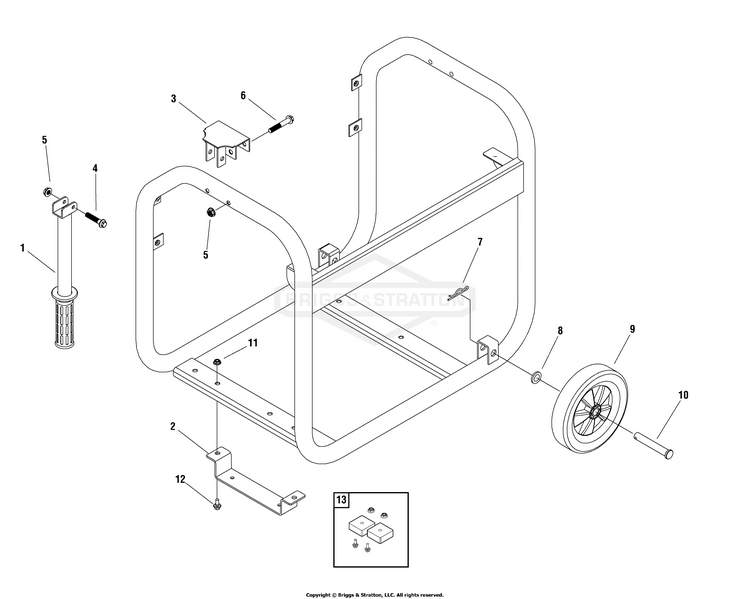

Wheel Kit (317996)

...
...
1
HANDLE BS-318031GS
...
2
SUPPORT-LEG BS-318033GS
...
3
SUPPORT-HANDLE BS-318012GS
...
7
PIN, HAIR, .0915 X 1-7/8 BS-5025210YP
...
8
WASHER BS-318034GS
...
9
WHEEL BS-318032GS
...
10
AXLE BS-318035GS
...
13
MOUNT-VIBRATION BS-319285GS
...
--
KIT-HARDWARE (Not Illustrated) BS-707180

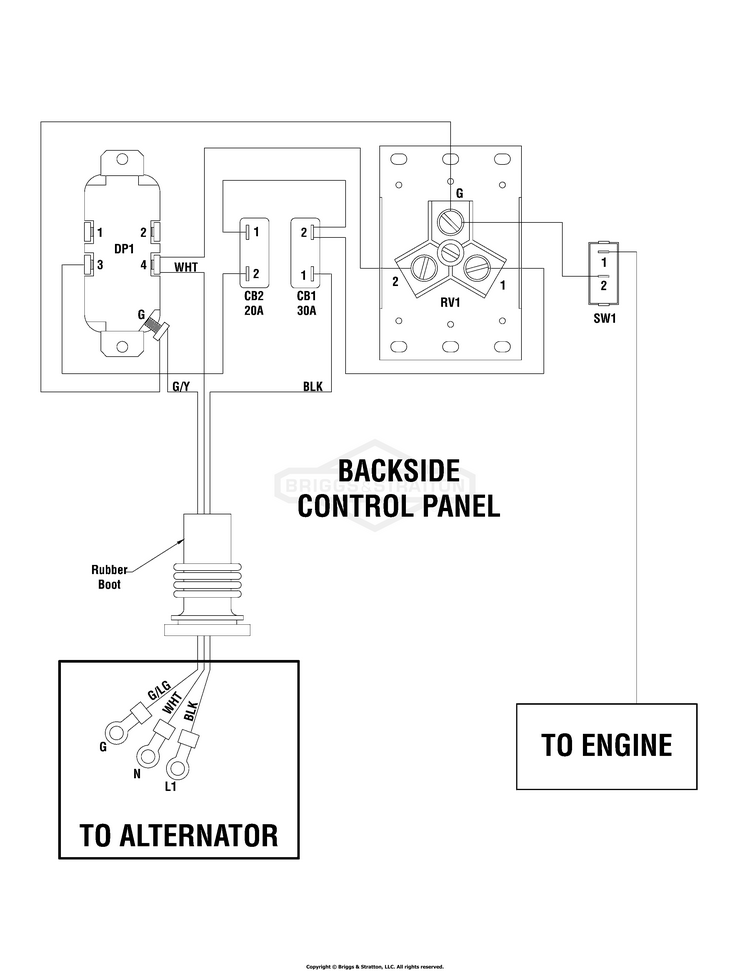

Wiring Diagram (317751WD)

...

No Parts Available for this Schematic

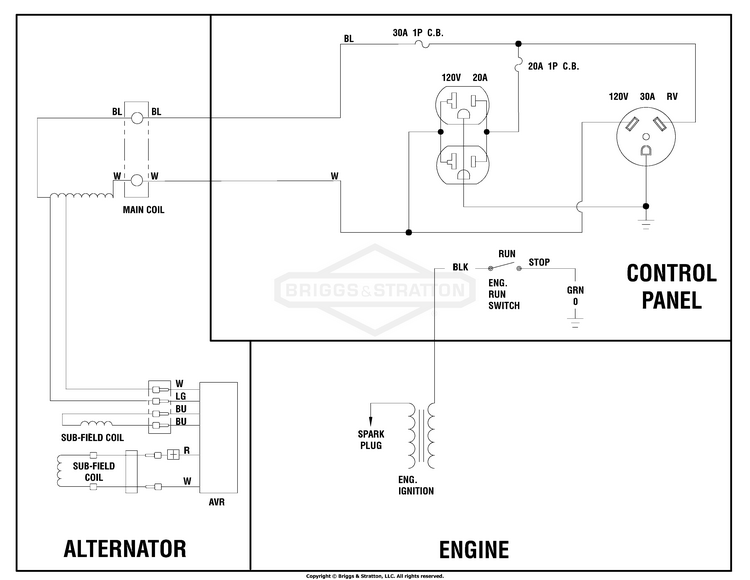

Wiring Schematic (317751WS)

...

No Parts Available for this Schematic
