030486-0 Briggs and Stratton Generator 3,500 Watt

Model: 030486-0

Save Part Not Listed?
product name

Popular Parts

Popular Parts

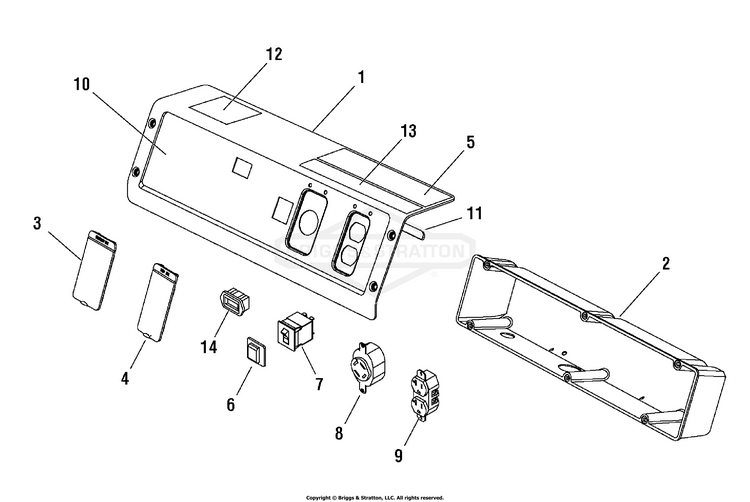

Control Panel (313516)

...
...
1
PANEL-CONTROL BS-313839GS
...
2
BOX-CONTROL PANEL BS-312978GS
...
3
COVER-OUTLET BS-312030GS
...
4
COVER-OUTLET BS-312031GS
...
5
DECAL BS-194984GS
...
6
BOOT, Breaker Circuit BS-191481GS
...
7
BREAKER-CIRCUIT 15A BS-202027GS
...
8
OUTLET, 120/240V TL30A BS-43437GS
...
9
OUTLET, 120V 20A BS-68759GS
...
10
DECAL BS-313542GS
...
11
TRIM-EDGE BS-312969GS
...
12
DECAL BS-202997GS
...
13
DECAL BS-312572GS
...
14
METER-HOUR BS-202602GS

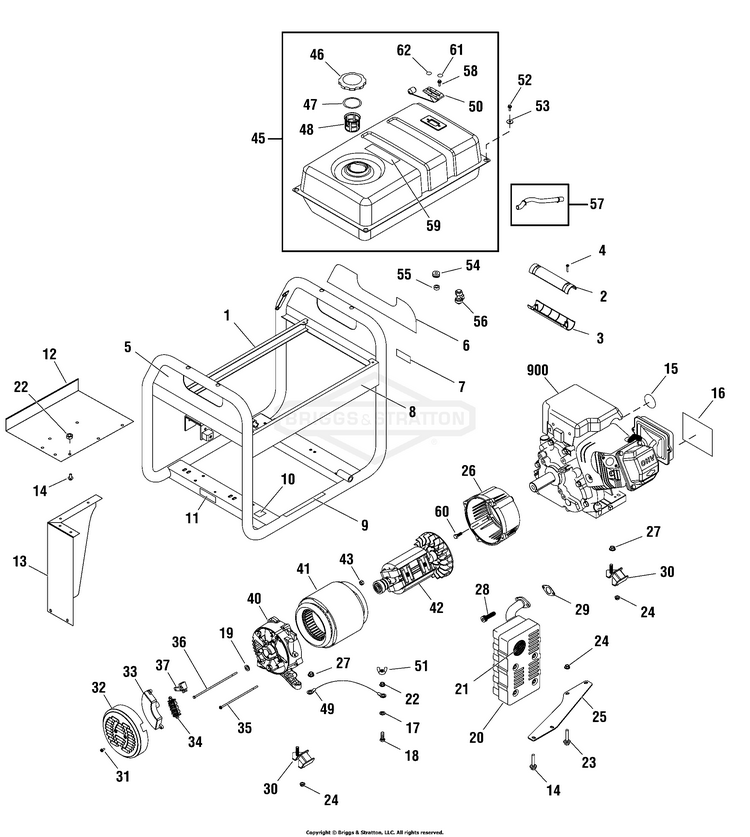

Main Unit (313515)

...
...
1
CRADLE BS-313521GS
...
2
GRIP-HANDLE BS-313321GS
...
3
GRIP-HANDLE BS-313322GS
...
4
SCREW BS-75477GS
...
5
DECAL BS-312554GS
...
6
DECAL BS-312555GS
...
7
DECAL BS-197798GS
...
8
DECAL BS-312556GS
...
9
DECAL BS-200310GS
...
10
DECAL BS-B4986GS
...
11
DECAL BS-200311GS
...
12
HEATSHIELD BS-313522GS
...
13
HEATSHIELD BS-313523GS
...
14
BOLT BS-209775GS
...
15
DECAL BS-200658GS
...
16
DECAL BS-312553GS
...
17
WASHER BS-22097GS
...
18
HANDLE BS-84010594
...
19
WASHER BS-312045GS
...
20
MUFFLER BS-189008GS
...
21
SCREEN BS-83083GS
...
22
NUT BS-197861GS
...
23
SCREW BS-590714
...
24
NUT BS-67989GS
...
25
SUPPORT-MUFFLER BS-189009GS
...
26
ADAPTER-ENGINE BS-704266
...
27
NUT BS-193747GS
...
28
SCREW BS-204885GS
...
29
GASKET, Exhaust BS-695398
...
30
MOUNT-VIBRATION BS-706149
...
31
SCREW BS-207824GS
...
32
END COVER BS-313364GS
...
33
VOLTAGE REGULATOR BS-209420GS
...
34
TERMINAL BLOCK BS-312041GS
...
35
BOLT BS-312042GS
...
36
BOLT BS-313525GS
...
37
BRUSH ASSY BS-209441GS
...
40
CARRIER-BEARING BS-209423GS
...
41
STATOR BS-313527GS
...
42
ROTOR BS-313529GS
...
43
NUT BS-207878GS
...
45
TANK-FUEL BS-313531GS
...
46
CAP-FUEL BS-311990GS
...
47
SEAL BS-209939GS
...
48
FILTER-SCREEN BS-311991GS
...
49
WIRE BS-312040GS
...
50
GAUGE-FUEL BS-311992GS
...
51
NUT BS-87680GS
...
52
SCREW BS-590644
...
53
WASHER BS-312005GS
...
54
GROMMET BS-312006GS
...
55
SPACER BS-312010GS
...
56
VALVE-FUEL BS-209417GS
...
57
LINE, Fuel (Cut to Fit) BS-791745
...
58
SCREW BS-197896GS
...
59
DECAL BS-188333GS
...
60
BOLT BS-313368GS
...
61
DECAL BS-313461GS
...
62
DECAL BS-313462GS
...
--
CONTROL PANEL ASSEMBLY (Not Illustrated) BS-313874GS

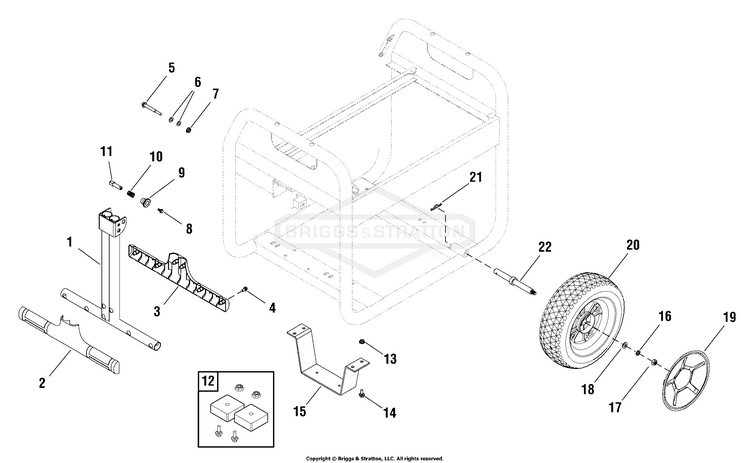

Wheel Kit (312967)

...
...
1
HANDLE BS-312973GS
...
2
GRIP-HANDLE BS-313284GS
...
3
GRIP-HANDLE BS-313283GS
...
4
SCREW BS-75477GS
...
5
BOLT BS-312974GS
...
6
WASHER BS-187104GS
...
7
NUT BS-49820GS
...
8
BOLT BS-207825GS
...
9
KNOB BS-312016GS
...
10
SPRING BS-312015GS
...
11
PIN BS-312017GS
...
12
MOUNT-VIBRATION BS-319285GS
...
13
NUT-M6 FLANGE BS-52857GS
...
14
BOLT BS-42568GS
...
15
SUPPORT-LEG BS-319642GS
...
16
WASHER BS-46526GS
...
17
NUT BS-209413GS
...
18
WASHER BS-209419GS
...
19
HUBCAP BS-316418GS
...
20
WHEEL BS-209322GS
...
21
PIN, HAIR, .0915 X 1-7/8 BS-5025210YP
...
22
AXLE BS-312972GS
