030452-0 Briggs and Stratton Generator 6,200 Watt

Model: 030452-0

Back To Assemblies

Save Part Not Listed?
product name

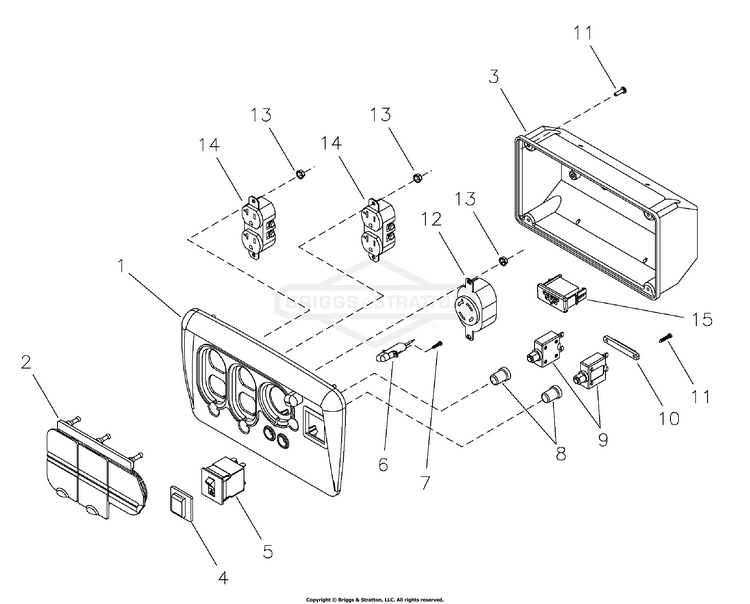

Control Panel

...
...
1
PANEL, Control BS-198468GS
...
2
COVER, Outlet BS-197472GS
...
3
BOX, Control Panel BS-201573GS
...
4
BOOT, Breaker Circuit BS-191481GS
...
5
BREAKER, Circuit, 30A BS-202033GS
...
6
LAMP, LED BS-202951GS
...
7
SCREW BS-197958GS
...
8
BOOT, Circuit Breaker BS-84198GS
...
9
BREAKER, Circuit, 20A BS-202394GS
...
10
BAR, Retaining BS-202932GS
...
11
SCREW BS-84543BGS
...
12
OUTLET, 210 / 240V, TL30A BS-43437GS
...
13
PALNUT, 3/16 BS-189164GS
...
14
OUTLET, 120V, 20A BS-197731GS
...
15
CONNECTOR, 6 Pin BS-201678GS
