030452-0 Briggs and Stratton Generator 6,200 Watt

Model: 030452-0

Back To Assemblies

Save Part Not Listed?
product name

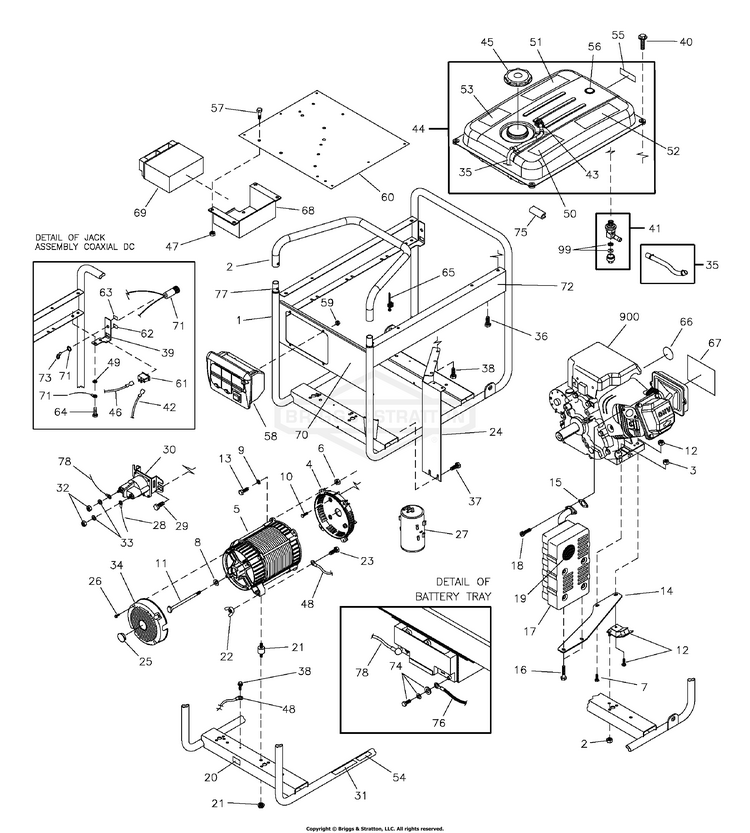

Main Unit

...
...
1
CRADLE BS-J209626GS
...
2
HANDLE BS-J209287GS
...
3
NUT, Flange Serrated, M8 BS-67989GS
...
4
ADAPTER, Engine BS-190220GS
...
7
SCREW BS-195398GS
...
8
WASHER, 8.4 x 22.2 x 3 BS-96796GS
...
10
SCREW BS-190274DGS
...
11
SCREW BS-187365FGS
...
12
MOUNT, Vibration BS-194150GS
...
14
BRACKET BS-189009GS
...
15
GASKET, Exhaust BS-695398
...
17
MUFFLER BS-189008GS
...
18
SCREW, M8 -1.25 x 20 BS-204885GS
...
19
ARRESTOR, Spark BS-83083GS
...
20
DECAL, Ground BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
NUT, Wing, M6-1 BS-87680GS
...
24
HEAT SHIELD BS-194390GS
...
25
CAP BS-191190GS
...
26
TAPTITE, M5 - 0.8 x 10 BS-74908GS
...
27
CANISTER, Carbon BS-209044GS
...
28
WIRE BS-189302RGS
...
29
SCREW, HEX, 1/4-20X.5 BS-704130
...
30
SOLENOID, Starter BS-691656
...
31
DECAL BS-196830GS
...
34
COVER, Rear Bearing BS-195422GS
...
35
LINE, Fuel (Cut to Fit) BS-791745
...
36
SCREW BS-192376GS
...
37
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
38
SCREW, Self Driller, 12-14 x 7/8 BS-B2153GS
...
39
BRACKET BS-P198757GS
...
40
SCREW BS-197955GS
...
41
VALVE, Fuel BS-310574GS
...
42
WIRE BS-198871ZGS
...
43
VALVE BS-209042GS
...
44
TANK, Fuel (Includes Ref. No. 41) BS-209930GS
...
45
CAP, Fuel BS-207874GS
...
46
WIRE BS-198871YGS
...
47
NUT BS-77395GS
...
48
WIRE BS-195373GS
...
49
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
50
DECAL BS-188333GS
...
51
DECAL BS-194799GS
...
52
DECAL BS-189235GS
...
53
DECAL, Warning, CO BS-202997GS
...
54
DECAL SHEET, WARNINGS BS-705920
...
55
DECAL BS-197797GS
...
56
GAUGE BS-208962GS
...
58
CONTROL PANEL BS-204072GS
...
59
PALNUT, 3/16 BS-189164GS
...
60
HEAT SHIELD BS-208183GS
...
61
SWITCH, Rocker BS-87799GS
...
62
DECAL BS-197159GS
...
63
DECAL BS-198800GS
...
64
TAPTITE BS-90388GS
...
65
MOUNT, Tiewrap BS-209036GS
...
66
DECAL, Recoil BS-200658GS
...
67
DECAL BS-209764GS
...
68
TRAY, Battery BS-195680GS
...
69
BATTERY BS-193043GS
...
70
DECAL BS-209763GS
...
71
JACK, Coaxial BS-209393GS
...
72
DECAL BS-209762GS
...
73
LUG BS-192351GS
...
74
KIT, Battery Hardware BS-193347GS
...
75
TRIM, Edge BS-209929GS
...
76
WIRE BS-208518GS
...
77
PIN, Spring, Handle BS-207525GS
...
78
WIRE BS-208519GS
...
99
VALVE, Fuel BS-310574GS
...
--
MANUAL, Operator's BS-209760GS
...
--
CHARGER, Battery BS-84002790
