030451-0 Briggs and Stratton Generator 5,000 Watt

Model: 030451-0

Save Part Not Listed?
product name

Popular Parts

Popular Parts

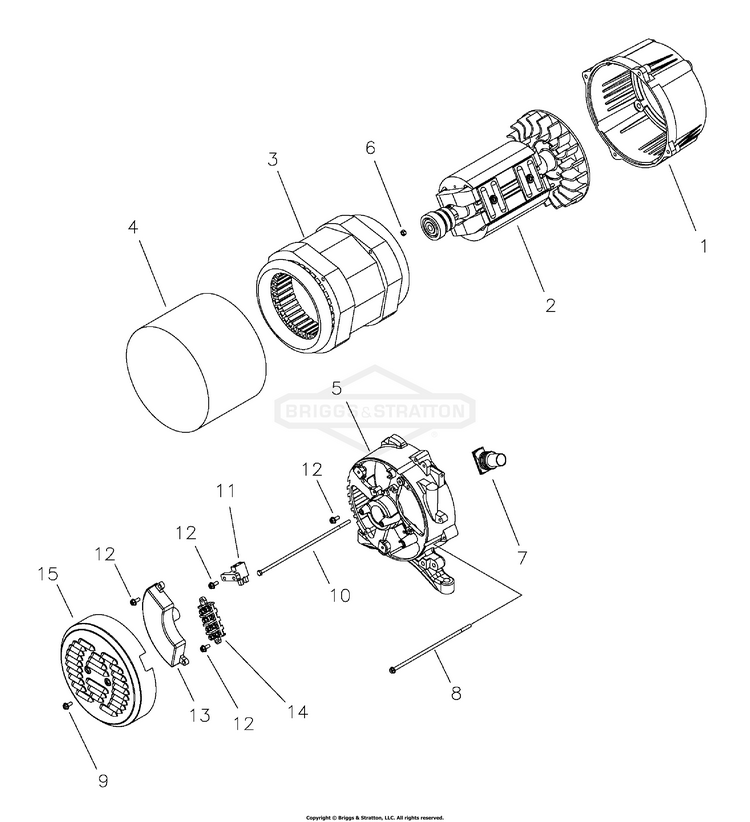

Alternator

...
...
1
ADAPTER, Engine BS-207822GS
...
2
ROTOR BS-207833GS
...
3
STATOR BS-207835GS
...
4
BAND, Stator BS-207837GS
...
5
CARRIER-BEARING BS-708704
...
6
NUT, M5 BS-207878GS
...
7
BOOT, Rubber BS-207879GS
...
8
BOLT, M6 - 6 x 180 BS-207829GS
...
9
BOLT, M5 - 6 x 12 BS-207824GS
...
10
BOLT, M5 x 214 BS-207876GS
...
11
BRUSH, Carbon BS-207827GS
...
12
BOLT, M5 x 16 BS-207825GS
...
13
AVR BS-207840GS
...
14
BLOCK, Junction BS-207839GS
...
15
COVER BS-207823GS

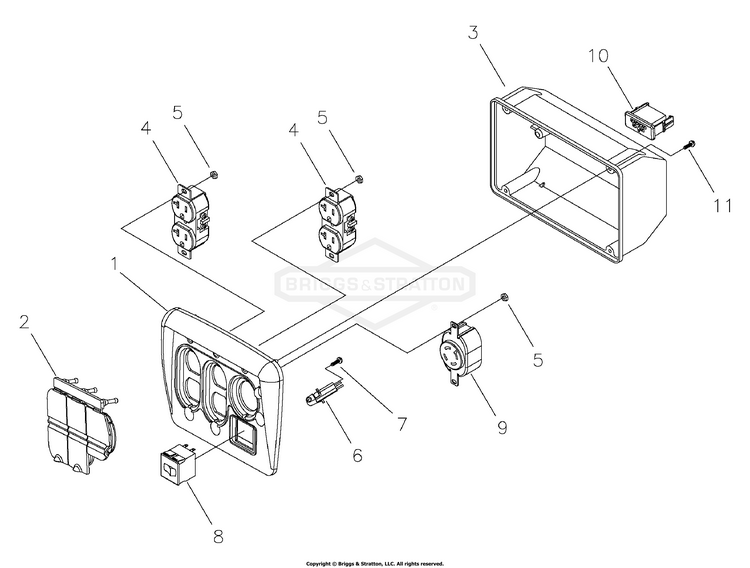

Control Panel

...
...
1
CONTROL PANEL BS-201571GS
...
2
COVER, Outlet BS-197472GS
...
3
BOX, Control Panel BS-201572GS
...
4
OUTLET, 120V 20A BS-197731GS
...
5
PALNUT, 3/16 BS-189164GS
...
6
LAMP, LED BS-202951GS
...
8
BREAKER-CIRCUIT 20A BS-202030GS
...
--
BOOT, Breaker Circuit (Not Illustrated) BS-191481GS
...
9
OUTLET, 120/240V TL30A BS-43437GS
...
10
CONNECTOR, 6 PIN BS-201678GS

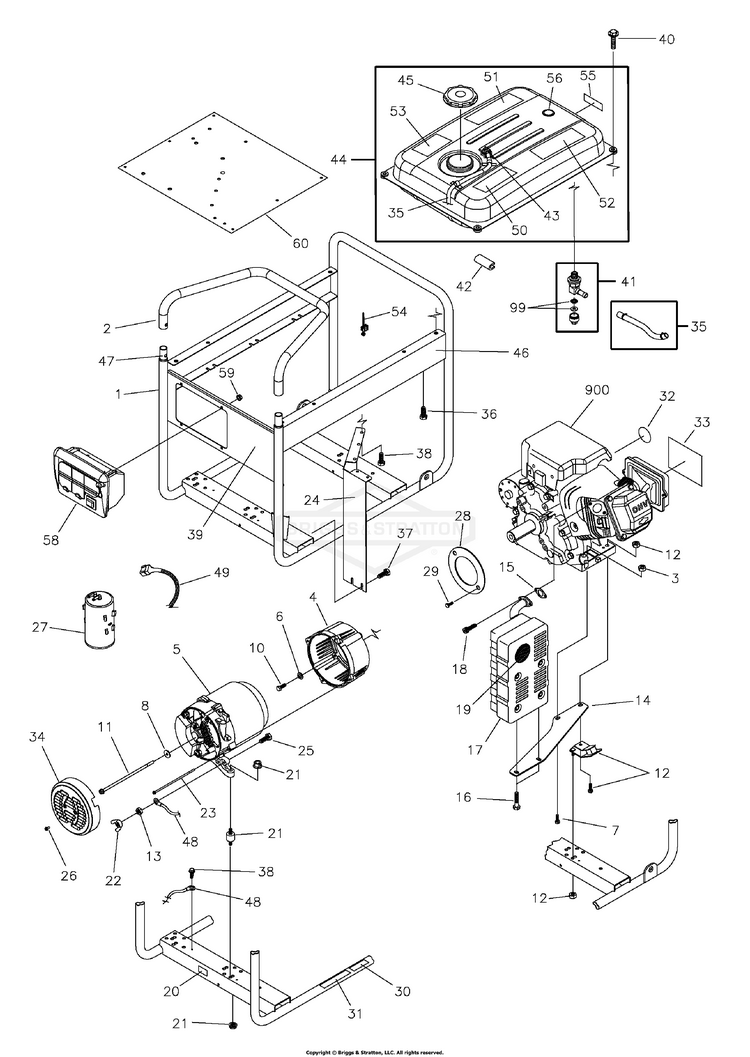

Main Unit

...
...
1
CRADLE (Includes Ref. Nos. 20, 30 & 31) BS-J209358GS
...
2
HANDLE BS-J209287GS
...
3
NUT BS-67989GS
...
4
ADAPTER, Engine BS-207822GS
...
7
SCREW, Pan Head Torx, M8 1.25 x 35 BS-195398GS
...
8
WASHER BS-207826GS
...
9
SPACER BS-207609GS
...
11
BOLT BS-207830GS
...
12
MOUNT, Vibration BS-208916GS
...
13
NUT BS-49813GS
...
14
BRACKET BS-189009GS
...
15
GASKET, Exhaust BS-695398
...
17
MUFFLER BS-189008GS
...
18
CAPSCREW, Socket Head, M8 - 1.25 x 20 BS-204885GS
...
19
ARRESTOR, Spark BS-83083GS
...
20
DECAL BS-B4986GS
...
21
MOUNT, Vibration BS-195478GS
...
22
NUT BS-87680GS
...
24
HEAT SHIELD BS-209745GS
...
26
SCREW BS-207824GS
...
27
CANISTER, Carbon BS-209044GS
...
28
DISK BS-B4260GS
...
30
DECAL SHEET, WARNINGS BS-705920
...
31
DECAL BS-196830GS
...
32
DECAL BS-200658GS
...
33
DECAL BS-209849GS
...
34
COVER, Rear Bearing BS-207823GS
...
35
LINE, Fuel BS-791745
...
36
SCREW BS-192376GS
...
37
CRIMPTITE BS-56893GS
...
38
SCREW BS-B2153GS
...
39
DECAL BS-209848GS
...
40
SCREW BS-197955GS
...
41
VALVE, Fuel BS-310574GS
...
42
TRIM, Edge BS-209929GS
...
43
VALVE BS-209042GS
...
44
TANK, Fuel (Includes Ref. No. 41) BS-209930GS
...
45
CAP, Fuel BS-207874GS
...
46
DECAL BS-209847GS
...
47
PIN, Spring, Handle BS-207525GS
...
48
WIRE BS-195373GS
...
49
HARNESS, Power BS-208029GS
...
50
DECAL BS-188333GS
...
51
DECAL BS-194799GS
...
52
DECAL BS-189235GS
...
53
DECAL BS-202997GS
...
54
MOUNT, Tiewrap BS-209036GS
...
55
DECAL BS-197797GS
...
56
GAUGE BS-208962GS
...
58
CONTROL PANEL BS-204073GS
...
59
PALNUT, 3/16 BS-189164GS
...
60
HEAT SHIELD BS-208183GS
...
99
VALVE, Fuel BS-310574GS
...
--
MANUAL, Operator's BS-209845GS

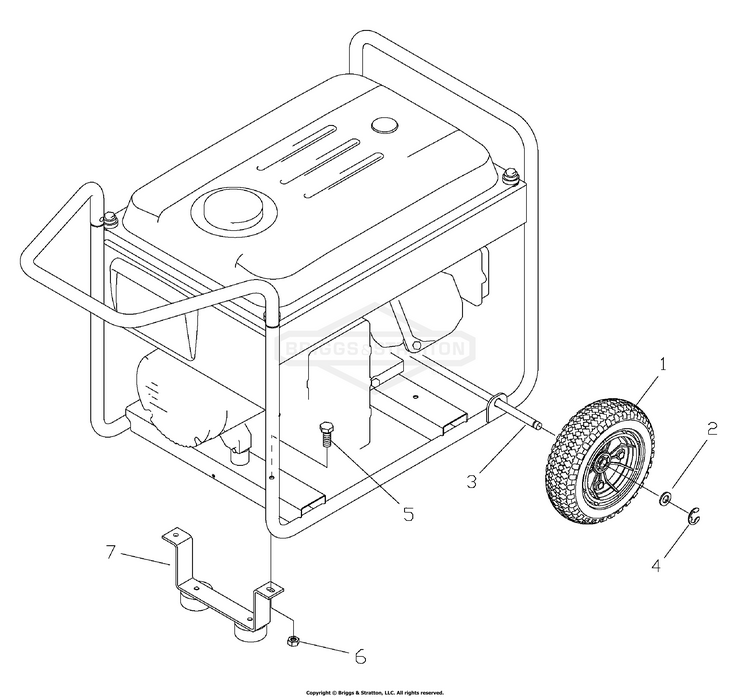

Wheel Kit

...
...
1
WHEEL BS-209322GS
...
3
AXLE BS-191267RGS
...
4
E-RING BS-703977
...
6
NUT, Flange Serrated, M8 BS-67989GS
...
7
SUPPORT, Leg BS-209716GS
...
--
KIT, Hardware, Wheel BS-196157GS

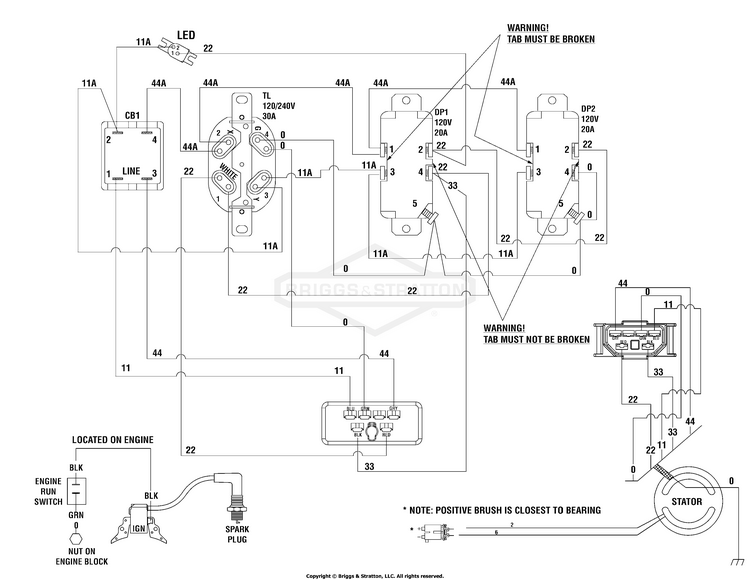

Wiring Diagram (204050WD)

...

No Parts Available for this Schematic

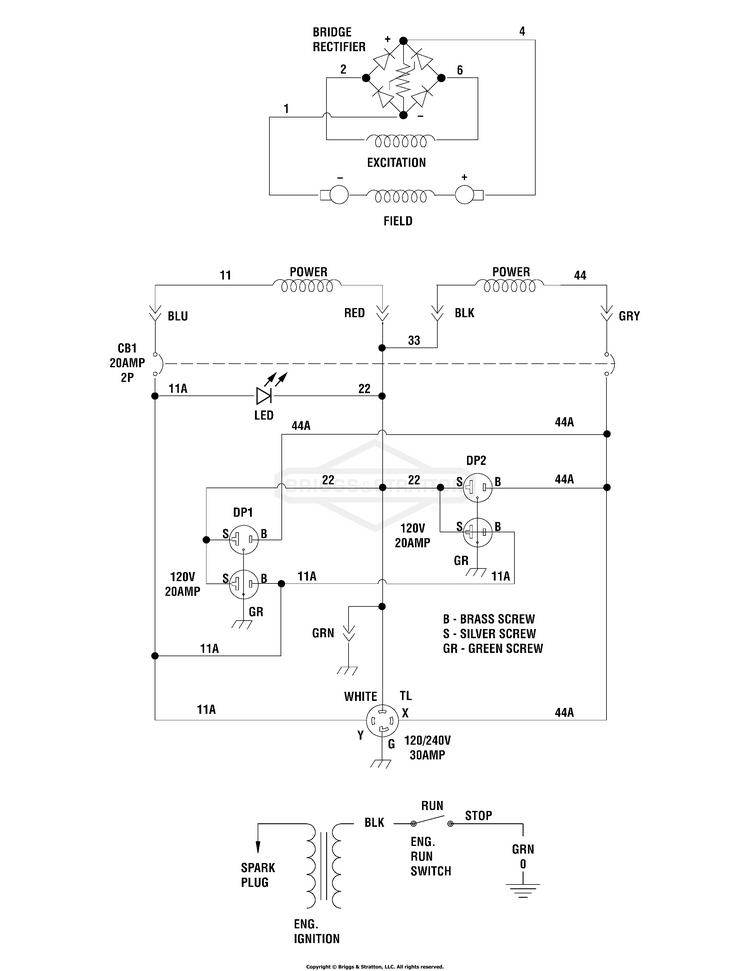

Wiring Schematic (204050WS)

...

No Parts Available for this Schematic
