030434-0 Briggs and Stratton Generator 3,250 Watt

Model: 030434-0

Save Part Not Listed?
product name

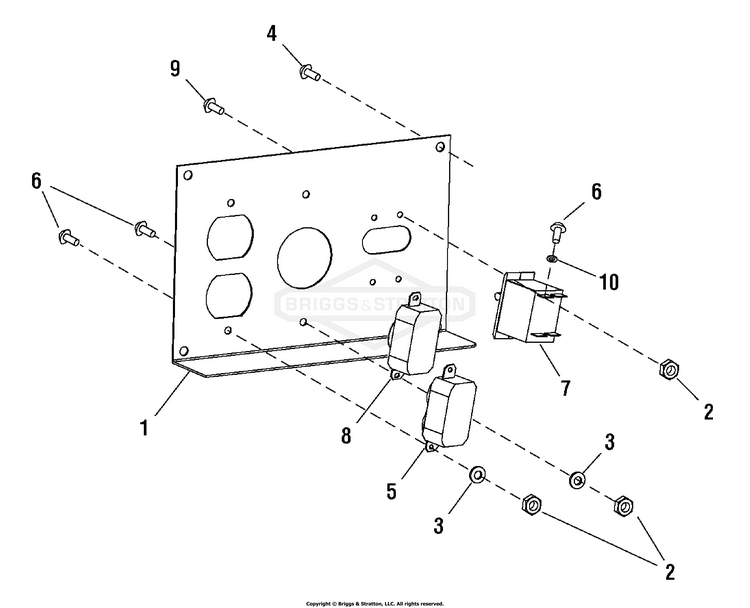

Control Panel (203704)

...
...
1
CONTROL PANEL (Includes Decal) BS-203692GS
...
5
OUTLET, 120/125V, 15/20a, Duplex BS-68759GS
...
7
Circuit Breaker, 15A BS-203527GS
...
8
OUTLET, 120/240V, 20a, Locking BS-68867GS
...
--
DECAL, Control Panel (Not Illustrated) BS-204907GS

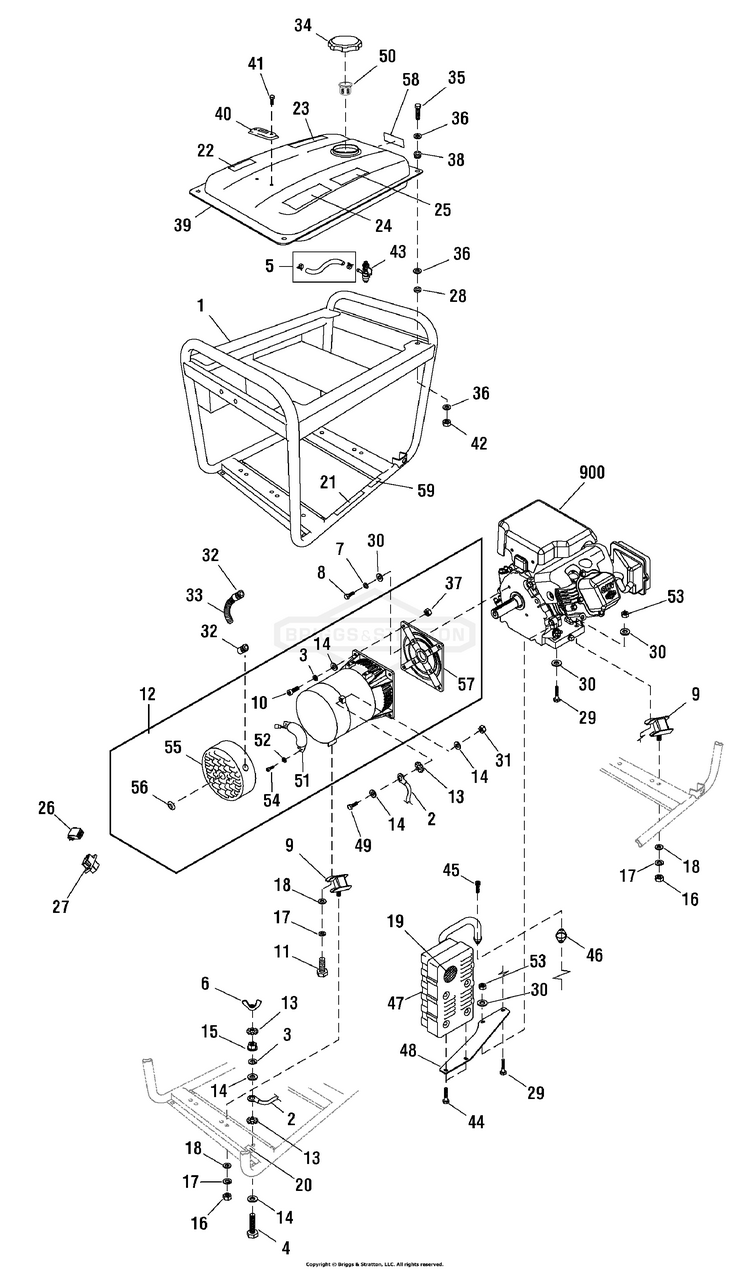

Main Unit (207767)

...
...
1
CRADLE BS-~NSP
...
2
WIRE BS-203694GS
...
5
LINE, Fuel (Cut to Fit) BS-791745
...
6
NUT BS-204748GS
...
9
MOUNT, Vibration BS-204735GS
...
12
ALTERNATOR BS-204772GS
...
19
SCREEN BS-83083GS
...
20
DECAL BS-B4986GS
...
21
DECAL BS-196830GS
...
22
DECAL BS-194799GS
...
23
DECAL BS-188333GS
...
24
DECAL BS-189235GS
...
25
DECAL BS-202997GS
...
26
WIRE END SEAT BS-204740GS
...
27
WIRE END SEAT, WHT BS-204741GS
...
28
PAD-SUPPORT BS-204736GS
...
32
CONNECTOR BS-204737GS
...
33
TUBE BS-204738GS
...
34
CAP, Fuel BS-~NSP
...
38
GROMMET BS-204749GS
...
39
TANK, Fuel BS-~NSP
...
40
GAUGE, Fuel BS-204744GS
...
43
VALVE, Fuel BS-310574GS
...
46
GASKET-EXHAUST BS-692237
...
47
MUFFLER BS-188301GS
...
48
BRACKET BS-191785GS
...
50
FILTER BS-204742GS
...
51
CAPACITOR BS-204774GS
...
52
WASHER BS-204776GS
...
54
SCREW BS-204777GS
...
55
COVER, Rear Bearing BS-204775GS
...
56
RUBBER BS-204773GS
...
57
FLANGE BS-203705GS
...
58
DECAL BS-197797GS
...
59
DECAL SHEET, WARNINGS BS-705920
...
--
MANUAL, Operator's (Not Illustrated) BS-310090GS
...
--
BOTTLE, Oil (Not Illustrated) BS-100005

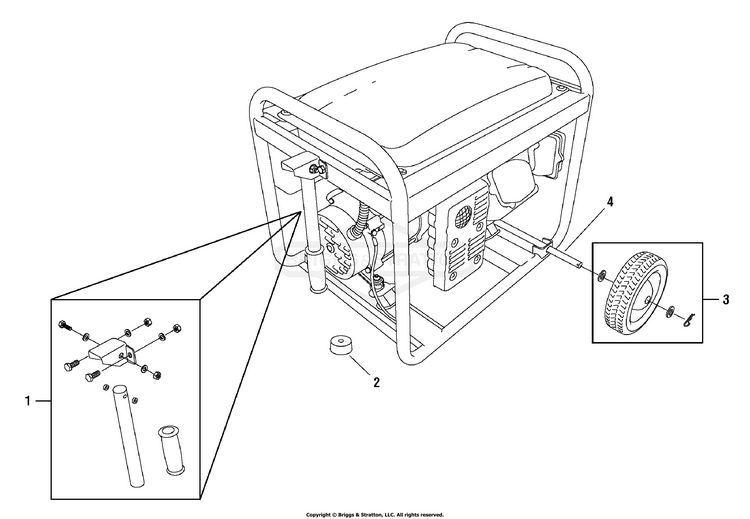

Wheel Kit (207769)

...
...
1
KIT, Handle BS-204780GS
...
2
MOUNT, Vibration BS-191413GS
...
3
KIT, Wheel BS-204779GS
...
4
AXLE BS-204548GS
