030430B-01 Briggs and Stratton Generator 5,500 Watt

Model: 030430B-01

Save Part Not Listed?
product name

Alternator (310323)

...
...
1
ADAPTER, Engine BS-208537GS
...
2
ROTOR BS-207832GS
...
3
STATOR BS-207834GS
...
4
BAND, Stator BS-207836GS
...
5
SUPPORT, Bearing BS-208485GS
...
6
NUT BS-207878GS
...
7
BOOT BS-207879GS
...
8
BOLT BS-207828GS
...
9
BOLT BS-207824GS
...
10
BOLT BS-207877GS
...
11
BRUSH BS-207827GS
...
12
BOLT BS-207825GS
...
13
AVR BS-207840GS
...
14
BLOCK, Junction BS-207839GS
...
15
COVER, Rear Bearing BS-208429GS
...
16
CAP, Rotor Bolt BS-315802GS

Control Panel (209224)

...
...
1
PANEL, Control BS-201571GS
...
2
COVER, Outlet BS-197472GS
...
3
BOX, Control Panel BS-201572GS
...
4
OUTLET, 120V 20A BS-197731GS
...
5
PALNUT, 3/16 BS-189164GS
...
6
LAMP, LED BS-202951GS
...
8
BREAKER-CIRCUIT 20A BS-202030GS
...
--
BOOT, Breaker Circuit (Not Illustrated) BS-191481GS
...
9
OUTLET, 120/240V TL30A BS-43437GS
...
10
CONNECTOR, 6 Pin BS-201678GS

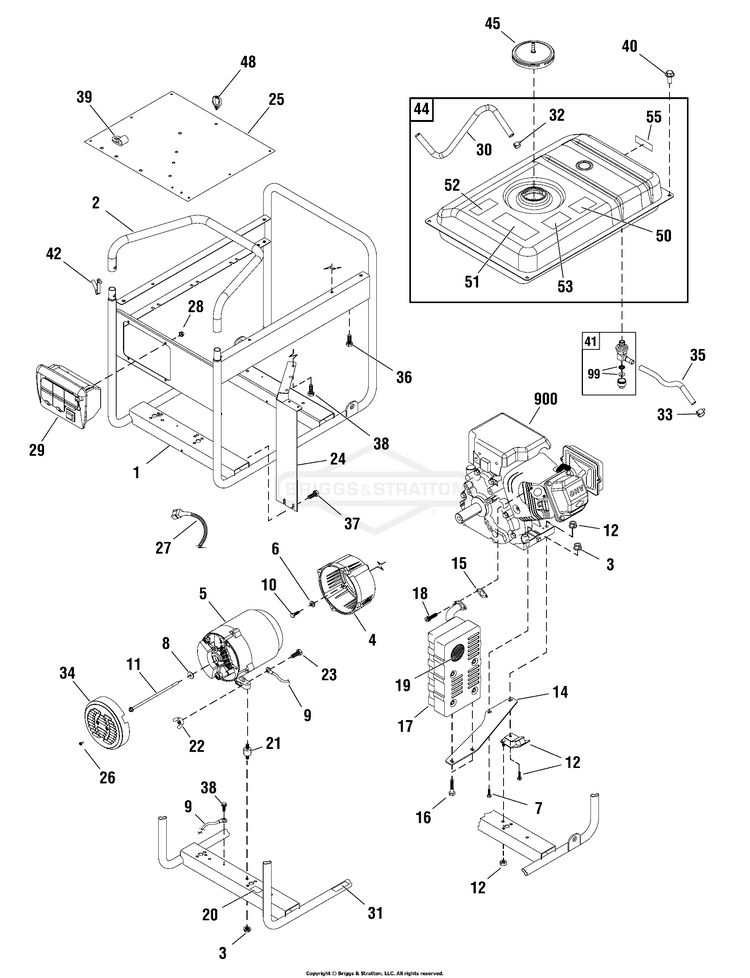

Main Unit (318990)

...
...
1
CRADLE BS-313583BUGS
...
2
HANDLE BS-209287BUGS
...
3
NUT BS-67989GS
...
4
ADAPTER, Engine BS-208537GS
...
8
WASHER BS-207826GS
...
9
WIRE, Ground BS-195373GS
...
11
BOLT BS-207831GS
...
12
MOUNT, Vibration BS-194150GS
...
14
BRACKET BS-189009GS
...
15
GASKET, Exhaust BS-695398
...
17
MUFFLER BS-189008GS
...
19
SCREEN BS-83083GS
...
20
DECAL BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
NUT BS-87680GS
...
24
HEATSHIELD BS-194390GS
...
25
HEATSHIELD BS-208183GS
...
26
SCREW BS-207824GS
...
27
HARNESS, Power BS-208029GS
...
28
PALNUT BS-189164GS
...
29
PANEL, Control BS-310763GS
...
30
HOSE (Cut to Fit) BS-315826GS
...
31
DECAL BS-196830GS
...
32
CLAMP BS-316173GS
...
33
CLAMP, Hose BS-691038
...
34
COVER, Rear Bearing BS-208429GS
...
35
HOSE (Cut to Fit) BS-195201JGS
...
36
SCREW BS-192376GS
...
37
CRIMPTITE BS-56893GS
...
38
SCREW BS-B2153GS
...
39
CLAMP BS-315831GS
...
40
SCREW BS-197955GS
...
41
VALVE, Fuel BS-310574GS
...
42
PIN BS-207525GS
...
44
TANK, Fuel BS-317486GS
...
45
CAP, Fuel BS-314951GS
...
48
CLIP BS-691010
...
50
DECAL BS-312727GS
...
51
DECAL BS-194799GS
...
52
DECAL BS-312728GS
...
53
DECAL BS-202997GS
...
55
DECAL BS-197798GS
...
99
VALVE, Fuel BS-310574GS
...
--
MANUAL, Operator's (Not Illustrated) BS-316916GS
...
--
CORD, Power (Not Illustrated) BS-206775GS
...
--
STABILIZER, Fuel (Not Illustrated) BS-5041D

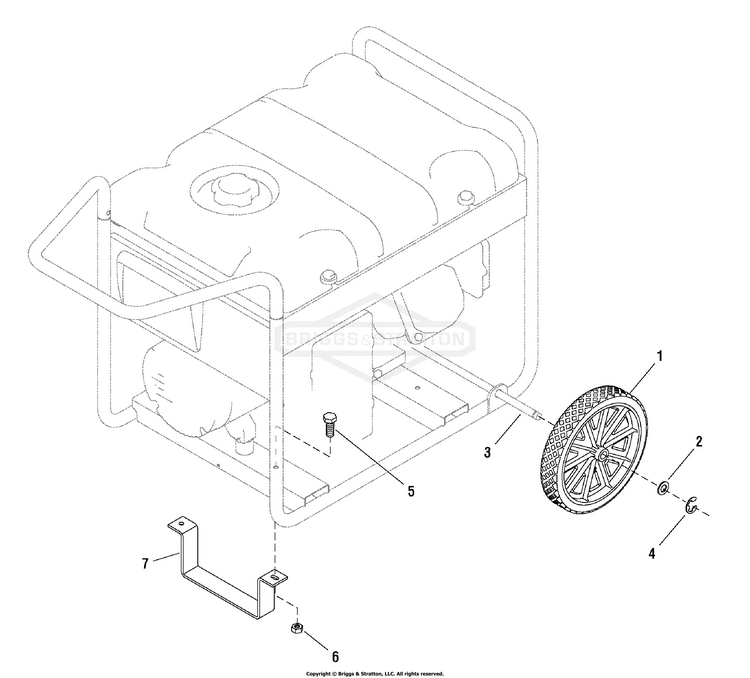

Wheel Kit (207269A)

...
...
1
WHEEL BS-207175GS
...
3
AXLE BS-191267RGS
...
4
E-RING BS-703977
...
6
NUT BS-67989GS
...
7
SUPPORT, Leg BS-189522ZGS
...
--
KIT, Hardware (Not Illustrated) BS-196157GS

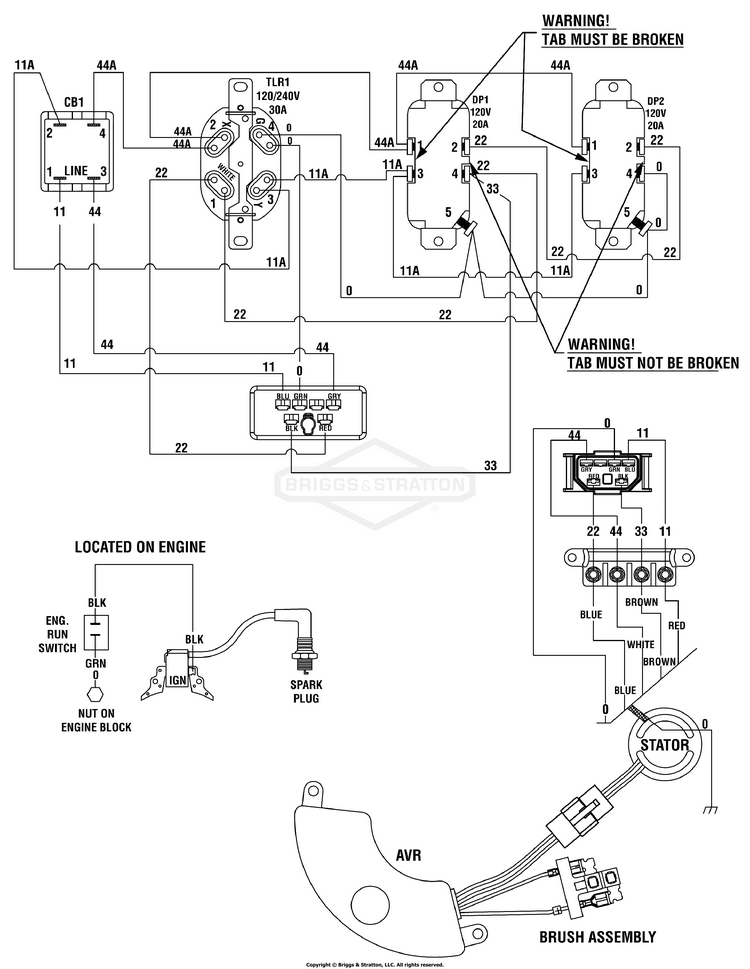

Wiring Diagram (208926WD)

...

No Parts Available for this Schematic

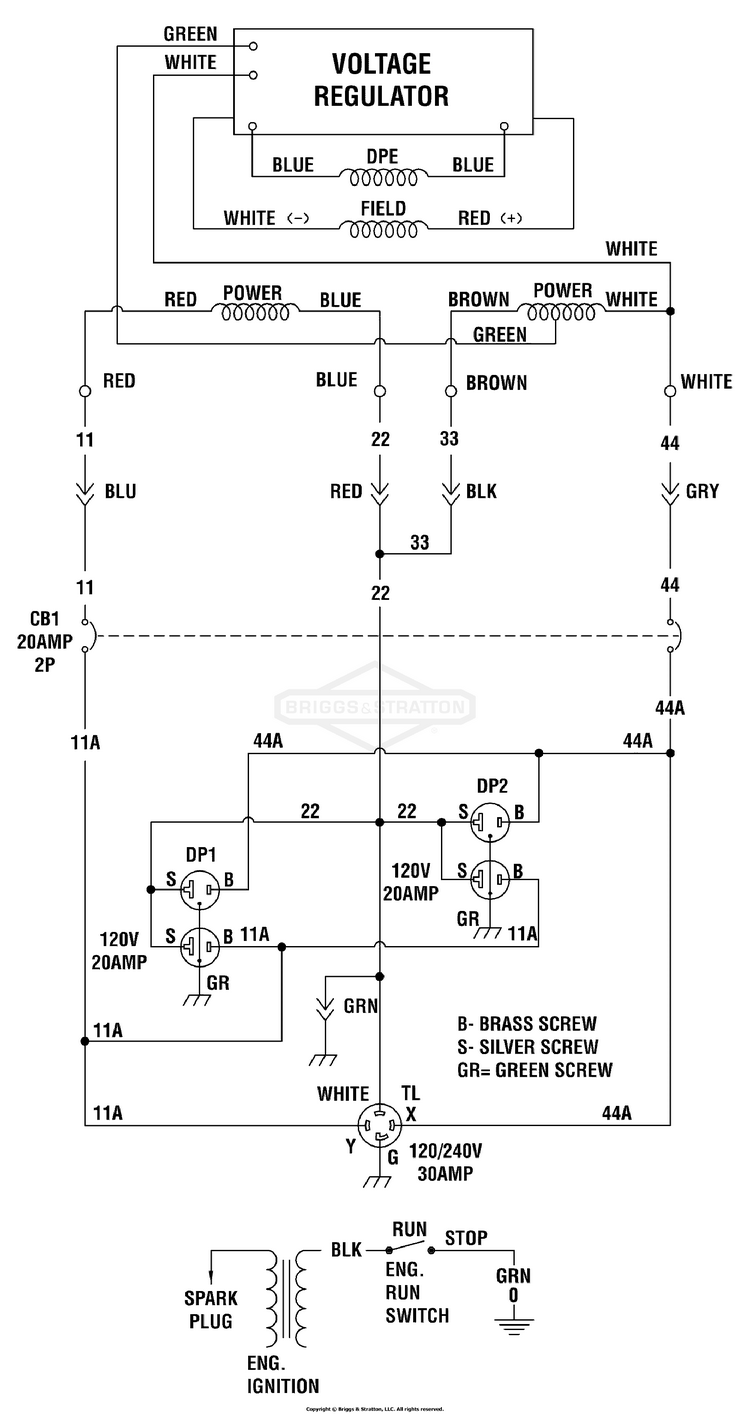

Wiring Schematic (208926WS)

...

No Parts Available for this Schematic
