030430-2 Briggs and Stratton Generator 5,500 Watt

Model: 030430-2

Back To Assemblies

Save Part Not Listed?
product name

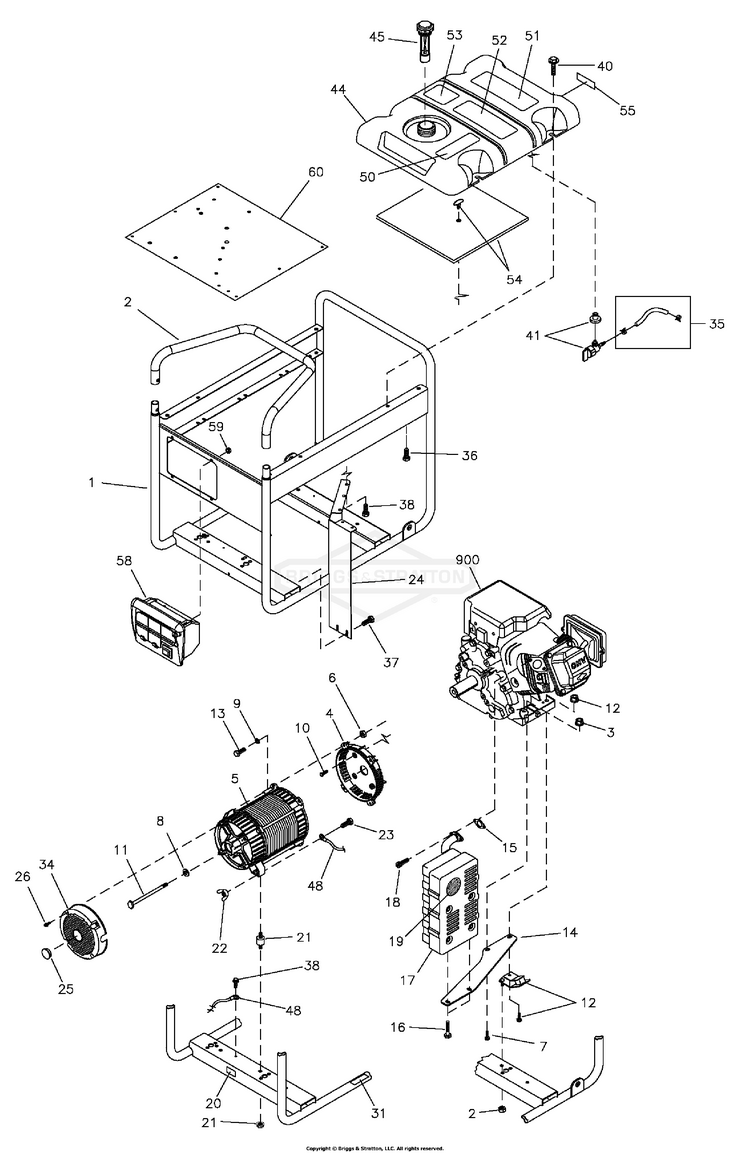

Main Unit (208495)

...
...
1
CRADLE (Includes Ref. Nos. 20 & 31) BS-313583BUGS
...
2
HANDLE BS-209287BUGS
...
3
NUT, Flange Serrated, M8 BS-67989GS
...
4
ADAPTER, Engine BS-190220GS
...
7
SCREW, Pan Head Torx, M8 1.25 x 35 BS-195398GS
...
8
WASHER, 8.4 x 22.2 x 3 BS-96796GS
...
10
SCREW, 3/8-16 x 1 BS-190274BGS
...
11
CAPSCREW, Hex Head, 5/16-24 x 7 BS-47480GS
...
12
KIT, Vibration Mount, 45° BS-194150GS
...
14
BRACKET, Muffler BS-189009GS
...
15
GASKET, Exhaust BS-695398
...
17
MUFFLER BS-189008GS
...
18
SCREW, M8 -1.25 x 20 BS-204885GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
DECAL, Ground BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
NUT, Wing, M6-1 BS-87680GS
...
24
ASSEMBLY, Heat Shield BS-194390GS
...
25
CAP BS-191190GS
...
26
TAPTITE, M5 - 0.8 x 10 BS-74908GS
...
31
DECAL, Warning, Exhaust BS-196830GS
...
34
COVER, RBC Plastic with Cap BS-195422GS
...
35
LINE, Fuel (Cut to Fit) BS-791745
...
36
SCREW, Thread Forming, 12-24 x 1/2 BS-192376GS
...
37
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
38
SCREW, Self Driller, 12-14 x 7/8 BS-B2153GS
...
40
BOLT, Shoulder, M6 - 1.0 w/washer BS-199256GS
...
41
VALVE, Fuel BS-192980GS
...
44
ASSEMBLY, Fuel Tank (Includes Ref. 41, 50, 51, 52, 53 & 55) BS-194217GS
...
45
CAP, Fuel Gauge BS-B4363GS
...
48
WIRE, Ground BS-195373GS
...
50
DECAL, Instruction Fuel Level BS-188333GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Instruction, Start BS-189235GS
...
53
DECAL, Warning, CO BS-202997GS
...
54
KIT, Insulation w/Clip BS-194448GS
...
55
DECAL, Fuel Shutoff BS-197798GS
...
58
ASSEMBLY, Control Panel BS-207267GS
...
59
PALNUT, 3/16 BS-189164GS
...
60
HEAT SHIELD BS-204594GS
...
--
MANUAL, Operator’s (Not Shown) BS-206883GS
...
--
CORD, Power (Not Shown) BS-206775GS
...
--
PIN, Spring, Handle (Not Shown) BS-207525GS
...
--
DECAL, Panel End (Not Shown) BS-206888GS
...
--
DECAL, Panel Side (Not Shown) BS-206887GS
...
--
DECAL, Recoil (Not Shown) BS-200658GS
...
--
DECAL, Air Cleaner (Not Shown) BS-207889GS
