030430-1 Briggs and Stratton Generator 5,500 Watt

Model: 030430-1

Save Part Not Listed?
product name

Alternator (206497)

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR (Includes Ref. No. 8) BS-190032GS
...
3
STATOR BS-206562GS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
SCREW BS-86308CGS
...
6
ASSY-BRUSH BS-91825GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
BEARING BS-65791GS
...
9
PIN BS-81917GS

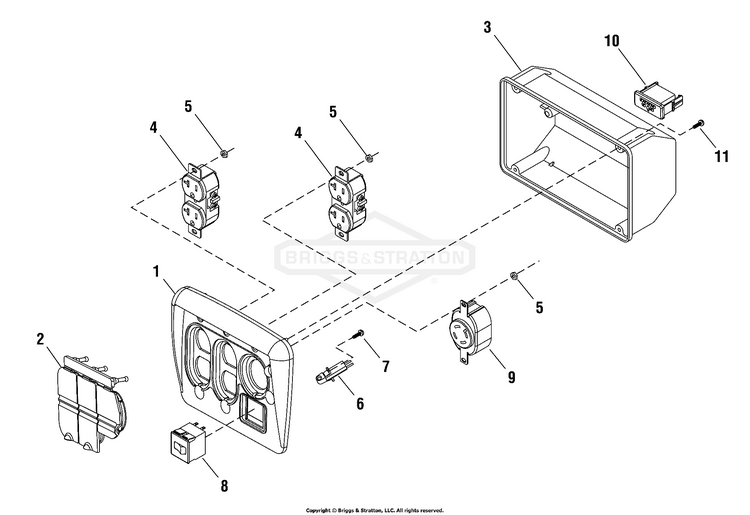

Control Panel (209224)

...
...
1
PANEL, Control BS-201571GS
...
2
COVER, Outlet BS-197472GS
...
3
BOX, Control Panel BS-201572GS
...
4
OUTLET, 120V 20A BS-197731GS
...
5
PALNUT, 3/16 BS-189164GS
...
6
LAMP, LED BS-202951GS
...
8
BREAKER-CIRCUIT 20A BS-202030GS
...
--
BOOT, Breaker Circuit (Not Illustrated) BS-191481GS
...
9
OUTLET, 120/240V TL30A BS-43437GS
...
10
CONNECTOR, 6 Pin BS-201678GS

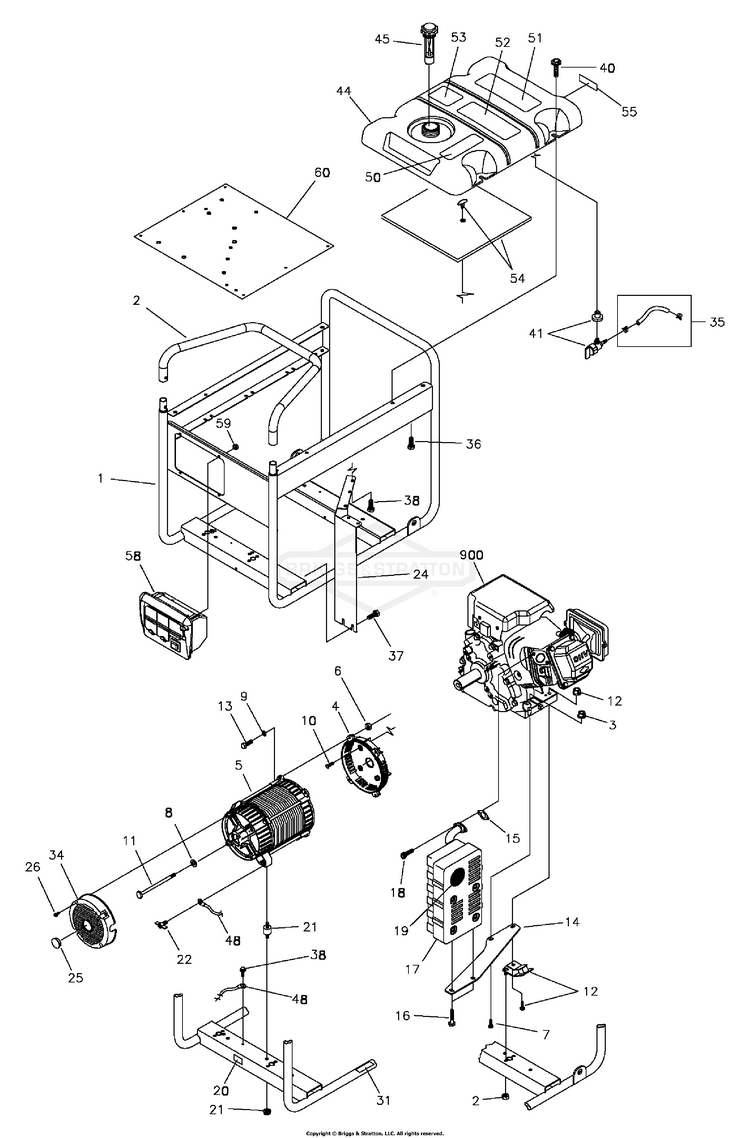

Main Unit (207719)

...
...
1
CRADLE (Includes Ref. Nos. 20 & 31) BS-313583BUGS
...
2
HANDLE BS-209287BUGS
...
3
NUT, M8 Flange Serrated BS-67989GS
...
4
ADAPTER, Engine BS-190220GS
...
7
SCREW BS-195398GS
...
8
WASHER, 8.4 x 22.2 x 3 BS-96796GS
...
10
SCREW, 3/8-16 x 1 BS-190274BGS
...
11
CAPSCREW, Hex Head, 5/16-24 x 7-7/16 BS-187365FGS
...
12
KIT, Vibration Mount, 45° BS-194150GS
...
14
BRACKET, Muffler BS-189009GS
...
15
GASKET, Exhaust BS-695398
...
17
MUFFLER BS-189008GS
...
18
SCREW, M8 - 1-1/4 x 20 BS-204885GS
...
19
SPARK ARRESTOR BS-83083GS
...
20
DECAL, Ground BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
NUT BS-87680GS
...
24
HEAT SHIELD BS-194390GS
...
25
CAP BS-191190GS
...
26
TAPTITE, M5 - 0.8 x 10 BS-74908GS
...
27
PIN BS-207525GS
...
28
DECAL BS-206887GS
...
29
DECAL BS-206888GS
...
30
DECAL BS-196830GS
...
31
DECAL, Warning, Exhaust BS-196830GS
...
32
DECAL BS-200658GS
...
34
COVER, RBC Plastic w/Cap BS-195422GS
...
35
LINE, Fuel BS-791745
...
36
SCREW, 12 - 24 x 1/2 Thread Forming BS-192376GS
...
37
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
38
SCREW, Self Driller, 12-14 x 7/8 BS-B2153GS
...
40
BOLT, Shoulder, M6 - 1.0 w/washer BS-199256GS
...
41
VALVE, Fuel BS-192980GS
...
44
FUEL TANK ASSEMBLY (Includes Ref. Nos. 41, 50, 51, 52, 53 & 55) BS-194217GS
...
45
CAP, Fuel Gauge BS-B4363GS
...
48
WIRE, Ground BS-195373GS
...
50
DECAL, Instruction Fuel Level BS-188333GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Instruction, Start BS-189235GS
...
53
DECAL, Warning, CO BS-202997GS
...
55
DECAL, Fuel Shutoff BS-197798GS
...
58
CONTROL PANEL, Complete BS-310763GS
...
59
PALNUT, 3/16 BS-189164GS
...
60
HEAT SHIELD BS-200183GS
...
--
MANUAL, Operator’s (Not Illustrated) BS-206883GS
...
--
CORDSET (Not Illustrated) BS-206775GS
...
--
STABILIZER, Fuel (Not Illustrated) BS-189208GS

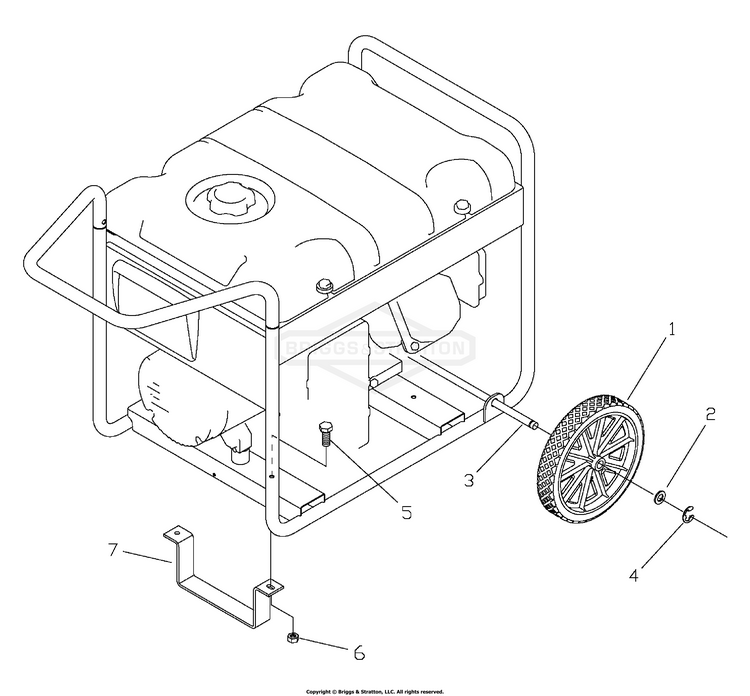

Wheel Kit (207269)

...
...
1
WHEEL BS-207175GS
...
3
AXLE BS-191267RGS
...
4
E-RING BS-703977
...
6
NUT, Flange Serrated, M8 BS-67989GS
...
7
SUPPORT, Leg BS-189522ZGS
...
--
KIT, Hardware, Wheel BS-196157GS

Wiring Diagram (204050WD)

...

No Parts Available for this Schematic

Wiring Schematic (204050WS)

...

No Parts Available for this Schematic

Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
