030424-0 Briggs and Stratton Generator 5,500 Watt

Model: 030424-0

Save Part Not Listed?
product name

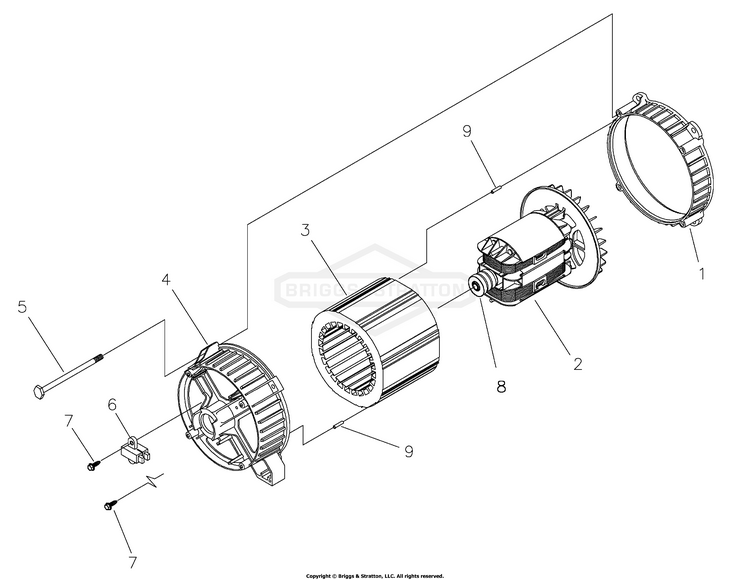

Alternator (206497)

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR (Includes Item 8) BS-190032GS
...
3
STATOR BS-206562GS
...
4
RBC, (with O-Ring p/n 189197GS) (p/n 189197GS) BS-193336GS
...
5
SCREW BS-86308HGS
...
6
ASSY-BRUSH BS-91825GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
BEARING BS-65791GS
...
9
PIN BS-81917GS

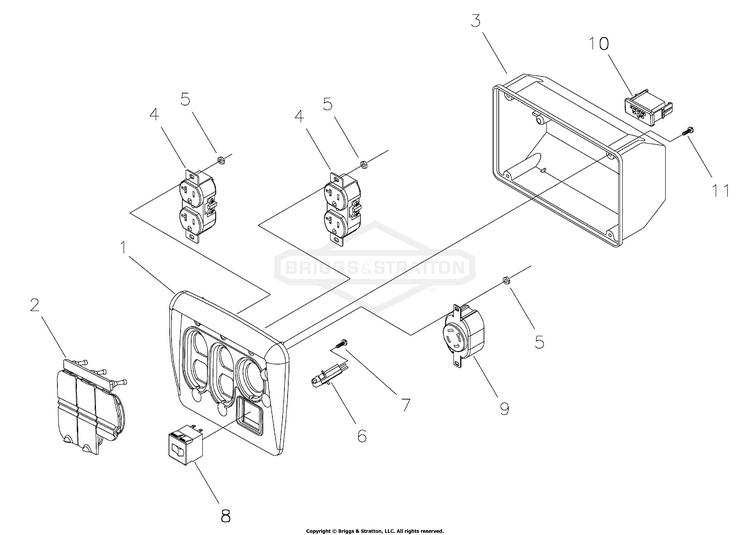

Control Panel (203747)

...
...
1
PANEL, Control BS-201571GS
...
2
COVER, Outlet Flip BS-197472GS
...
3
COVER, Back Panel BS-201572GS
...
4
OUTLET, 120V, 15/20A Duplex BS-197731GS
...
5
NUT, Pal, 3/16 BS-189164GS
...
6
MODULE, LED BS-202951GS
...
8
BREAKER-CIRCUIT 20A BS-202030GS
...
xx
BOOT, Breaker Circuit (Not Illustrated) BS-191481GS
...
9
OUTLET, 120/240V, 30A BS-43437GS
...
10
HOUSING, Receptacle, 6 Pin BS-201678GS

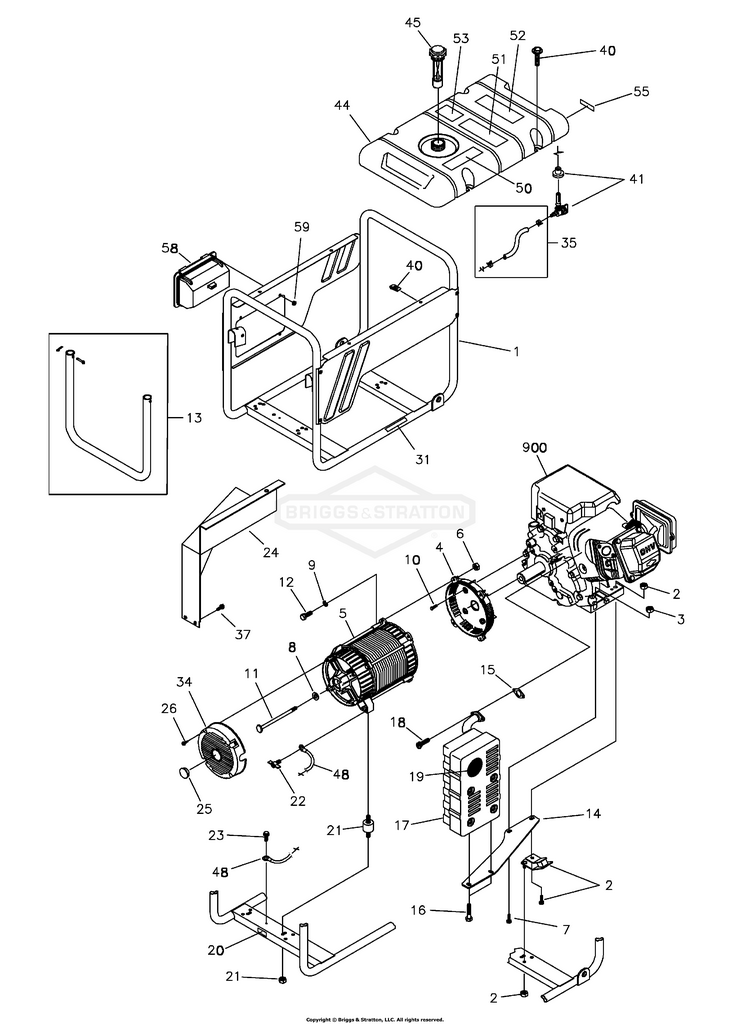

Main Unit (206495)

...
...
1
KIT, Cradle (Includes #20 & 31) BS-206767GS
...
2
KIT, Vibration, Mount, 45° BS-194150GS
...
3
NUT, M8 Flange Serrated BS-67989GS
...
4
HOUSING, Engine Adapter BS-190220GS
...
7
TPHMS, M8 - 1.25 x 35 BS-195398GS
...
8
WASHER, 8.4 x 22.2 x 3 BS-96796GS
...
11
HHCS, 5/16-24 x 7.44 BS-187365FGS
...
13
KIT, Handle BS-198165GS
...
14
BRACKET, Muffler BS-189009GS
...
15
GASKET, Exhaust BS-695398
...
17
MUFFLER BS-189008GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
DECAL, Ground, Green BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
SCREW, Wing M6 - 1.0 x 16 BS-86494GS
...
23
SCREW, 12 - 14 x 7/8, Self Drill BS-B2153GS
...
24
SHIELD, Heat BS-197424GS
...
25
CAP BS-191190GS
...
26
SCREW, M5-0.8 x 10, Taptite BS-74908GS
...
31
DECAL, Exhaust Warning BS-196830GS
...
34
COVER, RBC with Cap BS-195422GS
...
35
LINE, Fuel (Cut to Fit) BS-791745
...
37
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
40
KIT-FUEL TANK HARDWARE, w/U-Clips BS-199433GS
...
--
U-CLIPS (Optional Accessory) BS-199284GS
...
41
KIT, Valve, Fuel Tank BS-192980GS
...
44
ASSY., Tank, Fuel, 5 Gallon Service (Includes #’s 41, 50, 51, 52, 53 & 55) BS-193668GS
...
45
CAP, Fuel Gauge BS-B4363GS
...
48
WIRE, Ground BS-195373GS
...
50
DECAL, Gas Fill BS-188333GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Start Instructions BS-189235GS
...
53
DECAL, Danger BS-202997GS
...
55
Decal, Shut-Off, Fuel BS-197798GS
...
58
Assy, Control Panel BS-201575GS
...
--
Manual, Operator’s (Not Illustrated) BS-206494GS
...
--
Kit, Decals, Service (Not Illustrated) BS-206766GS

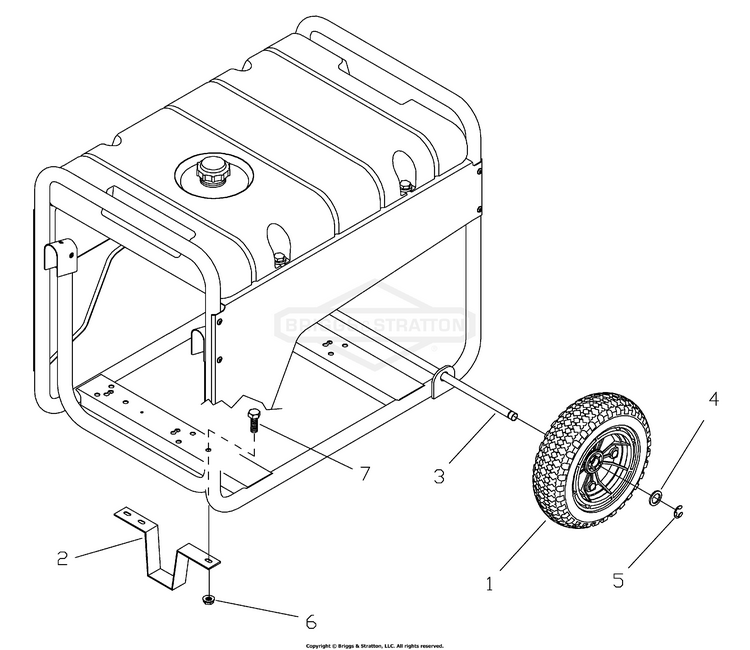

Wheel Kit (197317)

...
...
1
WHEEL BS-209322GS
...
2
Support, Wheel Kit BS-B1764GS
...
3
Axle BS-191267HGS
...
5
E-RING BS-703977
...
6
Nut, M8 - Flange Serrated BS-67989GS
...
xx
Subkit, Hardware (Not Illustrated) BS-197594GS

Wiring Diagram (204050WD)

...

No Parts Available for this Schematic

Wiring Schematic (204050WS)

...

No Parts Available for this Schematic
