030422-1 Briggs and Stratton Generator 5,000 Watt

Model: 030422-1

Save Part Not Listed?
product name

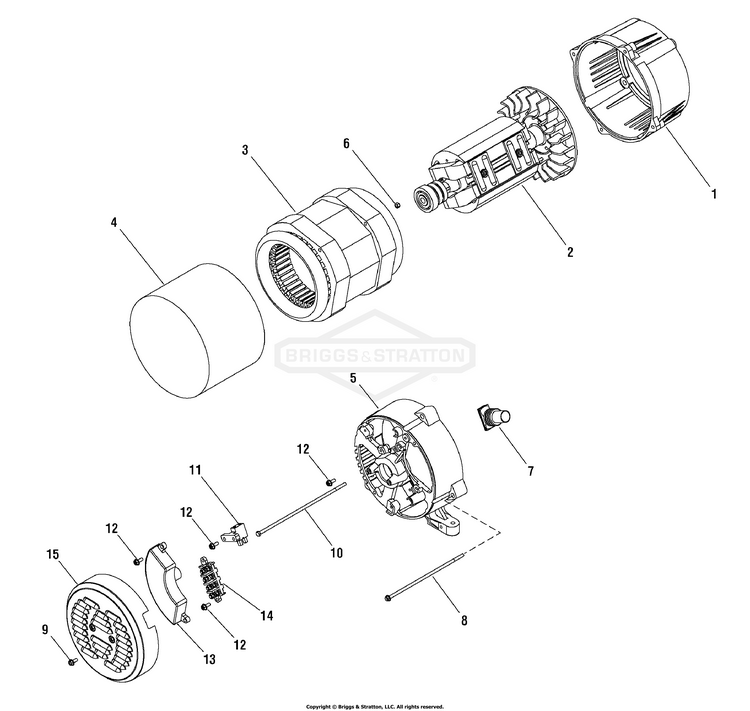

Alternator (208372)

...
...
1
ADAPTER, Engine BS-207822GS
...
2
ROTOR BS-207833GS
...
3
STATOR BS-207835GS
...
4
BAND, Stator BS-207837GS
...
5
CARRIER-BEARING BS-708704
...
6
NUT, M5 BS-207878GS
...
7
BOOT, Rubber BS-207879GS
...
8
BOLT, M6 - 6 x 180 BS-207829GS
...
9
BOLT, M5 - 6 x 12 BS-207824GS
...
10
BOLT, M5 x 214 BS-207876GS
...
11
BRUSH BS-207827GS
...
12
BOLT, M5 x 16 BS-207825GS
...
13
AVR BS-207840GS
...
14
BLOCK, Junction BS-207839GS
...
15
COVER BS-207823GS

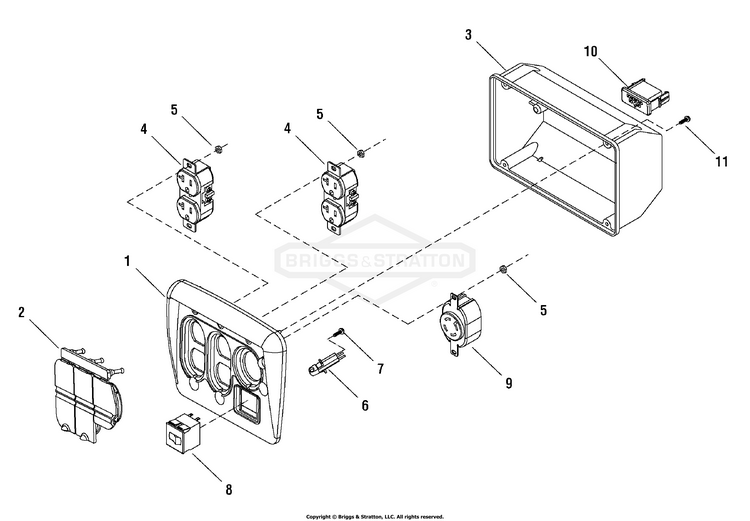

Control Panel (203747)

...
...
1
PANEL, Control BS-201571GS
...
2
COVER, Outlet Flip BS-197472GS
...
3
COVER, Back Panel BS-201572GS
...
4
OUTLET, 120V, 15/20A Dplx BS-197731GS
...
5
NUT, 3/16 Pal BS-189164GS
...
6
MODULE, Led BS-202951GS
...
8
BREAKER-CIRCUIT 20A BS-202030GS
...
--
BOOT, Breaker Circuit (Not Illustrated) BS-191481GS
...
9
OUTLET, 120/240V, 30A BS-43437GS
...
10
HOUSING, Rcptcl, 6 Pin BS-201678GS

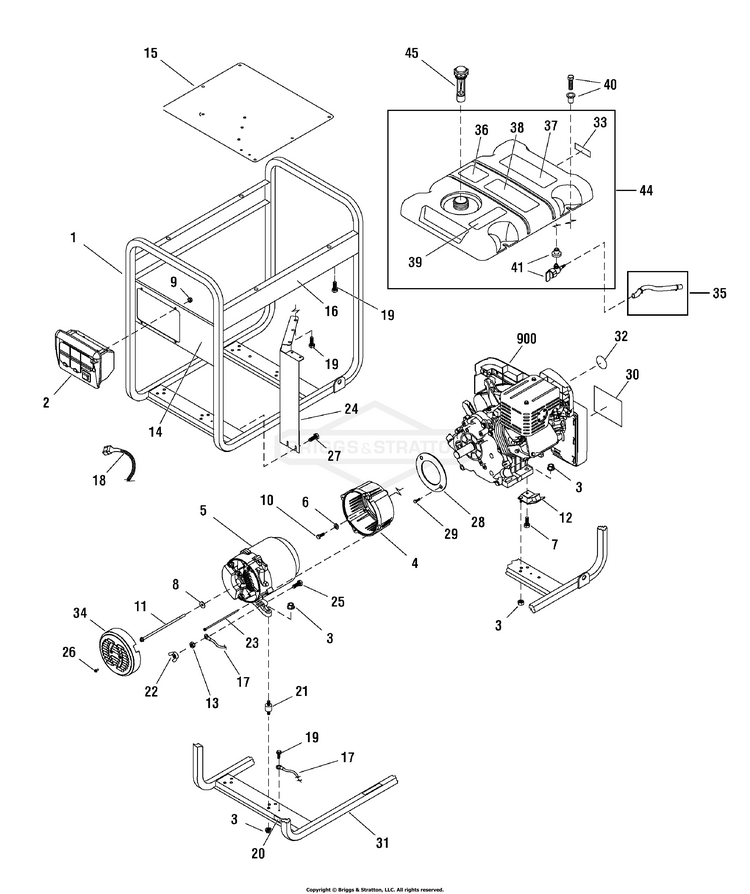

Main Unit (313380)

...
...
1
CRADLE (Includes Ref. No. 20 & 31) BS-209927BRGS
...
2
CONTROL PANEL BS-204073GS
...
3
NUT BS-67989GS
...
4
ADAPTER, Engine BS-207822GS
...
7
SCREW BS-195398GS
...
8
WASHER BS-207826GS
...
9
PALNUT, 3/16 BS-189164GS
...
11
BOLT BS-207830GS
...
12
MOUNT, Vibration BS-70642GS
...
13
NUT BS-49813GS
...
14
DECAL BS-209405GS
...
15
HEATSHIELD BS-209444GS
...
16
DECAL BS-209354GS
...
17
WIRE BS-195373GS
...
18
HARNESS, Power BS-208029GS
...
19
SCREW BS-B2153GS
...
20
DECAL BS-B4986GS
...
21
MOUNT, Vibration BS-85651GS
...
22
NUT BS-87680GS
...
23
BOLT BS-207828GS
...
24
HEATSHIELD BS-310727GS
...
26
SCREW BS-207824GS
...
27
CRIMPTITE BS-56893GS
...
28
DISK BS-B4260GS
...
30
DECAL BS-209442GS
...
31
DECAL BS-196830GS
...
32
DECAL BS-200658GS
...
33
DECAL BS-197798GS
...
34
COVER, Rear Bearing BS-207823GS
...
35
LINE, Fuel (Cut to Fit) BS-791745
...
36
DECAL BS-202997GS
...
37
DECAL BS-189235GS
...
38
DECAL BS-194799GS
...
39
DECAL BS-188333GS
...
40
KIT, Hardware, Fuel Tank BS-197618GS
...
41
VALVE, Fuel BS-192980GS
...
44
TANK, Fuel BS-204702GS
...
45
CAP, Fuel BS-B4363GS
...
--
MANUAL, Operator's (Not Illustrated) BS-310736GS

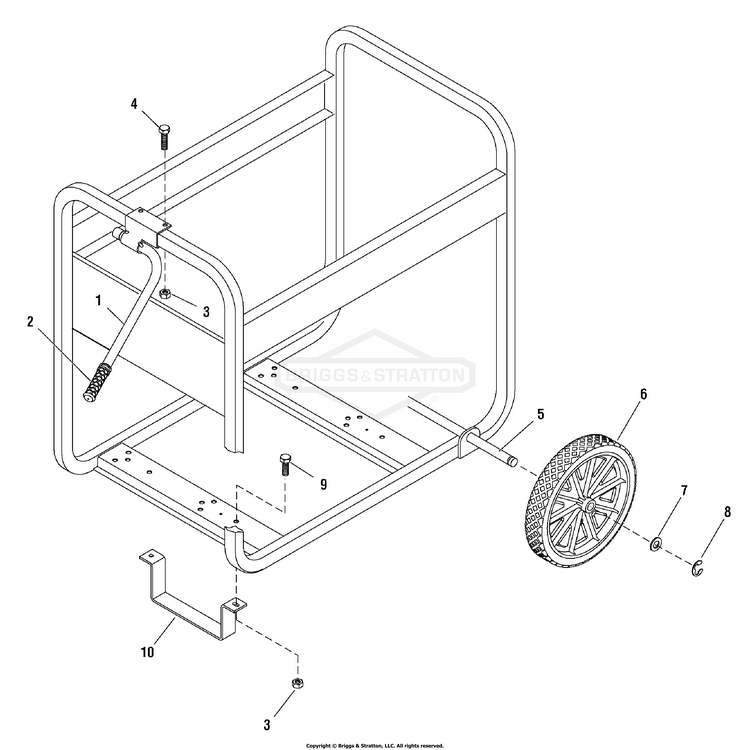

Wheel Kit (313379)

...
...
1
HANDLE BS-189715GS
...
2
GRIP BS-198669GS
...
3
NUT BS-67989GS
...
5
AXLE BS-191267GGS
...
6
WHEEL BS-207175GS
...
8
E-RING BS-703977
...
10
SUPPORT, Leg BS-189522ZGS
...
--
KIT, Hardware BS-197143GS
