030413-0 Briggs and Stratton Portable Generator ProMax 3000 China

Model: 030413-0

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Alternator

...
...
1
CASTING, Front, Alternator, 3KW, UP BS-103640GS
...
2
ROTOR ASSEMBLY BS-103641GS
...
5
BOLT, Flange, 5/16 * 8.27-24UNC BS-103644GS
...
6
STATOR ASSEMBLY BS-103645GS
...
7
Protection board BS-103646GS
...
8
CASTING, Rear, Alternator, 3KW, UP BS-103647GS
...
10
SCREW, Flange, M6 x 130mm BS-103648GS
...
15
BLOCK-TERMINAL BS-707092
...
16
ASSEMBLY, Brush BS-103650GS
...
17
AUTOMATIC VOLTAGE REGULATOR BS-103654GS
...
18
COVER, Rear, Alternator, 3KW BS-103651GS
...
20
FAN BS-103642GS
...
21
BEARING, Rotor, 6203 BS-103961GS
...
22
ROTOR, Without Fan BS-103643GS

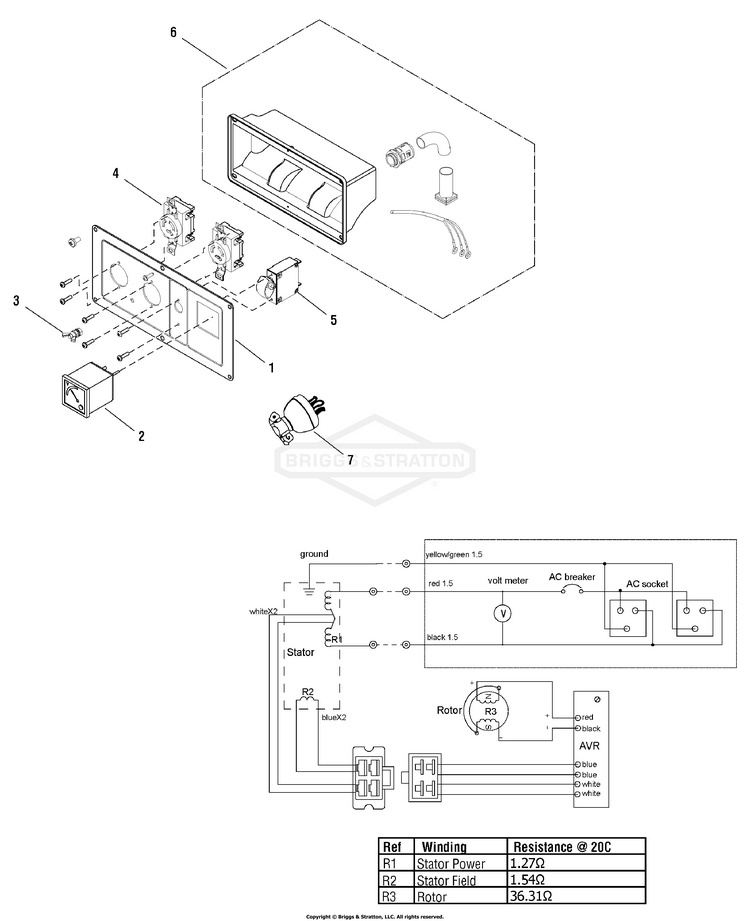

Control Panel

...
...
1
Metal control panel BS-103624GS
...
2
VOLTMETER, 0-300V BS-103625GS
...
4
SOCKET, Twistlock BS-103622GS
...
5
CIRCUIT BREAKER (12 A) (Used on Series 3000) BS-103623GS
...
5
CIRCUIT BREAKER (13 A) (Used on Series 3200) BS-103892GS
...
6
BACK COVER, Control Panel BS-103618GS
...
7
PLUG, Twistlock BS-103652GS

Decals (030413_030414)

...
...
--
DECAL KIT, ProMax 3000 (Includes Ref. Nos. 1, 2, 3, 4, 5 & 6) BS-103657GS
...
--
DECAL KIT, ProMax 3200 (Includes Ref. Nos. 1, 2, 3, 4, 5 & 6) BS-103963GS
...
--
PLUG, Twistlock BS-103652GS

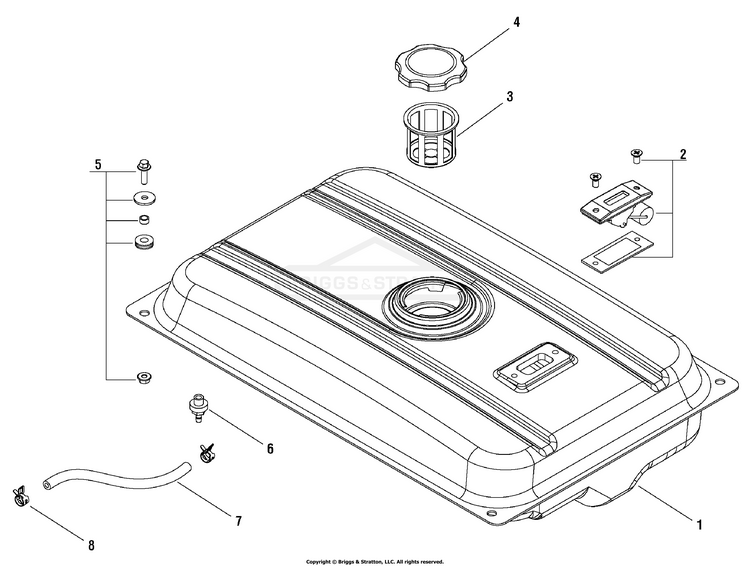

Fuel Tank

...
...
1
TANK, Fuel, 15L BS-103653GS
...
2
GAUGE-FUEL BS-707093
...
3
FILTER CUP BS-103631GS
...
4
CAP-FUEL BS-707091
...
5
KIT, Mounting BS-103656GS
...
6
CONNECTOR, Fuel Tank BS-103860GS
...
7
FUEL PIPE BS-103634GS
...
8
CLAMP, Fuel Pipe, 8mm BS-103635GS

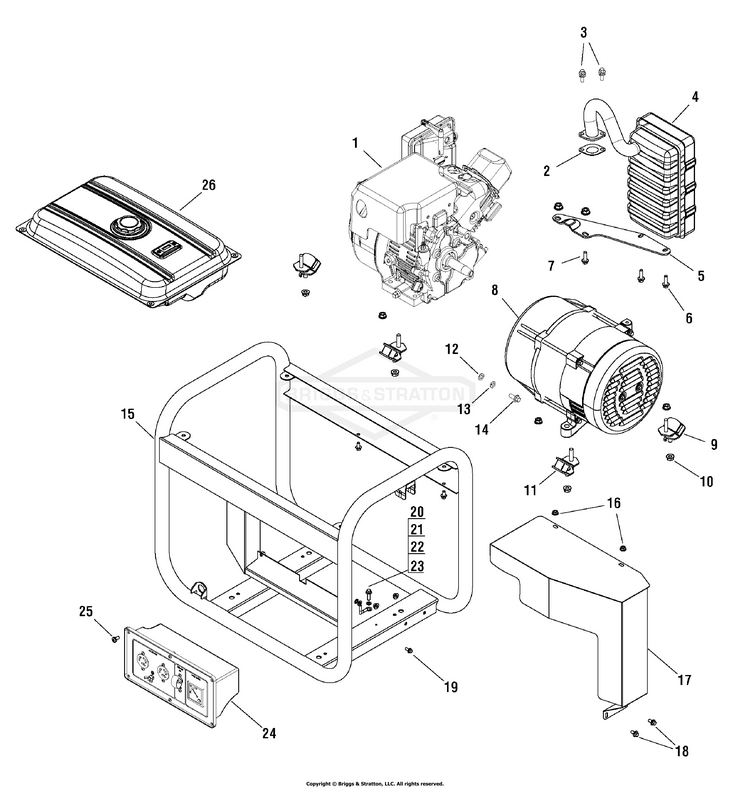

Main Unit

...
...
1
** Engine (Used On Series 3000) BS-12H332 0142-B8
...
1
** Engine (Used On Series 3200) BS-12H332 0143-B8
...
2
GASKET-EXHAUST BS-691893
...
3
SCREW, Flange, M6 x 20mm BS-791972
...
4
MUFFLER BS-188301GS
...
5
BRACKET, Muffler BS-191785GS
...
8
ALTERNATOR ASSEMBLY BS-103612GS
...
9
VIBRATION MOUNT ASSEMBLY, # 50 BS-103614GS
...
11
VIBRATION MOUNT ASSEMBLY, # 48 BS-103614AGS
...
15
CRADLE BS-103613GS
...
17
Heat shield BS-103616GS
...
23
GROUNDING WIRE BS-103665GS
...
24
CONTROL PANEL ASSEMBLY (Used on Series 3000) BS-103617GS
...
24
CONTROL PANEL ASSEMBLY (Used on Series 3200) BS-103960GS
...
26
FUEL TANK ASSEMBLY, 15L BS-103663GS
