030386-0 Briggs and Stratton Generator 6,200 Watt

Model: 030386-0

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

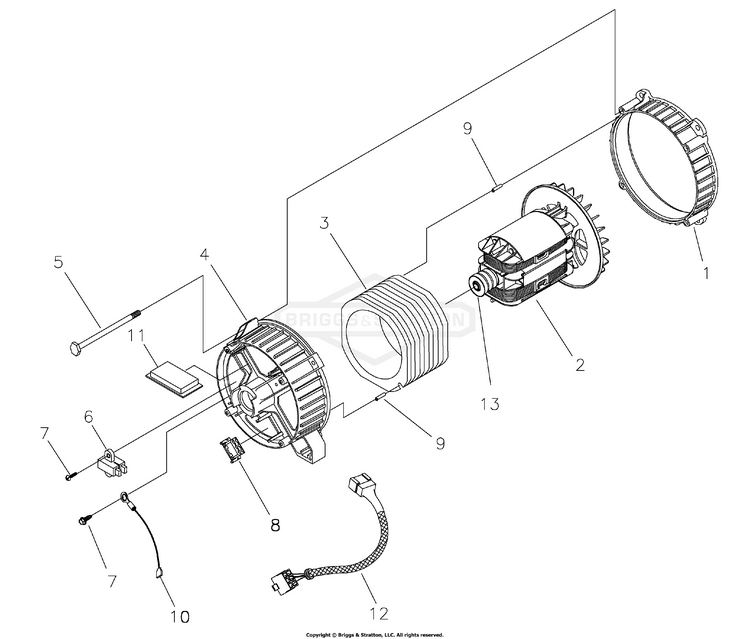

Alternator

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
Rotor BS-191876GS
...
3
Stator BS-194006AGS
...
4
RBC, (with O-Ring p/n 189197GS) With O-Ring, p/n 189197GS BS-193336GS
...
5
HHCS, M6 - 1.0 x 140 SEMS BS-86308HGS
...
6
Assembly, Holder, Brush BS-66386GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
Receptacle, 6 Pin BS-22694GS
...
9
Pin, Roll, 4mm x 10 BS-81917GS
...
10
Wire-A, Ground BS-193428AGS
...
11
BOARD, Circuit, System Control BS-205858GS
...
12
Harness, Wire, Power BS-194274GS
...
13
Bearing BS-65791GS
