030386-0 Briggs and Stratton Generator 6,200 Watt

Model: 030386-0

Back To Assemblies

Save Part Not Listed?
product name

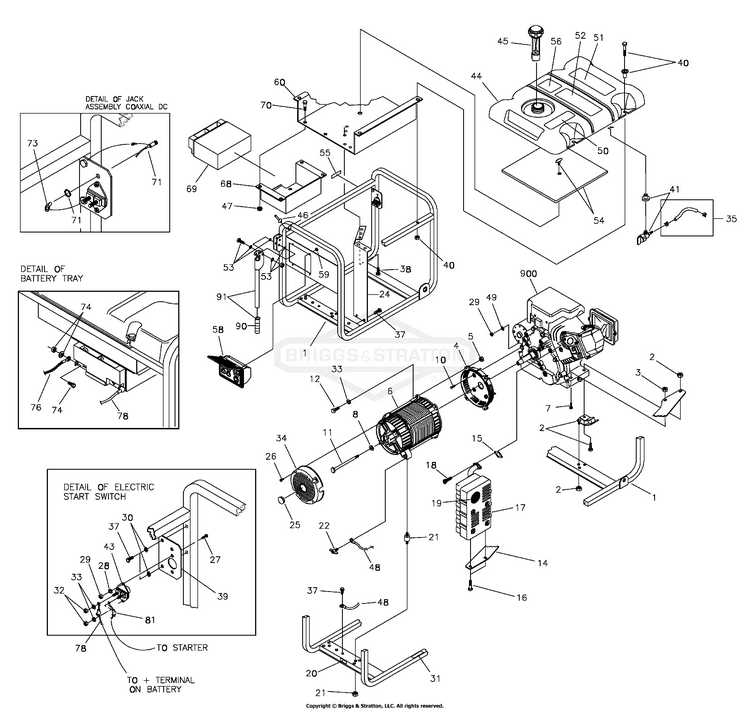

Main Unit

...
...
1
CRADLE Includes Items 20, 31 & 55 BS-197464BNGS
...
2
KIT, Vibration Mount, 45° BS-194150GS
...
4
HOUSING, Engine Adapter BS-190220GS
...
8
WASHER, Flat M8.4 x 22.2 x 3 BS-96796GS
...
10
SBHCS, 3/8-16 x 7/8 Lg. BS-190274DGS
...
11
HHCS,5/16-24 x 7-7/16 BS-187365FGS
...
14
BRACKET, Muffler BS-189009GS
...
15
GASKET, Exhaust BS-695398
...
17
MUFFLER BS-189008GS
...
18
CAPSCREW, Socket Head, 15/16 - 18 x 3/4 BS-204885GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
DECAL, Ground, Green BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
SCREW, Wing M6 - 1.0 x 16 BS-86494GS
...
24
SHIELD, Heat BS-194390GS
...
25
CAP BS-191190GS
...
26
SCREW, M5-0.8 x 10,Taptite BS-74908GS
...
31
DECAL, Warning Exhaust BS-196830GS
...
34
COVER, Bearing Carrier with Cap BS-195422GS
...
35
LINE, Fuel Cut to fit BS-791745
...
37
HHCS, 12 - 14 x 7/8" Self Driller BS-B2153GS
...
38
SCREW, 10-24 x 1/2 Crimptite BS-56893GS
...
39
BRACKET, Switch BS-188987GS
...
40
KIT, Hardware Tank Fuel (Includes Qty. of 4) Includes Qty 4 BS-195477GS
...
41
KIT, Valve, Fuel Tank BS-192980GS
...
43
SWITCH, Starter BS-77282GS
...
44
ASSY, Tank, Fuel (Includes Items 41, 50, 51 & 52) Includes Items 41, 50, 51, 52 & 56 BS-194217GS
...
45
CAP, Fuel Gauge BS-B4363GS
...
46
PIN, with Lanyard BS-B4135GS
...
47
NUT, M6 Flange Lock BS-77395GS
...
48
WIRE, Ground BS-195373GS
...
50
DECAL, Instruction, Fuel Level BS-188333GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Operating Instructions BS-189235GS
...
53
KIT, Fold Down Handle Hardware BS-194034GS
...
54
KIT, Insulation with Clip BS-194448GS
...
55
DECAL, Fuel Shut Off BS-197798GS
...
56
DECAL, Warning, CO BS-202997GS
...
58
ASSY, Control Panel (see Control Panel page) BS-191757GS
...
60
HEATSHIELD BS-208564GS
...
68
TRAY, Battery BS-195680GS
...
69
BATTERY BS-193043GS
...
71
ASSY, Jack, DC BS-192531GS
...
73
LUG, 5/16 #22/18 I-S BS-58359GS
...
74
KIT, Battery Hardware BS-193347GS
...
76
ASSY, Wire, #55 BS-185939KGS
...
78
ASSY, Wire, #13 BS-189302CGS
...
81
ASSY, Wire, #16 BS-189302GGS
...
90
GRIP, Handle BS-198669GS
...
91
ASSY, Handle (Includes Item 79) BS-B193200GS
...
xx
MANUAL, OPERATOR'S 3-LANGUAGE Parts Not Illustrated BS-MS3430
...
xx
MANUAL-OPERATOR Parts Not Illustrated BS-197523GS
...
xx
BOTTLE, Oil (Not Shown) Parts Not Illustrated BS-BB3061GS
...
xx
PLUG, 250V, 30A Parts Not Illustrated BS-43438GS
...
xx
DECAL, Family, CA, EVP Parts Not Illustrated BS-202180GS
...
xx
CHARGER, Battery Parts Not Illustrated BS-84002790
...
xx
Kit, Decals Service Parts Not Illustrated BS-197787GS
