030384-0 Briggs and Stratton Generator 10,000 Watt

Model: 030384-0

Back To Assemblies

Save Part Not Listed?
product name

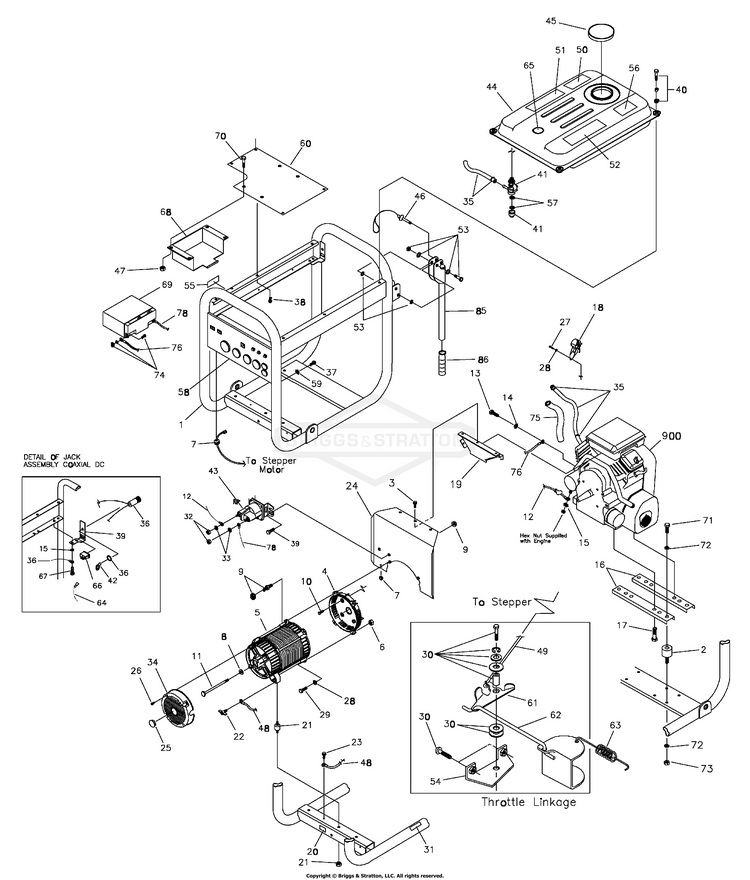

Main Unit

...
...
1
Kit, Cradle Includes Items 20, 31 & 55 BS-M200968GS
...
2
Mount, Vibration BS-38353GS
...
3
Crimptite, 10-24 x 1/2 BS-56893GS
...
4
Adapter, Engine BS-190220GS
...
5
Assy., Alternator Alternator BS-~NSP
...
7
Grommet BS-62265GS
...
8
Washer, 8.4 x 22.2 x 3 BS-96796GS
...
9
Kit, Alt To Heat Shield Hardware BS-194208GS
...
10
SBHCS, 3/8-16 x 1" BS-190274BGS
...
11
HHCS 5/16-24 x 10.28 BS-187365DGS
...
12
Asm Wire, #16, Red BS-189302SGS
...
16
Support, Engine BS-M77304GS
...
17
SCREW-HEX WSHR HD TAP BS-2828635SM
...
18
Assy, Stepper Motor BS-195404GS
...
19
Support, Heatshield BS-J93074GS
...
20
Decal, Ground BS-B4986GS
...
21
Kit, Vibration Mount BS-194155GS
...
22
Screw, Wing M6 - 1.0 x 16 BS-86494GS
...
23
SCREW BS-313085GS
...
24
Assy., Heat Shield BS-194951GS
...
25
Cap BS-191190GS
...
26
Taptite, M5 - 0.8 x 10 BS-74908GS
...
30
Kit, Throttle Linkage Hardware BS-194543GS
...
31
Decal, Exhaust Warning BS-200310GS
...
34
Cover, RBC Plastic w/ Cap BS-195422GS
...
35
LINE, Fuel BS-791745
...
36
Assy, Jack Coaxial BS-201348GS
...
37
Screw, Self Driller, 12-14 x 7/8 BS-B2153GS
...
38
Screw, 12 - 24 x 1/2 Thread Forming BS-192376GS
...
39
SCREW, HEX, 1/4-20X.5 BS-704130
...
40
Kit, Fuel Tank Hardware Includes Qty 4 BS-198221GS
...
41
VALVE, Fuel BS-310574GS
...
42
Lug, 1/4 BS-192351GS
...
43
SOLENOID, Starter BS-691656
...
44
Assy., Tank Fuel Includes Items 41, 50, 51, 52, 56 & 65 BS-202954GS
...
45
Cap, Tank Fuel BS-189135GS
...
46
Pin, Handle Release BS-B4135GS
...
47
Locknut, M6 BS-77395GS
...
48
Wire, Ground BS-195373GS
...
49
Linkage, Stepper Motor To Bell Crank BS-95920GS
...
50
Decal, Instruction, Fuel BS-188333GS
...
51
Decal, Warning BS-194984GS
...
52
Decal, Operating Instructions BS-94480GS
...
53
Kit, Folddown Handle Hardware BS-194034GS
...
54
Plate, Adjust BS-95349GS
...
55
Decal, Fuel Shutoff BS-197797GS
...
56
Decal, Warning, CO BS-202997GS
...
57
VALVE, Fuel BS-310574GS
...
58
Assy. Control Panel BS-200326GS
...
60
Support, Tray Battery BS-193512GS
...
61
Bracket, Bell Crank BS-95348GS
...
62
Linkage, Bell Crank To Throttle BS-95921GS
...
63
Spring BS-96717GS
...
64
Asm Wire, #13, Red BS-198871HGS
...
65
Gauge, Gas BS-192724GS
...
66
Switch, Rocker BS-87799GS
...
67
Screw, M6-1 x 12, Taptite BS-90388GS
...
68
Tray, Battery BS-195680GS
...
69
Battery BS-193043GS
...
74
Kit, Hardware Battery BS-193347GS
...
75
SHIELD, Heat BS-280866
...
76
Asm Wire, #55 Black BS-185939TGS
...
78
Asm Wire, #13 Red BS-189302RGS
...
85
Assy,. Fold Down Handle BS-B193200GS
...
86
Grip, Handle BS-198669GS
...
--
Manual, Operator's Parts Not Illustrated BS-200079GS
...
--
Bottle, Oil Parts Not Illustrated BS-BB3061GS
...
--
BOTTLE, Oil Parts Not Illustrated BS-100005
...
--
CHARGER, Battery Parts Not Illustrated BS-84002790
...
--
Cover, Storage Parts Not Illustrated BS-B4767GS
...
--
Decal, Family, CA EVP Parts Not Illustrated BS-202179GS
...
--
Kit, Decal Service Parts Not Illustrated BS-202950GS
...
--
Plug, 120/240V, 30A 4P Parts Not Illustrated BS-43438GS
...
--
Plug, 125V, 30A 3P Parts Not Illustrated BS-100523GS
...
--
Plug, 125V, 20A Parts Not Illustrated BS-93568GS
...
--
Cable, Battery Charge Parts Not Illustrated BS-65787GS
...
--
SCREW Parts Not Illustrated BS-690661
...
--
ARRESTOR, Spark Parts Not Illustrated BS-794945
...
--
Assy., Muffler Parts Not Illustrated BS-692099
...
--
Bracket, Muffler Parts Not Illustrated BS-691513
...
--
Screw Parts Not Illustrated BS-692056
...
--
Clamp, Muffler Parts Not Illustrated BS-690898
...
--
SCREW Parts Not Illustrated BS-841233
