product name

030380-0 Briggs and Stratton Generator 5,000 Watt

Model: 030380-0

Save Part Not Listed?
product name

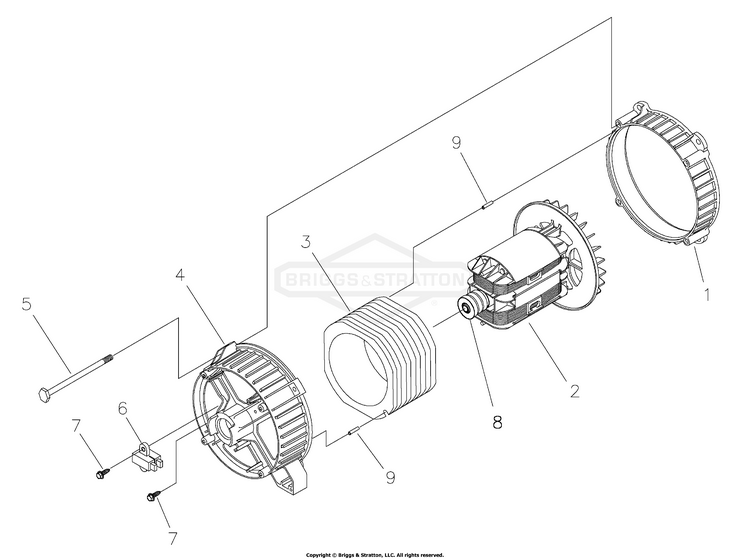

Alternator

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
Assy., Rotor (Includes Item 8) BS-204105GS
...
3
Stator BS-203936GS
...
4
RBC, (with O-Ring p/n 189197GS) (p/n 189197) BS-193336GS
...
5
HHCS, M6 - 1.0 x 130 SEMS BS-86308CGS
...
6
Assy, Holder, Rectifier/Brush BS-91825GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
Bearing BS-65791GS
...
9
Pin, Groove BS-91551GS

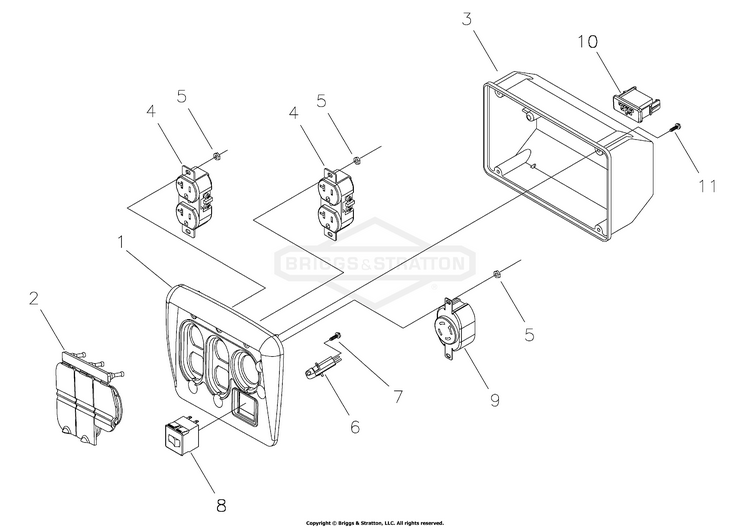

Control Panel

...
...
1
Panel, Control BS-201571GS
...
2
Cover, Outlet Flip BS-197472GS
...
3
Cover, Back Panel BS-201572GS
...
4
Outlet, 120V, 15/20A Duplex BS-197731GS
...
5
Nut, 3/16 Pal BS-189164GS
...
6
Module, Led BS-202951GS
...
8
BREAKER-CIRCUIT 20A BS-202030GS
...
xx
BOOT, Breaker Circuit (Not Shown) BS-191481GS
...
9
Outlet, 120/240V, 30A BS-43437GS
...
10
Housing, Receptacle, 6 Pin BS-201678GS

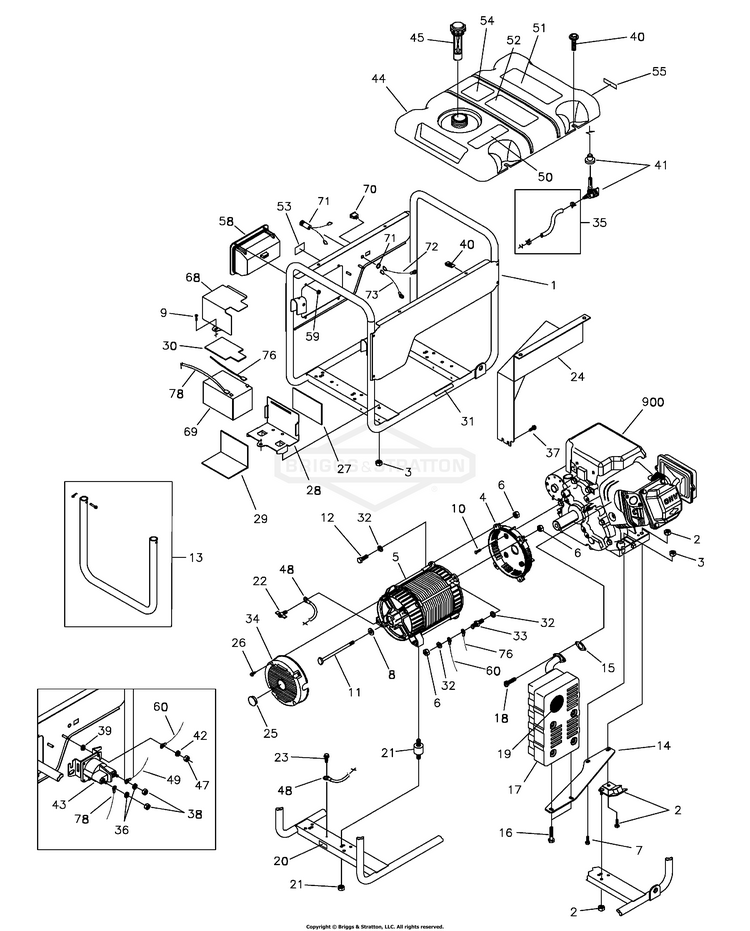

Main Unit

...
...
1
Assy, Cradle (Includes #’S 20, 31 & 53) BS-206822GS
...
2
Kit, Vibration, Mount, 45° BS-194150GS
...
3
Nut, M8 Flange Serrated BS-67989GS
...
4
Housing, Engine Adapter BS-190220GS
...
5
Assy, Alternator See Alternator BS-~NSP
...
8
Washer, 8.4 x 22.2 x 3 BS-96796GS
...
9
PPHS, 1/4-20 x .05 Trilobular BS-198611GS
...
10
SBHCS, 3/8 - 16 x 1 BS-190274BGS
...
11
HHCS, 5/16-24 x 7 BS-47480GS
...
13
Kit, Handle BS-198763GS
...
14
Bracket, Muffler BS-189009GS
...
15
GASKET, Exhaust BS-695398
...
17
Muffler BS-189008GS
...
19
Screen, Spark Arrest BS-83083GS
...
20
Decal, Ground, Green BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
Screw, Wing M6 - 1.0 x 16 BS-86494GS
...
23
Screw, 12 - 14 x 7/8, Self Drill BS-B2153GS
...
24
Shield, Heat BS-197424GS
...
25
Cap BS-191190GS
...
26
Screw, M5-0.8 x 10, Taptite BS-74908GS
...
27
Insulation BS-199228GS
...
28
Kit, Battery Tray w/Insulation BS-198700GS
...
29
Insulation BS-199156GS
...
30
Insulation BS-199157GS
...
31
Decal, Exhaust Warning BS-200310GS
...
33
Stud, Double BS-187117GS
...
34
Cover, Rbc, Plastic with Cap BS-195422GS
...
35
LINE, Fuel BS-791745
...
37
Crimptite, 10-24 x 1/2 BS-56893GS
...
40
Kit, Fuel Tank Hardware w/U-Clips BS-199433GS
...
xx
U-Clips, (Optional Accessory) BS-199284GS
...
41
Kit, Valve, Fuel Tank BS-192980GS
...
43
SOLENOID, Starter BS-691656
...
44
Assy., Tank, Fuel (Includes Items 41, 50, 51, 52, 54 & 55) BS-200814GS
...
45
Cap, Fuel Gauge BS-B4363GS
...
48
Wire, Ground BS-195373GS
...
49
Wire BS-185931KGS
...
50
Decal, Gas Fill BS-188333GS
...
51
Decal, Danger BS-194984GS
...
52
Decal, Start Instructions BS-94480GS
...
53
Decal, Neutral Bonded BS-200311GS
...
54
Decal, Co Warning BS-202997GS
...
55
Decal, Shut-Off, Fuel BS-197798GS
...
58
Assy, Control Panel BS-201575GS
...
60
Wire BS-198871EGS
...
68
Kit, Battery Cover w/Insulation BS-199150GS
...
69
Battery BS-198711GS
...
70
Switch, Rocker BS-87799GS
...
71
Assy, Jack Coaxial BS-198925GS
...
72
Wire BS-198871LGS
...
73
Wire BS-198871KGS
...
76
Wire, Battery Negative BS-185931LGS
...
78
Wire, Battery Positive BS-185931JGS
...
xx
Manual, Operator’s Parts Not Illustrated BS-206590GS
...
xx
CHARGER, Battery Parts Not Illustrated BS-84002790
...
xx
Oil Bottle Parts Not Illustrated BS-BB3061GS
...
xx
Kit, Decals, Service Parts Not Illustrated BS-206818GS

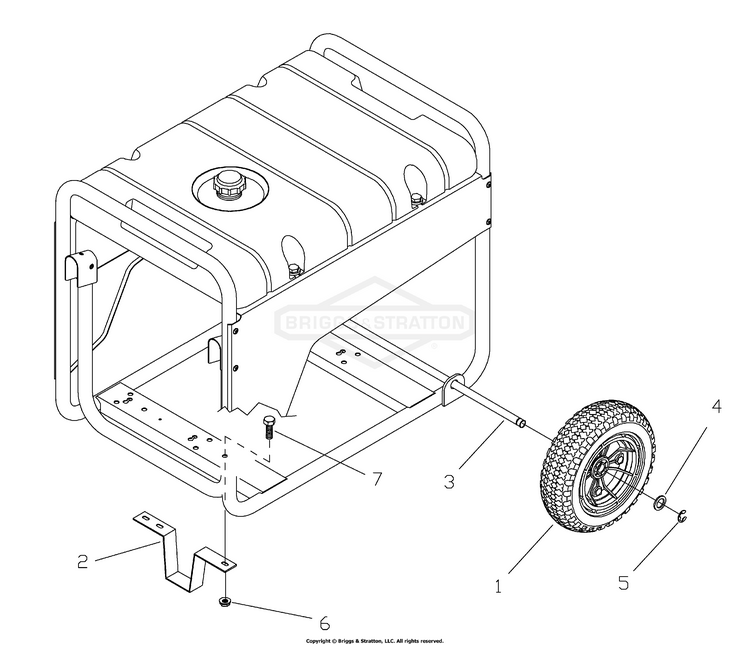

Wheel Kit

...
...
1
WHEEL BS-209322GS
...
2
Support, Wheel Kit BS-B1764GS
...
3
Axle BS-191267HGS
...
5
E-RING BS-703977
...
6
Nut, M8 - Flange Serrated BS-67989GS
...
xx
Subkit, Hardware Parts Not Illustrated BS-197594GS

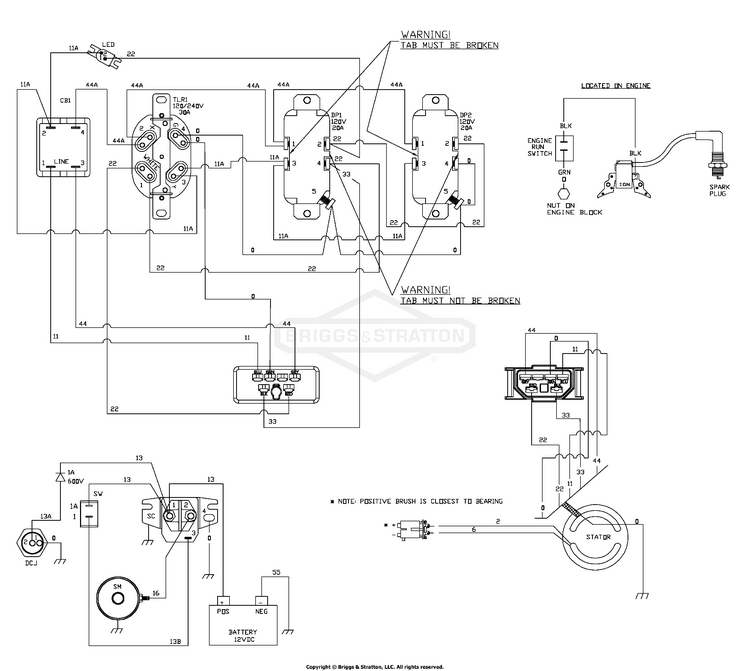

Wiring Diagram

...

No Parts Available for this Schematic

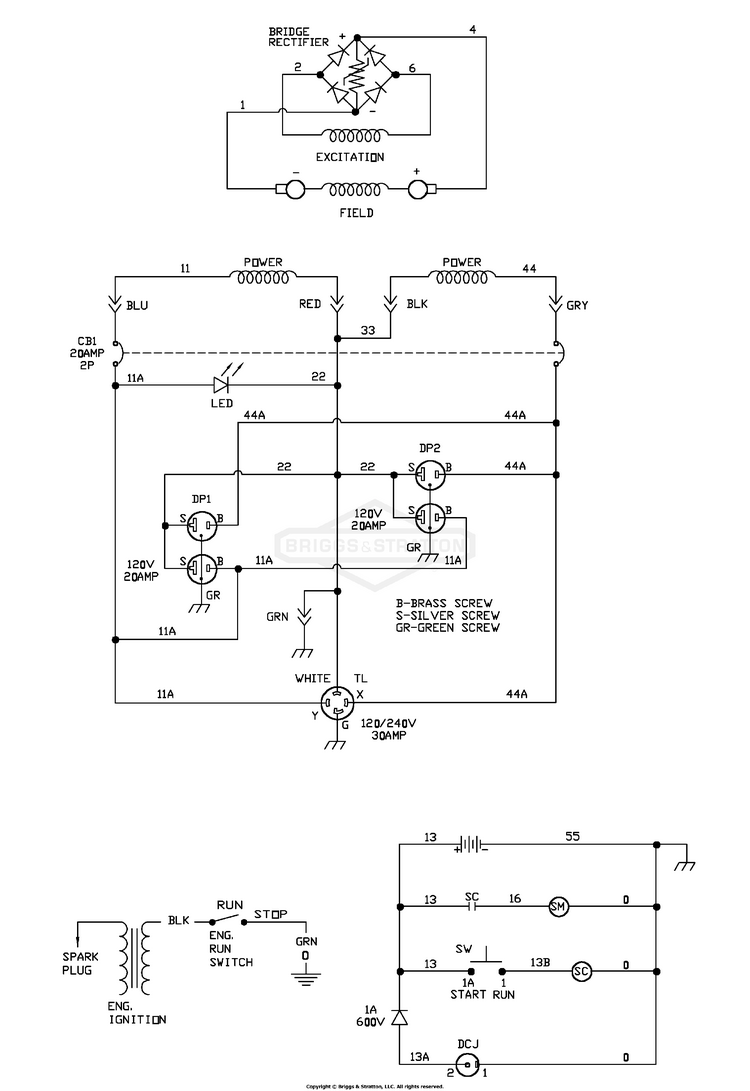

Wiring Schematic

...

No Parts Available for this Schematic
