030372-0 Briggs and Stratton Generator 3,250 Watt

Model: 030372-0

Save Part Not Listed?
product name

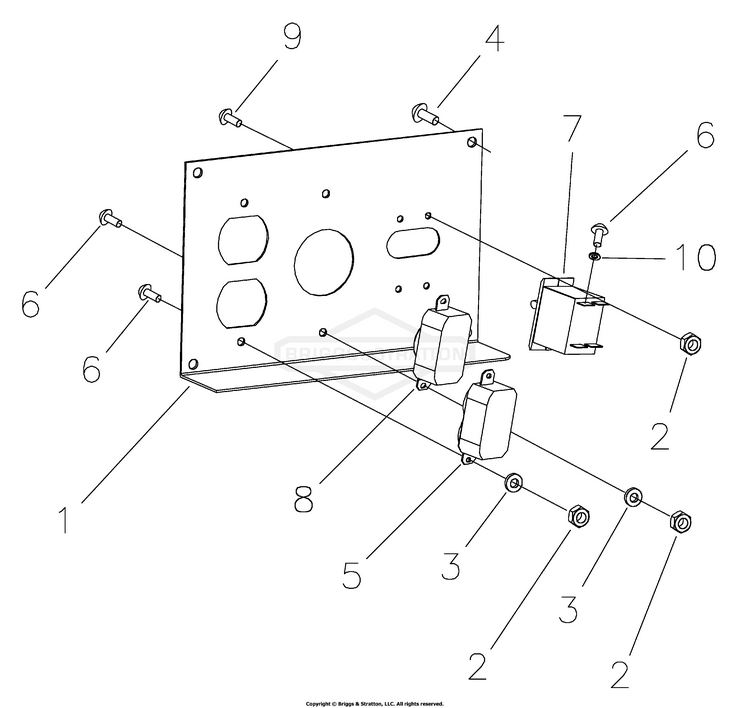

Control Panel

...
...
1
Control Panel Includes Decal BS-203692GS
...
5
Outlet, 120/125V, 15/20a, Duplex BS-68759GS
...
7
Circuit Breaker, 15A BS-203527GS
...
8
Outlet, 120/240V, 20a, Locking BS-68867GS
...
--
Decal, Control Panel Parts Not Illustrated BS-205615GS

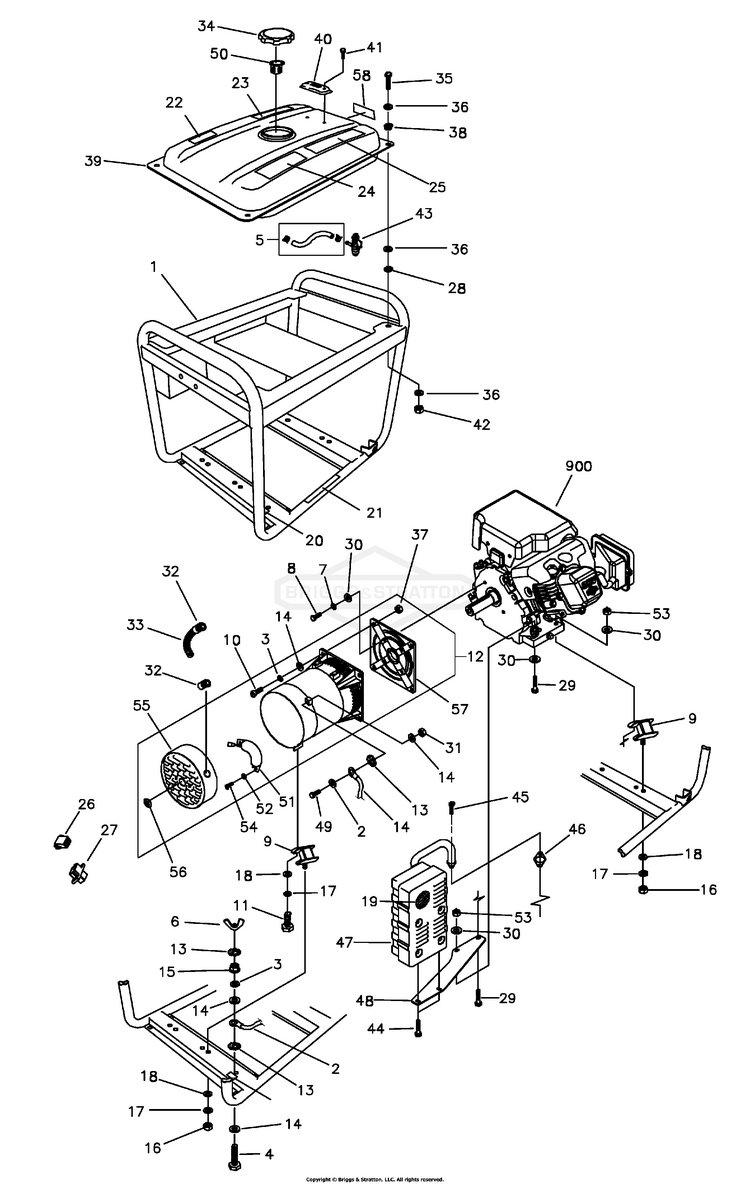

Main Unit

...
...
1
Cradle Includes Items 20 & 21 BS-205612GS
...
2
Wire, Ground BS-203694GS
...
5
LINE, Fuel Cut to fit BS-791745
...
6
Wing Nut BS-204748GS
...
9
Absorber, Vibration BS-204735GS
...
12
Assy, Alt BS-204772GS
...
19
Screen, Spark Arrest BS-83083GS
...
20
Decal, Ground BS-B4986GS
...
21
Decal, Warning, Exhaust BS-200310GS
...
22
Decal, Warning CO BS-202997GS
...
23
Decal, Warning Fuel BS-194984GS
...
24
Decal, Warning Fuel Fill BS-188333GS
...
25
Decal, Fuel Instructions BS-94480GS
...
26
Wire End Seat BS-204740GS
...
27
Wire End Seat, White BS-204741GS
...
28
Pad, Plastic BS-204736GS
...
32
Quick Connector BS-204737GS
...
33
Tube BS-204738GS
...
34
Cap, Fuel BS-204739GS
...
38
Grommet, Tank BS-204749GS
...
39
Assy, Tank, Fuel Includes Items 22, 23, 24, 25 & 58 BS-205614GS
...
40
Gauge, Fuel BS-204744GS
...
43
VALVE, Fuel BS-310574GS
...
46
GASKET-EXHAUST BS-692237
...
47
Muffler BS-188301GS
...
48
Bracket, Muffler BS-191785GS
...
50
Filter BS-204742GS
...
51
Capacitor BS-204774GS
...
52
Washer, Capacitor BS-204776GS
...
54
Screw, Capacitor BS-204777GS
...
55
Cover, Alt BS-204775GS
...
56
Rubber BS-204773GS
...
57
Flange, Alt BS-203705GS
...
58
Decal, Fuel Shut Off BS-197797GS
...
xx
Manual, Operator's Parts Not Illustrated BS-204883GS
...
xx
BOTTLE, Oil Parts Not Illustrated BS-100005
...
xx
Kit, Decals, Service Parts Not Illustrated BS-205613GS

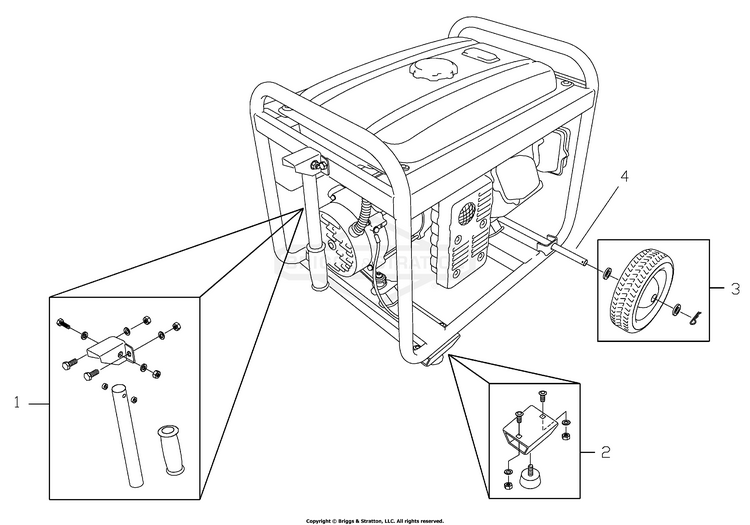

Wheel Kit

...
...
1
Kit, Handle BS-204780GS
...
2
Kit, Pad Vibration Mount BS-204778GS
...
3
Kit, Wheel BS-204779GS
...
4
Axle BS-204548GS

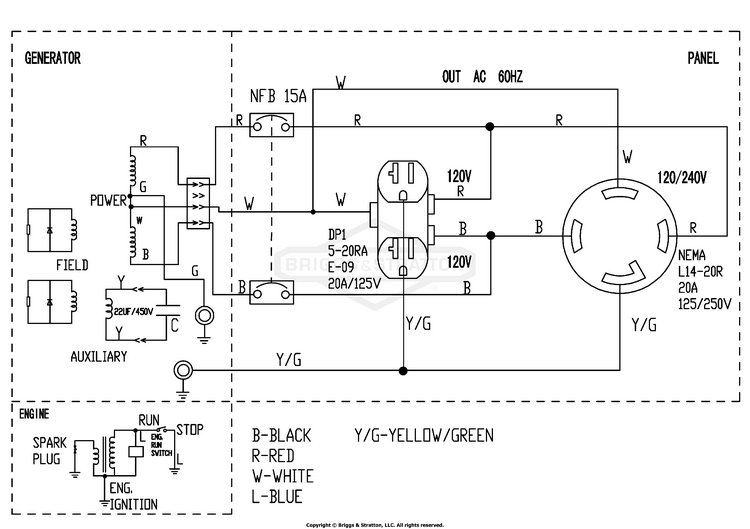

Wiring Schematic

...

No Parts Available for this Schematic
