030365-0 Briggs and Stratton Portable Generator ProMax 7500E Australia / New Zealand

Model: 030365-0

Save Part Not Listed?
product name

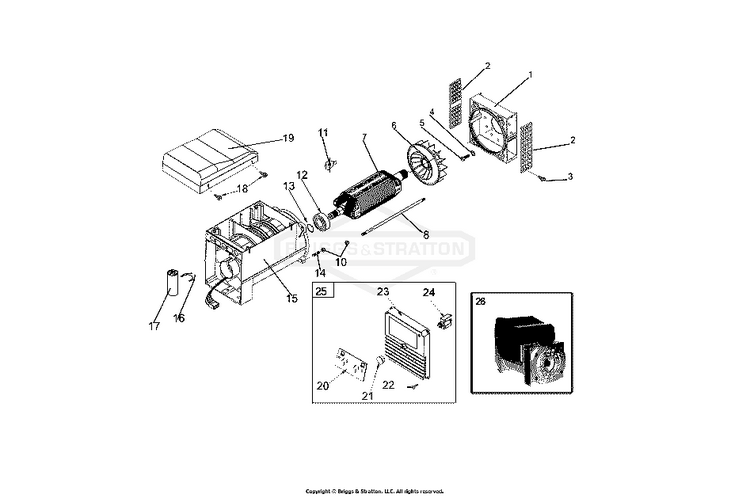

Alternator

...
...
1
Flange Plate BS-102271GS
...
2
Side Grill (Plastic) BS-102139GS
...
3
Screw MC PPHD M5x10mm BS-102087GS
...
4
Washer Lock M10/ 3/8 OXY Black BS-102099GS
...
5
Screw Cap 3/8 UNC 1x1/4" BS-102279GS
...
6
Rotor Fan Sincro BS-102073GS
...
7
Rotor Assembly Sincro EK6 Short Stack BS-102281GS
...
8
Rotor Bolt 270mm BS-102397GS
...
10
Nut nylock M8-1.25 Type T BS-102017GS
...
11
Diode, Varistor & Capacitor Assy BS-102282GS
...
12
Bearing Assy Sincro BS-102283GS
...
13
Bearing Circlip BS-~NSP
...
14
Stud M8x30mm BS-102131GS
...
15
Stator EK6.0 Australia/NZ BS-102739GS
...
16
Capacitor Clip BS-~NSP
...
17
Capacitor 36uF BS-102204GS
...
18
Screw MC PPHD M6x10mm BS-102236GS
...
19
Cover Alternator Low Profile BS-102245GS
...
20
Outlet 15A 240V Australian BS-102758GS
...
21
End Cap Plastic (Outlet Panel) BS-102085GS
...
22
Screw MC PPHD M5x10mm BS-102087GS
...
23
Outlet Panel Blank BS-102735GS
...
24
Circuit Breaker 25A BS-102757GS
...
25
Outlet Panel Complete Aus/NZ 25A CB BS-102738GS
...
26
Alternator 6kW Aus/Nz BS-102752GS

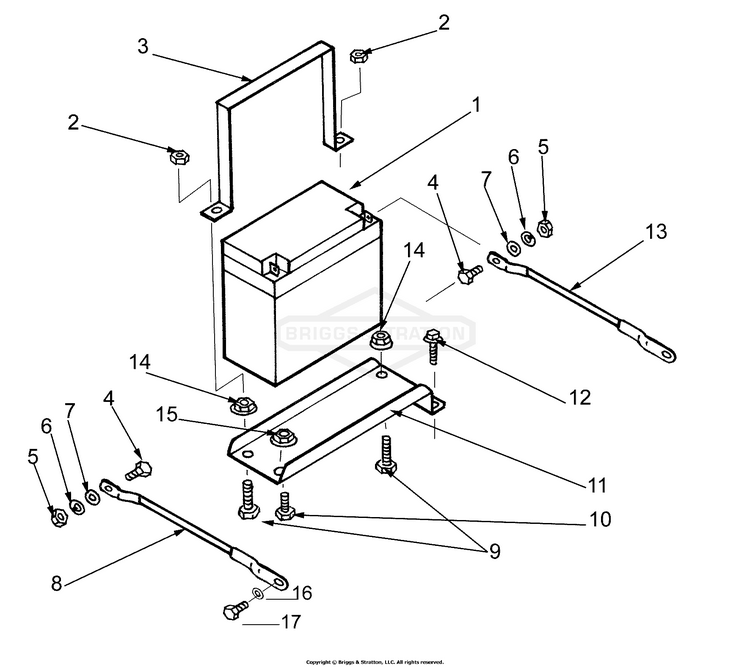

Battery

...
...
1
Battery Sealed BS-102312GS
...
2
Nut nylock M8-1.25 Type T BS-~NSP
...
3
Strap, Battery, Yellow BS-102313AGS
...
4
Screw Machine PPHd M5-0.8x16mm BS-~NSP
...
5
Nut Full M5-0.8mm Plated BS-~NSP
...
6
Washer Flat M5 BS-~NSP
...
7
Washer Shakeproof M5 ext BS-~NSP
...
8
Battery Lead -ve 350mm BS-102314GS
...
9
Screw Set HHD M8-1.25 x 30mm BS-~NSP
...
10
Screw Machine HHD M8-1.25x16mm BS-~NSP
...
11
Battery Tray Yellow BS-102315AGS
...
12
Screw Self Drill 5.5x1.8x20mm BS-~NSP
...
13
Battery Lead +ve 500mm BS-102316GS
...
14
Nut Full M8-1.25 BS-~NSP
...
15
Nut Flange M8-1.25 BS-~NSP
...
16
Washer Shakeproof M8 int BS-~NSP
...
17
Screw Set M8-1.25x12 Plat BS-~NSP

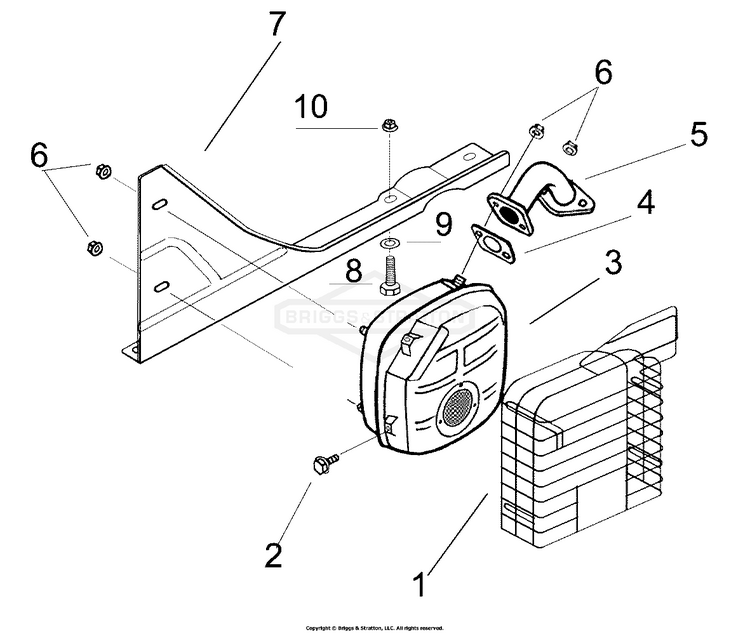

Exhaust and Fittings

...
...
1
Guard Muffler BS-103302GS
...
2
Screw Taptite M6x12 BS-710023
...
3
Muffler BS-103303GS
...
4
Gasket Exhaust BS-710250
...
5
Manifold, Exhaust BS-103305GS
...
6
Nut Flange M8 BS-710090
...
7
Bracket, Muffler BS-103298GS
...
8
Screw Set HexHd M8-1.25x40mm BS-~NSP
...
9
Washer Flat M8 & 5/16" BS-~NSP
...
10
Nut Flange M8-1.25 BS-~NSP

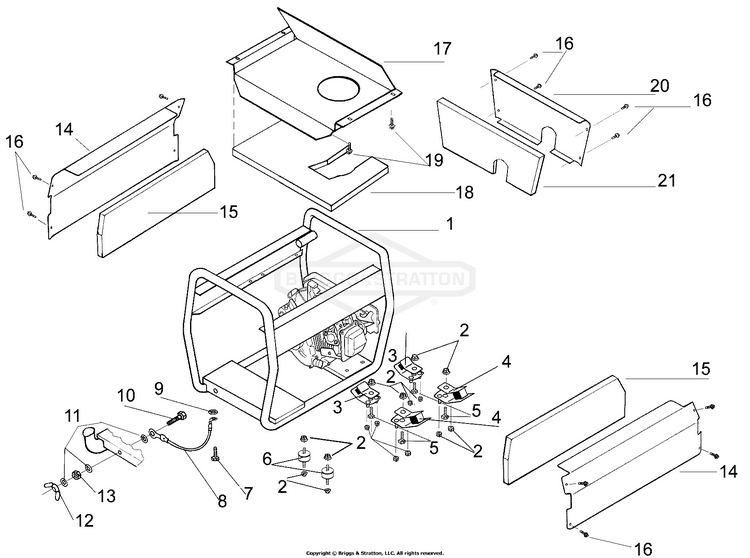

Frame and Fittings

...
...
1
Cradle, ProMax 7500/9000 BS-103214GS
...
2
Nut Flange M8-1.25 BS-~NSP
...
3
Vibration Mount 45 Degree Soft BS-102033GS
...
4
Vibration Mount 45 Degree Hard BS-102031GS
...
5
Screw Set M8-1.25 x40mm BS-102264GS
...
6
Vibration Mount 32mm Diameter BS-102034GS
...
7
Screw Set M8-1.25x12 Plated BS-~NSP
...
8
Lead Earth Assy 145mm BS-102050GS
...
9
Washer Shakeproof M8 int BS-~NSP
...
10
Screw Set M6-1.0x25mm Plated BS-~NSP
...
11
Washer Shakeproof 1/4" & M6 Int BS-~NSP
...
12
Nut Wing M6-1.0 BS-102036GS
...
13
Nut Full M6-1.0 BS-~NSP
...
14
Panel, Acoustic Side BS-102301AGS
...
15
Acoustic Foam 25mm Self Adhesive BS-102302GS
...
16
Screw Self Drill #8x12.7 PPHD BS-~NSP
...
17
Heat Shield ProMax 7500 BS-102754GS
...
18
Foam Acoustic BS-102753GS
...
19
Screw Selftap 5.5x1.8x13mm BS-~NSP
...
20
Panel, Acoustic End BS-102298AGS
...
21
Acoustic Foam 25mm BS-102299GS

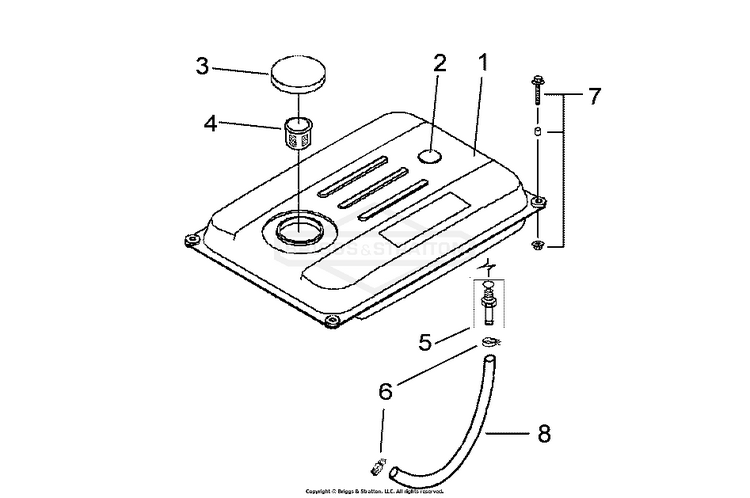

Fuel Tank and Fittings

...
...
1
Fuel Tank, Black BS-103294GS
...
2
Gauge, Fuel BS-189136GS
...
3
Cap, Fuel, Vented BS-189135GS
...
4
Strainer, Tank Fuel BS-197499GS
...
5
Connector Fuel Tank BS-102699GS
...
6
Clamp Hose 14mm OD BS-102549GS
...
7
KIT, Fuel Tank Hardware BS-197618GS
...
8
Hose Fuel 5/16"ID SAE J30R7 (0.52M) BS-102550GS

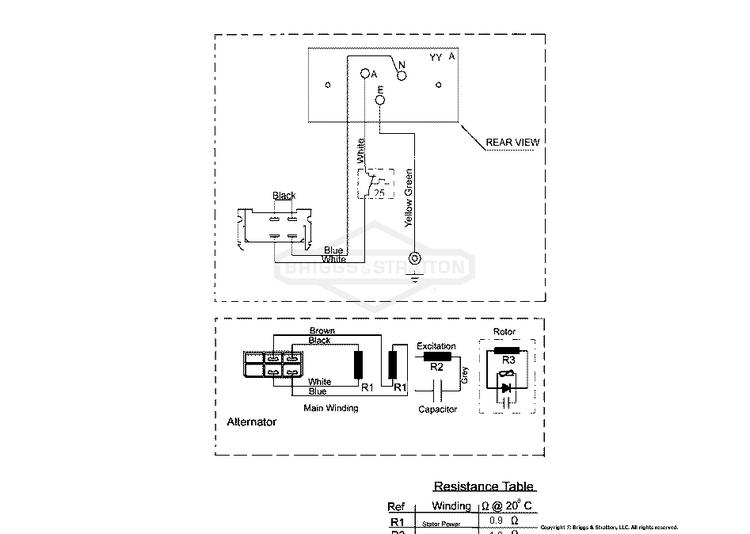

Wiring Diagram

...
...
xx
Decal Warning Read Manual Other Parts not illustrated BS-103371GS
...
xx
Decal Electrical hazard Other Parts not illustrated BS-102076GS
...
xx
Decal Caution Hot Other Parts not illustrated BS-103372GS
...
xx
Decal, ProMax 7500E Other Parts not illustrated BS-103280GS
...
xx
Decal GND Other Parts not illustrated BS-102048GS
...
xx
Owners Manual Euro-25L Portable Generator Other Parts not illustrated BS-MS5796
