030362-0 Briggs and Stratton Generator 5,000 Watt

Model: 030362-0

Save Part Not Listed?
product name

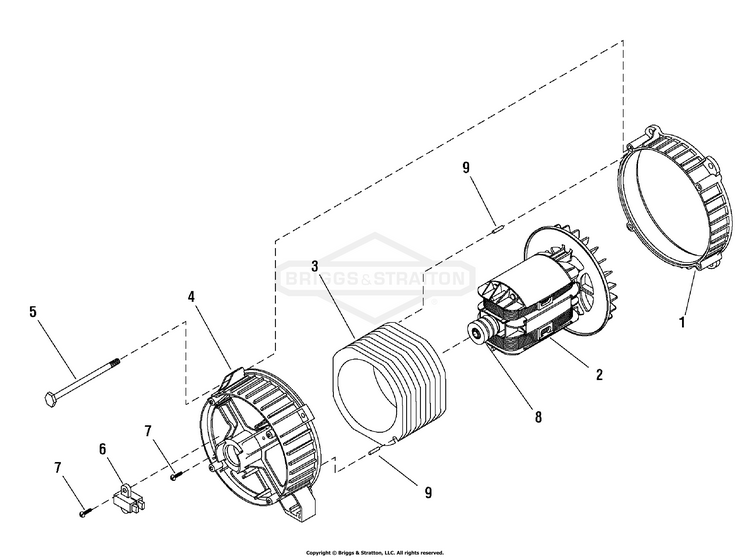

Alternator (203746)

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR (Includes Item 8) BS-204105GS
...
3
STATOR BS-203936GS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
CAPSCREW, Hex Head, SEMS, M6 - 1.0 x 130 BS-86308CGS
...
6
BRUSH ASSEMBLY BS-91825GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
BEARING BS-65791GS
...
9
PIN, Groove BS-91551GS

Control Panel (311004)

...
...
1
PANEL, Control BS-201571GS
...
2
COVER, Outlet BS-197472GS
...
3
BOX, Control Panel BS-201572GS
...
4
Outlet, 120V, 15/20A Dplx BS-197731GS
...
5
PALNUT, 3/16 BS-189164GS
...
6
LAMP, LED BS-202951GS
...
8
BREAKER-CIRCUIT 20A BS-202030GS
...
--
BOOT, Breaker Circuit (Not Illustrated) BS-191481GS
...
9
OUTLET, 30A, 120V/240V Locking Type BS-43437GS
...
10
CONNECTOR, 6 Pin BS-201678GS
...
12
Outlet, 120V, 15/20A Dplx BS-197731GS

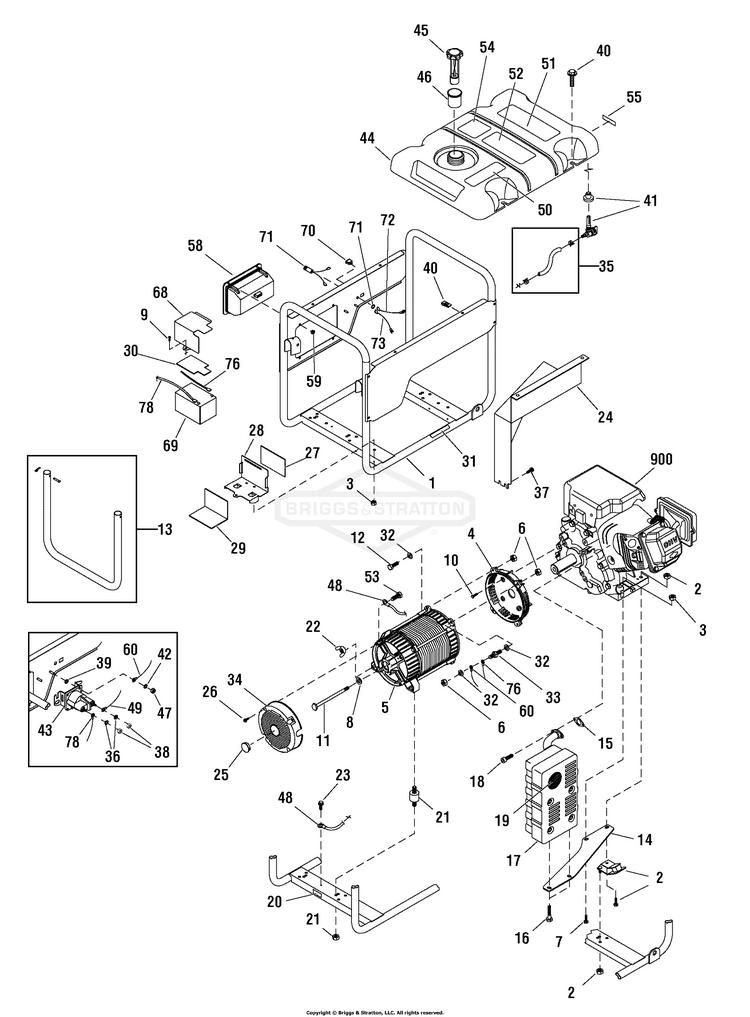

Main Unit (204169)

...
...
1
CRADLE (Includes Ref. Nos. 20 & 31) BS-203524GS
...
2
MOUNT, Vibration BS-194150GS
...
3
NUT, Flange Serrated, M8 BS-67989GS
...
4
ADAPTER, Engine BS-190220GS
...
8
WASHER, 8.4 x 22.2 x 3 BS-96796GS
...
9
SCREW BS-198611GS
...
10
SCREW BS-190274BGS
...
11
CAPSCREW, Hex Head, 5/16-24 x 7 BS-47480GS
...
13
KIT, Handle BS-198763GS
...
14
BRACKET, Muffler BS-189009GS
...
15
GASKET, Exhaust BS-695398
...
17
MUFFLER BS-189008GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
DECAL, Ground, Green BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
SCREW, Wing M6 - 1.0 x 16 BS-86494GS
...
23
SCREW BS-313085GS
...
24
SHIELD, Heat BS-197424GS
...
25
CAP BS-191190GS
...
26
SCREW, M5-0.8 x 10, Taptite BS-74908GS
...
27
INSULATION BS-199228GS
...
28
KIT, Battery Tray w/Insltn BS-198700GS
...
29
INSULATION BS-199156GS
...
30
INSULATION BS-199157GS
...
31
DECAL, Exhaust Warning BS-196830GS
...
33
STUD, Double BS-187117GS
...
34
COVER, RBC, Plastic with Cap BS-195422GS
...
35
LINE, Fuel BS-791745
...
37
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
40
KIT, Hardware, Fuel Tank, w/U-Clips BS-199433GS
...
--
U-CLIPS (Optional Accessory) BS-199284GS
...
41
KIT, Valve, Fuel Tank BS-192980GS
...
43
SOLENOID, Starter BS-691656
...
44
FUEL TANK ASSEMBLY (Includes Ref. Nos. 41, 50, 51, 52, 54 & 55) BS-193668GS
...
45
CAP, Fuel Gauge BS-B4363GS
...
46
INSERT BS-195181GS
...
48
WIRE, Ground BS-195373GS
...
49
WIRE BS-185931KGS
...
50
DECAL, Gas Fill BS-188333GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Start Instructions BS-189235GS
...
53
BOLT BS-207947GS
...
54
DECAL, CO Warning BS-202997GS
...
55
DECAL, Shut-Off, Fuel BS-197798GS
...
58
ASSY, Control Panel BS-201575GS
...
60
WIRE BS-198871EGS
...
68
KIT, Battery Cover w/Insltn BS-199150GS
...
69
BATTERY BS-198711GS
...
70
SWITCH, Rocker BS-87799GS
...
71
JACK, Coaxial BS-198925GS
...
72
WIRE BS-198871LGS
...
73
WIRE BS-198871KGS
...
76
WIRE, Battery Negative BS-185931LGS
...
78
WIRE, Battery Positive BS-185931JGS
...
--
MANUAL, Operator's (Not Illustrated) BS-204158GS
...
--
CHARGER, Battery (Not Illustrated) BS-84002790
...
--
KIT, Decals, Service (Not Illustrated) BS-203523GS

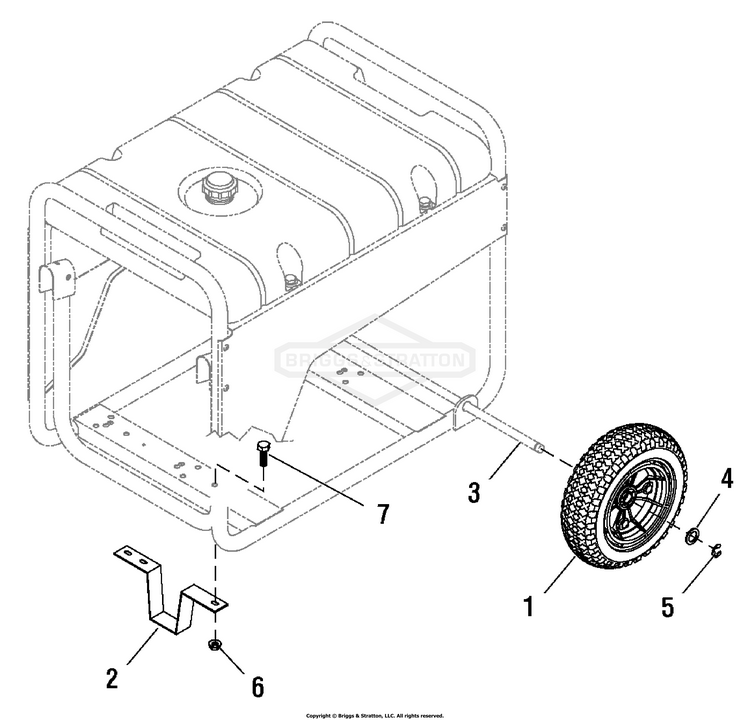

Wheel Kit (197317)

...
...
1
WHEEL BS-209322GS
...
2
SUPPORT, Wheel Kit BS-B1764GS
...
3
AXLE BS-191267HGS
...
5
E-RING BS-703977
...
6
NUT, Flange Serrated, M8 BS-67989GS
...
--
KIT, Hardware (Not Illustrated) BS-197594GS

Wiring Diagram (203748W)

...

No Parts Available for this Schematic

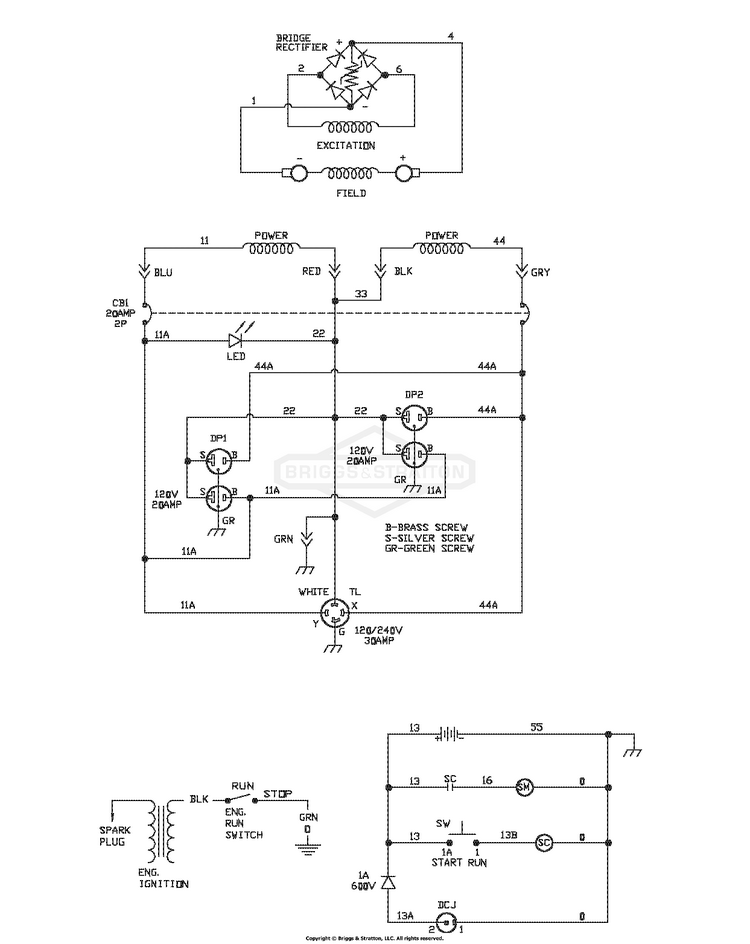

Wiring Schematic (203748WS)

...

No Parts Available for this Schematic
