product name

030361-0 Briggs and Stratton Generator 5,000 Watt

Model: 030361-0

Save Part Not Listed?
product name

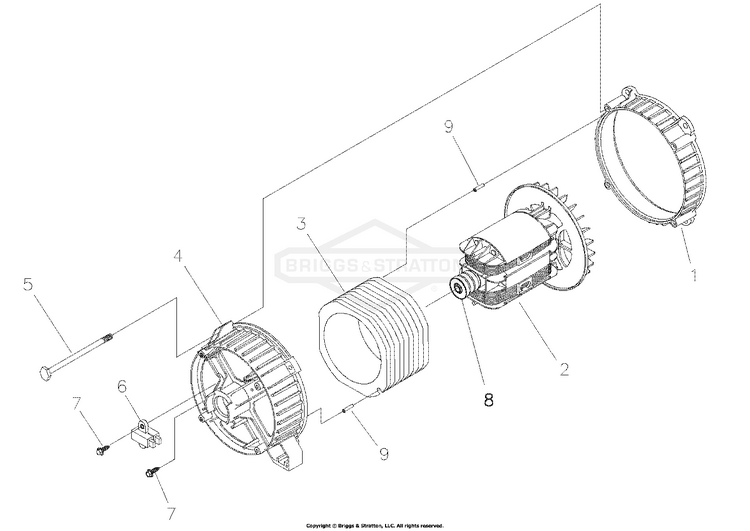

ALTERNATOR

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ASSY., Rotor (Includes Item 8) BS-204105GS
...
3
STATOR BS-203936GS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
HHCS, M6 - 1.0 x 130 SEMS BS-86308CGS
...
6
ASSY, Holder, Rectifier/Brush BS-91825GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
BEARING BS-65791GS
...
9
PIN, Groove BS-91551GS

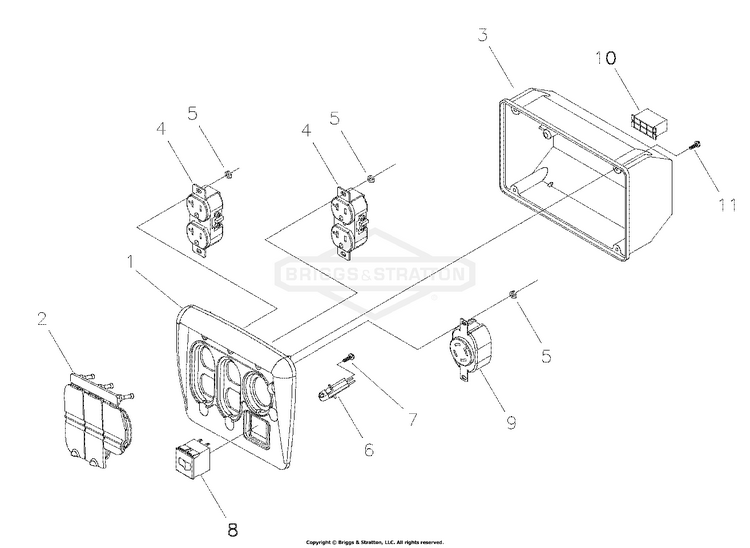

CONTROL PANEL

...
...
1
PANEL, Control BS-201571GS
...
2
COVER, Outlet Flip BS-197472GS
...
3
COVER, Back Panel BS-201572GS
...
4
OUTLET, 120V, 15/20A Dplx BS-197731GS
...
5
NUT, 3/16 Pal BS-189164GS
...
6
MODULE, Led BS-202951GS
...
8
BREAKER-CIRCUIT 20A BS-202030GS
...
xx
BOOT, Breaker Circuit BS-191481GS
...
9
OUTLET, 120/240V, 30A BS-43437GS
...
10
HOUSING, Rcptcl, 6 Pin BS-201678GS

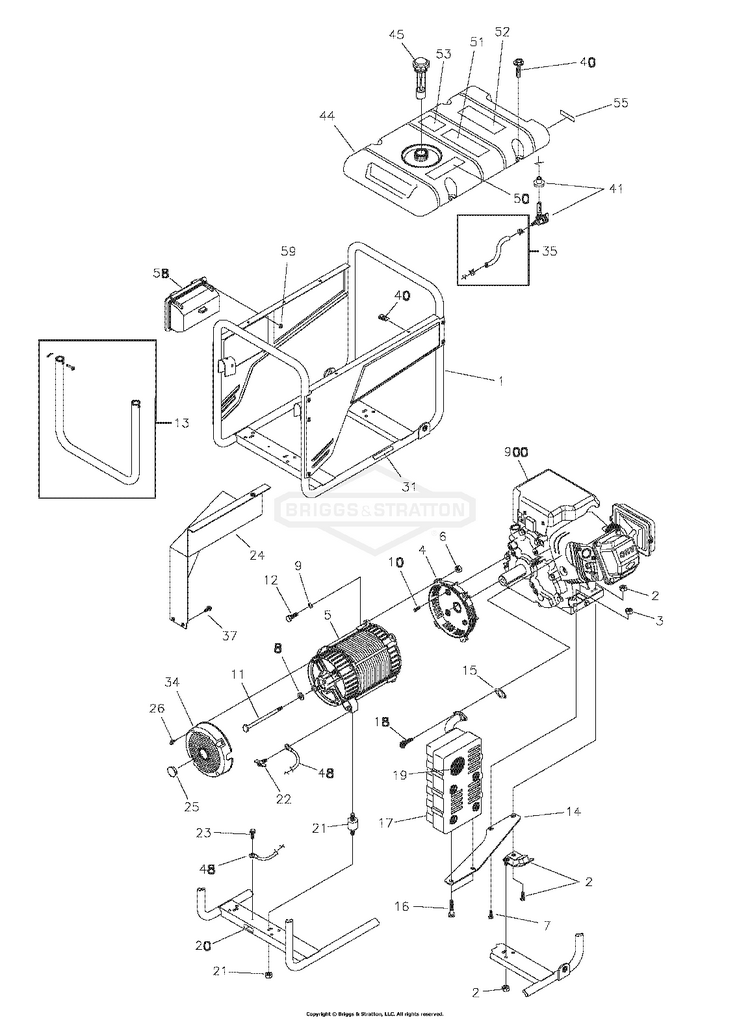

Main Unit

...
...
1
ASSY, Cradle (Includes items 20 & 31) BS-198163GS
...
2
KIT, Vibration, Mount, 45° BS-194150GS
...
3
NUT, M8 Flange Serrated BS-67989GS
...
4
HOUSING, Engine Adapter BS-190220GS
...
5
ASSY, Alternator (see page 4) BS-~NSP
...
7
TPHMS, M8 - 1.25 x 35 BS-195398GS
...
8
WASHER, 8.4 x 22.2 x 3 BS-96796GS
...
11
HHCS, 5/16-24 x 7 BS-47480GS
...
13
KIT, Handle BS-198165GS
...
14
BRACKET, Muffler BS-189009GS
...
15
GASKET, Exhaust BS-695398
...
17
MUFFLER BS-189008GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
DECAL, Ground, Green BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
SCREW, Wing M6 - 1.0 x 16 BS-86494GS
...
23
SCREW BS-313085GS
...
24
SHIELD, Heat BS-197424GS
...
25
CAP BS-191190GS
...
26
SCREW, M5-0.8 x 10, Taptite BS-74908GS
...
31
DECAL, Exhaust Warning BS-196830GS
...
34
COVER, RBC, Plastic w/Cap BS-195422GS
...
35
LINE, Fuel BS-791745
...
37
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
40
KIT, Fuel Tank Hardware w/U-Clips BS-199433GS
...
xx
U-CLIPS, (Optional Accessory) BS-199284GS
...
41
KIT, Valve, Fuel Tank BS-192980GS
...
44
ASSY., Tank, Fuel (Includes items 41, 50, 51, 52, 53 & 55) BS-193668GS
...
45
CAP, Fuel Gauge BS-B4363GS
...
48
WIRE, Ground BS-195373GS
...
50
DECAL, Gas Fill BS-188333GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Start Instructions BS-189235GS
...
53
DECAL, CO Warning BS-202997GS
...
55
DECAL, Shut-Off, Fuel BS-197798GS
...
58
ASSY, Control Panel BS-204073GS
...
xx
MANUAL, Operator's Not Illustrated BS-204158GS
...
xx
BOTTLE, Oil Not Illustrated BS-BB3061GS
...
xx
DECAL, Family, CA EVP Not Illustrated BS-202180GS
...
xx
KIT, Decals Not Illustrated BS-203525GS

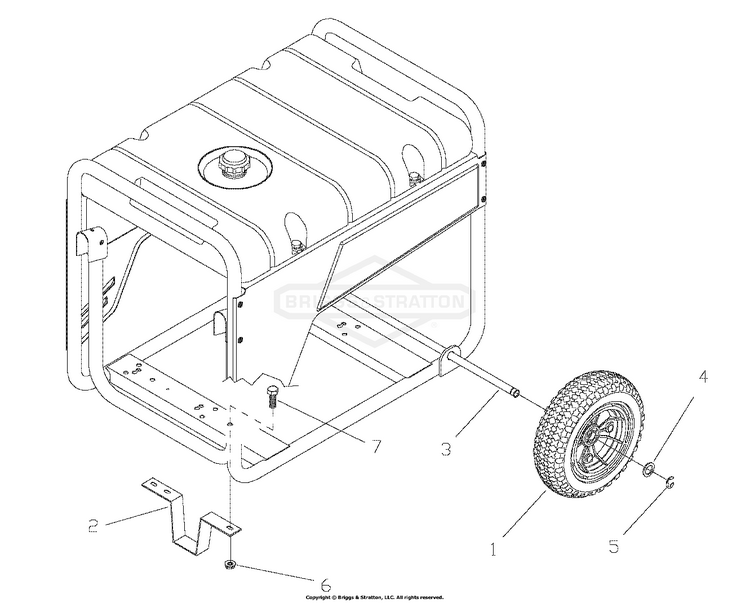

WHEEL KIT

...
...
1
WHEEL BS-209322GS
...
2
SUPPORT, Wheel Kit BS-B1764GS
...
3
AXLE BS-191267HGS
...
5
E-RING BS-703977
...
6
NUT, M8 - Flange Serrated BS-67989GS

Wiring Diagram

...

No Parts Available for this Schematic

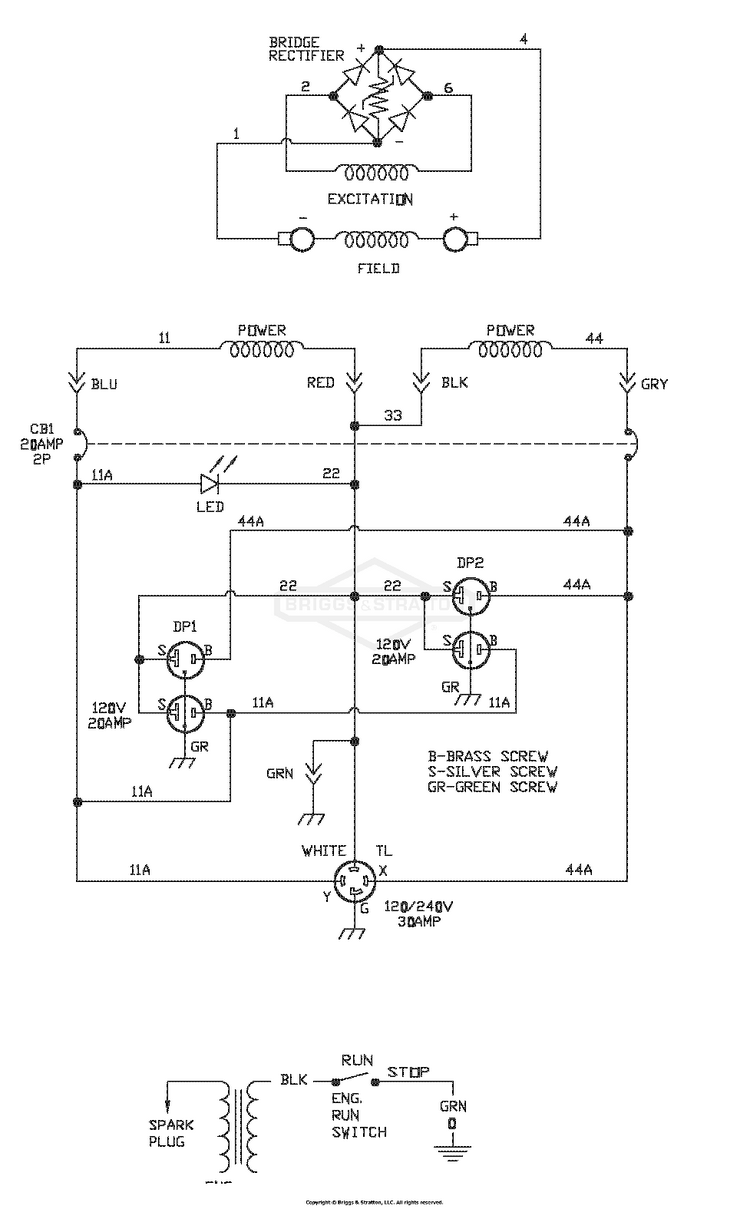

Wiring Schematic

...

No Parts Available for this Schematic
