030338-0 Briggs and Stratton Generator 10,000 Watt

Model: 030338-0

Save Part Not Listed?
product name

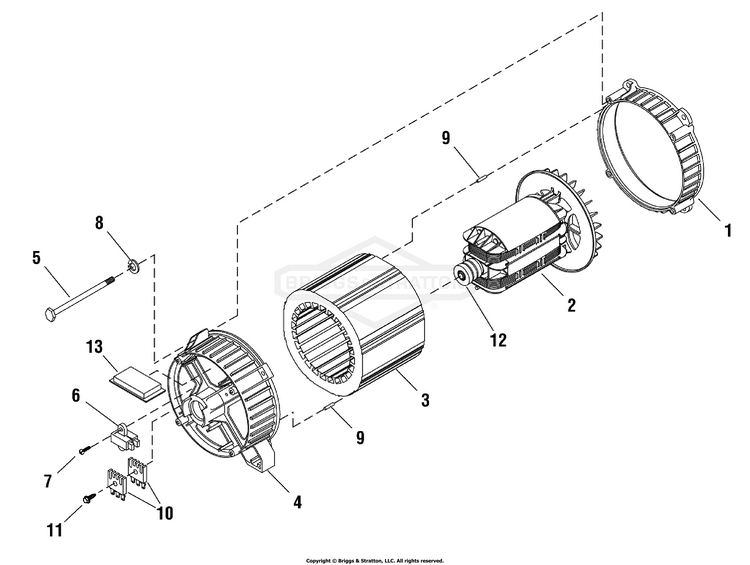

Alternator (204848)

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-191952GS
...
3
STATOR BS-205062GS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
BOLT BS-66449LGS
...
6
BRUSH ASSEMBLY BS-66386GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
9
PIN BS-81917GS
...
10
RECTIFIER, Battery Charge BS-65795GS
...
11
TAPTITE BS-66849CGS
...
12
BEARING BS-65791GS
...
13
REGULATOR, Voltage BS-205858GS

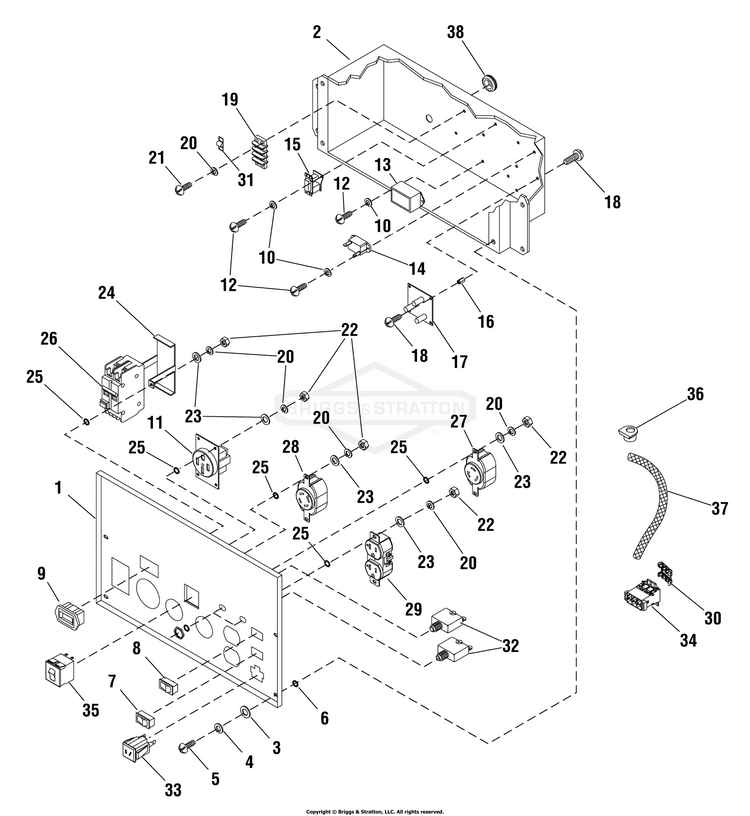

Control Panel (204847)

...
...
1
PANEL, Control BS-204578GS
...
2
BOX, Control Panel BS-201864GS
...
7
SWITCH, ON/OFF BS-78653GS
...
8
SWITCH, ON/OFF BS-82538GS
...
9
METER-HOUR BS-202602GS
...
11
OUTLET, 125/250V 50A BS-B4262GS
...
13
RELAY BS-77314GS
...
14
BREAKER, Circuit, 10A BS-87962GS
...
15
TRANSFORMER BS-84028GS
...
16
STANDOFF BS-64525GS
...
17
BOARD, Idle Control BS-195406GS
...
19
BLOCK, Terminal, 50A BS-92953GS
...
24
BRACKET BS-192931GS
...
26
BREAKER, Circuit, 50A BS-192828FGS
...
27
OUTLET-120V TL30A BS-705932
...
28
OUTLET, 120/240V TL30A BS-43437GS
...
29
OUTLET, 120V 20A BS-68759GS
...
30
STRIP, Dual Row BS-199532GS
...
31
BLOCK, Terminal BS-193597GS
...
32
BREAKER, Circuit, 20A BS-202394GS
...
33
OUTLET, 12VDC BS-90418GS
...
34
CONNECTOR BS-199528GS
...
35
BREAKER, Circuit, 30A BS-202033GS
...
36
BOOT BS-188632GS
...
37
TUBING, Fabric BS-201171GS
...
38
GROMMET BS-62265GS

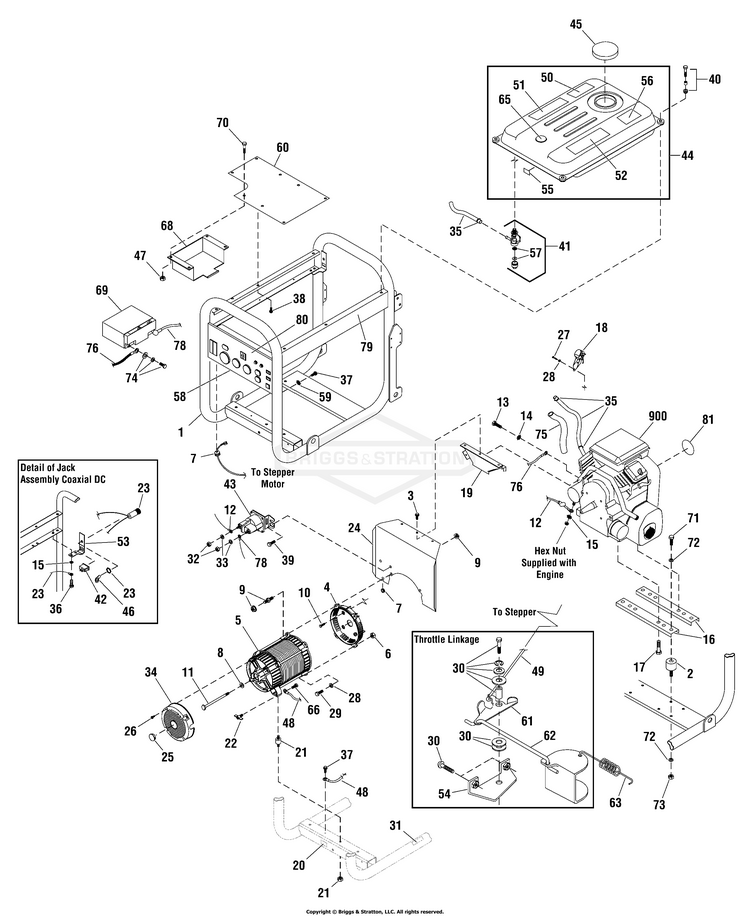

Main Unit (204734)

...
...
1
CRADLE (Includes Items 20 & 31) BS-204637ZGS
...
2
MOUNT, Vibration BS-38353GS
...
3
CRIMPTITE BS-56893GS
...
4
ADAPTER, Engine BS-190220GS
...
7
GROMMET BS-62265GS
...
8
WASHER BS-96796GS
...
9
KIT, Hardware, Heatshield BS-194208GS
...
10
SCREW BS-190274BGS
...
11
SCREW BS-187365DGS
...
12
WIRE BS-189302SGS
...
16
SUPPORT, Engine BS-77304ZGS
...
17
SCREW-HEX WSHR HD TAP BS-2828635SM
...
18
MOTOR, Stepper BS-195404GS
...
19
SUPPORT, Heatshield BS-93074BRGS
...
20
DECAL BS-B4986GS
...
21
MOUNT, Vibration BS-194155GS
...
22
NUT BS-87680GS
...
23
JACK, Coaxial BS-201348GS
...
24
HEATSHIELD BS-194951GS
...
25
CAP BS-191190GS
...
26
TAPTITE BS-74908GS
...
30
KIT, Hardware, Throttle Linkage BS-194543GS
...
31
DECAL BS-200310GS
...
34
COVER, Rear Bearing BS-195422GS
...
35
LINE, Fuel (Cut to Fit) BS-791745
...
36
SCREW BS-90388GS
...
37
SCREW BS-B2153GS
...
38
SCREW BS-192376GS
...
39
SCREW, HEX, 1/4-20X.5 BS-704130
...
40
KIT, Hardware, Fuel Tank BS-198221GS
...
41
VALVE, Fuel BS-310574GS
...
42
SWITCH, ON/OFF BS-87799GS
...
43
SOLENOID, Starter BS-691656
...
44
TANK, Fuel BS-196035GS
...
45
CAP, Fuel BS-189135GS
...
46
LUG BS-192351GS
...
47
NUT BS-77395GS
...
48
WIRE, Ground BS-195373GS
...
49
LINK, Stepper Motor BS-95920GS
...
50
DECAL BS-188333GS
...
51
DECAL BS-194984GS
...
52
DECAL BS-94480GS
...
53
BRACKET BS-200816GS
...
54
PLATE, Adjustment BS-95349GS
...
55
DECAL BS-197797GS
...
56
DECAL BS-202997GS
...
57
VALVE, Fuel BS-310574GS
...
58
PANEL, Control BS-204578GS
...
60
SUPPORT, Battery Tray BS-193512GS
...
61
BRACKET BS-95348GS
...
62
LINK, Bell Crank BS-95921GS
...
63
SPRING BS-96717GS
...
65
GAUGE BS-192724GS
...
68
TRAY, Battery BS-192985GS
...
69
BATTERY BS-193043GS
...
74
KIT, Hardware, Battery BS-315546GS
...
75
SHIELD, Heat BS-280866
...
76
WIRE BS-185939TGS
...
78
WIRE BS-189302RGS
...
79
DECAL BS-204722GS
...
80
DECAL BS-204723GS
...
81
DECAL BS-200658GS
...
--
MANUAL, Operator's (Not Illustrated) BS-204730GS
...
--
OIL (Not Illustrated) BS-BB3061GS
...
--
BOTTLE, Oil (Not Illustrated) BS-100005
...
--
CHARGER, Battery (Not Illustrated) BS-84002790
...
--
DECAL, Float (Not Illustrated) BS-198800GS
...
--
DECAL, Ignition (Not Illustrated) BS-197159GS
...
--
PLUG, 120/240V TL30A (Not Illustrated) BS-43438GS
...
--
PLUG, 125V TL30A (Not Illustrated) BS-100523GS
...
--
CABLE, Battery Charge (Not Illustrated) BS-65787GS
...
--
SCREW (Not Illustrated) BS-690661
...
--
ARRESTOR, Spark (Not Illustrated) BS-794945
...
--
MUFFLER (Not Illustrated) BS-692099
...
--
BRACKET (Not Illustrated) BS-691513
...
--
SCREW (Not Illustrated) BS-692056
...
--
CLAMP (Not Illustrated) BS-690898
...
--
SCREW (Not Illustrated) BS-841233

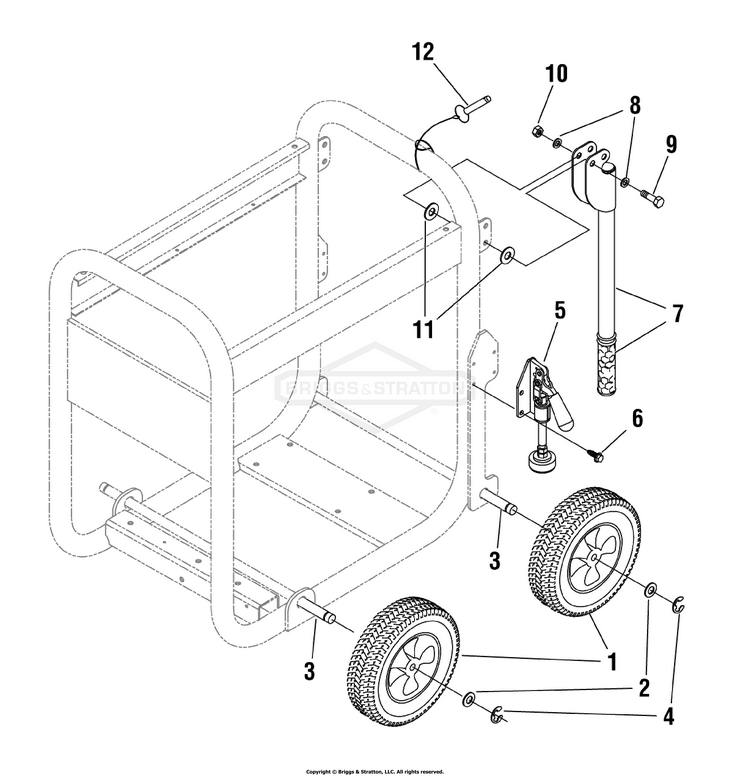

Wheel Kit (204975)

...
...
1
WHEEL BS-203273GS
...
3
AXLE BS-191267TGS
...
4
E-RING BS-703977
...
5
BRAKE BS-205135GS
...
7
HANDLE, With Grip BS-B193200GS
...
--
GRIP, Handle BS-198669GS
...
12
PIN BS-B4135GS
...
--
KIT, Hardware, Wheel (Not Illustrated) BS-205183GS

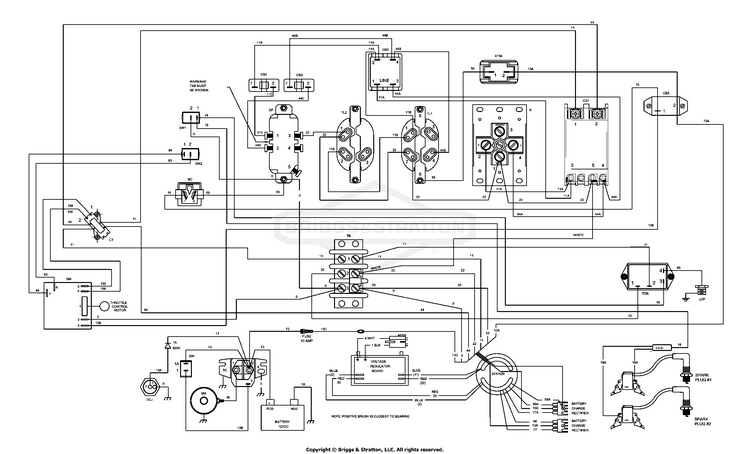

Wiring Diagram (204846WD)

...

No Parts Available for this Schematic

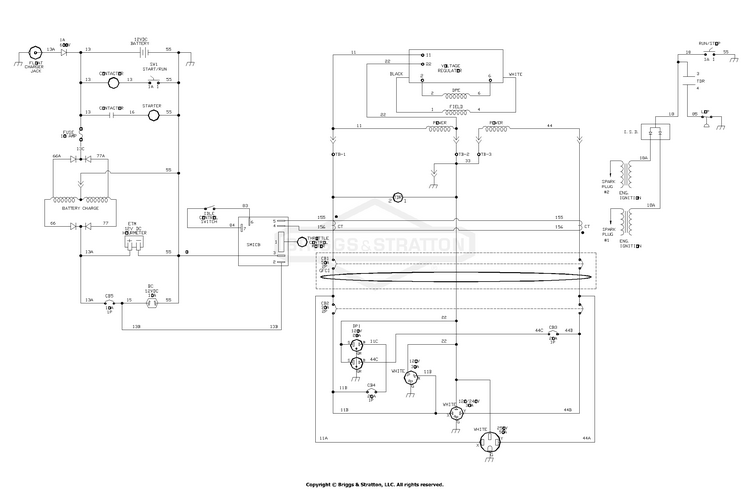

Wiring Schematic (204846WS)

...

No Parts Available for this Schematic
