030336-0 Briggs and Stratton Generator 6,500 Watt

Model: 030336-0

Save Part Not Listed?
product name

Popular Parts

Popular Parts

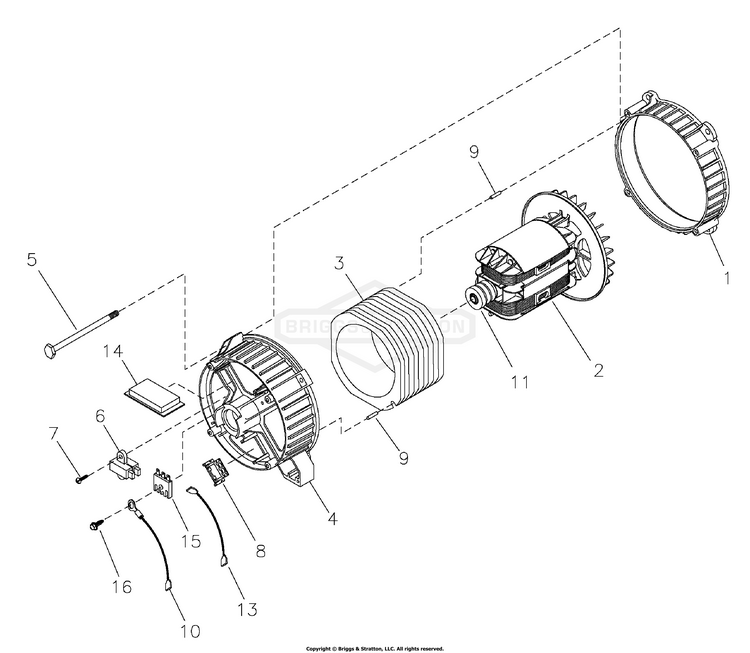

Alternator (193172)

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-192919GS
...
3
STATOR BS-192920AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
BOLT BS-86308HGS
...
6
BRUSH ASSEMBLY BS-66386GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
CONNECTOR BS-22694GS
...
9
PIN BS-81917GS
...
10
WIRE BS-193428AGS
...
11
BEARING BS-65791GS
...
13
WIRE BS-192403XGS
...
14
REGULATOR, Voltage BS-205858GS
...
15
RECTIFIER, Battery Charge BS-65795GS
...
16
TAPTITE BS-66849AGS

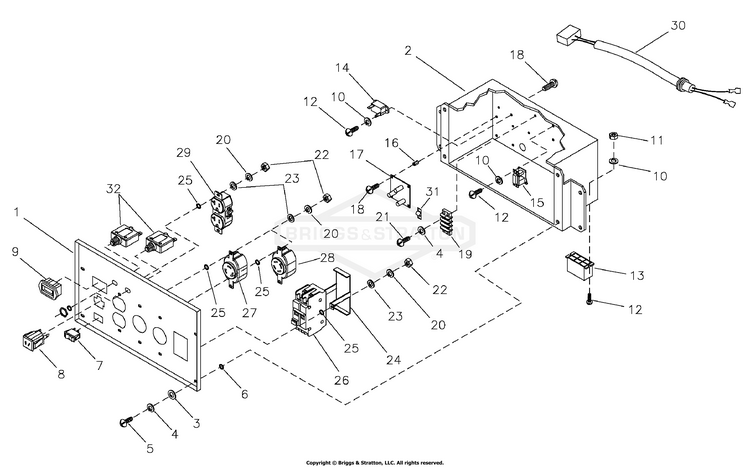

Control Panel (202531)

...
...
1
PANEL, Control BS-B192833GS
...
2
BOX, Control Panel BS-B192836GS
...
7
SWITCH, ON/OFF BS-82538GS
...
8
OUTLET, 12VDC BS-90418GS
...
9
METER-HOUR BS-202602GS
...
13
CONNECTOR BS-22694GS
...
14
BREAKER, Circuit, 10A BS-87962GS
...
15
TRANSFORMER BS-84028GS
...
16
STANDOFF BS-64525GS
...
17
BOARD, Idle Control BS-193362GS
...
19
STRIP, Terminal BS-193077GS
...
24
BRACKET BS-192931GS
...
26
BREAKER, Circuit, 30A BS-192828DGS
...
27
OUTLET-120V TL30A BS-705932
...
28
OUTLET, 120/240V TL30A BS-43437GS
...
29
OUTLET, 120V 20A BS-68759GS
...
30
HARNESS, Wiring BS-193036GS
...
31
BLOCK, Terminal BS-193095GS
...
32
BREAKER, Circuit, 20A BS-202394GS

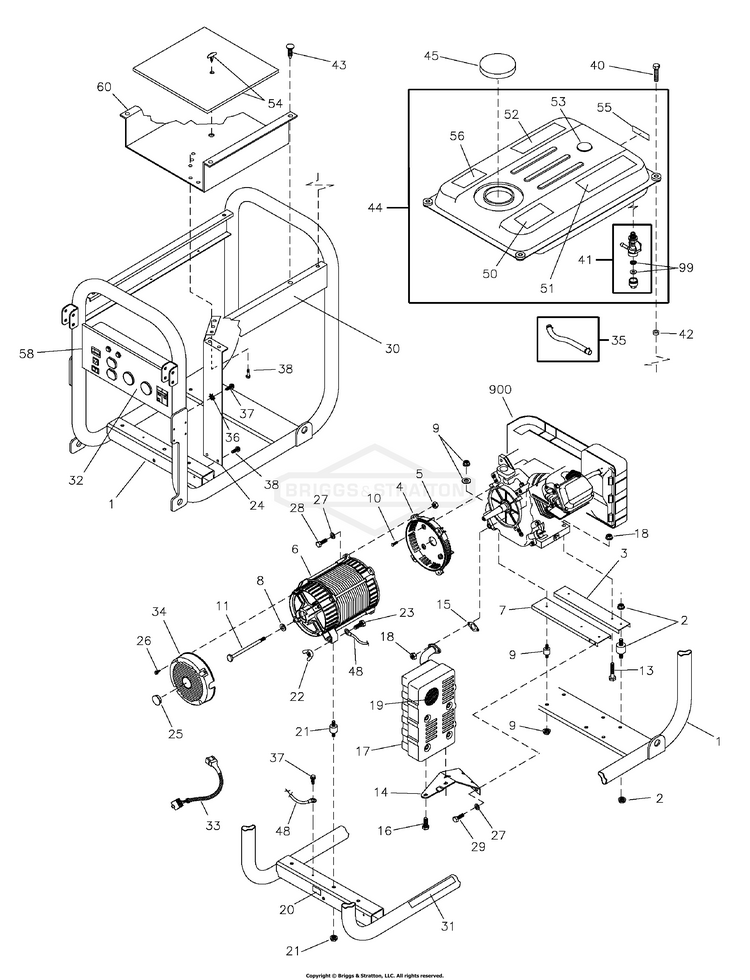

Main Unit

...
...
1
CRADLE (Includes Items 20 & 31) BS-B204631GS
...
2
MOUNT, Vibration BS-194218GS
...
3
SUPPORT, Engine BS-B92531GS
...
4
ADAPTER, Engine BS-190220GS
...
7
SUPPORT, Engine BS-B190723GS
...
8
WASHER BS-96796GS
...
9
MOUNT, Vibration BS-194219GS
...
10
SCREW BS-190274DGS
...
11
SCREW BS-187365JGS
...
14
BRACKET BS-92532GS
...
15
GASKET BS-710250
...
17
MUFFLER BS-B4206GS
...
18
NUT BS-67989GS
...
19
SCREEN BS-83083GS
...
20
DECAL BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
NUT BS-87680GS
...
24
HEATSHIELD BS-194390GS
...
25
CAP BS-191190GS
...
26
TAPTITE BS-74908GS
...
30
DECAL BS-204717GS
...
31
DECAL BS-200310GS
...
32
DECAL BS-204718GS
...
33
HARNESS, Wiring BS-193157GS
...
34
COVER, Rear Bearing BS-195422GS
...
35
LINE, Fuel (Cut to Fit) BS-791745
...
37
SCREW BS-B2153GS
...
38
SCREW BS-192376GS
...
41
VALVE, Fuel BS-310574GS
...
42
SPACER BS-193588GS
...
43
CLIP, Tree BS-B1797GS
...
44
TANK, Fuel BS-196035GS
...
45
CAP, Fuel BS-189135GS
...
48
WIRE BS-195373GS
...
50
DECAL BS-188333GS
...
51
DECAL BS-194984GS
...
52
DECAL BS-94480GS
...
53
GAUGE BS-192724GS
...
54
INSULATION BS-194448GS
...
55
DECAL BS-197797GS
...
56
DECAL BS-202997GS
...
58
PANEL, Control BS-202531GS
...
60
HEATSHIELD BS-208564GS
...
99
VALVE, Fuel BS-310574GS
...
--
MANUAL, Operator's (Not Illustrated) BS-204728GS
...
--
PLUG, 120/240V TL30A (Not Illustrated) BS-43438GS
...
--
BOTTLE, Oil (Not Illustrated) BS-100005
...
--
CABLE, Battery Charge (Not Illustrated) BS-65787GS
...
--
PLUG, 125V TL30A (Not Illustrated) BS-100523GS

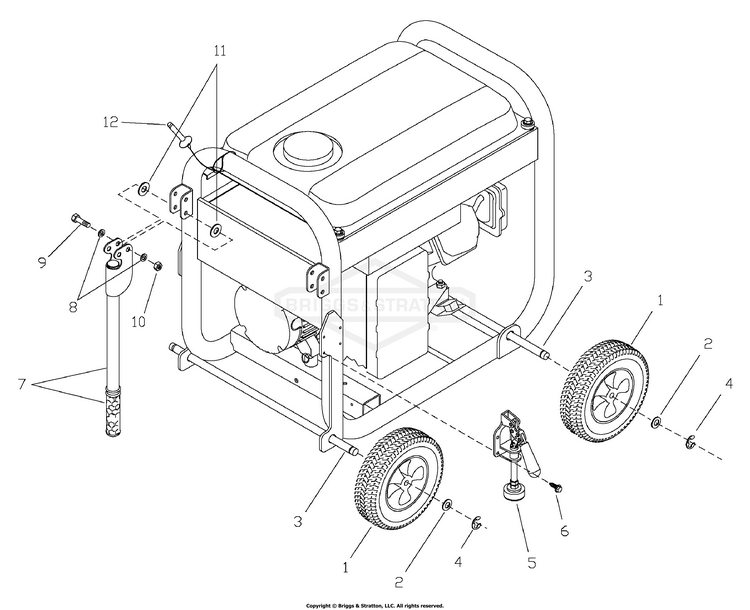

Wheel Kit (204675)

...
...
1
WHEEL BS-203273GS
...
3
AXLE BS-208975GS
...
4
E-RING BS-703977
...
5
BRAKE BS-205135GS
...
7
HANDLE BS-B193200GS
...
7
GRIP, Handle BS-198669GS
...
12
PIN BS-B4135GS
...
--
KIT, Hardware, Wheel (Not Illustrated) BS-205183GS

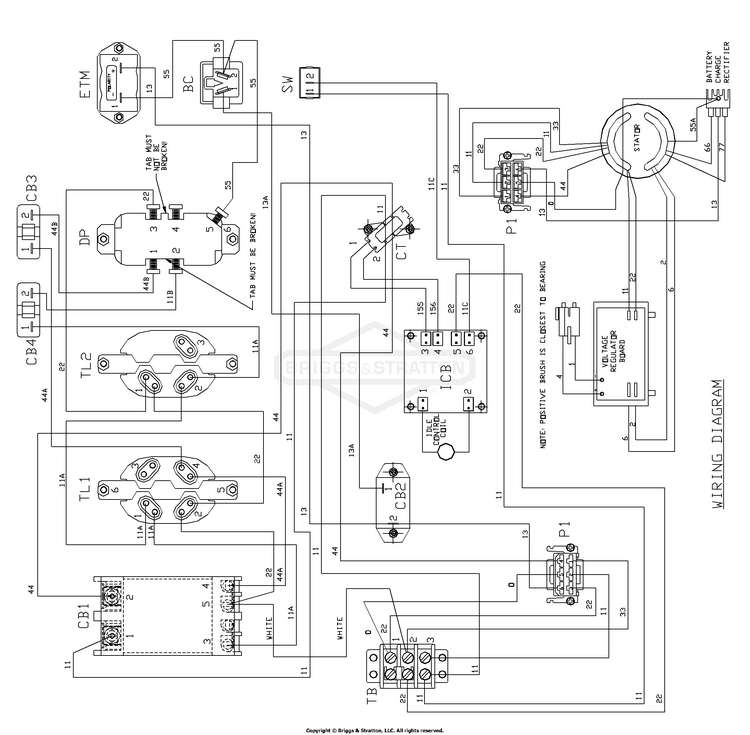

Wiring Diagram

...

No Parts Available for this Schematic

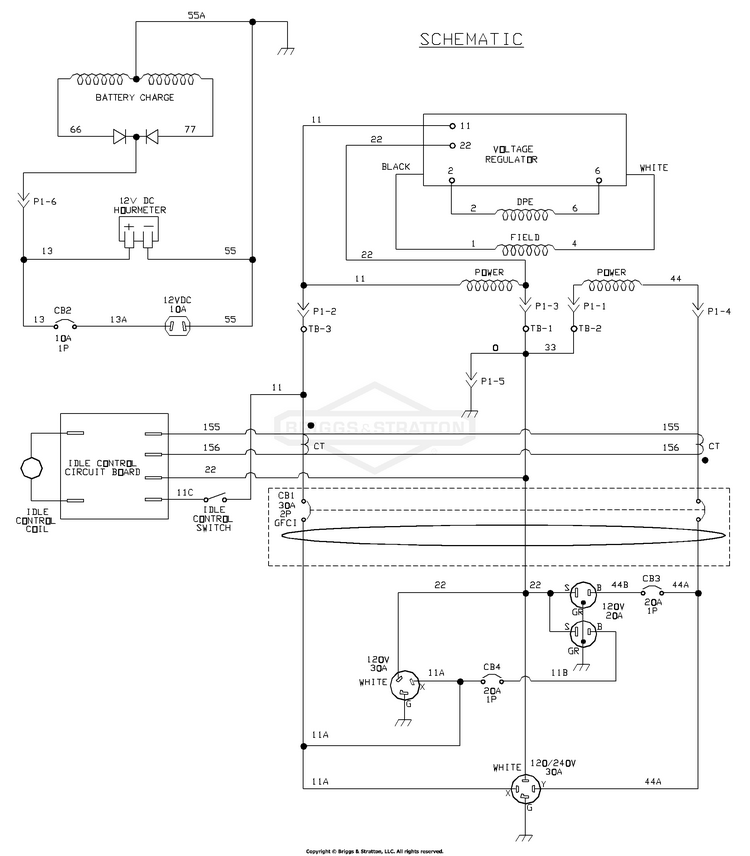

Wiring Schematic

...

No Parts Available for this Schematic
