030333-0 Briggs and Stratton Generator 5,500 Watt

Model: 030333-0

Back To Assemblies

Save Part Not Listed?
product name

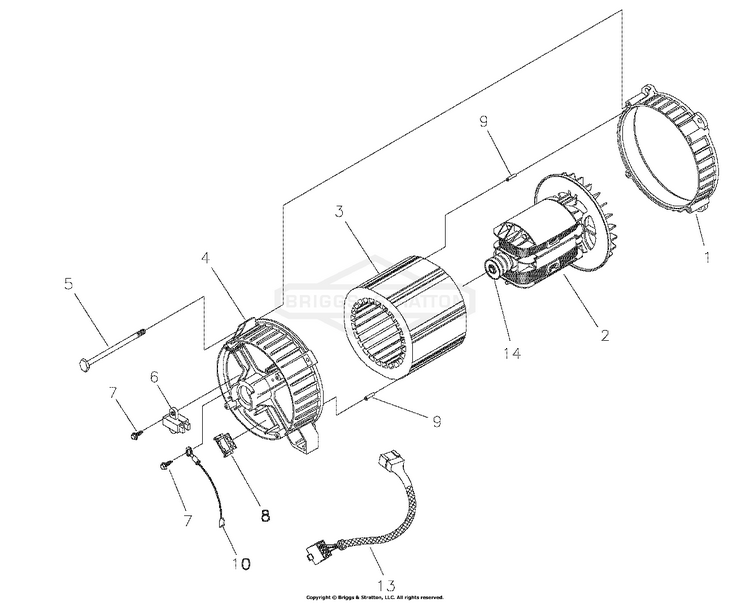

Alternator

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-190032GS
...
3
STATOR BS-190079AGS
...
4
RBC, (with O-Ring p/n 189197GS) (Includes O-Ring 189197GS) BS-193336GS
...
5
CAPSCREW, Hex Head, Sems, M6-1 x 140 BS-86308HGS
...
6
ASSEMBLY, Holder, Rectifier/Brush BS-91825GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
RECEPTACLE, 6 pin BS-22694GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS
...
10
WIRE-A, Ground BS-193428AGS
...
13
HARNESS, Wire, Power BS-194274GS
...
14
BEARING BS-65791GS
