030320-0 Briggs and Stratton Generator 4,000 Watt

Model: 030320-0

Save Part Not Listed?
product name

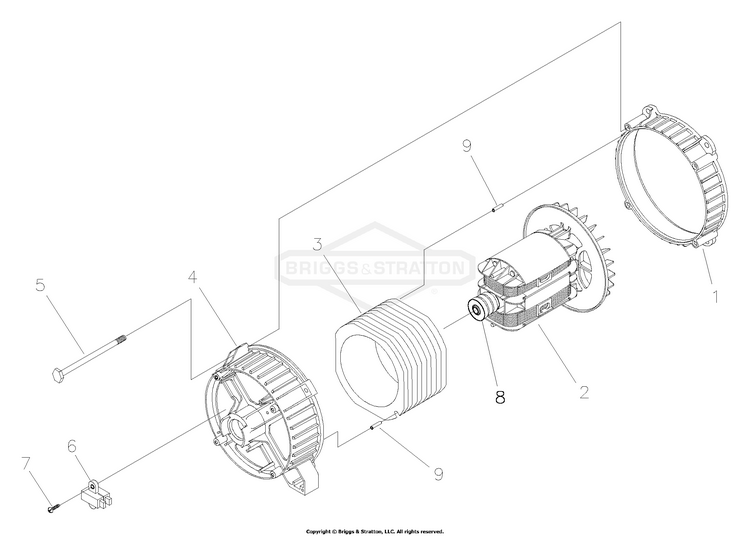

Alternator

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR (Includes Item 8) BS-199545GS
...
3
STATOR BS-199546AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
HHCS, M6 - 1.0 x 115 SEMS BS-86308GS
...
6
ASSY, Holder, Rectifier/Brush BS-91825GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
BEARING BS-65791GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS

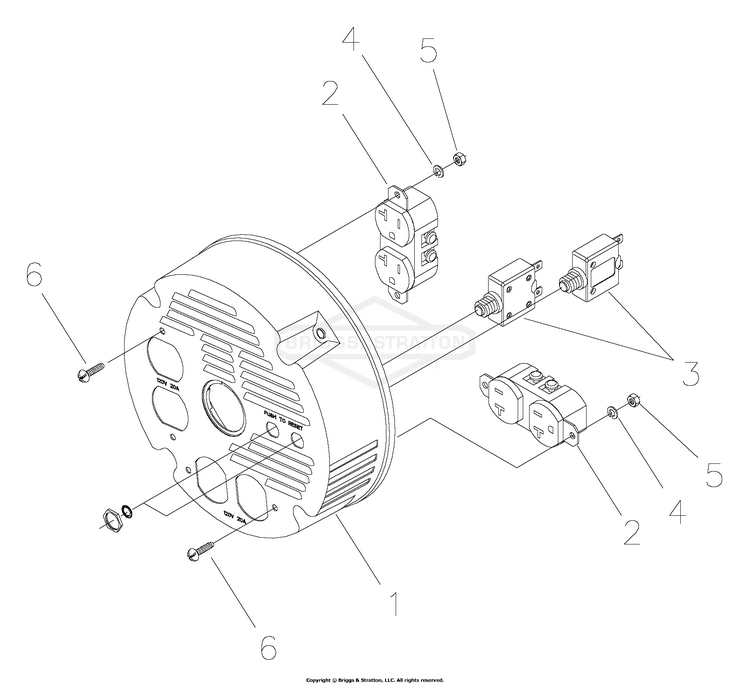

Control Panel

...
...
1
COVER, Control Panel, RBC BS-199539GS
...
2
OUTLET, 120/125V, 15/20A Dplx BS-68759GS
...
3
BREAKER-CIRCUIT 20A BS-209872GS

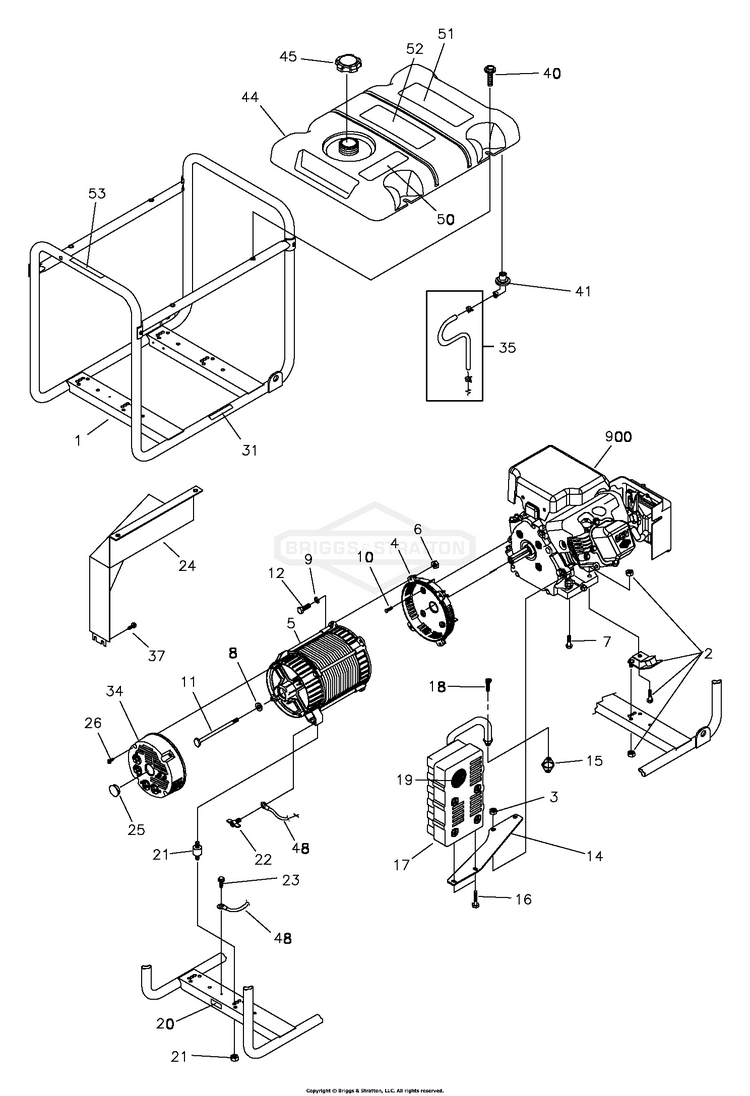

Main Unit

...
...
1
ASSY, Cradle BS-199876GS
...
2
KIT, Vibration Mount 45° BS-194150GS
...
3
NUT, M8 Flange Serrated BS-67989GS
...
4
ADAPTER, Engine BS-186058AGS
...
5
ASSY, Alternator (see "Alternator") BS-~NSP
...
8
WASHER, M8 Flat BS-96796GS
...
11
HHCS, 5/16-24 x 7-7/16 BS-187365FGS
...
14
BRACKET, Muffler BS-191785GS
...
15
GASKET-EXHAUST BS-692237
...
17
MUFFLER BS-188301GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
DECAL, Ground, Green BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
SCREW, Wing M6 - 1.0 x 16 BS-86494GS
...
23
SCREW BS-313085GS
...
24
SHIELD, Heat BS-199631GS
...
25
CAP BS-191190GS
...
26
SCREW, M5-0.8 x 10, Taptite BS-74908GS
...
31
DECAL, Hot Muffler BS-196830GS
...
34
ASSY, Cover, Cpnl BS-199621GS
...
35
KIT, Fuel Hose, Formed BS-195207GS
...
37
SCREW, 10-24 x 1/2 Crimptite BS-56893GS
...
40
BOLT, Shldr, M6 - 1.0 w/Washer BS-199256GS
...
41
KIT, Elbow, Fuel Tank BS-199875GS
...
44
ASSY, Tank, Fuel (Includes Items 41, 50, 51 & 52) BS-198226GS
...
45
CAP, Fuel BS-90878GS
...
48
WIRE, Ground BS-195373GS
...
50
DECAL, Gas Fill BS-188333GS
...
51
DECAL, Warning BS-194799GS
...
52
DECAL, Start Instructions BS-189235GS
...
53
DECAL, Warning CO BS-201079GS
...
--
BOTTLE, Oil Not Illustrated BS-100005
...
MANUAL, Operator's Not Illustrated BS-199399GS
...
DECAL, Family, CA EVP Not Illustrated BS-199384GS
...
KIT, Decals, Srv Not Illustrated BS-199384GS
...
STABILIZER, Fuel Optional Accessory BS-5041D

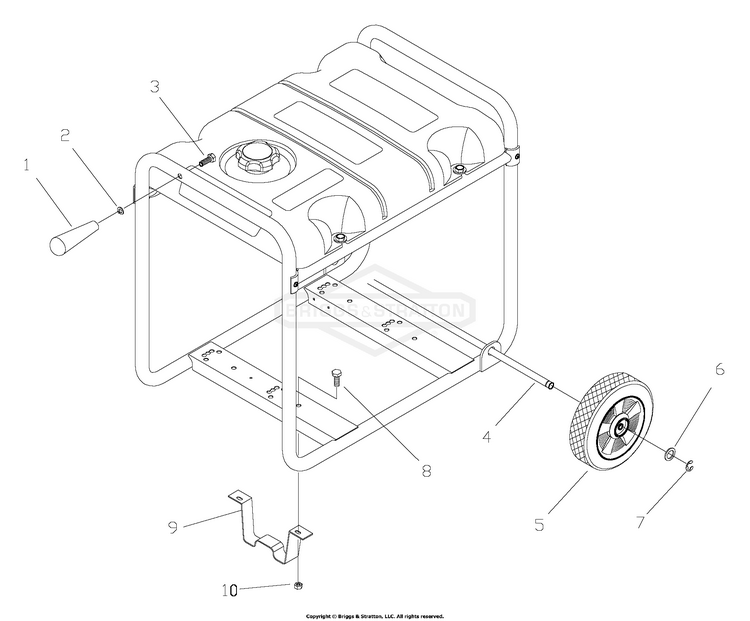

Wheel Kit

...
...
1
HANDLE BS-200035GS
...
4
AXLE, 1/2" BS-196771GS
...
5
WHEEL BS-193975GS
...
7
RETAINER, RING, 1/2 BS-703976
...
9
LEG, Mounting BS-200073GS

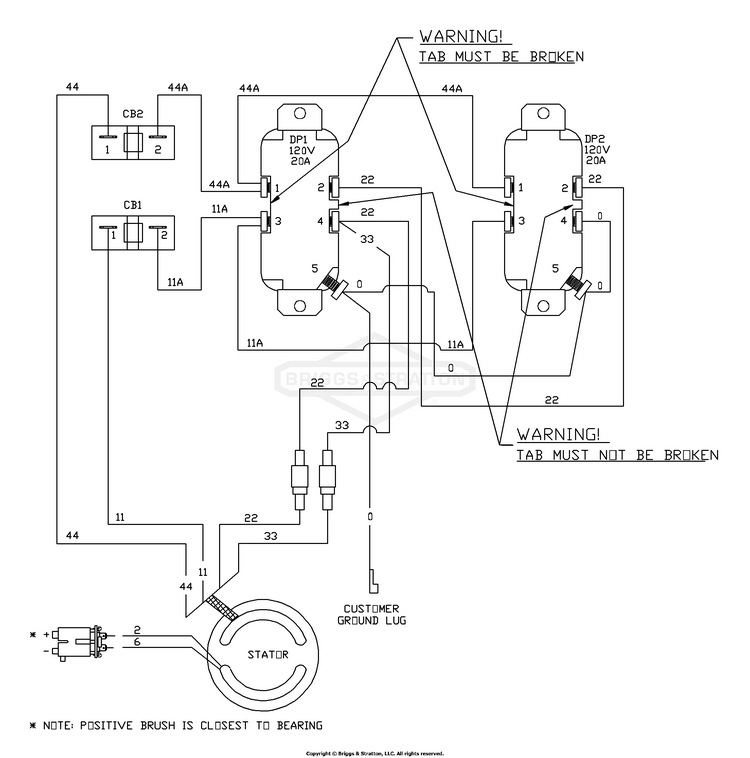

Wiring Diagram

...

No Parts Available for this Schematic

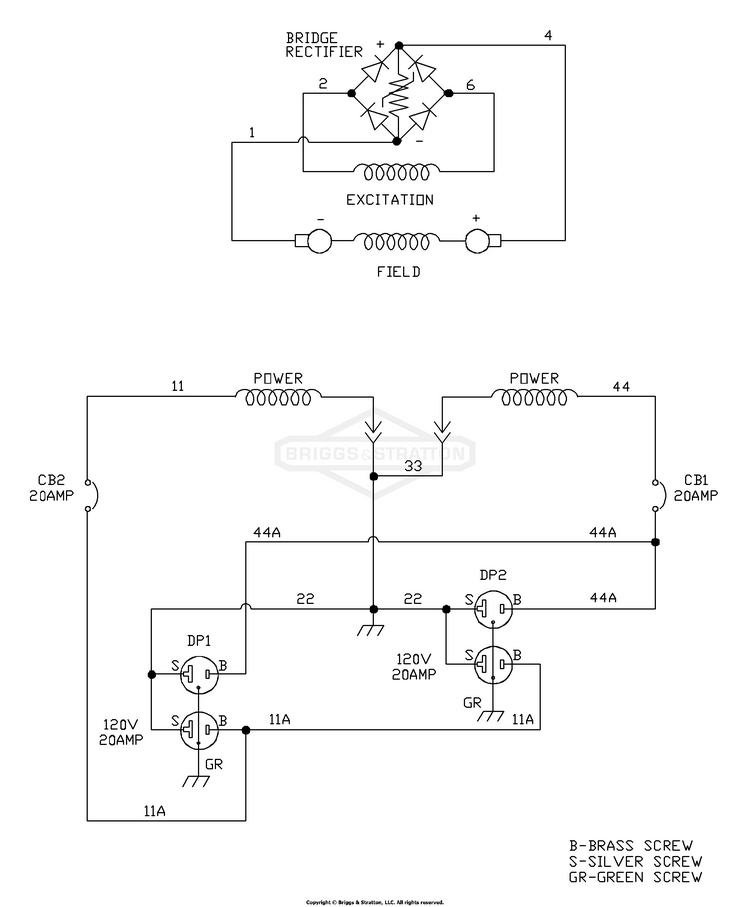

Wiring Schematic

...

No Parts Available for this Schematic
