product name

030302-0 Briggs and Stratton Portable Generator PD4000E Continental

Model: 030302-0

Save Part Not Listed?
product name

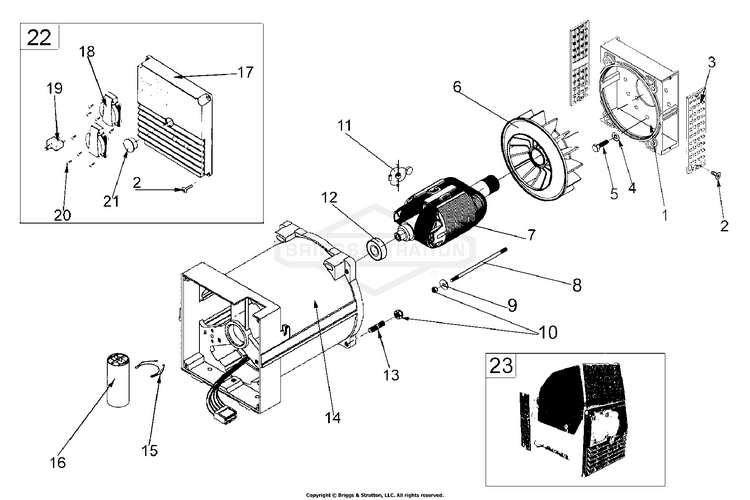

Alternator & Outlet Panel

...
...
1
FLANGE PLATE BS-102271GS
...
2
SCREW MC PPHD M5*10MM BS-~NSP
...
3
SIDE GRILL (PLASTIC) BS-102139GS
...
4
WASHER LOCK M10/ 3/8 OXY BLACK BS-~NSP
...
5
SCREW CAP 3/8 UNC * 1 1/4" BS-102279GS
...
6
ROTOR FAN SINCRO BS-102073GS
...
7
ROTOR ASSEMBLY ER 4.2 BS-102535GS
...
8
ROTOR BOLT, M8-1.25*265MM BS-102160GS
...
9
WASHER FLAT M8 & 5/16" BS-~NSP
...
10
NUT NYLOCK M8-1.25 TYPE T BS-~NSP
...
11
KIT-CAPACITOR DIODE & VAR BS-B4916GS
...
12
ROTOR BEARING BS-102038GS
...
13
STUD M8*30MM BS-102131GS
...
14
STATOR ASSEMBLY ER 4.2 BS-102534GS
...
15
CAPACITOR CLIP EP SERIES BS-~NSP
...
16
CAPACITOR 35UF BS-102251GS
...
17
OUTLET PANEL BLANK BS-102075GS
...
18
SOCKET OUTLET SCHUKO BS-102030GS
...
19
CIRCUIT BREAKER 18 AMP BS-102220GS
...
20
SCREW PLASTITE PPHD NO6 * 3/8" BS-~NSP
...
21
END CAP PLASTIC PLUG BS-102085GS
...
22
OUTLET PANEL ASSY BS-102222GS
...
23
ALTERNATOR SINCRO ER 4.2 G/S BS-102540GS

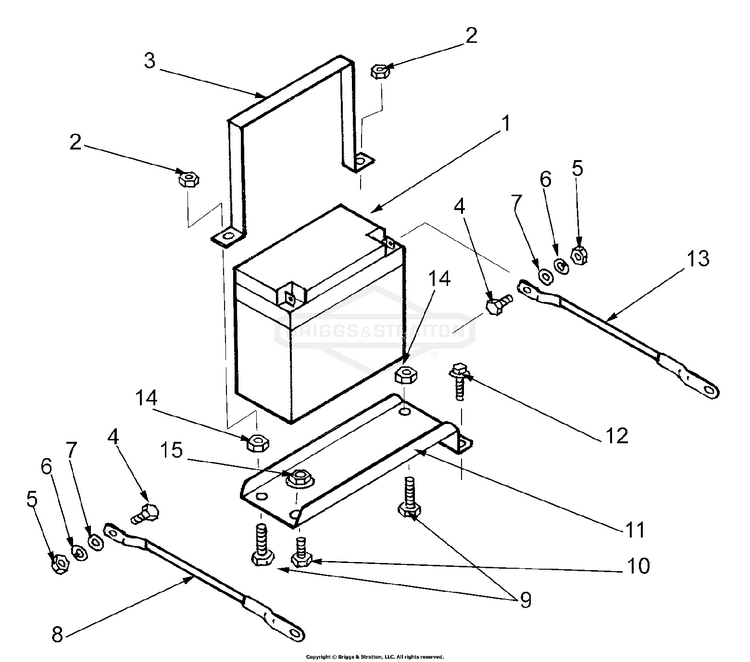

Engine Control Panel

...
...
1
BATTERY SEALED BS-102312GS
...
2
NUT NYLOCK M8-1.25 TYPE T BS-~NSP
...
3
BATTERY STRAP PPD5000E BS-102313GS
...
4
SCREW MACHINE PPHD M5-0.8*16MM BS-~NSP
...
5
NUT FULL M5-0.8MM PLATED BS-~NSP
...
6
WASHER FLAT M5 BS-~NSP
...
7
WASHER SHAKEPROOF M5 EXT BS-~NSP
...
8
BATTERY LEAD -VE 535MM BS-102946GS
...
9
SCREW SET HHD M8-1.25 X 30MM BS-~NSP
...
10
SCREW MACHINE HHD M8-1.25*16MM BS-~NSP
...
11
BATTERY TRAY BS-102315GS
...
12
SCREW SELF DRILL 5.5*1.8*20MM BS-~NSP
...
13
BATTERY LEAD +VE 500MM BS-102316GS
...
14
NUT FULL M8-1.25 BS-~NSP
...
15
NUT FLANGE M8-1.25 BS-~NSP

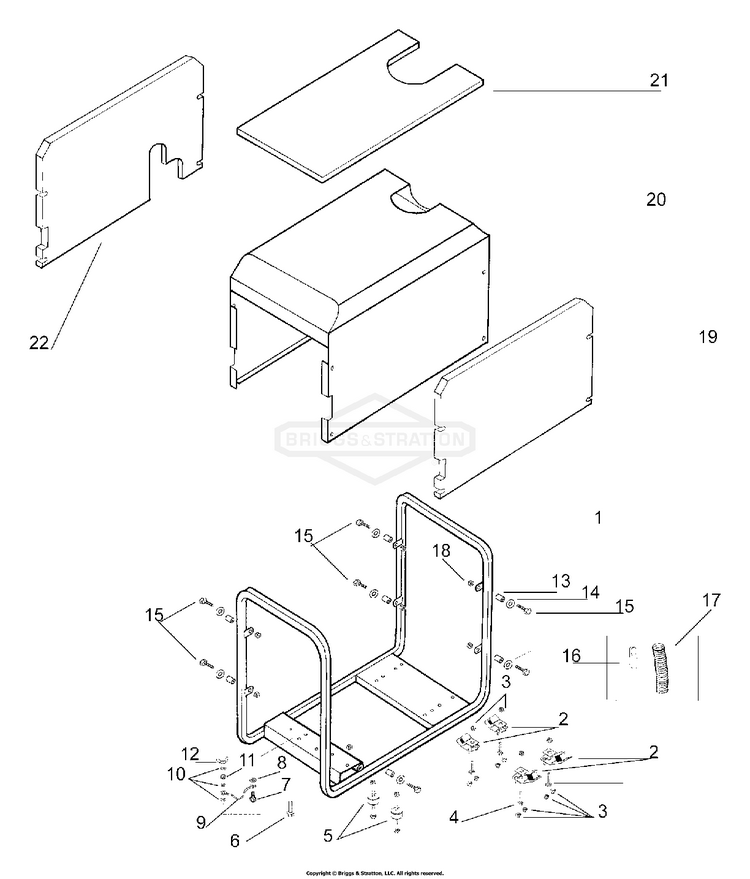

Frame And Fittings

...
...
1
CRADLE PD5000 BS-102936GS
...
2
VIBRATION MOUNT 45 DEGREE HARD BS-102031GS
...
3
NUT FLANGE M8-1.25 BS-~NSP
...
4
SCREW SET BS-~NSP
...
5
VIBRATION MOUNT 32MM DIAMETER BS-102034GS
...
6
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
7
SCREW SET M8-1.25X12 PLATED BS-~NSP
...
8
WASHER SHAKEPROOF 1/4" & M6 INT BS-~NSP
...
9
LEAD EARTH ASSY 145MM BS-102050GS
...
10
WASHER SHAKEPROOF M8 INT BS-~NSP
...
11
NUT FULL M6-1.0 BS-~NSP
...
12
NUT WING M6-1.0 BS-102036GS
...
13
SPACER M6 * 20MM PLASTIC BS-102929GS
...
14
WASHER REPAIR 6X20 OXY BLACK BS-102042GS
...
15
BOLT M6-1.0X35MM BLACKENED BS-102123GS
...
16
CLIP, P TYPE 32MM BS-103289GS
...
17
DUCTING, FLEXIBLE (0.18M) BS-103288GS
...
18
NUT NYLOCK M6-1.0 BS-~NSP
...
19
FOAM ACOUSTIC BS-102940GS
...
20
CANOPY PD5000 BS-102937GS
...
21
FOAM ACOUSTIC BS-102939GS
...
--
DECAL GND (Not Illustrated) BS-102048GS
...
22
FOAM ACOUSTIC BS-102938GS
...
--
DECAL, PRODIESEL 4000E (Not Illustrated) BS-103240GS
...
--
DECAL CAUTION HOT (Not Illustrated) BS-102041GS
...
--
DECAL ELECTRICAL HAZARD (Not Illustrated) BS-102076GS
...
--
DECAL WARNING READ MANUAL (Not Illustrated) BS-102077GS
...
--
OWNERS MANUAL EURO-25L PORTABLE GENERATOR (Not Illustrated) BS-MS5796

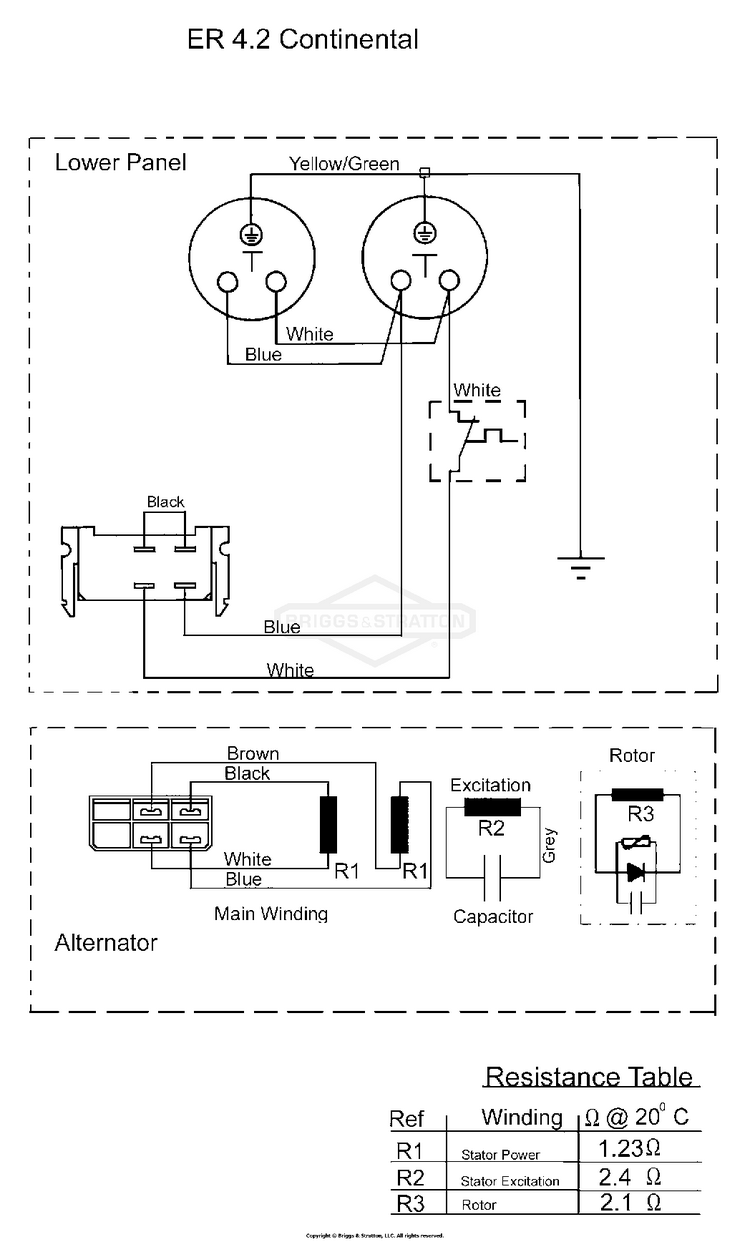

Panel Wiring Diagram

...

No Parts Available for this Schematic
