030253-0 Briggs and Stratton Generator 5,550 Watt

Model: 030253-0

Back To Assemblies

Save Part Not Listed?
product name

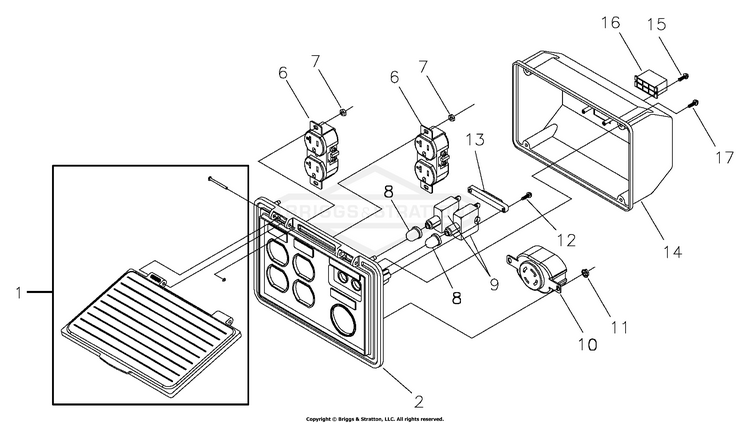

Control Panel

...
...
1
KIT, Control Panel Lid BS-195112GS
...
2
CONTROL PANEL, Compact BS-188889GS
...
6
OUTLET, 120V, 20A, Duplex BS-68759GS
...
8
CAP, Breaker, Circuit BS-84198GS
...
9
BREAKER-CIRCUIT 20A BS-209872GS
...
10
OUTLET, 120/240V Locking, 30A BS-43437GS
...
13
BAR, Retaining BS-93857GS
...
14
COVER, Back, Control Panel BS-188890GS
...
15
SCREW, Self Tapping, STC 3 x 18 BS-82308GS
...
16
HOUSING, Receptacle BS-22694GS
