030219-0 Briggs and Stratton Generator 5,000 Watt

Model: 030219-0

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Alternator (191750)

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-191685GS
...
3
STATOR BS-191686AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
HHCS, M6 - 1.0 x 115 SEMS BS-86308GS
...
6
ASSY, Holder, Rectifier/Brush BS-91825GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
RECEPTACLE, 6 pin BS-22694GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS
...
10
ASSY,Wire, Ground BS-193428AGS
...
13
HARNESS,Wire, Power BS-194274GS
...
14
BEARING BS-65791GS

Control Panel (200432)

...
...
1
PANEL, Control BS-196898GS
...
2
COVER, Outlet Flip BS-197004GS
...
3
COVER, Back Panel BS-188890GS
...
4
OUTLET, 120V, 15/20A Dplx BS-197731GS
...
5
NUT, 5/32 Pal BS-189165GS
...
6
LIGHT, Led Panel BS-202951GS
...
7
SCREW, 3 x 6,Tapping BS-197958GS
...
8
CAP, Breaker BS-84198GS
...
9
BREAKER-CIRCUIT 20A BS-209872GS
...
10
BAR, Retaining BS-197805GS
...
12
SCREW, 3.5 x 14,Tapping BS-192241GS
...
13
HOUSING, Rcptcl, 6 Pin BS-22694GS
...
14
SCREW, 3 x 18,Tapping BS-82308GS

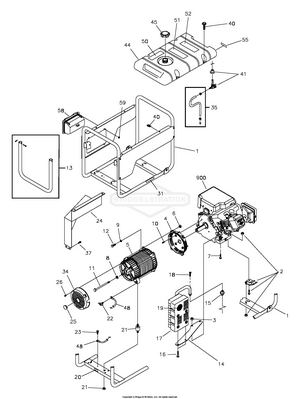

Main Unit (200246)

...
...
1
ASSY, Cradle BS-200403GS
...
2
KIT, Vibration, Mount, 45° BS-194150GS
...
3
NUT, M8 Flange Serrated BS-67989GS
...
4
HOUSING, Engine Adapter BS-186058AGS
...
5
ASSY, Alt (see "Alternator") BS-~NSP
...
8
WASHER, M8 Flat BS-96796GS
...
11
HHCS, 5/16-24 x 7-7/8" BS-24823GS
...
13
KIT, Handle BS-200404GS
...
14
BRACKET, Muffler BS-191785GS
...
15
GASKET-EXHAUST BS-692237
...
17
MUFFLER BS-188301GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
DECAL, Ground, Green BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
SCREW,Wing M6 - 1.0 x 16 BS-86494GS
...
23
SCREW BS-313085GS
...
24
SHIELD, Heat BS-198037GS
...
25
CAP BS-191190GS
...
26
SCREW, M5-0.8 x 10,Taptite BS-74908GS
...
31
DECAL, Exhaust Warning BS-196830GS
...
34
COVER, Bearing Carrier with Cap BS-195422GS
...
35
KIT, Fuel Hose, Formed BS-195207GS
...
37
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
40
KIT, Fuel Tank Hrdwr w/U-Clips BS-199433GS
...
U-CLIPS (Optional Accessory) BS-199284GS
...
41
KIT,Valve, Fuel Tank BS-192980GS
...
44
ASSY,Tank, Fuel (Includes Items 41, 50, 51, 52 & 55) BS-198226GS
...
45
CAP, Fuel BS-90878GS
...
48
WIRE, Ground BS-195373GS
...
50
DECAL, Gas Fill BS-188333GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Start Instructions BS-189235GS
...
55
DECAL, Shut-Off, Fuel BS-197798GS
...
58
ASSY, Control Panel (see "Control Panel") BS-200430GS
...
MANUAL, Operator's Not Illustrated BS-199824GS
...
BOTTLE, Oil Not Illustrated BS-100005
...
DECAL, Family, CA EVP Not Illustrated BS-199384GS
...
CORD, Power Not Illustrated BS-206775GS
...
KIT, Decals Not Illustrated BS-200405GS
...
Front Draw Bar w/Spindles-RH Side Optional Accessories BS-100126

Wheel Kit (197596)

...
...
1
WHEEL BS-209322GS
...
2
AXLE BS-191267NGS
...
3
E-RING BS-703977
...
5
SUPPORT, Wheel Kit BS-B1764GS
...
6
NUT, M8 Flange Serrated BS-67989GS

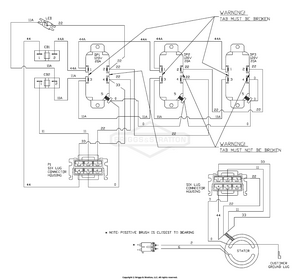

Wiring Diagram (200431)

...

No Parts Available for this Schematic

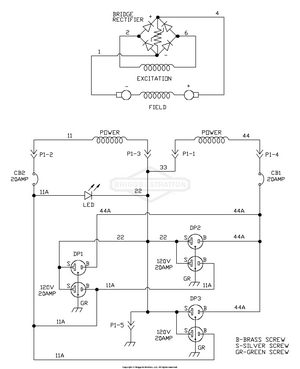

Wiring Schematic (200431)

...

No Parts Available for this Schematic
