030207-0 Briggs and Stratton Generator 10,000 Watt

Model: 030207-0

Save Part Not Listed?
product name

Alternator (200891)

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-191952GS
...
3
STATOR BS-191953GS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
6
BOLT BS-66449LGS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
BRUSH ASSEMBLY BS-66386GS
...
9
REGULATOR, Voltage BS-205858GS
...
10
PIN BS-81917GS
...
11
BEARING BS-65791GS

Control Panel (200889)

...
...
1
PANEL, Control BS-199022BNGS
...
2
BOX, Control Panel BS-201864GS
...
7
OUTLET, 12V DC Snap BS-90418GS
...
8
BREAKER, Circuit, 40A, 2P BS-191480BGS
...
9
BREAKER, Circuit, 30A, 2P BS-191480AGS
...
10
SWITCH, On/Off BS-82538GS
...
11
SWITCH, On/Off BS-78653GS
...
16
OUTLET, 125/250V 50A BS-B4262GS
...
17
BREAKER-CIRCUIT 20A BS-209872GS
...
18
OUTLET, 120/240V, TL30A BS-43437GS
...
19
OUTLET-120V TL30A BS-705932
...
20
OUTLET, 120V, 20A BS-74190GS
...
21
OUTLET, 120V, 20A, Duplex BS-68759GS
...
23
BOARD, Idle Control BS-195406GS
...
24
STANDOFF, Hex, 3/4" BS-64525GS
...
25
GROMMET BS-62265GS
...
26
TERMINAL, Block BS-92953GS
...
28
TRANSFORMER, Idle Control BS-84028GS
...
31
BREAKER, Circuit, 10A BS-87962GS
...
32
RELAY BS-77314GS
...
33
BOOT, Rubber Wire Outlet BS-188632GS
...
34
TUBING BS-194273GS
...
35
STRIP, Dual Row, TPA, 6 Circuit BS-199532GS
...
36
CONNECTOR BS-199528GS

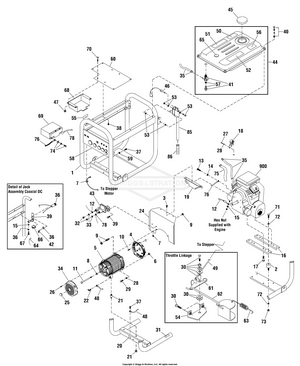

Main Unit (200888)

...
...
1
KIT, Cradle (Includes Ref. Nos. 20, 31 & 55) BS-M200968GS
...
2
MOUNT, Vibration BS-38353GS
...
3
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
4
ADAPTER, Engine BS-190220GS
...
7
GROMMET BS-62265GS
...
8
WASHER, 8.4 x 22.2 x 3 BS-96796GS
...
9
KIT, Alt to Heat Shield Hardware BS-194208GS
...
10
BOLT, Shoulder, 3/8-16 x 1" BS-190274BGS
...
11
CAPSCREW, Hex Head, 5/16-24 x 10.28 BS-187365DGS
...
12
ASM WIRE, #16, Red BS-189302SGS
...
16
SUPPORT, Engine BS-M77304GS
...
17
SCREW-HEX WSHR HD TAP BS-2828635SM
...
18
ASSY, Stepper Motor BS-195404GS
...
19
SUPPORT, Heatshield BS-J93074GS
...
20
DECAL, Ground BS-B4986GS
...
21
KIT, Vibration Mount BS-194155GS
...
22
SCREW, Wing, M6 - 1.0 x 16 BS-86494GS
...
23
SCREW BS-313085GS
...
24
HEAT SHEILD ASSEMBLY BS-194951GS
...
25
CAP BS-191190GS
...
26
TAPTITE, M5 - 0.8 x 10 BS-74908GS
...
30
KIT, Hardware, Throttle Linkage BS-194543GS
...
31
DECAL, Exhaust Warning BS-200310GS
...
34
COVER, RBC Plastic w/ Cap BS-195422GS
...
35
LINE, Fuel BS-791745
...
36
ASSY, Jack Coaxial BS-201348GS
...
37
SCREW, Self Driller, 12-14 x 7/8 BS-B2153GS
...
38
SCREW, Thread Forming, 12-24 x 1/2 BS-192376GS
...
39
SCREW, HEX, 1/4-20X.5 BS-704130
...
40
KIT, Hardware, Fuel Tank (Includes Qty 4) BS-198221GS
...
41
VALVE, Fuel BS-310574GS
...
42
LUG, 1/4 BS-192351GS
...
43
SOLENOID, Starter BS-691656
...
44
FUEL TANK ASSEMBLY (Includes Ref. Nos. 41, 50, 51, 52, 56 & 65) BS-202954GS
...
45
CAP, Tank Fuel BS-189135GS
...
46
PIN, Handle Release BS-B4135GS
...
47
LOCKNUT, M6 BS-77395GS
...
48
WIRE, Ground BS-195373GS
...
49
LINKAGE, Stepper Motor to Bell Crank BS-95920GS
...
50
DECAL, Instruction, Fuel BS-188333GS
...
51
DECAL, Warning BS-194984GS
...
52
DECAL, Operating Instructions BS-94480GS
...
53
KIT, Hardware, Fold Down Handle BS-194034GS
...
54
PLATE, Adjust BS-95349GS
...
55
DECAL, Fuel Shutoff BS-197797GS
...
56
DECAL, Warning, CO BS-202997GS
...
57
VALVE, Fuel BS-310574GS
...
58
CONTROL PANEL BS-200326GS
...
60
SUPPORT, Tray Battery BS-193512GS
...
61
BRACKET, Bell Crank BS-95348GS
...
62
LINKAGE, Bell Crank to Throttle BS-95921GS
...
63
SPRING BS-96717GS
...
64
ASM WIRE, #13, Red BS-198871HGS
...
65
GAUGE, Gas BS-192724GS
...
66
SWITCH, Rocker BS-87799GS
...
67
SCREW, M6-1 x 12, Taptite BS-90388GS
...
68
TRAY, Battery BS-195680GS
...
69
BATTERY BS-193043GS
...
74
KIT, Hardware, Battery BS-193347GS
...
75
SHIELD, Heat BS-280866
...
76
ASM WIRE, #55 Black BS-185939TGS
...
78
ASM WIRE, #13 Red BS-189302RGS
...
85
HANDLE, Fold Down BS-B193200GS
...
86
GRIP, Handle BS-198669GS
...
--
MANUAL, Operator’s (Not Illustrated) BS-200079GS
...
--
BOTTLE, Oil (Not Illustrated) BS-BB3061GS
...
--
BOTTLE, Oil (Not Illustrated) BS-100005
...
--
CHARGER, Battery (Not Illustrated) BS-84002790
...
--
COVER, Storage (Not Illustrated) BS-B4767GS
...
--
DECAL, Family, CA EVP (Not Illustrated) BS-202179GS
...
--
KIT, Decal Service (Not Illustrated) BS-202950GS
...
--
PLUG, 120/240V, 30A 4P (Not Illustrated) BS-43438GS
...
--
PLUG, 125V, 30A 3P (Not Illustrated) BS-100523GS
...
--
PLUG, 125V, 20A (Not Illustrated) BS-93568GS
...
--
CABLE, Battery Charge (Not Illustrated) BS-65787GS
...
--
SCREW (Not Illustrated) BS-690661
...
--
ARRESTOR, Spark (Not Illustrated) BS-794945
...
--
MUFFLER ASSEMBLY (Not Illustrated) BS-692099
...
--
BRACKET, Muffler (Not Illustrated) BS-691513
...
--
SCREW (Not Illustrated) BS-692056
...
--
CLAMP, Muffler (Not Illustrated) BS-690898
...
--
SCREW (Not Illustrated) BS-841233

Wheel Kit (200892)

...
...
1
AXLE BS-191267JGS
...
2
WHEEL BS-209636GS
...
3
E-RING BS-703977
...
5
SUPPORT, Leg BS-203977GS
...
--
KIT, Hardware, Wheel (Not Illustrated) BS-200913GS

Wiring Diagram (199939WD)

...

No Parts Available for this Schematic

Wiring Schematic (199939WS)

...

No Parts Available for this Schematic
