020675-00 Briggs and Stratton Pressure Washer PRO3600

Model: 020675-00

Back To Assemblies

Save Part Not Listed?
product name

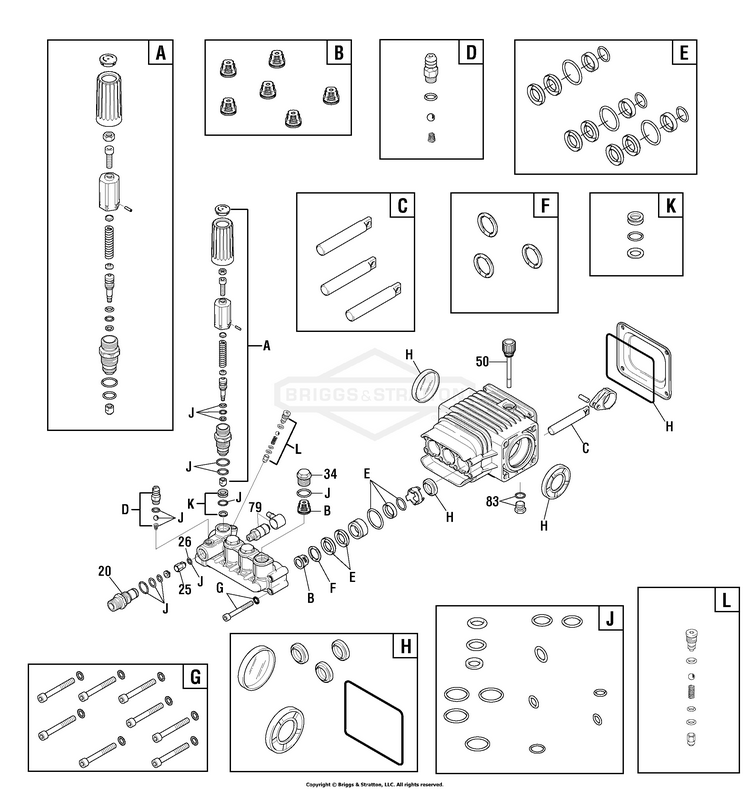

Pump (80016408)

...
...
20
INJTR, Detergent 3/8 NPT BS-198851GS
...
25
JET BS-204860GS
...
26
O-RING BS-204859GS
...
34
PLUG BS-317334GS
...
50
CAP, Oil Dipstick BS-198849GS
...
79
VALVE, Thermal Relief BS-208673GS
...
83
PLUG-DRAIN BS-203034GS
...
A
KIT, Unloader BS-198736GS
...
B
KIT-CHECK VALVE BS-317335GS
...
C
KIT, Piston BS-198844GS
...
D
KIT, Hose Tail BS-192914GS
...
E
KIT, Water Seals BS-198845GS
...
F
KIT, Support Ring BS-198848GS
...
G
KIT, Pump Head Hardware BS-198852GS
...
H
KIT, OIL Seals BS-198846GS
...
J
KIT, O-Rings BS-198847GS
...
K
KIT, Seat BS-202902GS
...
L
KIT, Ez Start BS-202800GS
...
--
FILTER, Inlet (Not Illustrated) BS-B2384GS
...
--
PUMP SAVER (Optional Accessory) BS-6039
