product name

020570-02 Briggs and Stratton Pressure Washer 3,000 PSI Power Flow Plus

Model: 020570-02

Save
 Part Not Listed?Part Not Listed?
product name

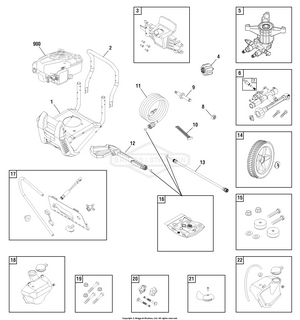

Main Unit (80014381)

...
...
1
BASE BS-705835
...
2
HANDLE BS-705844
...
3
BILLBOARD BS-705842
...
--
CLIP BS-B1797GS
...
4
NOZZLE BS-317402GS
...
5
PUMP BS-705837
...
--
VALVE-THERMAL RELIEF BS-208673GS
...
6
POWERFLOW BS-707864
...
--
NUT BS-705969
...
--
FILTER-GARDEN HOSE BS-705974
...
7
CHEM INJECT BS-707408
...
8
NUT, 3/8-16 BS-703347
...
9
AXLE BS-315134GS
...
10
STRAP BS-705846
...
11
HOSE BS-706833
...
12
GUN BS-708808
...
13
WAND-QC BS-706595
...
14
WHEEL BS-705836
...
--
HUBCAP BS-705847
...
15
MOUNT-VIBRATION BS-192310GS
...
16
KIT-O-RING BS-705001
...
17
PANEL-FRONT ASSY BS-705862
...
--
PANEL BS-705863
...
--
VALVE BS-315087GS
...
--
KNOB BS-315084GS
...
--
BUSHING BS-705871
...
--
DC JACK BS-705071
...
--
COVER-RUBBER BS-312687GS
...
18
TANK-CHEMICAL, LH BS-705865
...
--
DRAIN BS-705840
...
--
CAP BS-705849
...
19
KIT-HARDWARE PUMP MOUNTING BS-315139GS
...
20
KIT-HARDWARE HANDLE BS-705848
...
21
DEFLECTOR-EXHAUST BS-705856
...
22
TANK-CHEMICAL, RH BS-705841
...
--
DRAIN BS-705840
...
--
BUSHING BS-705871
...
--
CAP BS-705849
...
--
KEY (Not Illustrated) BS-23139GS
...
--
E-RING (Not Illustrated) BS-704293
...
--
DECAL-CHEM WARNING (Not Illustrated) BS-705852
...
xx
BATTERY (Not Illustrated) BS-707495
...
--
100005 OIL 18OZ. (EA) (Not Illustrated) BS-100005WEB
...
--
HOSE-CHEMICAL (Not Illustrated) BS-705850
...
--
PLUG-HOLE (Not Illustrated) BS-189332GS
...
--
DECAL-SPARK (Not Illustrated) BS-705851
...
--
TAG-HANG, QUICKSTART (Not Illustrated) BS-705853
...
--
TAG-HANG, WARNING (Not Illustrated) BS-705866
...
--
PUMP SAVER (Optional Accessory - Not Included) BS-6039
...
--
SPARK ARRESTER (Optional Accessory - Not Included) BS-593483

Pump (316932)

...
...
1
SCREW BS-204087GS
...
44
FILTER, Garden Hose BS-B2384GS
...
46
FITTING, Outlet BS-204083GS
...
64
VALVE, Thermal Relief BS-208673GS
...
A
*KIT, Check Valve BS-204082GS
...
B
* KIT, Plug BS-317056GS
...
C
* KIT, Water Seals BS-204084GS
...
D
*KIT, Chemical Injector BS-317787GS
...
E
KIT, EZ START BS-200349GS
...
F
*KIT, O-Ring BS-317843GS
...
G
* KIT, Grub Screw & Washer BS-200350GS
...
H
* KIT, Unloader BS-706610
...
J
* KIT, Water Inlet BS-204085GS
...
--
PUMP Saver (Optional Item Not Included) BS-6039
...
--
PERFECT MIX MULTI-PURPOSE WASH (Optional Item Not Included) BS-6059
...
--
Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner (Optional Item Not Included) BS-6160
...
...
...
