product name

020478-0 Briggs and Stratton Pressure Washer 3,200 PSI

Model: 020478-0

Save
 Part Not Listed?Part Not Listed?
product name

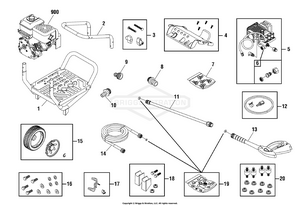

Main Unit (315277)

...
...
1
BASE BS-315563GS
...
2
HANDLE BS-201499BSGS
...
3
KIT, Hardware, Handle BS-B2203GS
...
4
BILLBOARD BS-315269GS
...
--
CLIPS BS-B1797GS
...
5
PUMP BS-314816GS
...
--
VALVE, Thermal Relief BS-208673GS
...
--
CONNECTOR BS-314605GS
...
6
ADAPTER, Garden Hose BS-199310GS
...
7
KIT, QC Nozzles BS-315280GS
...
--
NOZZLE, QC Red BS-195983SGS
...
--
NOZZLE, QC Yellow BS-195983TGS
...
--
NOZZLE, QC Green BS-195983UGS
...
--
NOZZLE-QC WHITE BS-195983VGS
...
--
NOZZLE, QC Black BS-198841GS
...
8
FITTING, 3/4 BS-192015GS
...
9
Garden Hose Quick Connect BS-7175187GS
...
10
FITTING, 1/2 BS-192014GS
...
11
EXTENSION-QC BS-707471
...
12
HOSE, Chemical BS-192796GS
...
13
GUN BS-704312
...
14
HOSE BS-209283GS
...
15
KIT, Wheel BS-203083GS
...
--
HUBCAP BS-200520GS
...
--
RETAINER, RING, 1/2 BS-703976
...
16
KIT, Hardware, Pump Mounting BS-202771GS
...
17
WIREFORM BS-201661GS
...
18
KIT, Vibration Mount BS-209884GS
...
19
KIT-O-RING BS-705001
...
20
KIT, Vibration Mount BS-192134GS
...
--
MANUAL, Operator (Not Illustrated) BS-315274GS
...
--
100005 OIL 18OZ. (EA) (Not Illustrated) BS-100005WEB
...
--
AXLE (Not Illustrated) BS-201314GS
...
--
KNOB, Control (Not Illustrated) BS-695755
...
--
KEY (Not Illustrated) BS-23139DGS
...
--
DECAL, Recoil (Not Illustrated) BS-276928
...
--
DECAL, Engine (Not Illustrated) BS-202517GS
...
--
DECAL, Air Cleaner (Not Illustrated) BS-202518GS
...
--
TAG, Warning (Not Illustrated) BS-200171GS
...
--
PUMP SAVER (Optional Accessory) BS-6039

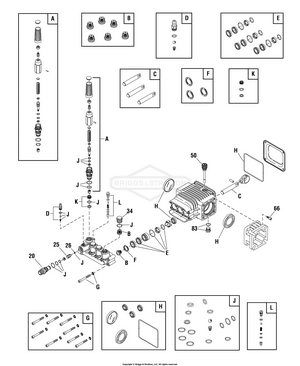

Pump (202302)

...
...
20
INJECTER-DETERGENT BS-198851GS
...
25
JET BS-204860GS
...
26
O-RING BS-204859GS
...
34
CAP-CHECK VALVE BS-198850GS
...
50
DIPSTICK BS-198849GS
...
66
SCREW BS-198297GS
...
83
PLUG-DRAIN BS-203034GS
...
A
* KIT, Unloader BS-198736GS
...
B
* KIT, Check Valve BS-198843GS
...
C
* KIT, Piston BS-198844GS
...
D
* KIT, Chemical Injection BS-192914GS
...
E
* KIT, Water Seal BS-198845GS
...
F
* KIT, Support Ring BS-198848GS
...
G
* KIT, Hardware BS-198852GS
...
H
* KIT, Oil Seals BS-198846GS
...
J
* KIT, O-Ring BS-198847GS
...
K
* KIT, Unloader Seat BS-202902GS
...
L
* KIT, Unloader BS-202800GS
...
--
FILTER, Garden Hose (Not Illustrated) BS-B2384GS
...
--
PUMP SAVER (Optional Accessory) BS-6039
...
--
OIL (Optional Accessory) BS-6033
...
...
...
