020462-0 Briggs and Stratton Pressure Washer 2,700 PSI

Model: 020462-0

Save
 Part Not Listed?Part Not Listed?
product name

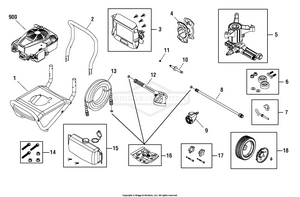

Main Unit (313760)

...
...
1
BASE BS-313617GS
...
2
HANDLE BS-204257BRGS
...
3
BILLBOARD BS-313751GS
...
--
CLIP BS-B1797GS
...
4
WRAP, Hose BS-204684GS
...
5
PUMP BS-314441GS
...
6
MOUNT, Vibration BS-192310GS
...
7
GUIDE, Rope BS-205912GS
...
8
WAND-QC BS-706595
...
9
NOZZLE-QC BS-314509GS
...
10
AXLE BS-313032GS
...
11
NUT, 3/8-16 BS-703333
...
12
GUN BS-84003228
...
13
HOSE BS-202017GS
...
14
KIT, Hardware, Pump Mounting BS-203526GS
...
15
TANK, Chemical BS-205369GS
...
--
KIT, Valve BS-310333GS
...
--
CLIP BS-B1797GS
...
--
CAP, Chemical Tank BS-B3222EGS
...
16
KIT-O-RING BS-705001
...
17
KIT, Hardware, Handle BS-205910GS
...
18
KIT, Wheel BS-203083GS
...
--
HUBCAP BS-200520GS
...
--
RETAINER, RING, 1/2 BS-703976
...
--
MANUAL, Operator's (Not Illustrated) BS-313757GS
...
--
DECAL, Shroud (Not Illustrated) BS-311607GS
...
--
DECAL, Caution (Not Illustrated) BS-200672GS
...
--
PLUG, Hole (Not Illustrated) BS-189332GS
...
--
KEY (Not Illustrated) BS-23139GS
...
--
100005 OIL 18OZ. (EA) (Not Illustrated) BS-100005WEB
...
--
HOSE-CHEMICAL (Not Illustrated) BS-705076
...
--
HOSE, Chemical (Not Illustrated) BS-A1040NGS
...
--
TAG, Warning (Not Illustrated) BS-195015GS
...
--
PUMP SAVER (Optional Accessory) BS-6039

Pump (313704)

...
...
14
SEAT BS-706608
...
33
SCREW BS-204087GS
...
36
FILTER, Garden Hose BS-B2384GS
...
62
VALVE, Thermal Relief BS-208673GS
...
63
THROTTLE CONTROL BS-312503GS
...
A
* KIT, Check Valve (Refer to Footnote *) BS-317897GS
...
B
KIT. Water Seal (Refer to Footnote *) BS-204084GS
...
C
* KIT, O-Ring (Refer to Footnote *) BS-200346GS
...
D
KIT, UNLOADER (Refer to Footnote *) BS-772235
...
E
* KIT, Chemical Injection (Refer to Footnote *) BS-192914GS
...
F
* KIT, Easy Start (Refer to Footnote *) BS-200349GS
...
G
* KIT, Grub Screw & Washer (Refer to Footnote *) BS-200350GS
...
H
* FITTING (Refer to Footnote *) BS-201497GS
...
J
* KIT, Water Inlet (Refer to Footnote *) BS-201496GS
...
K
* KIT, Plug (Refer to Footnote *) BS-317057GS
...
--
PUMP Saver (Optional Accessory) BS-6039
...
--
PERFECT MIX MULTI-PURPOSE WASH (Optional Accessory) BS-6059
...
xx
Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner (Optional Accessory) BS-6160
...
--
OIL BOTTLE (Optional Accessory) BS-6033
...
...
...
