020391-0 Briggs and Stratton Pressure Washer 2,200 PSI Task Force

Model: 020391-0

Save Part Not Listed?
product name

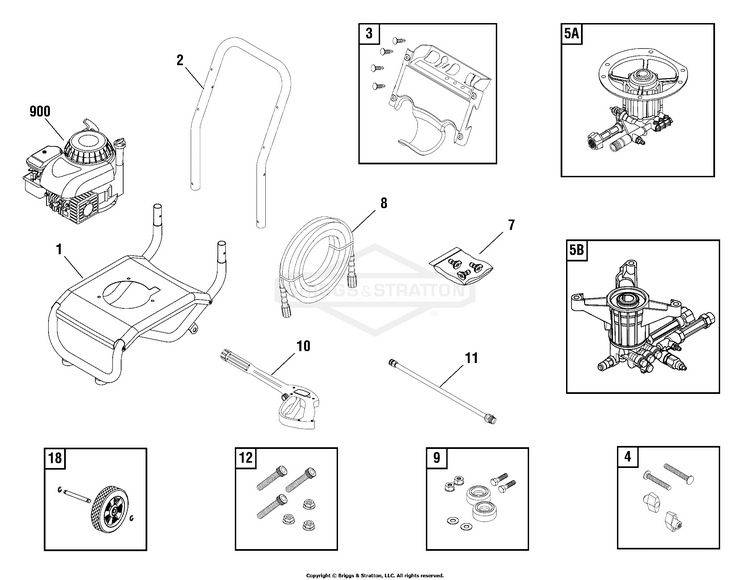

Main Unit (208723)

...
...
1
BASE, w/Mounts BS-209398GS
...
2
HANDLE BS-S199110GS
...
3
BILLBOARD, w/Decals & Clips BS-209400GS
...
--
CLIPS, Tree BS-195964GS
...
4
KIT, Handle Connector BS-B2203GS
...
5A
PUMP, Complete (NLA - Order Ref. No. 5B) BS-206383GS
...
5B
PUMP BS-706384
...
7
KIT, Spray Tips BS-201324GS
...
--
NOZZLE, Plastic, Soap BS-198841GS
...
--
NOZZLE, QC, Red BS-195983AEGS
...
--
NOZZLE, QC, Green BS-195983QGS
...
8
HOSE ASSEMBLY BS-84006753
...
9
KIT, Vibration Mount BS-192310GS
...
10
GUN BS-84003228
...
11
WAND-QC BS-706595
...
12
KIT, Pump Mounting Hardware BS-192525GS
...
18
KIT, Wheel BS-209402GS
...
--
RETAINER, RING, 1/2 BS-703976
...
--
AXLE BS-203873GS
...
--
TAG-WARNING (Not Illustrated) BS-705752
...
--
DECAL, Warning (Not Illustrated) BS-794693
...
--
SHROUD (Not Illustrated) BS-282599
...
--
DECAL, Recoil (Not Illustrated) BS-200658GS
...
--
DECAL, Shroud (Not Illustrated) BS-208692GS
...
--
BOTTLE, Oil (Not Illustrated) BS-100005
...
--
KIT-O-RING (Optional Accessory) BS-705001
...
--
KIT, O-Ring Maintainence (Optional Accessory) BS-6039

Pump Service Parts (206383GS)

...
...
5A
PUMP (NLA) BS-206383GS
...
6
Key BS-23139GS
...
7
Valve, Thermal Relief BS-208673GS
...
8
Kit, Chemical Injection BS-200279GS
...
9
Filter, Inlet BS-B2384GS
...
10
Kit, Water Inlet BS-200278GS
...
11
Kit, Chemical Hose BS-189971GS
