020250-0 Briggs and Stratton Pressure Washer 2,550 PSI

Model: 020250-0

Save
 Part Not Listed?Part Not Listed?
product name

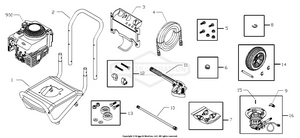

Main Unit

...
...
1
ASSY, Base BS-197081GS
...
2
HANDLE BS-M195428GS
...
3
ASSY, Billboard w/ Clips BS-196444GS
...
--
Clip BS-195964GS
...
4
HOSE ASSEMBLY BS-84006753
...
5
KIT, Pump Mounting Hardware BS-192645GS
...
6
GROMMET BS-30809GS
...
7
KIT, Nozzle, QC BS-195943GS
...
--
Nozzle, Plastic Soap BS-198841GS
...
--
NOZZLE, QC Red BS-195983AEGS
...
--
NOZZLE-QC YELLOW BS-195983XGS
...
--
NOZZLE, QC White BS-195983RGS
...
8
E-RING BS-703977
...
9
VALVE, Thermal Relief BS-208673GS
...
10
ASSY, Extension BS-190779GS
...
11
GUN BS-84003228
...
12
KIT, Handle Connector BS-B2203GS
...
13
KIT,Vibration Mount BS-192310GS
...
14
KIT,Wheel BS-197082GS
...
15
KEY BS-23139GS
...
16
ASSY, Pump (see "Pump") BS-198421GS
...
--
MANUAL, Operator's Not Illustrated BS-196408GS
...
--
MANUAL, Engine Not Illustrated BS-MS6847
...
--
TAG-WARNING Not Illustrated BS-705752
...
--
KIT, O-Ring Maintenance Not Illustrated BS-100516GS
...
--
AXLE Not Illustrated BS-191267MGS
...
--
BOTTLE, Oil Not Illustrated BS-100005
...
--
GOGGLES Not Illustrated BS-87815GS
...
--
Front Draw Bar w/Spindles-RH Side Optional Accessories BS-100126
...
--
PUMP SAVER Optional Accessories BS-6039

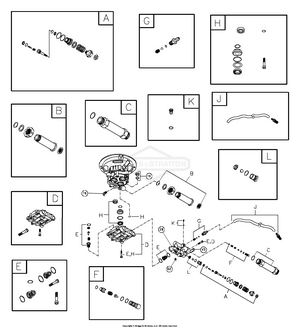

Pump

...
...
19
CAP, Oil BS-190571GS
...
28
MANIFOLD BS-190627GS
...
45
PIN BS-190578GS
...
62
CAP, 1/8 BS-190581GS
...
76
VALVE, Thermal Relief BS-208673GS
...
A
KIT, UNLOADER STEM Service kits include all parts shown within the box. BS-190594GS
...
B
KIT,WATER INLET,ALUM Service kits include all parts shown within the box. BS-190632GS
...
C
FITTING Service kits include all parts shown within the box. BS-201497GS
...
D
KIT, HEAD BRASS Service kits include all parts shown within the box. BS-193808GS
...
E
KIT, CHECK VALVES Service kits include all parts shown within the box. BS-193806GS
...
F
KIT, INLET CHECK Service kits include all parts shown within the box. BS-190592GS
...
G
KIT, CHEMICAL INJECTION Service kits include all parts shown within the box. BS-190593GS
...
H
KIT, SEAL SET Service kits include all parts shown within the box. BS-193807GS
...
J
KIT, CHEMICAL HOSE Service kits include all parts shown within the box. BS-189971GS
...
K
KIT, PIPE FITTING Service kits include all parts shown within the box. BS-193971GS
...
L
KIT, UNLOADER SEAT Service kits include all parts shown within the box. BS-193972GS
...
--
OIL BOTTLE Items Not Illustrated BS-190586GS
...
--
FILTER, Inlet Items Not Illustrated BS-B2384GS
...
--
FILTER, Inlet, Bag of 10 Items Not Illustrated BS-186452GS
...
...
...
