020228-1 Briggs and Stratton Pressure Washer 2,200 PSI

Model: 020228-1

Save
 Part Not Listed?Part Not Listed?
product name

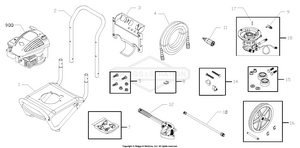

Main Unit

...
...
1
ASSY, Base BS-196438GS
...
2
HANDLE BS-S195428GS
...
3
KIT, Billboard with Clips BS-196456GS
...
CLIP BS-195964GS
...
4
HOSE ASSEMBLY BS-84006753
...
5
KIT, Pump Mounting Hardware BS-192525GS
...
7
KIT, Nozzles BS-195943GS
...
Nozzle, QC, Black BS-195846ZZGS
...
NOZZLE, QC Red BS-195983AEGS
...
NOZZLE-QC YELLOW BS-195983XGS
...
NOZZLE, QC White BS-195983RGS
...
8
RETAINER, RING, 1/2 BS-703976
...
9
VALVE, Thermal Relief BS-208673GS
...
10
ASSY, Wand BS-190779GS
...
11
TURBO BS-195854GS
...
12
GUN BS-84003228
...
14
KIT, Handle Connector BS-B2203GS
...
15
KIT, Vibration Mount BS-192310GS
...
16
KIT, Wheel BS-196439GS
...
17
KEY BS-23139GS
...
18
Assy, Pump (see "Pump") BS-206383GS
...
MANUAL, Operator's Items Not Illustrated BS-197196GS
...
MANUAL, Operator's Items Not Illustrated BS-277038WST
...
TAG-WARNING Items Not Illustrated BS-705752
...
DECAL, Warning Items Not Illustrated BS-275034
...
GROMMET Items Not Illustrated BS-30809GS
...
BOTTLE, Oil Items Not Illustrated BS-100005
...
GOGGLES Items Not Illustrated BS-87815GS
...
Front Draw Bar w/Spindles-RH Side Optional Accessories Not Illustrated BS-100126
...
KIT, O-Ring Optional Accessories Not Illustrated BS-100516GS
...
PUMP SAVER Optional Accessories Not Illustrated BS-6039

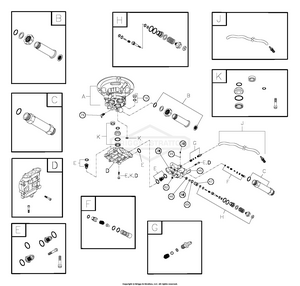

Pump

...
...
19
CAP, Oil BS-190571GS
...
28
MANIFOLD BS-190627GS
...
29
KIT, PIPE FITTING BS-193971GS
...
30
SCREW BS-198105GS
...
45
PIN BS-190578GS
...
46
VALVE, Seat Plate, Plastic BS-190629GS
...
47
VALVE, Seat, Plastic BS-190630GS
...
62
CAP, 1/8 BS-190581GS
...
68
KIT, UNLOADER SEAT BS-193972GS
...
69
KIT, UNLOADER SEAT BS-193972GS
...
76
VALVE, Thermal Relief BS-208673GS
...
A
ASSY, CASE,PISTON BS-~NSP
...
B
KIT,WATER INLET,ALUM Service kit includes all parts shown within the box. BS-190632GS
...
C
FITTING Service kit includes all parts shown within the box. BS-201497GS
...
D
KIT,HEAD Service kit includes all parts shown within the box. BS-198106GS
...
E
KIT,CHECK VALVES Service kit includes all parts shown within the box. BS-193806GS
...
F
KIT,INLET CHECK Service kit includes all parts shown within the box. BS-190592GS
...
G
KIT,CHEMICAL INJECTION Service kit includes all parts shown within the box. BS-190593GS
...
H
KIT,UNLOADER STEM Service kit includes all parts shown within the box. BS-190628GS
...
J
KIT,CHEMICAL HOSE Service kit includes all parts shown within the box. BS-189971GS
...
K
KIT,SEAL SET Service kit includes all parts shown within the box. BS-197309GS
...
OIL BOTTLE Parts Not Illustrated BS-190586GS
...
FILTER, Inlet Parts Not Illustrated BS-B2384GS
...
FILTER, Inlet, Bag of 10 Parts Not Illustrated BS-186452GS
...
...
...
