020223-0 Briggs and Stratton Pressure Washer 2,400 PSI

Model: 020223-0

Save
 Part Not Listed?Part Not Listed?
product name

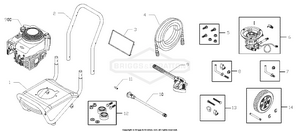

Main Unit

...
...
1
BASE BS-195339GS
...
2
HANDLE BS-B194718GS
...
3
ASSY, Billboard w/Decal BS-195052GS
...
4
HOSE ASSEMBLY BS-84006753
...
5
KIT, Pump Mounting Hardware BS-192529GS
...
6
PUMP BS-207365GS
...
xx
VALVE, Thermal Relief BS-208673GS
...
xx
Key BS-23139GS
...
7
KIT, Hook, Base BS-192309GS
...
8
KIT, Hook, Handle BS-194264GS
...
9
GUN BS-84003228
...
10
WAND-ADJUSTABLE BS-205015CGS
...
11
ORIFICE BS-21760GS
...
12
KIT, Vibration Mount BS-192310GS
...
13
KIT, Handle Connector BS-B2203GS
...
14
KIT, Wheel BS-194255GS
...
xx
Axle BS-192006GS
...
xx
RETAINER, RING, 1/2 BS-703976
...
xx
MANUAL, Operator's Not Illustrated BS-203761GS
...
xx
MANUAL, Engine Not Illustrated BS-MS6847
...
xx
Garden Hose Quick Connect Not Illustrated BS-7175187GS
...
xx
Garden Hose Quick Connect Not Illustrated BS-7175187GS
...
xx
KIT, Tag, Warning with Clip Not Illustrated BS-195347GS
...
xx
FITTING, Hose, 1/2 Not Illustrated BS-192014GS
...
xx
FITTING, Hose, 3/4 Not Illustrated BS-192015GS
...
xx
KIT-O-RING Not Illustrated BS-705001
...
xx
PUMP SAVER Optional Accessory BS-6039

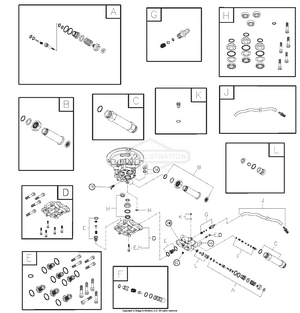

Pump

...
...
19
CAP, Oil BS-190571GS
...
28
MANIFOLD BS-190627GS
...
45
PIN BS-190578GS
...
62
CAP, 1/8 BS-190581GS
...
76
VALVE, Thermal Relief BS-208673GS
...
A
KIT, UNLOADER STEM Service kits include all parts shown within the box. BS-190594GS
...
B
KIT, WATER INLET, ALUM Service kits include all parts shown within the box. BS-190632GS
...
C
FITTING Service kits include all parts shown within the box. BS-201497GS
...
D
KIT, HEAD ALUMINIUM Service kits include all parts shown within the box. BS-203631GS
...
E
KIT, CHECK VALVES Service kits include all parts shown within the box. BS-193806GS
...
F
KIT, INLET CHECK Service kits include all parts shown within the box. BS-190592GS
...
G
KIT, CHEMICAL INJECTION Service kits include all parts shown within the box. BS-190593GS
...
H
KIT, SEAL SET Service kits include all parts shown within the box. BS-193807GS
...
J
KIT, CHEMICAL HOSE Service kits include all parts shown within the box. BS-189971GS
...
K
KIT, PIPE FITTING Service kits include all parts shown within the box. BS-193971GS
...
L
KIT, UNLOADER SEAT Service kits include all parts shown within the box. BS-193972GS
...
xx
FILTER, Inlet Not Illustrated BS-B2384GS
...
...
...
